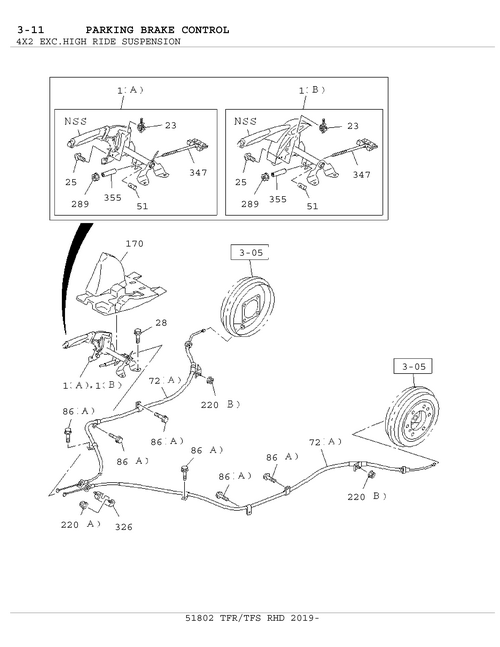

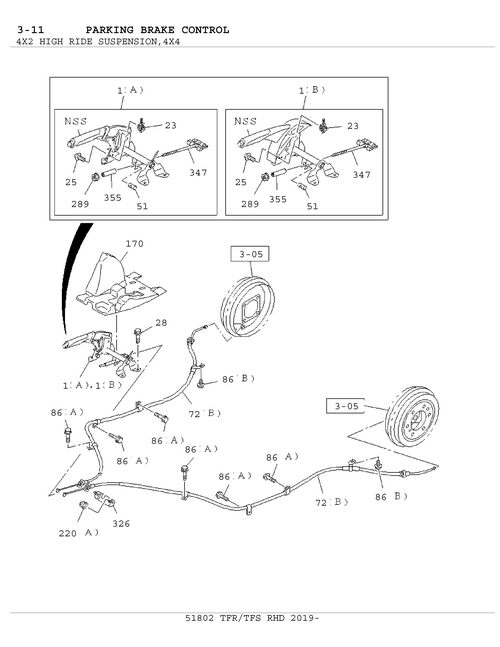

3-11 | PARKING BRAKE CONTROL
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 170 | I8-97948 802-0 | COVER; PARKING BRK LEVER | 1 | 1809- | R | BC EF | FRONT SEAT SPLIT BENCH<A | |
| 23 | I8-97947 494-0 | SWITCH; PARKING BRK | 1 | 1809- | ABCDEF | |||
| 86 | I0-28650 620-0 | BOLT | 6 | 1809- | ABCDEF | 03 .162 (A) M6X2 0 FLANGE | ||
| 72 | I8-98067 048-1 | CABLE; PARKING BRK | 1 | 1809- | R | DE | EXC. REAR SPRING HEAVY D (B) | |
| 220 | I0-91180 106-0 | NUT; CLIP,PARKING CONT CABLE | 2 | 1809- | ABC | EXC. HIGH RIDE SUSPENSIO 01.062 (B) M6 FLANGE | ||
| 51 | I8-97947 496-0 | PIN; JOINT,RELAY LEVER | 1 | 1809- | ABCDEF | |||
| 220 | I0-91180 108-0 | NUT; CLIP,PARKING CONT CABLE | 2 | 1809- | ABCDEF | 01.062 (A) M8 FLANGE | ||
| 72 | I8-98067 048-1 | CABLE; PARKING BRK | 1 | 1809- | R | AB | HIGH RIDE SUSPENSION(7YC EXC. REAR SPRING HEAVY D (B) | |
| 86 | I0-28050 812-0 | BOLT | 2 | 1809- | DEF | 02 .343 (B) M8X12 FLANGE | ||
| 289 | I8-98017 654-0 | NUT; PARKING BRK | 1 | 1809- | ABCDEF | 4785 | ||
| 72 | I8-98067 048-1 | CABLE; PARKING BRK | 1 | 1809- | R | F | EXC. AUSTRALIA EQUIPMENT NG EQUIPMENT(B14),SOFT R N SYSTEM<FE1>,REAR SPRIN G5 0),SINGAPORE EQUIPMENT (B) | |
| 28 | I0-28650 820-0 | BOLT; HAND BRK LEVER | 4 | 1809- | ABCDEF | 01 . 531 M8X20 FLANGE | ||
| 72 | I8-98067 049-1 | CABLE; PARKING BRK | 1 | 1809- | L | F | EXC. AUSTRALIA EQUIPMENT NG EQUIPMENT(B14),SOFT R N SYSTEM<FE1>,REAR SPRIN G5 0),SINGAPORE EQUIPMENT (B) | |
| 72 | I8-98067 049-1 | CABLE; PARKING BRK | 1 | 1809- | L | C | HIGH RIDE SUSPENSION(7YC EXC. AUSTRALIA EQUIPMENT NG EQUIPMENT(B14),SOFT R N SYSTEM<FE1>,REAR SPRIN G5 0),SINGAPORE EQUIPMENT (B) | |
| 72 | I8-98067 049-1 | CABLE; PARKING BRK | 1 | 1809- | L | DE | EXC. REAR SPRING HEAVY D (B) | |
| 86 | I0-28050 812-0 | BOLT | 2 | 1809- | AB | HIGH RIDE SUSPENSION(7YC 02 .343 (B) M8X12 FLANGE | ||
| 72 | I8-98067 048-1 | CABLE; PARKING BRK | 1 | 1809- | R | C | HIGH RIDE SUSPENSION(7YC EXC. AUSTRALIA EQUIPMENT NG EQUIPMENT(B14),SOFT R N SYSTEM<FE1>,REAR SPRIN G5 0),SINGAPORE EQUIPMENT (B) | |
| 86 | I0-28050 812-0 | BOLT | 2 | 1809- | C | SOFT RIDE SUSPENSION SYS HIGH RIDE SUSPENSION(7YC EXC. REAR SPRING HEAVY D TRONIC TRACTION CONTROL< 02 .343 (B) M8X12 FLANGE | ||
| 347 | I8-97947 495-0 | EQUALIZER; HAND BRK | 1 | 1809- | ABCDEF | |||
| 86 | I0-28050 812-0 | BOLT | 2 | 1809- | C | SOFT RIDE SUSPENSION SYST ELECTRONIC TRACTION CONT EXC. REAR SPRING HEAVY D 02 .343 (B) M8X12 FLANGE | ||
| 72 | I8-98067 049-1 | CABLE; PARKING BRK | 1 | 1809- | L | AB | HIGH RIDE SUSPENSION(7YC EXC. REAR SPRING HEAVY D (B) | |
| 326 | I8-98134 214-1 | RETAINER; PARK CABLE | 1 | 1809- | ABCDEF | |||
| 25 | I8-97103 556-0 | SCREW; SW,PARKING BRK | 1 | 1809- | ABCDEF | |||
| 1 | I8-98160 175-1 | STEM ASM; PARKING BRK | 1 | 1809- | BC EF | FRONT SEAT SPLIT BENCH<A (A) | ||
| 86 | I0-28050 812-0 | BOLT | 2 | 1809- | C | HIGH RIDE SUSPENSION(7YC EXC. SOFT RIDE SUSPENSIO 02 .343 (B) M8X12 FLANGE | ||
| 355 | I8-97947 497-0 | SPACER; HAND BRK LEVER | 1 | 1809- | ABCDEF | |||
| 1 | I8-98061 827-0 | STEM ASM; PARKING BRK | 1 | 1809- | BC EF | FRONT SEAT BUCKET POWER A RONT SEAT BUCKET MANUAL H R9 >,FRONT SEAT BUCKET ST (B) | ||
| 1 | I8-98061 827-0 | STEM ASM; PARKING BRK | 1 | 1809- | A D | (B) |
