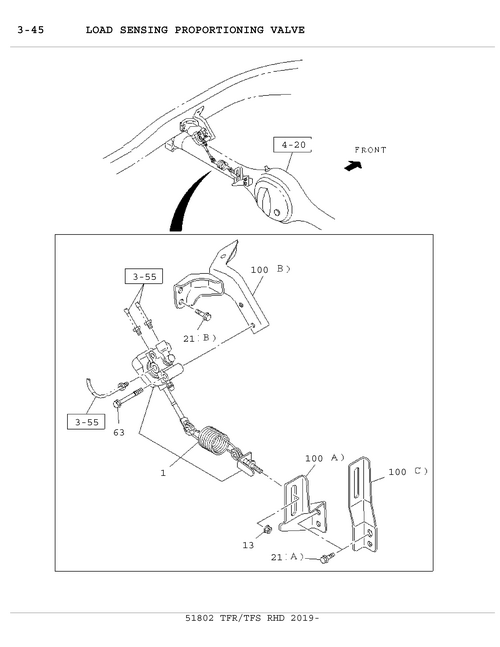

3-45 | LOAD SENSING PROPORTIONING VALVE
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 63 | I0-28050 860-0 | BOLT; LSPV | 2 | 1809- | B EF | BRK WHL LK CONT LSPV<JR9> 04 . 686 M8X6 0 FLANGE | ||
| 21 | I0-28650 820-0 | BOLT; BRKT | 2 | 1809- | B EF | BRK WHL LK CONT LSPV<JR9> 01. 531 (A) M8X2 0 FLANGE | ||
| 21 | I0-28650 825-0 | BOLT; BRKT | 3 | 1809- | B EF | BRK WHL LK CONT LSPV<JR9> 06 .216 (B) M8X2 5 FLANGE | ||
| 13 | I0-91180 108-0 | NUT; LSPV TO BRKT | 1 | 1809- | B EF | BRK WHL LK CONT LSPV<JR9> 01.062 M8 FLANGE |
