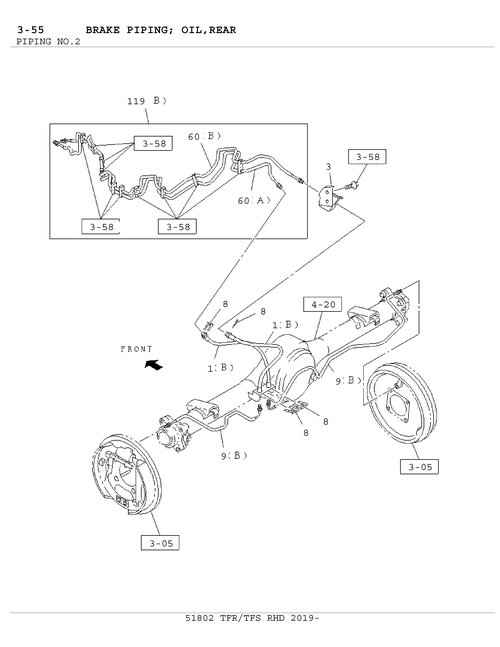

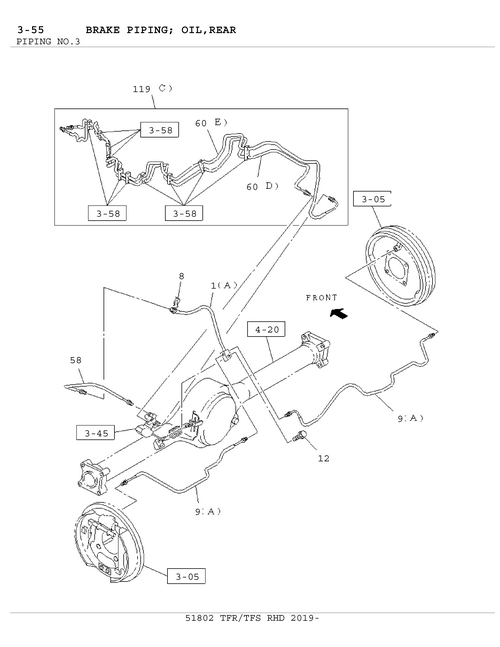

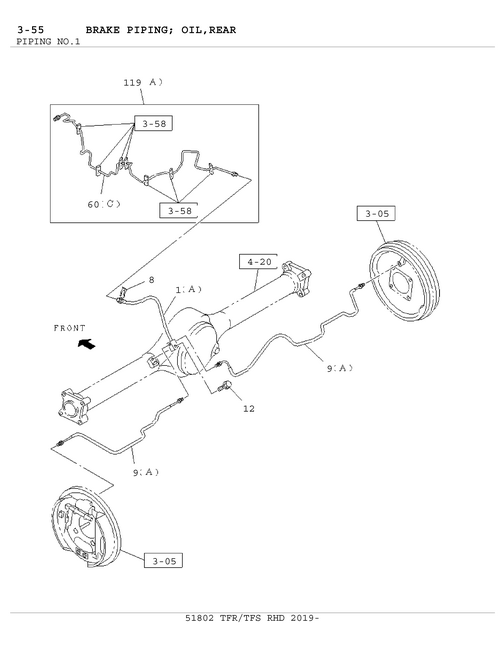

3-55 | BRAKE PIPING; OIL,REAR
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 9 | I8-98103 453-0 | PIPE; BRK,RR AXLE | 1 | 1809- | DEF | EXC. ELECTRONIC TRACTION CO ,PLANT IMCT GATEWAY THAILA (A) | ||
| 60 | I8-98099 723-4 | PIPE ASM; BRK | 1 | 1809-1809 | DEF | RZ4E-TCX HI-POWER ENG(LNC) NG (LS0) EXC. BRK WHL LK CONT LSPV< ONIC TRACTION CONTROL<NW9> (C) | ||
| 8 | I8-97360 054-0 | CLIP; RR BRK | 1 | 1809- | ABCDEF | EXC. ELECTRONIC TRACTION CO | ||
| 60 | I8-98099 723-4 | PIPE ASM; BRK | 1 | 1810- | ABC | RZ4E-TCX HI-POWER ENG(LNC) (LP0),4JK1-TCX ENG(LR0),4J LS0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV< ONIC TRACTION CONTROL<NW9> (C) | ||
| 119 | I8-98099 722-4 | PIPE; BRK,2WAY TO RR | 1 | 1809-1809 | ABC | RZ4E-TCX HI-POWER ENG(LNC) (LP0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV< ONIC TRACTION CONTROL<NW9 > (A) | ||

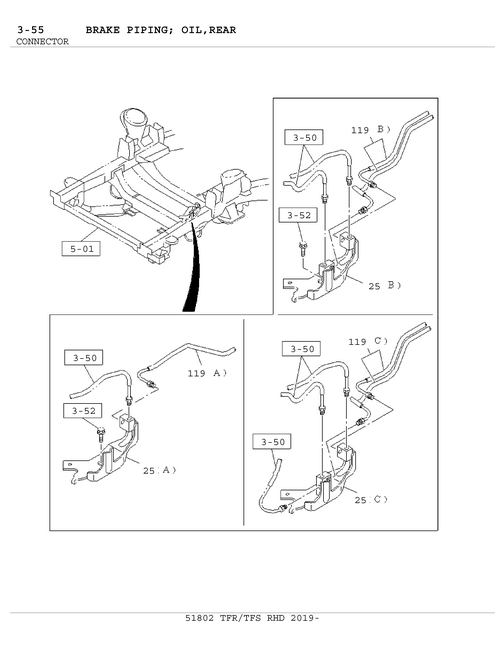

| 25 | I8-98099 784-1 | CONNECTOR | 1 | 1809- | ABCDEF | EXC. BRK WHL LK CONT LSPV< ONIC TRACTION CONTROL<NW9> (A) | ||
| 9 | I8-98103 454-0 | PIPE; BRK,RR AXLE | 1 | 1809- | ABC | HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CO (A) | ||
| 119 | I8-98099 722-4 | PIPE; BRK,2WAY TO RR | 1 | 1809-1809 | DEF | RZ4E-TCX HI-POWER ENG(LNC) NG(LS0) EXC. BRK WHL LK CONT LSPV< ONIC TRACTION CONTROL<NW9 > (A) | ||
| 12 | I0-28650 830-0 | BOLT; FLEX HOSE TO RR AXLE | 1 | 1809- | ABCDEF | EXC. ELECTRONIC TRACTION CO 03.403 M8X3 0 FLANGE | ||
| 60 | I8-98099 723-4 | PIPE ASM; BRK | 1 | 1810- | DEF | RZ4E-TCX HI-POWER ENG(LNC) NG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV< ONIC TRACTION CONTROL<NW9> (C) | ||
| 119 | I8-98099 722-4 | PIPE; BRK,2WAY TO RR | 1 | 1810- | DEF | RZ4E-TCX HI-POWER ENG(LNC) NG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV< ONIC TRACTION CONTROL<NW9 > (A) | ||
| 9 | I8-98103 453-0 | PIPE; BRK,RR AXLE | 1 | 1809- | ABC | HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CO ,PLANT IMCT GATEWAY THAILA (A) | ||
| 8 | I8-97360 054-0 | CLIP; RR BRK | 4 | 1809- | ABCDEF | ELECTRONIC TRACTION CONTROL | ||
| 9 | I8-98103 454-0 | PIPE; BRK,RR AXLE | 1 | 1809- | DEF | EXC. ELECTRONIC TRACTION CO (A) | ||
| 1 | I8-98067 084-1 | HOSE; FLEX,RR BRK | 1 | 1809- | ABCDEF | EXC. ELECTRONIC TRACTION CO (A) | ||
| 60 | I8-98099 723-4 | PIPE ASM; BRK | 1 | 1809-1809 | ABC | RZ4E-TCX HI-POWER ENG(LNC) (LP0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV< ONIC TRACTION CONTROL<NW9 > (C) | ||
| 119 | I8-98099 722-4 | PIPE; BRK,2WAY TO RR | 1 | 1810- | ABC | RZ4E-TCX HI-POWER ENG(LNC) (LP0),4JK1-TCX ENG(LR0),4J LS0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV< ONIC TRACTION CONTROL<NW9 > (A) |
