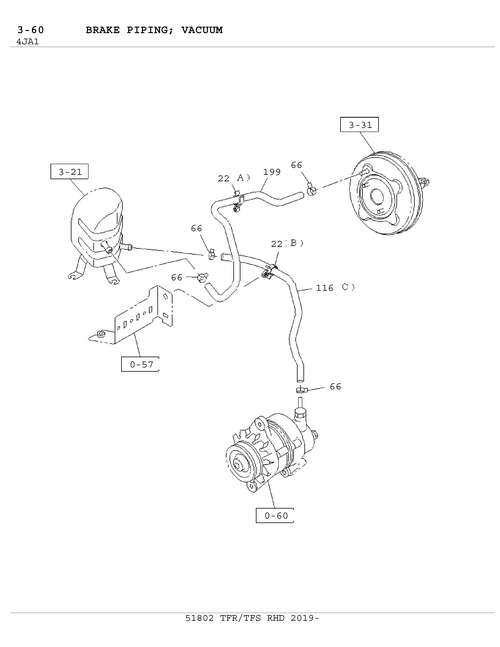

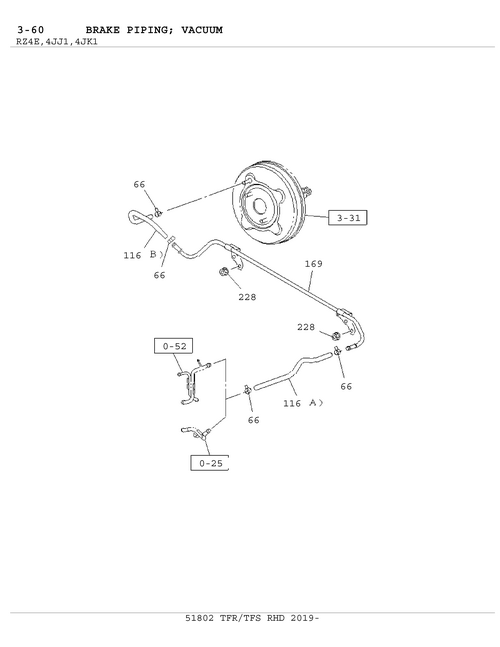

3-60 | BRAKE PIPING; VACUUM
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 228 | I0-91180 106-0 | NUT; PIPE | 2 | 1810- | A DEF | 01.062 M6 FLANGE | ||
| 228 | I0-91180 106-0 | NUT; PIPE | 2 | 1810- | BC | RZ4E-TCX HI-POWER ENG(LNC NG(LR0),4JJ1-TCX ENG(LS0) (RDZ) 01.062 M6 FLANGE | ||
| 116 | I8-98100 736-0 | HOSE; VAC,M/VAC | 1 | 1810- | A DEF | (B) | ||
| 116 | I8-98100 737-1 | HOSE; VAC,M/VAC | 1 | 1809-1809 | ABCDEF | 4JJ1-TCX ENG(LS0) (A) | ||
| 116 | I8-98100 737-1 | HOSE; VAC,M/VAC | 1 | 1810- | ABCDEF | 4JK1-TCX ENG(LR0),4JJ1-TC (A) | ||
| 169 | I8-98100 266-1 | PIPE; VAC,BOOSTER SIDE | 1 | 1809-1809 | A DEF | |||
| 66 | I8-98036 539-0 | CLIP; VAC HOSE,M/VAC | 4 | 1809- | ABCDEF | ID=16 | ||
| 116 | I8-98100 736-0 | HOSE; VAC,M/VAC | 1 | 1809-1809 | A DEF | (B) | ||
| 169 | I8-98100 266-1 | PIPE; VAC,BOOSTER SIDE | 1 | 1809-1809 | BC | RZ4E-TCX HI-POWER ENG(LNC NG(LS0),RZ4E-TC ENG(RDZ) | ||
| 169 | I8-98100 266-1 | PIPE; VAC,BOOSTER SIDE | 1 | 1810- | A DEF | |||
| 116 | I8-98100 736-0 | HOSE; VAC,M/VAC | 1 | 1810- | BC | RZ4E-TCX HI-POWER ENG(LNC NG(LR0),4JJ1-TCX ENG(LS0) (RDZ) (B) | ||
| 116 | I8-98100 736-0 | HOSE; VAC,M/VAC | 1 | 1809-1809 | BC | RZ4E-TCX HI-POWER ENG(LNC NG(LS0),RZ4E-TC ENG(RDZ) (B) | ||
| 228 | I0-91180 106-0 | NUT; PIPE | 2 | 1809-1809 | A DEF | 01. 062 M6 FLANGE | ||
| 228 | I0-91180 106-0 | NUT; PIPE | 2 | 1809-1809 | BC | RZ4E-TCX HI-POWER ENG(LNC NG(LS0),RZ4E-TC ENG(RDZ) 01.062 M6 FLANGE | ||
| 169 | I8-98100 266-1 | PIPE; VAC,BOOSTER SIDE | 1 | 1810- | BC | RZ4E-TCX HI-POWER ENG(LNC NG(LR0),4JJ1-TCX ENG(LS0) (RDZ) |
