PORTAL SPAREPART

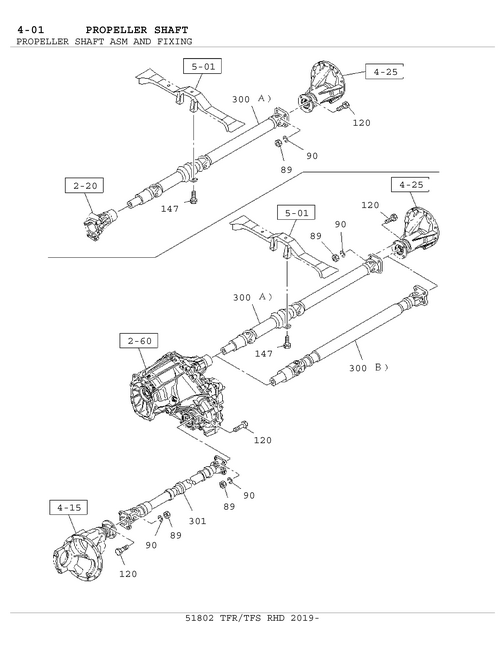

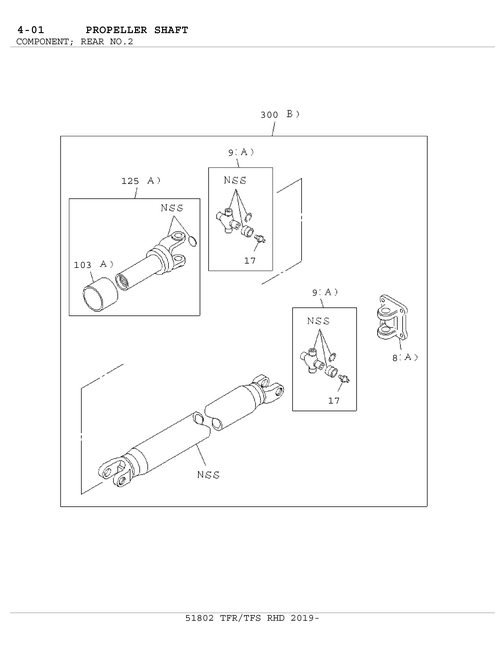

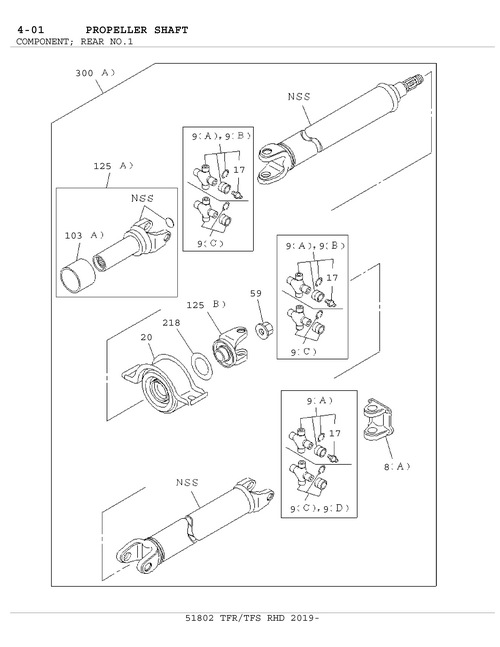

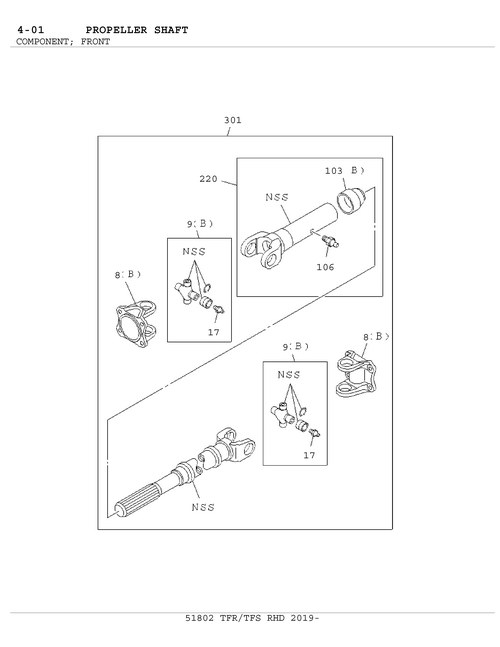

4-01 | PROPELLER SHAFT

Partial Engine Partial Engine Partial Engine Partial Engine

DMAX

D-MAX 2019

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
20 I8-97947 659-0 BEARING ASM; CTR,PROP SHAFT 1 1809-1809 ABC HIGH RIDE SUSPENSION(7YC) NSK
20 I8-97947 659-0 BEARING ASM; CTR,PROP SHAFT 1 1810- ABC HIGH RIDE SUSPENSION(7YC) NSK
103 I8-97940 114-0 BOOT; PROP SHAFT 1 1809-1809 BC 4JA1-T ENG(LP0) 05. 560 (A)
9 I8-97947 645-0 JOURNAL ASM; PROP SHAFT 2 1810- D F 4JK1-TCX ENG(LR0),4JJ1-TC A/T 5 SPEED-AISIN(MA1) (A)
17 I0-90301 406-0 NIPPLE; GREASE,PROP SHAFT 3 1810- D 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),M ED 6N(Y5Z) M6 STRAIGHT
103 I8-97940 114-0 BOOT; PROP SHAFT 1 1810- ABC 4JK1-TCX ENG(LR0),4JJ1-TC M/T MUA 5 SPEED 5H(MWQ),M ED 5S(MZJ) 05.560 (A)
59 I8-97947 557-0 NUT; RET TO SUPPORT 1 1810- EF RZ4E-TCX HI-POWER ENG(LNC G(RDZ)
103 I8-97940 114-0 BOOT; PROP SHAFT 1 1810- BC 4JA1-T ENG(LP0) 05.560 (A)
59 I8-97947 557-0 NUT; RET TO SUPPORT 1 1810- DEF 4JK1-TCX ENG(LR0),4JJ1-TC M/T MUA 5 SPEED 5H(MWQ),M ED 5S(MZJ),M/T MVL 6 SPEE T MVL 6 SPEED 6Y(Y6P)
8 I8-97948 771-0 YOKE; FLANGE,PROP SHAFT 1 1810- ABC 4JA1-T ENG(LP0),4JK1-TCX M/T MUA 5 SPEED 5H(MWQ),M ED 5G(RSP) (A)
301 I8-97948 762-0 SHAFT ASM; PROP,FRT 1 1810- D F 4JK1-TCX ENG(LR0),4JJ1-TC A/T 5 SPEED-AISIN(MA1) L=789
120 I8-98354 948-0 BOLT; YOKE TO RR AXLE 4 1809- ABCDEF M10X29
125 I8-97947 629-0 YOKE ASM; SPLINED,PROP SHAFT 1 1809-1809 BC 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (A)
89 I8-97246 900-0 NUT; YOKE TO RR AXLE 4 1809- ABCDEF M10 FLANGE
125 I8-97947 629-0 YOKE ASM; SPLINED,PROP SHAFT 1 1810- ABCDEF 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (A)
8 I8-97948 771-0 YOKE; FLANGE,PROP SHAFT 1 1810- ABC RZ4E-TCX HI-POWER ENG(LNC NG(LS0),RZ4E-TC ENG(RDZ) (A)
125 I8-97948 769-0 YOKE ASM; SPLINED,PROP SHAFT 1 1810- BC 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (B)
218 I8-97192 641-0 WASHER; PL,PROP SHAFT 1 1810- ABC ID=30 H=40 L=3 5
125 I8-97947 630-0 YOKE ASM; SPLINED,PROP SHAFT 1 1810- ABC 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (A)
17 I0-90301 406-0 NIPPLE; GREASE,PROP SHAFT 2 1810- EF 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),M ED 6N(Y5Z),M/T MVL 6 SPEE M6 STRAIGHT
125 I8-97947 630-0 YOKE ASM; SPLINED,PROP SHAFT 1 1809-1809 DEF (A)
9 I8-97947 582-0 JOURNAL ASM; PROP SHAFT 2 1810- EF 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) (B)
106 I0-90301 406-0 NIPPLE; GREASE,YOKE,PROP SHAFT 1 1809- DEF 05.601 M6 STRAIGHT
103 I8-97940 114-0 BOOT; PROP SHAFT 1 1809-1809 ABC 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 05.560 (A)
147 I0-28661 225-0 BOLT; CENTER BRG MTG 2 1809-1809 DEF RZ4E-TCX HI-POWER ENG(LNC G(RDZ) 17.447 M12X25 FLANGE
20 I8-97947 660-0 BEARING ASM; CTR,PROP SHAFT 1 1809-1809 ABC HIGH RIDE SUSPENSION(7YC) NTN
9 I8-97947 582-0 JOURNAL ASM; PROP SHAFT 4 1810- DEF 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (B)
17 I0-90301 406-0 NIPPLE; GREASE,PROP SHAFT 4 1810- D F 4JK1-TCX ENG(LR0),4JJ1-TC A/T 5 SPEED-AISIN(MA1) M6 STRAIGHT
8 I8-97948 771-0 YOKE; FLANGE,PROP SHAFT 1 1809-1809 BC RZ4E-TCX HI-POWER ENG(LNC NG(LS0),RZ4E-TC ENG(RDZ) (A)
147 I0-28661 225-0 BOLT; CENTER BRG MTG 2 1809-1809 ABC 17. 447 M12X25 FLANGE
17 I0-90301 406-0 NIPPLE; GREASE,PROP SHAFT 4 1809-1809 DEF 4JJ1-TCX ENG (LS0) A/T 5 SPEED-AISIN(MA1),A/ SIN(Y6A) M6 STRAIGHT
218 I8-97192 641-0 WASHER; PL,PROP SHAFT 1 1809-1809 ABC ID=30 H=40 L=3 5
147 I0-28661 225-0 BOLT; CENTER BRG MTG 2 1810- EF RZ4E-TCX HI-POWER ENG(LNC G(RDZ) 17.447 M12X25 FLANGE
120 I8-98354 948-0 BOLT; YOKE TO RR AXLE 8 1809- DEF M10X29
59 I8-97947 557-0 NUT; RET TO SUPPORT 1 1809-1809 DEF RZ4E-TCX HI-POWER ENG(LNC G(RDZ)
59 I8-97947 557-0 NUT; RET TO SUPPORT 1 1809-1809 ABC
125 I8-97947 629-0 YOKE ASM; SPLINED,PROP SHAFT 1 1810- BC 4JA1-T ENG(LP0) (A)
103 I8-97940 114-0 BOOT; PROP SHAFT 1 1809-1809 DEF 05.560 (A)
17 I0-90301 406-0 NIPPLE; GREASE,PROP SHAFT 5 1810- EF RZ4E-TCX HI-POWER ENG(LNC G(RDZ) M6 STRAIGHT
20 I8-97947 660-0 BEARING ASM; CTR,PROP SHAFT 1 1810- ABC HIGH RIDE SUSPENSION(7YC) NTN
125 I8-97947 630-0 YOKE ASM; SPLINED,PROP SHAFT 1 1809-1809 ABC 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (A)
125 I8-97947 630-0 YOKE ASM; SPLINED,PROP SHAFT 1 1810- DEF RZ4E-TCX HI-POWER ENG(LNC NG(LS0),RZ4E-TC ENG(RDZ) (A)
218 I8-97192 641-0 WASHER; PL,PROP SHAFT 1 1809-1809 DEF RZ4E-TCX HI-POWER ENG(LNC G(RDZ) ID=30 H=40 L=3 5
9 I8-97947 645-0 JOURNAL ASM; PROP SHAFT 1 1810- DEF 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (A)
17 I0-90301 406-0 NIPPLE; GREASE,PROP SHAFT 3 1809-1809 DEF 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),M ED 6N(Y5Z),M/T MVL 6 SPEE M6 STRAIGHT
301 I8-97948 762-0 SHAFT ASM; PROP,FRT 1 1809-1809 D F 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) L=789
17 I0-90301 406-0 NIPPLE; GREASE,PROP SHAFT 2 1809-1809 DEF 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S (MZJ) ,M ED 6N(Y5Z),M/T MVL 6 SPEE M6 STRAIGHT
9 I8-97947 645-0 JOURNAL ASM; PROP SHAFT 2 1810- DEF 4JJ1-TCX ENG(LS0) A/T 6 SPEED-AISIN(Y6A) (A)
9 I8-97947 645-0 JOURNAL ASM; PROP SHAFT 3 1809- DEF RZ4E-TCX HI-POWER ENG(LNC G(RDZ) (A)
17 I0-90301 406-0 NIPPLE; GREASE,PROP SHAFT 2 1810- D 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),M ED 6N(Y5Z) M6 STRAIGHT
8 I8-97948 771-0 YOKE; FLANGE,PROP SHAFT 1 1809-1809 A DEF (A)
125 I8-97947 629-0 YOKE ASM; SPLINED,PROP SHAFT 1 1809-1809 BC 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T 5G(RSP) EXC. HIGH RIDE SUSPENSION (A)
9 I8-97947 582-0 JOURNAL ASM; PROP SHAFT 2 1809-1809 DEF (B)
218 I8-97192 641-0 WASHER; PL,PROP SHAFT 1 1809-1809 DEF 4JJ1-TCX ENG (LS0) M/T MUX 5 SPEED 5S(MZJ),M ED 6N(Y5Z),M/T MVL 6 SPEE ID=30 H=40 L=3 5
220 I8-97945 105-0 YOKE; SPLINED 1 1810- DEF 4JJ1-TCX ENG (LS0) A/T 5 SPEED-AISIN(MA1),A/ SIN(Y6A)
125 I8-97948 769-0 YOKE ASM; SPLINED,PROP SHAFT 1 1810- DEF 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (B)
218 I8-97192 641-0 WASHER; PL,PROP SHAFT 1 1810- DEF 4JK1-TCX ENG(LR0),4JJ1-TC M/T MUA 5 SPEED 5H(MWQ),M ED 5S(MZJ),M/T MVL 6 SPEE T MVL 6 SPEED 6Y(Y6P) ID=30 H=40 L=3 5
90 I8-97246 901-0 WASHER; LK,YOKE TO RR AXLE 8 1809- DEF ID=10.1
90 I8-97246 901-0 WASHER; LK,YOKE TO RR AXLE 4 1809- ABCDEF ID=10.1
17 I0-90301 406-0 NIPPLE; GREASE,PROP SHAFT 4 1810- DEF 4JJ1-TCX ENG(LS0) A/T 6 SPEED-AISIN(Y6A) M6 STRAIGHT
8 I8-97948 772-0 YOKE; FLANGE,PROP SHAFT 2 1809- DEF (B)
301 I8-97948 758-0 SHAFT ASM; PROP,FRT 1 1810- DEF 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) L=6 71
17 I0-90301 406-0 NIPPLE; GREASE,PROP SHAFT 3 1810- EF 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),M ED 6N(Y5Z),M/T MVL 6 SPEE M6 STRAIGHT
300 I8-97948 757-0 SHAFT ASM; PROP,RR 1 1810- DEF 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (A) L=1510
220 I8-97945 105-0 YOKE; SPLINED 1 1809-1809 DEF RZ4E-TCX HI-POWER ENG(LNC G(RDZ)
17 I0-90301 406-0 NIPPLE; GREASE,PROP SHAFT 5 1810- DEF 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) M6 STRAIGHT
125 I8-97948 769-0 YOKE ASM; SPLINED,PROP SHAFT 1 1810- ABC 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) (B)
89 I8-97246 900-0 NUT; YOKE TO RR AXLE 8 1809- DEF M10 FLANGE
9 I8-97947 645-0 JOURNAL ASM; PROP SHAFT 2 1809-1809 DEF 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),A/ SIN(Y6A) (A)
125 I8-97948 769-0 YOKE ASM; SPLINED,PROP SHAFT 1 1809-1809 BC 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (B)
147 I0-28661 225-0 BOLT; CENTER BRG MTG 2 1809-1809 DEF 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),M ED 6N(Y5Z),M/T MVL 6 SPEE 17.447 M12X25 FLANGE
147 I0-28661 225-0 BOLT; CENTER BRG MTG 2 1810- DEF 4JK1-TCX ENG(LR0),4JJ1-TC M/T MUA 5 SPEED 5H(MWQ),M ED 5S(MZJ),M/T MVL 6 SPEE 17.447 M12X25 FLANGE
300 I8-97948 764-0 SHAFT ASM; PROP,RR 1 1809-1809 D F 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) (B) L=1384
103 I8-97940 114-0 BOOT; PROP SHAFT 1 1810- DEF 05.560 (A)
59 I8-97947 557-0 NUT; RET TO SUPPORT 1 1810- ABC
9 I8-97947 582-0 JOURNAL ASM; PROP SHAFT 2 1810- DEF RZ4E-TCX HI-POWER ENG(LNC NG(LS0),RZ4E-TC ENG(RDZ) (B)
147 I0-28661 225-0 BOLT; CENTER BRG MTG 2 1810- ABC 17.447 M12X2 5 FLANGE
9 I8-97947 645-0 JOURNAL ASM; PROP SHAFT 3 1809- DEF 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),M ED 6N(Y5Z) (A)
8 I8-97948 772-0 YOKE; FLANGE,PROP SHAFT 1 1809- BC 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75) EXC. HIGH RIDE SUSPENSION (A)
20 I8-97947 660-0 BEARING ASM; CTR,PROP SHAFT 1 1810- DEF 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) NTN
20 I8-97947 659-0 BEARING ASM; CTR,PROP SHAFT 1 1810- DEF 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) NSK
218 I8-97192 641-0 WASHER; PL,PROP SHAFT 1 1810- EF RZ4E-TCX HI-POWER ENG(LNC G(RDZ) ID=30 H=40 L=3 5
220 I8-97945 105-0 YOKE; SPLINED 1 1810- DEF RZ4E-TCX HI-POWER ENG(LNC NG(LR0),RZ4E-TC ENG(RDZ)
8 I8-97948 771-0 YOKE; FLANGE,PROP SHAFT 1 1809-1809 BC 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (A)
59 I8-97947 557-0 NUT; RET TO SUPPORT 1 1809-1809 DEF 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),M ED 6N(Y5Z),M/T MVL 6 SPEE
103 I8-97943 053-0 BOOT; PROP SHAFT 1 1809- DEF (B)
300 I8-97948 764-0 SHAFT ASM; PROP,RR 1 1810- D F 4JK1-TCX ENG(LR0),4JJ1-TC A/T 5 SPEED-AISIN(MA1) (B) L=1384
125 I8-97947 630-0 YOKE ASM; SPLINED,PROP SHAFT 1 1810- DEF 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) (A)
17 I0-90301 406-0 NIPPLE; GREASE,PROP SHAFT 5 1809-1809 DEF RZ4E-TCX HI-POWER ENG(LNC G(RDZ) M6 STRAIGHT
220 I8-97945 105-0 YOKE; SPLINED 1 1809-1809 DEF 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),A/ SIN(Y6A)
8 I8-97948 771-0 YOKE; FLANGE,PROP SHAFT 1 1810- DEF (A)
