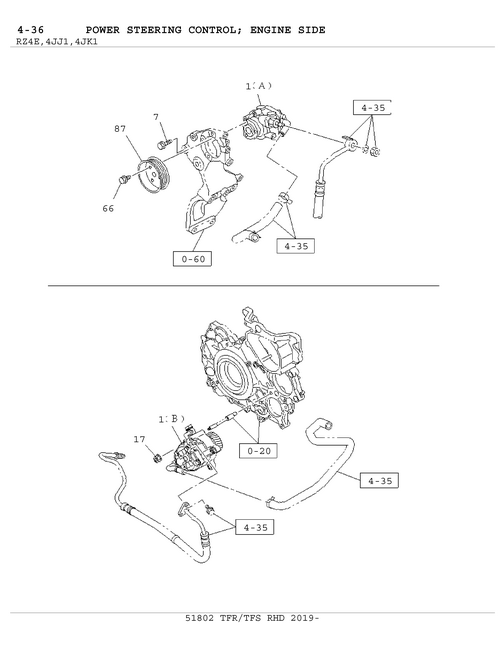

4-36 | POWER STEERING CONTROL; ENGINE SIDE
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-97946 164-2 | PUMP ASM; OIL,P/S | 1 | 1810- | ABCDEF | 4JK1-TCX ENG(LR0),4JJ1-TCX (B) | ||
| 66 | I0-28050 812-0 | BOLT; PULLEY | 3 | 1810- | BC EF | RZ4E-TCX HI-POWER ENG(LNC) (LP0),RZ4E-TC ENG(RDZ) 02 .343 M8X12 FLANGE | ||
| 17 | I0-91180 208-0 | NUT; POWER STRG PUMP | 3 | 1809-1809 | ABCDEF | 4JJ1-TCX ENG(LS0) 01.540 M8 FLANGE | ||
| 7 | I0-28050 830-0 | BOLT; OIL PUMP,P/S | 3 | 1809-1809 | ABCDEF | RZ4E-TCX HI-POWER ENG(LNC) G(RDZ) 00.206 M8X3 0 FLANGE | ||
| 66 | I0-28050 812-0 | BOLT; PULLEY | 3 | 1809-1809 | ABCDEF | RZ4E-TCX HI-POWER ENG(LNC) (LP0),RZ4E-TC ENG(RDZ) 02 .343 M8X12 FLANGE | ||
| 17 | I0-91180 208-0 | NUT; POWER STRG PUMP | 3 | 1810- | ABCDEF | 4JK1-TCX ENG(LR0),4JJ1-TCX 01 . 540 M8 FLANGE | ||
| 42 | I0-91180 208-0 | NUT; ADJ PLATE | 1 | 1809- | BC | 4JA1-T ENG(LP0) 01.540 M8 FLANGE | ||
| 1 | I8-97946 164-2 | PUMP ASM; OIL,P/S | 1 | 1809-1809 | ABCDEF | 4JJ1-TCX ENG(LS0) (B) | ||
| 29 | I0-28050 816-0 | BOLT; BRKT,POWER STRG | 1 | 1809- | BC | 4JA1-T ENG(LP0) 02 .343 (A) M8X16 FLANGE | ||
| 17 | I0-91180 208-0 | NUT; POWER STRG PUMP | 1 | 1809- | BC | 4JA1-T ENG(LP0) 01.540 M8 FLANGE | ||
| 29 | I0-28051 060-0 | BOLT; BRKT,POWER STRG | 1 | 1809- | BC | 4JA1-T ENG(LP0) 00.685 (C) M10X60 FLANGE | ||
| 7 | I0-28050 830-0 | BOLT; OIL PUMP,P/S | 3 | 1810- | BC EF | RZ4E-TCX HI-POWER ENG(LNC) G(RDZ) 00.206 M8X3 0 FLANGE | ||
| 29 | I0-28051 025-0 | BOLT; BRKT,POWER STRG | 2 | 1809- | BC | 4JA1-T ENG(LP0) (B) M10X2 5 FLANGE |
