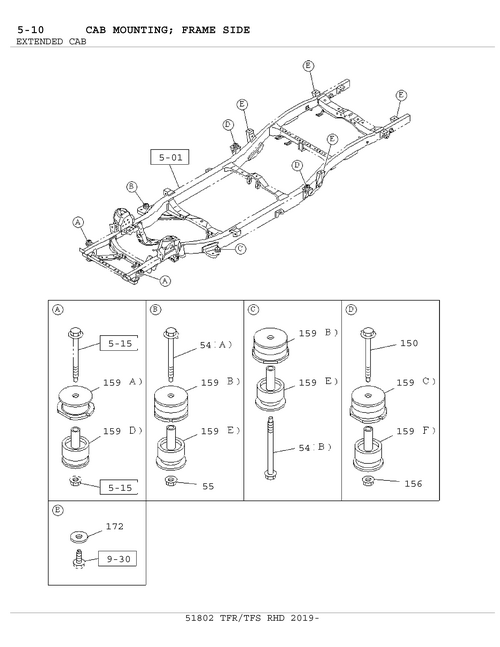

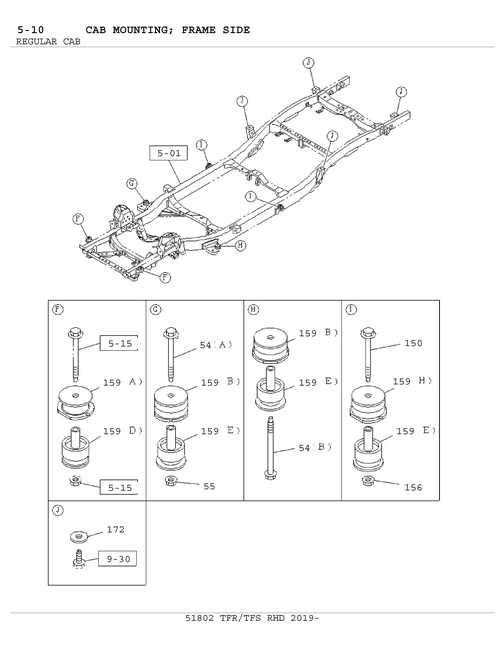

5-10 | CAB MOUNTING; FRAME SIDE
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 172 | I8-98098 458-0 | WASHER; BODY MTG RUBBER | 8 | 1809- | B E | REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=13 OD=40 T=6 | ||
| 150 | I8-98102 202-3 | BOLT; CAB MTG RR | 2 | 1809- | C F | 09.008 M10X13 0 FLANGE | ||
| 54 | I8-98102 202-3 | BOLT; RUBBER | 1 | 1809- | ABCDEF | (A) M10X13 0 FLANGE | ||
| 150 | I8-98102 202-3 | BOLT; CAB MTG RR | 2 | 1809- | ABCDEF | 09.008 M10X13 0 FLANGE | ||
| 55 | I0-91280 210-0 | NUT; RUBBER | 1 | 1809- | ABCDEF | 06.672 M10 FLANGE | ||
| 156 | I0-91280 210-0 | NUT; CAB MTG RR | 2 | 1809- | ABCDEF | 06.672 M10 FLANGE | ||
| 159 | I8-98075 385-1 | RUBBER; CUSHION,CAB MTG | 2 | 1809- | BC EF | (E) | ||
| 159 | I8-98075 385-1 | RUBBER; CUSHION,CAB MTG | 2 | 1809- | ABCDEF | (E) | ||
| 172 | I8-98098 458-0 | WASHER; BODY MTG RUBBER | 4 | 1809- | C F | REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=13 OD=40 T=6 | ||
| 159 | I8-97367 285-0 | RUBBER; CUSHION,CAB MTG | 2 | 1809- | ABCDEF | (A) | ||
| 159 | I8-98360 826-0 | RUBBER; CUSHION,CAB MTG | 2 | 1809- | BC EF | EXC. IDENTIFICATION LABEL FOR KD<6 (H) | ||
| 159 | I6-98051 326-0 | RUBBER; CUSHION,CAB MTG | 2 | 1809- | ABCDEF | (IADG) (D) | ||
| 156 | I0-91280 210-0 | NUT; CAB MTG RR | 2 | 1809- | C F | 06.672 M10 FLANGE | ||
| 159 | I8-98174 970-0 | RUBBER; CUSHION,CAB MTG | 2 | 1809- | AB DE | (B) | ||
| 54 | I8-98169 670-0 | BOLT; RUBBER | 1 | 1809- | ABCDEF | (B) M10X141 FLANGE | ||
| 172 | I8-98098 458-0 | WASHER; BODY MTG RUBBER | 6 | 1809- | A D | REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=13 OD=4 0 T=6 | ||
| 159 | I8-98360 826-0 | RUBBER; CUSHION,CAB MTG | 2 | 1809- | C F | EXC. IDENTIFICATION LABEL FOR KD<6 (H) | ||
| 159 | I8-98051 326-0 | RUBBER; CUSHION,CAB MTG | 2 | 1809- | ABCDEF | (D) | ||
| 159 | I8-98075 385-1 | RUBBER; CUSHION,CAB MTG | 2 | 1809- | C F | (E) | ||
| 159 | I6-97367 285-0 | RUBBER; CUSHION,CAB MTG | 2 | 1809- | ABCDEF | (IADG) (A) | ||
| 159 | I8-98075 381-0 | RUBBER; CUSHION,CAB MTG | 2 | 1809- | C F | (G) |
