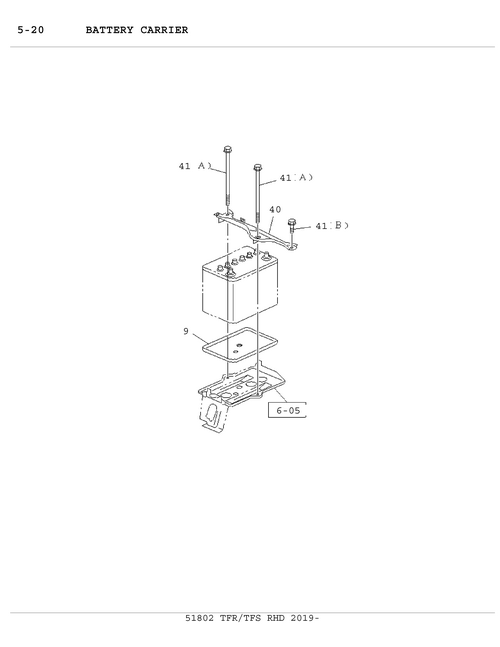

5-20 | BATTERY CARRIER
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 9 | I8-97328 060-0 | SEAT; BATTERY | 1 | 1809- | ABCDEF | EXC. BATTERY 95D31L(TQ8) | ||
| 41 | I0-28650 820-0 | BOLT; CLAMP,BATTERY | 1 | 1809- | ABCDEF | 01.531 (B) M8X2 0 FLANGE | ||
| 40 | I8-98141 872-0 | CLAMP; BATTERY | 1 | 1809-1809 | ABCDEF | 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0) BATTERY 8 0D2 6L(TM1),BATTERY 95D31L(T 8) EXC. AUSTRALIA EQUIPMENT(B13) | ||
| 40 | I8-98141 872-0 | CLAMP; BATTERY | 1 | 1810- | ABCDEF | 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4J 1-TCX ENG(LS0) BATTERY 8 0D2 6L(TM1),BATTERY 95D31L(T 8) EXC. AUSTRALIA EQUIPMENT(B13) | ||
| 41 | I8-97378 041-0 | BOLT; CLAMP,BATTERY | 2 | 1809- | ABCDEF | (A) M8X22 2 FLANGE |
