Isuzu | Part Center System

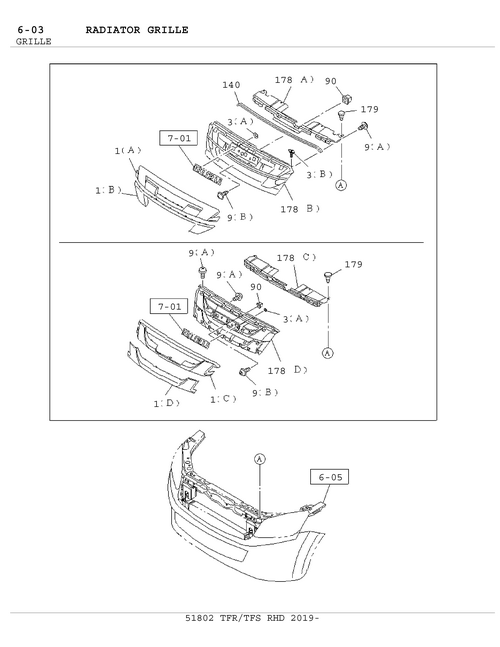

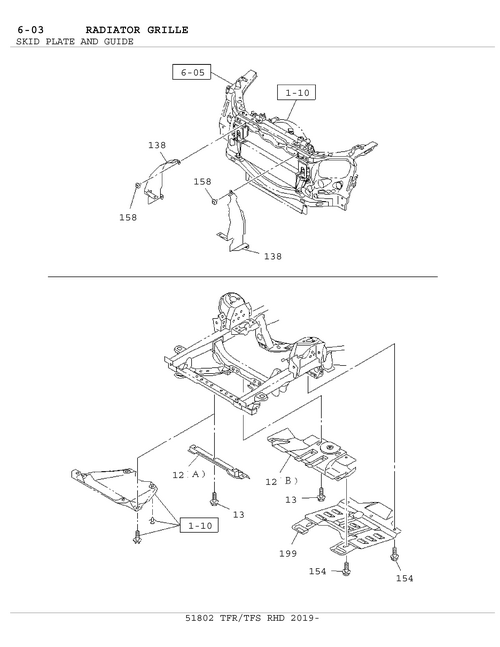

6-03 | RADIATOR GRILLE

DMAX

D-MAX 2019

Key	PART NO	DESCRIPTION	QTY	APP DATE	MODEL	REMARKS

154	I8-98230 015-0	BOLT; COVER	4	1809-	EF	UNDER FRT GUARD<6RJ> 01.428 M12X2 5 FLANGE
3	I8-98337 644-0	CLIP; GRILLE	10	1809-	F	EXC. AUSTRALIA EQUIPMENT(B13),HO NG EQUIPMENT(B14),BODY COLOR KEY D GRILLE<TL1>,SALES PACKAGE SPOR SERIES HIGH RIDE<XK0>,SINGAPORE E MENT(2G0) (B)
140	I8-98392 681-1	SEAL; RAD GRILLE	1	1809-	E	EXC. AUSTRALIA EQUIPMENT(B13),SI RE EQUIPMENT(2G0)
140	I8-98392 681-1	SEAL; RAD GRILLE	1	1809-	F	EXC. AUSTRALIA EQUIPMENT(B13),HO NG EQUIPMENT(B14),BODY COLOR KEY D GRILLE<TL1>,SALES PACKAGE SPOR SERIES HIGH RIDE<XK0>,SINGAPORE MENT(2G0)
138	I8-98137 586-1	GUIDE; AIR	1	1809-1809	A DEF
1	I8-98392 506-0	GRILLE; RAD	1	1809-	ABCDEF	BODY COLOR KEYED RAD GRILLE<TL1> KD PAINT LESS SUPPLY< 7TV> EXC. AUSTRALIA EQUIPMENT(B13),HO NG EQUIPMENT(B14),SINGAPORE EQUI (2G0) (B) BLACK
178	I8-98392 513-1	GRILLE; INNER,RAD	1	1809-	F	EXC. AUSTRALIA EQUIPMENT(B13),HO NG EQUIPMENT(B14),BODY COLOR KEY D GRILLE<TL1>,SALES PACKAGE SPOR SERIES HIGH RIDE<XK0>,SINGAPORE MENT(2G0) (A)
1	I8-98392 505-0	GRILLE; RAD	1	1809-	A CD F	BRIGHT RAD GRILLE<V22> EXC. AUSTRALIA EQUIPMENT(B13),HO NG EQUIPMENT(B14),SALES PACKAGE Y X-SERIES HIGH RIDE<XK0>,SINGAP QUIPMENT(2G0) (A) PLATED
13	I8-97945 706-0	BOLT; RAD SKID PLATE	9	1809-1809	ABCDEF	M10X2 8 W/LK&PL WASHER
9	I8-98193 872-0	SCREW; RAD GRILLE	20	1809-	ABCDEF	(A) M5X16 TAPPING W/PL WASHER
1	I8-98392 503-0	GRILLE; RAD	1	1809-	ABCDEF	EXC. AUSTRALIA EQUIPMENT(B13),HO NG EQUIPMENT(B14),BODY COLOR KEY D GRILLE<TL1>,BRIGHT RAD GRILLE< SALES PACKAGE SPORTY X-SERIES HI DE<XK0>,SINGAPORE EQUIPMENT(2G0) (A) BLACK
9	I8-98167 352-0	SCREW; RAD GRILLE	1	1809-	ABCDEF	(B) M5X16
138	I8-98137 587-1	GUIDE; AIR	1	1809-1809	BC	RZ4E-TCX HI-POWER ENG(LNC),4JJ1-NG(LS0),RZ4E-TC ENG(RDZ)
3	I8-98337 644-0	CLIP; GRILLE	10	1809-	BC	EXC. AUSTRALIA EQUIPMENT(B13),HO NG EQUIPMENT(B14),SINGAPORE EQUI (2G0) (B)
12	I8-98229 406-0	PLATE; SKID,RAD	1	1809-	EF	UNDER FRT GUARD<6RJ> (B)
140	I8-98392 681-1	SEAL; RAD GRILLE	1	1809-	F	BODY COLOR KEYED RAD GRILLE<TL1> EXC. AUSTRALIA EQUIPMENT(B13),HO NG EQUIPMENT(B14),SINGAPORE EQUI (2G0)
90	I8-94291 927-0	NUT; RAD GRILLE	1	1809-	ABCDEF	02.726 D= 7X7 L=7 . 5
140	I8-98392 681-1	SEAL; RAD GRILLE	1	1809-	A D	EXC. AUSTRALIA EQUIPMENT(B13)
138	I8-98137 586-1	GUIDE; AIR	1	1810-	BC	RZ4E-TCX HI-POWER ENG(LNC),4JK1-NG(LR0),4JJ1-TCX ENG(LS0),RZ4E-T (RDZ)
199	I8-98229 404-0	PLATE; OIL PAN	1	1809-	B	UNDER FRT GUARD<6RJ> HIGH RIDE SUSPENSION(7YC) 01.426
178	I8-98392 513-1	GRILLE; INNER,RAD	1	1809-	BC	EXC. AUSTRALIA EQUIPMENT(B13),HO NG EQUIPMENT(B14),SINGAPORE EQUI (2G0) (A)
138	I8-98137 587-1	GUIDE; AIR	1	1810-	A DEF
138	I8-98137 587-1	GUIDE; AIR	1	1809-1809	A DEF
12	I8-98229 406-0	PLATE; SKID,RAD	1	1809-	ABC	SKID PLATE<7WE> (B)
13	I8-97945 706-0	BOLT; RAD SKID PLATE	9	1810-	ABC	SKID PLATE<7WE> M10X2 8 W/LK&PL WASHER
3	I8-98211 687-0	CLIP; GRILLE	3	1809-	ABCDEF	(A)
3	I8-98337 644-0	CLIP; GRILLE	10	1809-	A D	EXC. AUSTRALIA EQUIPMENT(B13) (B)
1	I8-98392 503-0	GRILLE; RAD	1	1809-	ABCDEF	BODY COLOR KEYED RAD GRILLE<TL1> KD PAINT LESS SUPPLY< 7TV> EXC. AUSTRALIA EQUIPMENT(B13),HO NG EQUIPMENT(B14),SINGAPORE EQUI (2G0) (A) BLACK
1	I8-98392 506-0	GRILLE; RAD	1	1809-	ABCDEF	EXC. AUSTRALIA EQUIPMENT(B13),HO NG EQUIPMENT(B14),BODY COLOR KEY D GRILLE<TL1>,BRIGHT RAD GRILLE< SALES PACKAGE SPORTY X-SERIES HI DE<XK0>,SINGAPORE EQUIPMENT(2G0) (B) BLACK
1	I8-98392 508-0	GRILLE; RAD	1	1809-	A CD F	BRIGHT RAD GRILLE<V22> EXC. AUSTRALIA EQUIPMENT(B13),HO NG EQUIPMENT(B14),SALES PACKAGE Y X-SERIES HIGH RIDE<XK0>,SINGAP QUIPMENT(2G0) (B) PLATED
140	I8-98392 681-1	SEAL; RAD GRILLE	1	1809-	BC	EXC. AUSTRALIA EQUIPMENT(B13),HO NG EQUIPMENT(B14),SINGAPORE EQUI (2G0)
138	I8-98137 586-1	GUIDE; AIR	1	1809-1809	BC	RZ4E-TCX HI-POWER ENG(LNC),4JJ1-NG(LS0),RZ4E-TC ENG(RDZ)
3	I8-98337 644-0	CLIP; GRILLE	10	1809-	E	EXC. AUSTRALIA EQUIPMENT(B13),SI RE EQUIPMENT(2G0) (B)
178	I8-98392 514-1	GRILLE; INNER,RAD	1	1809-	ABCDEF	EXC. AUSTRALIA EQUIPMENT(B13),HO NG EQUIPMENT(B14),SALES PACKAGE Y X-SERIES HIGH RIDE<XK0>,SINGAP QUIPMENT(2G0) (B)
12	I8-98102 129-1	PLATE; SKID,RAD	1	1810-	ABC	SKID PLATE<7WE> (A)
158	I8-94215 211-0	CLIP; PROTECTOR	6	1810-	BC	RZ4E-TCX HI-POWER ENG(LNC),4JK1-NG(LR0),4JJ1-TCX ENG(LS0),RZ4E-T (RDZ) 08.154 OD=22 L=10.7
199	I8-98229 404-0	PLATE; OIL PAN	1	1809-	EF	UNDER FRT GUARD<6RJ> 01.426
154	I8-98230 015-0	BOLT; COVER	4	1809-	D	01.428 M12X2 5 FLANGE
12	I8-98229 406-0	PLATE; SKID,RAD	1	1809-	D	(B)
178	I8-98392 513-1	GRILLE; INNER,RAD	1	1809-	E	EXC. AUSTRALIA EQUIPMENT(B13),SIN RE EQUIPMENT(2G0) (A)
138	I8-98137 586-1	GUIDE; AIR	1	1810-	A DEF
158	I8-94215 211-0	CLIP; PROTECTOR	6	1809-1809	BC	RZ4E-TCX HI-POWER ENG(LNC),4JJ1-NG(LS0),RZ4E-TC ENG(RDZ) 08.154 OD=22 L=10.7
138	I8-98137 587-1	GUIDE; AIR	1	1810-	BC	RZ4E-TCX HI-POWER ENG(LNC),4JK1-NG(LR0),4JJ1-TCX ENG(LS0),RZ4E-T (RDZ)
13	I8-97945 706-0	BOLT; RAD SKID PLATE	9	1810-	DEF	M10X2 8 W/LK&PL WASHER
158	I8-94215 211-0	CLIP; PROTECTOR	6	1810-	A DEF	08.154 OD=22 L=10 . 7
199	I8-98229 404-0	PLATE; OIL PAN	1	1809-	D	1426
158	I8-94215 211-0	CLIP; PROTECTOR	6	1809-1809	A DEF	08.154 OD=22 L=10.7
3	I8-98337 644-0	CLIP; GRILLE	10	1809-	F	BODY COLOR KEYED RAD GRILLE<TL1> EXC. AUSTRALIA EQUIPMENT(B13),HO NG EQUIPMENT(B14),SINGAPORE EQUI (2G0) (B)
178	I8-98392 513-1	GRILLE; INNER,RAD	1	1809-	F	BODY COLOR KEYED RAD GRILLE<TL1> EXC. AUSTRALIA EQUIPMENT(B13),HO NG EQUIPMENT(B14),SINGAPORE EQUI (2G0) (A)
12	I8-98102 129-1	PLATE; SKID,RAD	1	1810-	DEF	(A)
154	I8-98230 015-0	BOLT; COVER	4	1809-	B	UNDER FRT GUARD<6RJ> HIGH RIDE SUSPENSION(7YC) 01.428 M12X2 5 FLANGE
178	I8-98392 513-1	GRILLE; INNER,RAD	1	1809-	A D	EXC. AUSTRALIA EQUIPMENT(B13) (A)
179	I8-97301 188-0	RETAINER; GRILLE,RAD	4	1809-	ABCDEF	.8694444444444
12	I8-98102 129-1	PLATE; SKID,RAD	1	1809-1809	ABCDEF	(A)
