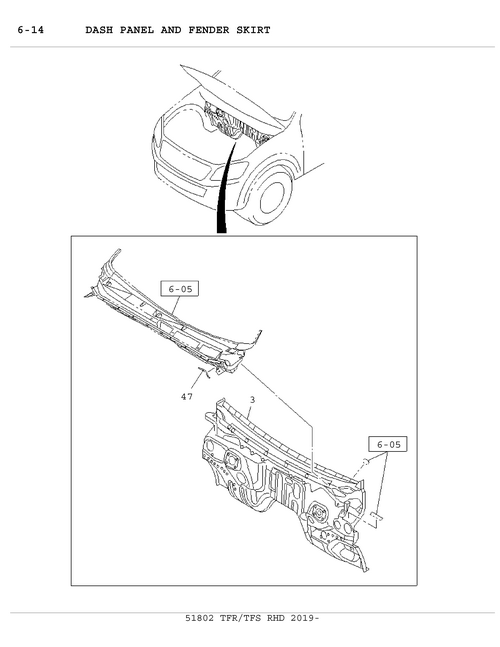

6-14 | DASH PANEL AND FENDER SKIRT
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 47 | I8-98151 273-0 | TAPE; DASH PANEL | 1 | 1810- | BC | RZ4E-TCX HI-POWER ENG(LNC),4JK1-TCX NG(LR0),4JJ1-TCX ENG(LS0),RZ4E-TC EN (RDZ) | ||
| 3 | I8-98103 213-3 | PANEL; SUB,DASH LWR | 1 | 1810- | B EF | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), Z4E-TC ENG(RDZ) EXC. CONGO EQUIPMENT(CDF) | ||
| 47 | I8-98151 273-0 | TAPE; DASH PANEL | 1 | 1810- | A DEF | |||
| 3 | I8-98103 213-3 | PANEL; SUB,DASH LWR | 1 | 1810- | A CD | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), Z4E-TC ENG(RDZ) | ||
| 47 | I8-98151 273-0 | TAPE; DASH PANEL | 1 | 1809-1809 | BC | RZ4E-TCX HI-POWER ENG(LNC),4JJ1-TCX NG(LS0),RZ4E-TC ENG(RDZ) | ||
| 47 | I8-98151 273-0 | TAPE; DASH PANEL | 2 | 1809- | BC | 4JA1-T ENG(LP0) | ||
| 3 | I8-98103 213-3 | PANEL; SUB,DASH LWR | 1 | 1809-1809 | ABCDEF | 4JJ1-TCX ENG(LS0),RZ4E-TC ENG(RDZ) EXC. CONGO EQUIPMENT(CDF) | ||
| 47 | I8-98151 273-0 | TAPE; DASH PANEL | 1 | 1809-1809 | A DEF |
