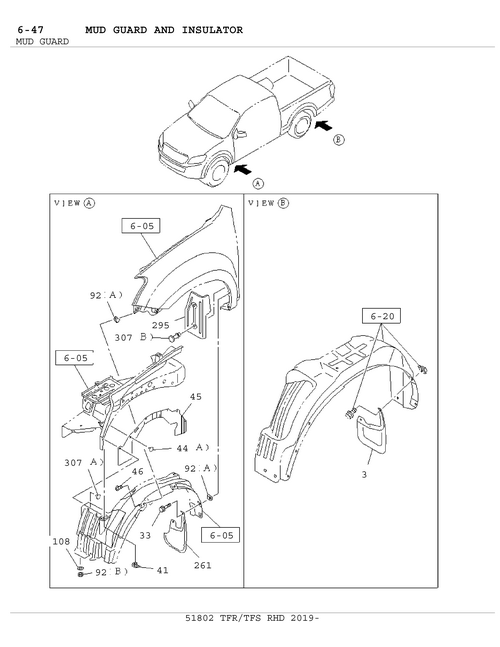

6-47 | MUD GUARD AND INSULATOR
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 3 | I8-98077 279-1 | GUARD; MUD,RR | 1 | 1809- | DEF | REAR BODY DBL WALL CTR PULL(E FORMED MUD FLAP FRT & RR<Q8H> EXC. SALES PACKAGE SPORTY X-S GH RIDE<XK0> | ||
| 92 | I8-97125 519-0 | NUT; MUD COVER | 4 | 1809- | ABCDEF | (A) | ||
| 261 | I8-98077 274-0 | RUBBER; FRT,MUD GUARD | 1 | 1809- | DEF | FORMED MUD FLAP FRT & RR<Q8H> | ||
| 108 | I8-98049 851-0 | WASHER; PL,PANEL TO FRAME | 2 | 1809- | ABCDEF | ID= 6.5 OD=18 T=1 . 6 | ||
| 33 | I8-98167 444-0 | BOLT; MUD COVER | 6 | 1809- | ABCDEF | FORMED MUD FLAP FRT & RR<Q8H> MUD FLAP EXTEND FRT & RR<Q8J> 07. 874 M6X20 TAPPING W/PL WASHER | ||
| 41 | I8-94221 150-0 | RIVET; INNER LINER | 2 | 1809- | A | HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) 08.154 | ||
| 41 | I8-94221 150-0 | RIVET; INNER LINER | 4 | 1809- | BC | HONG KONG EQUIPMENT(B14) HIGH RIDE SUSPENSION(7YC) 08.154 | ||
| 3 | I8-98077 279-1 | GUARD; MUD,RR | 1 | 1809- | ABC | REAR BODY DBL WALL CTR PULL(E FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) | ||
| 307 | I8-98050 462-0 | RETAINER | 2 | 1809- | ABCDEF | (A) | ||
| 44 | I8-94215 211-0 | CLIP; ANCHOR | 10 | 1809- | ABCDEF | (A) OD=22 L=10.7 | ||
| 45 | I8-98077 270-0 | COVER; MUD,FENDER SKIRT | 1 | 1809- | DEF | |||
| 261 | I8-98077 274-0 | RUBBER; FRT,MUD GUARD | 1 | 1809- | ABC | FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) | ||
| 261 | I8-98077 272-0 | RUBBER; FRT,MUD GUARD | 1 | 1809- | ABC | FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) | ||
| 41 | I8-94221 150-0 | RIVET; INNER LINER | 6 | 1809- | ABCDEF | EXC. FORMED MUD FLAP FRT & RR RMED MUD FLAP EXTEND FRT & RR 08.154 | ||
| 41 | I8-94221 150-0 | RIVET; INNER LINER | 10 | 1809- | ABCDEF | 8154 | ||
| 3 | I8-98077 276-1 | GUARD; MUD,RR | 1 | 1809- | DEF | REAR BODY DBL WALL CTR PULL(E FORMED MUD FLAP FRT & RR<Q8H> EXC. SALES PACKAGE SPORTY X-S GH RIDE<XK0> | ||
| 92 | I8-97125 519-0 | NUT; MUD COVER | 6 | 1809- | ABCDEF | FORMED MUD FLAP FRT & RR<Q8H> MUD FLAP EXTEND FRT & RR<Q8J> (A) | ||
| 693 | I8-98191 606-0 | GROMMET; ACCESSORY HOLE | 1 | 1809- | ABCDEF | |||
| 687 | I8-98191 602-1 | TAPE; PROTECT | 2 | 1809- | ABCDEF | |||
| 45 | I8-98077 268-1 | COVER; MUD,FENDER SKIRT | 1 | 1809- | ABC | HIGH RIDE SUSPENSION(7YC) | ||
| 46 | I8-98167 444-0 | SCREW; INNER LINER | 4 | 1809- | ABCDEF | 07.874 M6X20 TAPPING W/PL WASHER | ||
| 45 | I8-98077 268-1 | COVER; MUD,FENDER SKIRT | 1 | 1809- | DEF | |||
| 3 | I8-98077 276-1 | GUARD; MUD,RR | 1 | 1809- | ABC | REAR BODY DBL WALL CTR PULL(E FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) | ||
| 261 | I8-98077 272-0 | RUBBER; FRT,MUD GUARD | 1 | 1809- | DEF | FORMED MUD FLAP FRT & RR<Q8H> | ||
| 41 | I8-94221 150-0 | RIVET; INNER LINER | 2 | 1809- | BC | HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) NG EQUIPMENT(B14) 08.154 | ||
| 41 | I8-94221 150-0 | RIVET; INNER LINER | 2 | 1809- | DEF | EXC. AUSTRALIA EQUIPMENT(B13) 08.154 | ||
| 45 | I8-98077 270-0 | COVER; MUD,FENDER SKIRT | 1 | 1809- | ABC | HIGH RIDE SUSPENSION(7YC) | ||
| 92 | I8-98049 850-0 | NUT; MUD COVER | 2 | 1809- | ABCDEF | (B) M6 CAP NUT |
