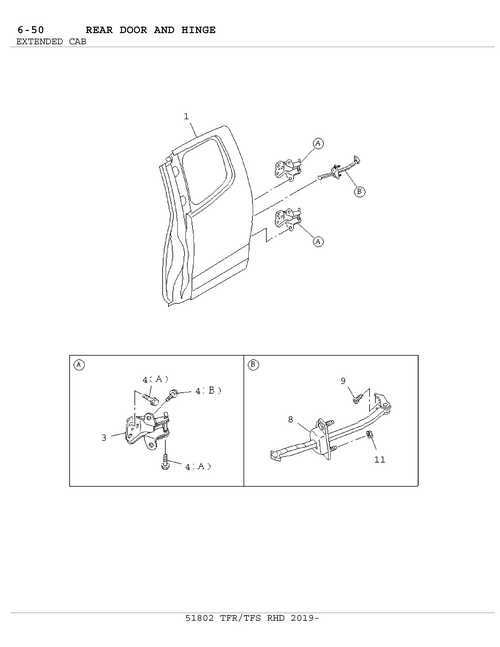

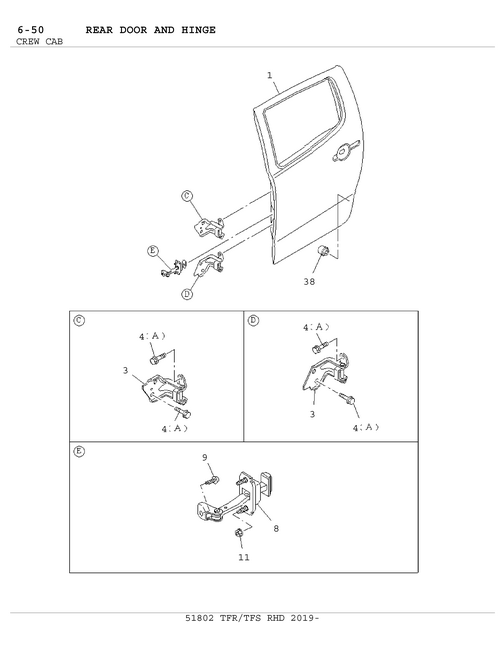

6-50 | REAR DOOR AND HINGE
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 4 | I8-98005 842-0 | BOLT; HINGE | 16 | 1809- | A D | 09.171 (A) M8X23 FLANGE | ||
| 4 | I8-98005 842-0 | BOLT; HINGE | 8 | 1809- | C F | 09.171 (A) M8X23 FLANGE | ||
| 8 | I8-98103 031-3 | ARM; CHECK,RR DOOR | 2 | 1809- | C F | |||
| 11 | I8-98049 362-0 | NUT | 4 | 1809- | A CD F | M6 FLANGE | ||
| 3 | I8-98105 280-1 | HINGE; RR DOOR | 2 | 1809- | C F | UPR RH & LWR LH | ||
| 1 | I8-98161 045-3 | DOOR ASM; REAR | 1 | 1809- | C F | EXC. AUSTRALIA EQUIPMENT(B13),HONG KO NG EQUIPMENT(B14),CONGO EQUIPMENT(CDF ),SINGAPORE EQUIPMENT(2G0) | ||
| 9 | I8-98166 694-0 | BOLT; CHECK ARM | 2 | 1809- | A CD F | 16 . 320 M8X23 | ||
| 3 | I8-98105 281-1 | HINGE; RR DOOR | 2 | 1809- | C F | LWR RH & UPR LH | ||
| 1 | I8-98161 044-3 | DOOR ASM; REAR | 1 | 1809- | C F | EXC. AUSTRALIA EQUIPMENT(B13),HONG KO NG EQUIPMENT(B14),CONGO EQUIPMENT(CDF ),SINGAPORE EQUIPMENT(2G0) | ||
| 38 | I8-98202 864-0 | PROTECTOR; RR DOOR | 2 | 1809- | C F | 16165 |
