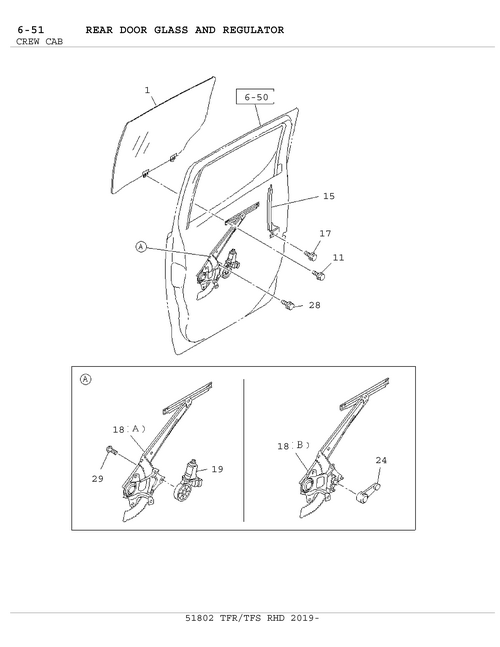

6-51 | REAR DOOR GLASS AND REGULATOR
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 87 | I8-94279 043-0 | NUT; WINDOW | 4 | 1809- | A D | 16.802 (A) D=7.8X7.8 L=18 NATURAL | ||
| 18 | I8-98093 557-1 | REGULATOR; WINDOW,RR DOOR | 1 | 1809- | C F | EXC. DRIVER POWER WINDOW UP/DOWN<ABZ>,DRIVER POW TO DOOR DOWN<A31> (B) | ||
| 19 | I8-98167 091-1 | MOTOR; POWER WINDOW REG,RR DOOR | 1 | 1809- | C F | DRIVER POWER WINDOW W/A WN<ABZ >,DRIVER POWER WI OR DOWN<A31> | ||
| 15 | I8-98100 799-2 | RAIL; RR GUIDE,RR DOOR | 1 | 1809- | C F | |||
| 29 | I8-98195 236-0 | SCREW; WINDOW REG | 6 | 1809- | C F | DRIVER POWER WINDOW W/A WN<ABZ >,DRIVER POWER WI OR DOWN<A31> | ||
| 1 | I8-98073 845-A | GLASS; RR DOOR | 1 | 1809- | C F | (IADG) | ||
| 17 | I8-98048 996-0 | BOLT; RR GUIDE RAIL | 2 | 1809- | C F | M6X8 FLANGE | ||
| 18 | I8-98167 090-0 | REGULATOR; WINDOW,RR DOOR | 1 | 1809- | C F | DRIVER POWER WINDOW W/A WN<ABZ >,DRIVER POWER WI OR DOWN<A31> (A) | ||
| 28 | I8-98188 381-1 | BOLT; WINDOW REG | 6 | 1809- | C F | 16.270 M6X10 FLANGE | ||
| 1 | I8-98073 846-1 | GLASS; RR DOOR | 1 | 1809- | C F | |||
| 18 | I8-98093 558-1 | REGULATOR; WINDOW,RR DOOR | 1 | 1809- | C F | EXC. DRIVER POWER WINDOW UP/DOWN<ABZ>,DRIVER POW TO DOOR DOWN<A31> (B) | ||
| 1 | I8-98073 845-1 | GLASS; RR DOOR | 1 | 1809- | C F | |||
| 19 | I8-98167 092-1 | MOTOR; POWER WINDOW REG,RR DOOR | 1 | 1809- | C F | DRIVER POWER WINDOW W/A WN<ABZ >,DRIVER POWER WI OR DOWN<A31> | ||
| 15 | I8-98100 798-2 | RAIL; RR GUIDE,RR DOOR | 1 | 1809- | C F | |||
| 11 | I8-98188 381-1 | BOLT; GLASS | 4 | 1809- | C F | 16.270 M6X10 FLANGE | ||
| 18 | I8-98167 089-0 | REGULATOR; WINDOW,RR DOOR | 1 | 1809- | C F | DRIVER POWER WINDOW W/A WN<ABZ >,DRIVER POWER WI OR DOWN<A31> (A) | ||
| 24 | I8-97416 724-0 | HANDLE; WINDOW REG,RR DOOR | 2 | 1809- | C F | EXC. DRIVER POWER WINDOW UP/DOWN<ABZ>,DRIVER POW TO DOOR DOWN<A31> BLACK | ||
| 1 | I8-98073 846-A | GLASS; RR DOOR | 1 | 1809- | C F | (IADG) |
