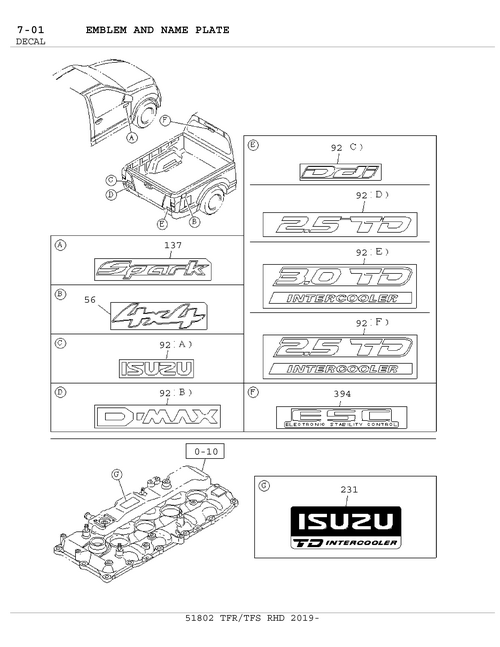

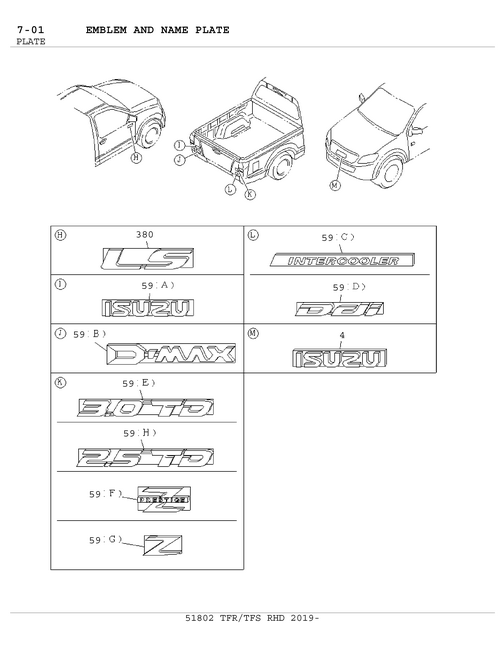

7-01 | EMBLEM AND NAME PLATE
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 231 | I8-98298 641-0 | EMBLEM; ENG | 1 | 1809-1809 | ABCDEF | 4JJ1-TCX ENG(LS0) EXC. AUSTRALIA EQUIPMENT(B13),ENG SIG HT SHIELD<8LQ> | ||
| 92 | I8-98129 870-0 | DECAL; RR END | 1 | 1810- | ABCDEF | 4JK1-TCX ENG(LR0) GRADE BASIC(RBA) REAR BODY DBL WALL CTR PULL(E63) EXC. LAOS EQUIPMENT(CF0) (F) | ||
| 92 | I8-98129 861-0 | DECAL; RR END | 1 | 1809- | B E | REAR BODY DBL WALL CTR PULL(E63) (A) | ||
| 56 | I8-97465 880-0 | DECAL; BODY SIDE | 2 | 1809- | DEF | DECAL 4X4<YJ3> RED & SILVER & GRAY | ||
| 59 | I8-98129 896-0 | DECAL; TAIL GATE | 1 | 1809- | A CD F | REAR BODY DBL WALL CTR PULL(E63) EXC. SALES PACKAGE SPORTY X-SERIES HI GH RIDE<XK0> (A) | ||
| 4 | I8-98164 912-0 | EMBLEM; RAD GRILLE | 1 | 1809- | ABCDE | |||
| 59 | I8-98129 903-0 | DECAL; TAIL GATE | 1 | 1809-1809 | A CD F | 4JJ1-TCX ENG(LS0) GRADE CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) EXC. MALAYSIA EQUIPMENT(B10),LAOS EQU IPMENT(CF0) (C) | ||
| 380 | I8-98129 894-0 | PLATE; SIDE | 2 | 1809- | A CD F | GRADE CUSTOM(RBD) EXC. MALAYSIA EQUIPMENT(B10),LAOS EQU IPMENT(CF0),SALES PACKAGE SPORTY X-SE RIES HIGH RIDE<XK0> | ||
| 59 | I8-98134 860-0 | DECAL; TAIL GATE | 1 | 1809- | A CD F | REAR BODY DBL WALL CTR PULL(E63) (B) | ||
| 4 | I8-98164 912-0 | EMBLEM; RAD GRILLE | 1 | 1809- | F | EXC. SALES PACKAGE SPORTY X-SERIES HI GH RIDE<XK0> | ||
| 92 | I8-98129 863-0 | DECAL; RR END | 1 | 1809- | B E | REAR BODY DBL WALL CTR PULL(E63) (B) | ||
| 59 | I8-98134 871-0 | DECAL; TAIL GATE | 1 | 1810- | A CD F | 4JK1-TCX ENG(LR0) GRADE CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) EXC. LAOS EQUIPMENT(CF0) (H) | ||
| 59 | I8-98129 903-0 | DECAL; TAIL GATE | 1 | 1810- | A CD F | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) GRADE CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) EXC. MALAYSIA EQUIPMENT(B10),LAOS EQU IPMENT(CF0) (C) | ||
| 231 | I8-98298 641-0 | EMBLEM; ENG | 1 | 1810- | ABCDEF | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. AUSTRALIA EQUIPMENT(B13),ENG SIG HT SHIELD<8LQ> | ||
| 380 | I8-98129 894-0 | PLATE; SIDE | 2 | 1809- | C F | RZ4E-TC ENG(RDZ) GRADE CUSTOM(RBD) MALAYSIA EQUIPMENT(B10) |
