8-28 | CHASSIS ELECTRICAL
DMAX
D-MAX 2019

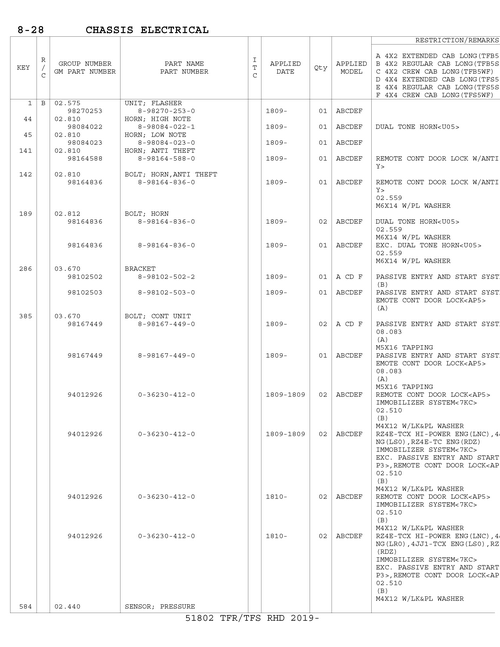

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

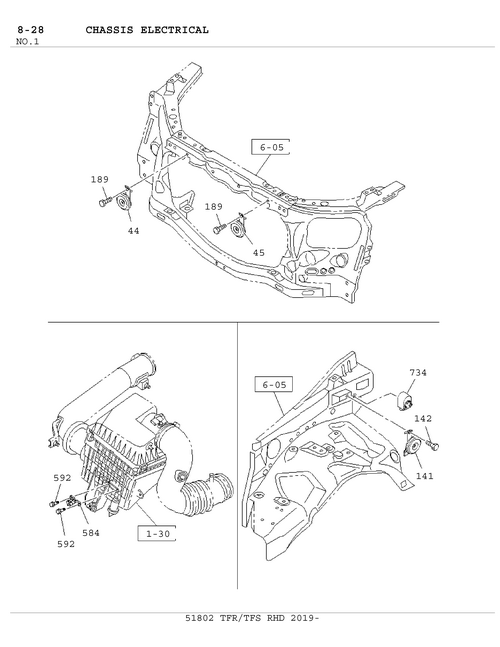

| 189 | I8-98164 836-0 | BOLT; HORN | 1 | 1809- | ABCDEF | EXC. DUAL TONE HORN<U05> 02.559 M6X14 W/PL WASHER | ||

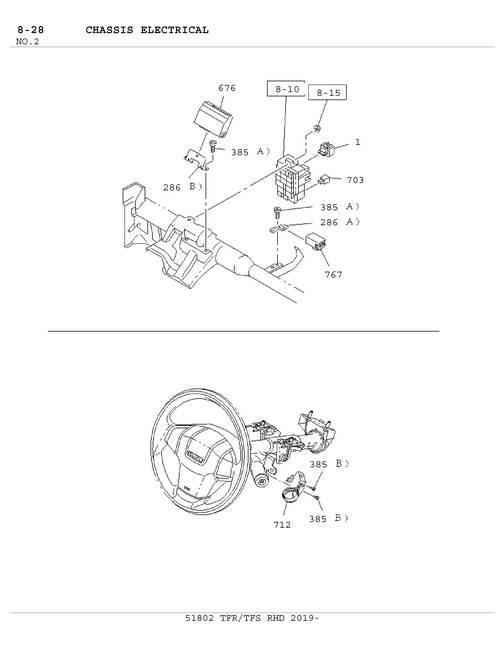

| 385 | I0-36230 412-0 | BOLT; CONT UNIT | 2 | 1809-1809 | ABCDEF | RZ4E-TCX HI-POWER ENG(LNC),4 NG(LS0),RZ4E-TC ENG(RDZ) IMMOBILIZER SYSTEM< 7KC> EXC. PASSIVE ENTRY AND START P3 >,REMOTE CONT DOOR LOCK<AP 02.510 (B) M4X12 W/LK&PL WASHER | ||
| 1 | I8-98270 253-0 | UNIT; FLASHER | 1 | 1809- | ABCDEF | |||
| 592 | I0-28650 616-0 | BOLT; SENSOR | 2 | 1810- | ABCDEF | 4JK1-TCX ENG(LR0),4JJ1-TCX E Z4E-TC ENG(RDZ) 02 .343 M6X16 FLANGE | ||
| 385 | I8-98167 449-0 | BOLT; CONT UNIT | 2 | 1809- | A CD F | PASSIVE ENTRY AND START SYSTE 08.083 (A) M5X16 TAPPING | ||
| 385 | I8-98167 449-0 | BOLT; CONT UNIT | 1 | 1809- | ABCDEF | PASSIVE ENTRY AND START SYSTE EMOTE CONT DOOR LOCK<AP5> 08.083 (A) M5X16 TAPPING | ||
| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 1809-1809 | ABCDEF | 4JJ1-TCX ENG(LS0),RZ4E-TC EN 03 .331 | ||
| 142 | I8-98164 836-0 | BOLT; HORN,ANTI THEFT | 1 | 1809- | ABCDEF | REMOTE CONT DOOR LOCK W/ANTI Y> 02.559 M6X14 W/PL WASHER | ||
| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 1810- | ABCDEF | 4JK1-TCX ENG(LR0),4JJ1-TCX E Z4E-TC ENG(RDZ) 03.331 | ||
| 286 | I8-98102 503-0 | BRACKET | 1 | 1809- | ABCDEF | PASSIVE ENTRY AND START SYSTE EMOTE CONT DOOR LOCK<AP5> (A) | ||
| 385 | I0-36230 412-0 | BOLT; CONT UNIT | 2 | 1809-1809 | ABCDEF | REMOTE CONT DOOR LOCK<AP5 > IMMOBILIZER SYSTEM< 7KC> 02.510 (B) M4X12 W/LK&PL WASHER | ||
| 767 | I8-98076 338-1 | RECEIVER ASM; KEYLESS ENTRY | 1 | 1809- | ABCDEF | REMOTE CONT DOOR LOCK<AP5 > | ||
| 189 | I8-98164 836-0 | BOLT; HORN | 2 | 1809- | ABCDEF | DUAL TONE HORN<U0 5> 02.559 M6X14 W/PL WASHER | ||
| 44 | I8-98084 022-1 | HORN; HIGH NOTE | 1 | 1809- | ABCDEF | DUAL TONE HORN<U0 5> | ||
| 385 | I0-36230 412-0 | BOLT; CONT UNIT | 2 | 1810- | ABCDEF | RZ4E-TCX HI-POWER ENG(LNC),4 NG(LR0),4JJ1-TCX ENG(LS0),RZ (RDZ) IMMOBILIZER SYSTEM< 7KC> EXC. PASSIVE ENTRY AND START P3 >,REMOTE CONT DOOR LOCK<AP 02.510 (B) M4X12 W/LK&PL WASHER | ||
| 45 | I8-98084 023-0 | HORN; LOW NOTE | 1 | 1809- | ABCDEF | |||
| 385 | I0-36230 412-0 | BOLT; CONT UNIT | 2 | 1810- | ABCDEF | REMOTE CONT DOOR LOCK<AP5 > IMMOBILIZER SYSTEM< 7KC> 02.510 (B) M4X12 W/LK&PL WASHER | ||
| 592 | I0-28650 616-0 | BOLT; SENSOR | 2 | 1809-1809 | ABCDEF | 4JJ1-TCX ENG(LS0),RZ4E-TC EN 02 .343 M6X16 FLANGE |
