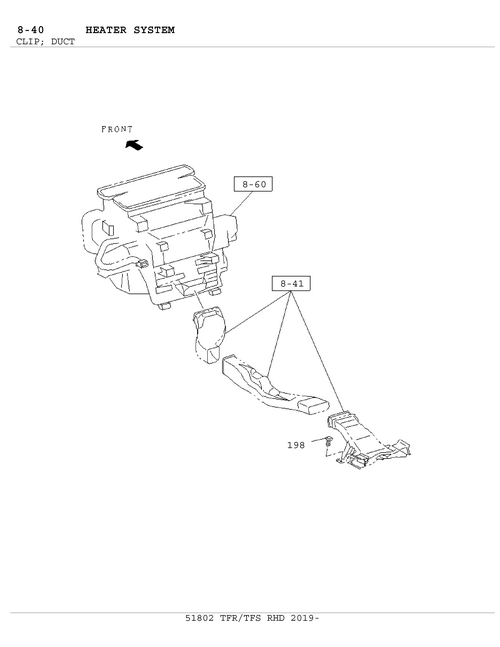

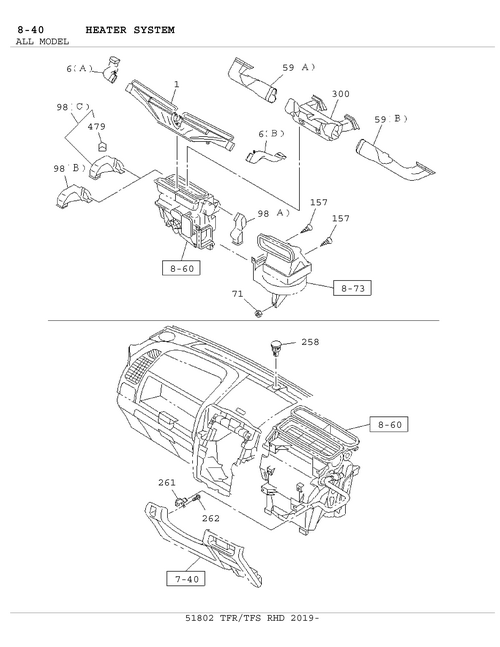

8-40 | HEATER SYSTEM
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 157 | I8-98167 220-0 | SCREW | 2 | 1809- | ABCDEF | 16.650 M5X16 | ||
| 71 | I8-94279 514-0 | NUT; BLOWER UNIT TO DASH | 1 | 1809- | ABCDEF | 03.417 M6 FLANGE | ||
| 300 | I8-98187 098-0 | DUCT; VENT,CENTER | 1 | 1809- | ABCDEF | |||
| 59 | I8-98187 099-0 | DUCT; VENT,ASSIST SIDE | 1 | 1809- | R | ABCDEF | (A) | |
| 98 | I8-98233 055-0 | DUCT; BLOWER UNIT TO HTR UNIT | 1 | 1809- | R | ABCDEF | HEATER & DEFROSTER(C42),A ER MANUAL CONT(C6 0),COOLE R(C65) (B) | |
| 262 | I8-98184 363-0 | SCREW; IN CAR SENSOR | 1 | 1809- | A CD F | AUTO COOLER SYSTEM(CJ2),A ER AUTOMATIC CONT(C61) REAR DEFOGGER< C4 9> 16.345 M5X14 TAPPING | ||
| 59 | I8-98187 100-0 | DUCT; VENT,ASSIST SIDE | 1 | 1809- | L | ABCDEF | (B) | |
| 98 | I8-98233 054-0 | DUCT; BLOWER UNIT TO HTR UNIT | 1 | 1809- | L | ABCDEF | (A) |
