| 14 |
I8-94397 027-1 |
|
BOLT; CMPR |
4 |
1809-1809 |
|
ABCDEF |
4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) 02.277 M10X95 FLANGE |
| 46 |
I8-98226 839-0 |
|
BRACKET; CMPR |
1 |
1810- |
|
ABCDEF |
4JK1-TCX ENG(LR0),4JJ1-TCX ENG( AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) (A) |
| 30 |
I8-98243 991-0 |
|
COLLAR; IDLE PULLEY |
1 |
1810- |
|
ABCDEF |
4JK1-TCX ENG(LR0),4JJ1-TCX ENG( AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) |
| 31 |
I8-98243 987-0 |
|
BOLT; ADJ,IDLE PULLEY |
1 |
1810- |
|
ABCDEF |
4JK1-TCX ENG(LR0),4JJ1-TCX ENG( AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) |
| 211 |
I8-98173 569-0 |
|
CLIP; HOSE |
1 |
1810- |
|
ABCDEF |
M/T MUA 5 SPEED 5H(MWQ),M/T MSG ED(M75),M/T MUA 5 SPEED 5G(RSP) (B) |
| 27 |
I8-97377 328-0 |
|

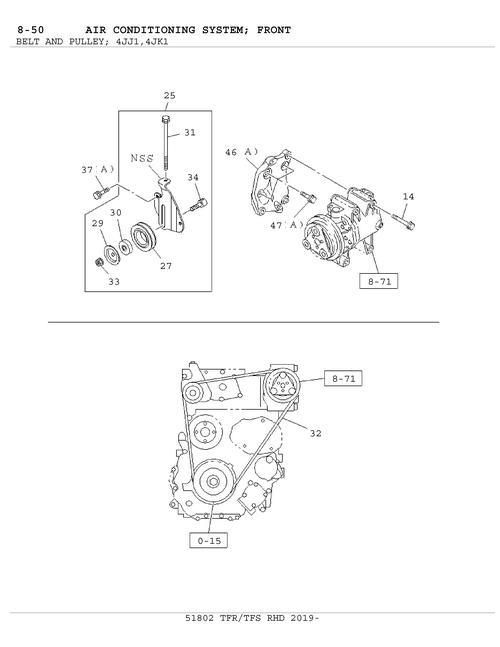

PULLEY; IDLE,A/C |
1 |
1810- |
|
ABCDEF |
4JK1-TCX ENG(LR0),4JJ1-TCX ENG( AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) |
| 32 |
I8-97985 121-0 |
|
BELT; A/C CMPR |
1 |
1809-1809 |
|
ABCDEF |
4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) L=1445 MITSUBOSHI |
| 29 |
I8-97377 334-1 |
|
COVER; DUST,IDLE PULLEY |
1 |
1809-1809 |
|
ABCDEF |
4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) |
| 211 |
I8-98173 569-0 |
|
CLIP; HOSE |
1 |
1809-1809 |
|
BC |
M/T MSG 5 SPEED(M75),M/T MUA 5 5G(RSP) (B) |
| 33 |
I8-97377 331-0 |
|
NUT; IDLER PULLEY |
1 |
1809-1809 |
|
ABCDEF |
4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) M10 |
| 47 |
I0-28650 825-0 |
|
BOLT; BRKT TO BODY |
4 |
1809-1809 |
|
ABCDEF |
4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) 06.216 (A) M8X2 5 FLANGE |
| 37 |
I0-28050 816-0 |
|
BOLT; PULLEY BRKT |
2 |
1810- |
|
ABCDEF |
4JK1-TCX ENG(LR0),4JJ1-TCX ENG( AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) 02.343 (A) M8X16 FLANGE |
| 69 |
I0-91614 610-0 |
|
WASHER; PL,EVAP |
1 |
1810- |
|
ABCDEF |
M/T MUA 5 SPEED 5H(MWQ),M/T MSG ED(M75),M/T MUA 5 SPEED 5G(RSP) 00.002 ID=10.5 OD=2 2 |
| 211 |
I8-97375 643-0 |
|
CLIP; HOSE |
1 |
1809- |
|
ABCDEF |
A/T 5 SPEED-AISIN(MA1),M/T MUX D 5S (MZJ) ,M/T MVL 6 SPEED 6N(Y5 6 SPEED-AISIN(Y6A),M/T MVL 6 S Y(Y6P) 02.343 (A) ID=22 L=35 |
| 32 |
I8-97985 122-0 |
|
BELT; A/C CMPR |
1 |
1810- |
|
ABCDEF |
4JK1-TCX ENG(LR0),4JJ1-TCX ENG( AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) L=1445 BANDO |
| 262 |
I8-98103 644-0 |
|

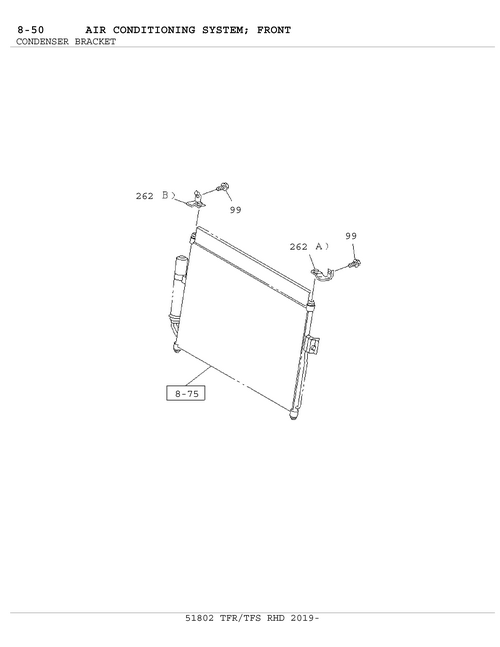

BRACKET; CONDENSER |
1 |
1809- |
|
ABCDEF |
AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) (A) |
| 199 |
I0-91180 110-0 |
|
NUT |
1 |
1810- |
|
ABCDEF |
M/T MUA 5 SPEED 5H(MWQ),M/T MSG ED(M75) ,M/T MUA 5 SPEED 5G (RSP) 03.162 M10 FLANGE |
| 47 |
I0-28051 045-0 |
|
BOLT; BRKT TO BODY |
2 |
1809- |
|
BC |

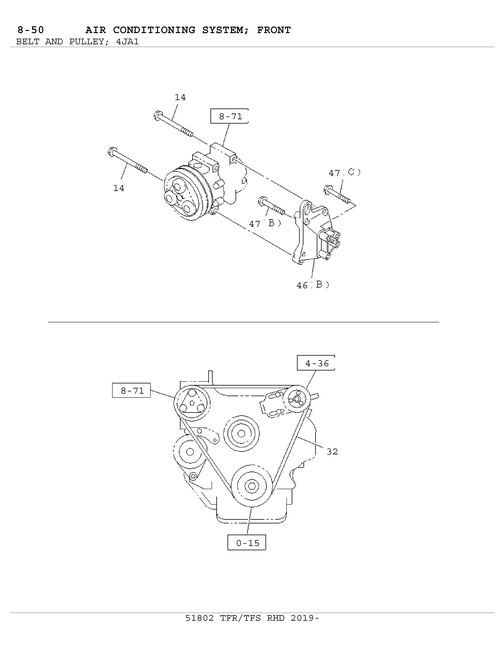

4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C6 0 00. 685 (B) M10X45 FLANGE |
| 37 |
I0-28050 816-0 |
|
BOLT; PULLEY BRKT |
2 |
1809-1809 |
|
ABCDEF |
4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) 02.343 (A) M8X16 FLANGE |
| 32 |
I8-97985 122-0 |
|
BELT; A/C CMPR |
1 |
1809-1809 |
|
ABCDEF |
4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) L=1445 BANDO |
| 199 |
I0-91180 110-0 |
|
NUT |
1 |
1809-1809 |
|
BC |
M/T MSG 5 SPEED(M75),M/T MUA 5 5G(RSP) 03.162 M10 FLANGE |
| 32 |
I8-97985 121-0 |
|
BELT; A/C CMPR |
1 |
1810- |
|
ABCDEF |
4JK1-TCX ENG(LR0),4JJ1-TCX ENG( AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) L=1445 MITSUBOSHI |
| 33 |
I8-97377 331-0 |
|
NUT; IDLER PULLEY |
1 |
1810- |
|
ABCDEF |
4JK1-TCX ENG(LR0),4JJ1-TCX ENG( AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) M10 |
| 46 |
I8-98226 839-0 |
|
BRACKET; CMPR |
1 |
1809-1809 |
|
ABCDEF |
4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) (A) |
| 262 |
I8-98103 645-0 |
|
BRACKET; CONDENSER |
1 |
1809- |
|
ABCDEF |
AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) (B) |
| 78 |
I0-52000 612-0 |
|
BOLT; EVAP,A/C |
1 |
1809- |
|
ABCDEF |
A/T 5 SPEED-AISIN(MA1),M/T MUX D 5S(MZJ),M/T MVL 6 SPEED 6N(Y5 6 SPEED-AISIN(Y6A),M/T MVL 6 S Y(Y6P) M6X12 W/LK&PL WASHER |
| 69 |
I0-91614 610-0 |
|
WASHER; PL,EVAP |
1 |
1809-1809 |
|
BC |
M/T MSG 5 SPEED(M75),M/T MUA 5 5G(RSP) 00.002 ID=10.5 OD=2 2 |
| 378 |
I8-98163 367-2 |
|

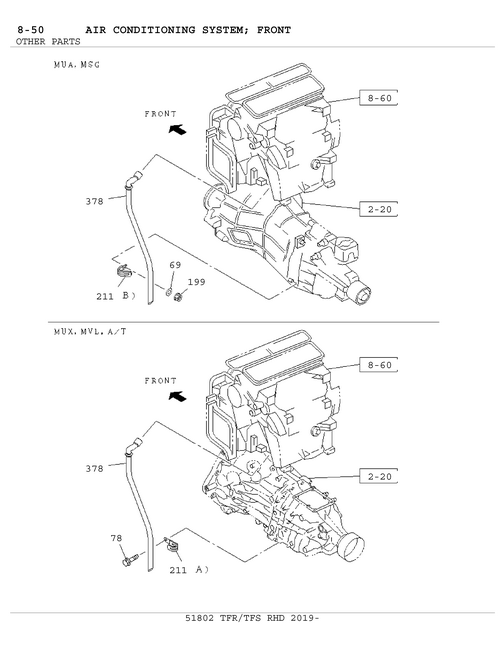

HOSE; DRAIN,EVAPORATOR |
1 |
1809- |
|
ABCDEF |
|
| 31 |
I8-98243 987-0 |
|
BOLT; ADJ,IDLE PULLEY |
1 |
1809-1809 |
|
ABCDEF |
4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) |
| 32 |
I8-97985 121-A |
|
BELT; A/C CMPR |
1 |
1810- |
|
ABCDEF |
(IADG) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG( AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) L=1445 MITSUBOSHI |
| 34 |
I8-98243 990-0 |
|
SHAFT; IDLE PULLEY |
1 |
1810- |
|
ABCDEF |
4JK1-TCX ENG(LR0),4JJ1-TCX ENG( AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) |
| 34 |
I8-98243 990-0 |
|
SHAFT; IDLE PULLEY |
1 |
1809-1809 |
|
ABCDEF |
4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) |
| 29 |
I8-97377 334-1 |
|
COVER; DUST,IDLE PULLEY |
1 |
1810- |
|
ABCDEF |
4JK1-TCX ENG(LR0),4JJ1-TCX ENG( AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) |
| 27 |
I8-97377 328-0 |
|
PULLEY; IDLE,A/C |
1 |
1809-1809 |
|
ABCDEF |
4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) |
| 47 |
I0-28650 825-0 |
|
BOLT; BRKT TO BODY |
4 |
1810- |
|
ABCDEF |
4JK1-TCX ENG(LR0),4JJ1-TCX ENG( AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) 06.216 (A) M8X2 5 FLANGE |
| 30 |
I8-98243 991-0 |
|
COLLAR; IDLE PULLEY |
1 |
1809-1809 |
|
ABCDEF |
4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) |
| 25 |
I8-98205 963-0 |
|
PULLEY ASM; IDLER,CMPR |
1 |
1809-1809 |
|
ABCDEF |
4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) |
| 25 |
I8-98205 963-0 |
|
PULLEY ASM; IDLER,CMPR |
1 |
1810- |
|
ABCDEF |
4JK1-TCX ENG(LR0),4JJ1-TCX ENG( AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) |
| 14 |
I8-94397 027-1 |
|
BOLT; CMPR |
4 |
1810- |
|
ABCDEF |
4JK1-TCX ENG(LR0),4JJ1-TCX ENG( AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) 02.277 M10X95 FLANGE |
| 99 |
I0-28650 616-0 |
|
BOLT; BRKT |
2 |
1809- |
|
ABCDEF |
AUTO COOLER SYSTEM(CJ2),AIR CON ER MANUAL CONT(C60),AIR CONDITI UTOMATIC CONT(C61),COOLER W/FRE (C65),COOLER WO/FRESH AIR(8NF) 02.343 M6X16 FLANGE |
