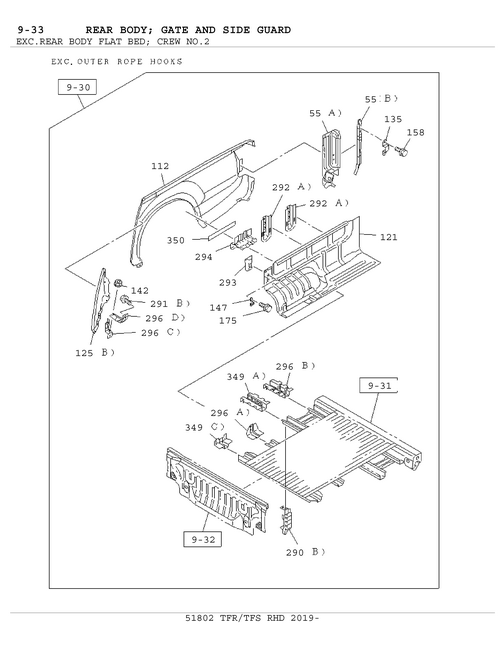

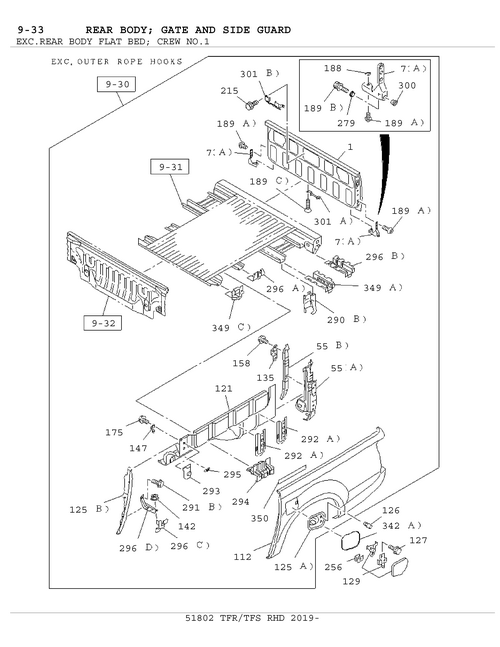

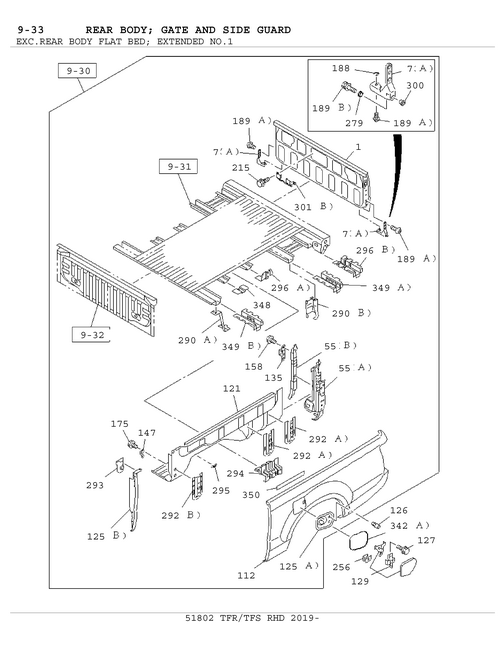

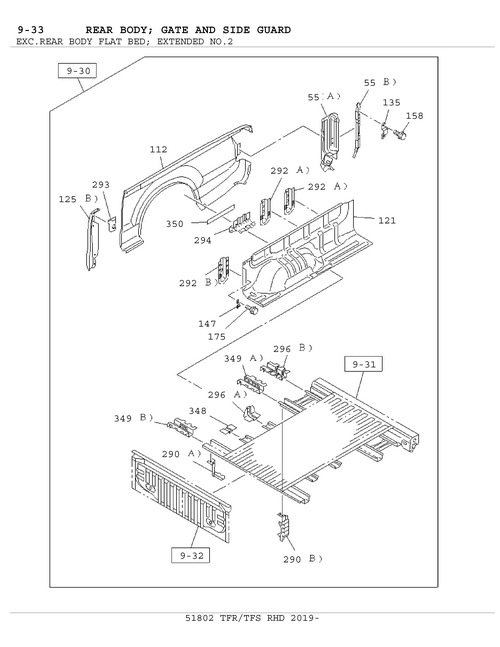

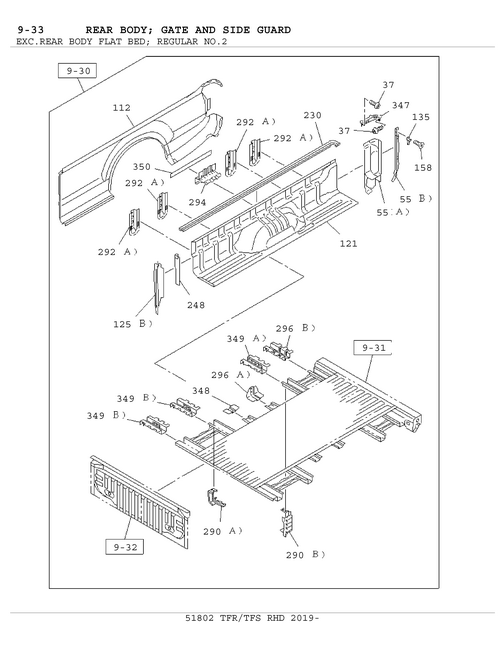

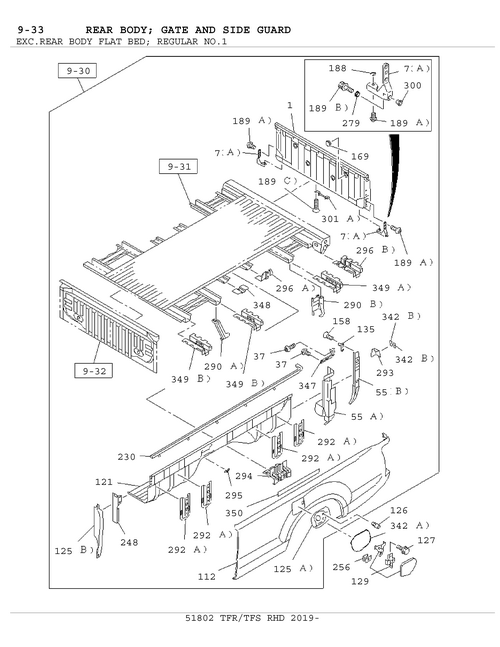

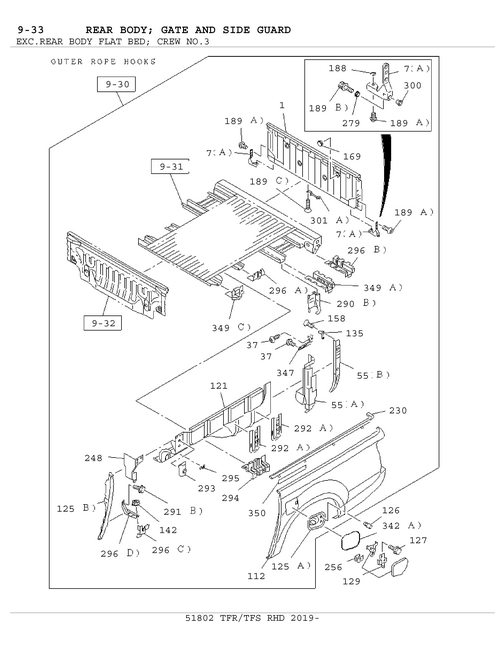

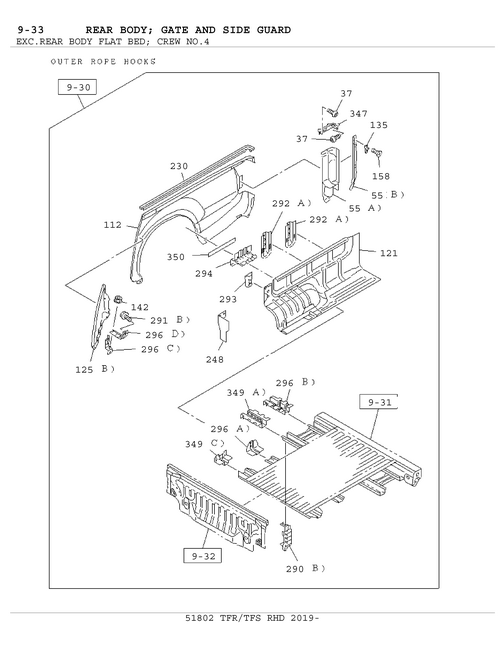

9-33 | REAR BODY; GATE AND SIDE GUARD

Partial Engine Partial Engine Partial Engine Partial Engine Partial Engine Partial Engine Partial Engine Partial Engine

DMAX

D-MAX 2019

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
135 I8-98050 333-0 STRIKER; TAIL GATE,RR BODY 1 1809- R A CD F REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK
292 I8-98104 156-0 EXTENSION; RR BODY 2 1809- D REAR BODY DBL WALL C (A)
293 I8-98104 612-2 REINFORCEMENT; RR BODY 1 1809- R A D REAR BODY DBL WALL C GUARD FRAME BAR CARG
292 I8-98104 156-0 EXTENSION; RR BODY 2 1809- A REAR BODY DBL WALL CT HIGH RIDE SUSPENSION (A)
4 I8-97043 528-0 SCREW; PANEL,RR GATE 12 1809- A CD F REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK M4X10
294 I8-98104 406-3 PANEL; OUTER,RR BODY 1 1809- R D F REAR BODY DBL WALL C
294 I8-98104 406-3 PANEL; OUTER,RR BODY 1 1809- R C REAR BODY DBL WALL CT HIGH RIDE SUSPENSION EXC. OUTER ROPE HOOK
349 I8-98104 614-2 REINFORCEMENT; RR BODY,SILL 1 1809- A REAR BODY DBL WALL CT EXC. GUARD FRAME BAR 8 9>,HIGH RIDE SUSPEN (A)
296 I8-98104 665-1 BRACKET; RR BODY 1 1809- A REAR BODY DBL WALL CT EXC. GUARD FRAME BAR 8 9>,HIGH RIDE SUSPEN (B)
112 I8-98122 519-9 PANEL; SIDE GATE 1 1809- L B REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ HIGH RIDE SUSPENSION
296 I8-98104 649-0 BRACKET; RR BODY 1 1809- A REAR BODY DBL WALL CT EXC. GUARD FRAME BAR 8 9>,HIGH RIDE SUSPEN (A)
349 I8-98104 614-2 REINFORCEMENT; RR BODY,SILL 1 1809- D REAR BODY DBL WALL C (A)
1 I8-98272 985-2 GATE ASM; RR 1 1809- F REAR BODY DBL WALL CT EXC. CONGO EQUIPMENT
257 I8-98057 864-0 RIVET 2 1809- D REAR BODY DBL WALL C 17.490
299 I8-98243 808-0 LATCH; END GATE 1 1809- L A CD F REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK
296 I8-98104 649-0 BRACKET; RR BODY 2 1809- C REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK (A)
296 I8-98104 665-1 BRACKET; RR BODY 1 1809- A REAR BODY DBL WALL CT EXC. GUARD FRAME BAR 8 9>,HIGH RIDE SUSPEN (B)
350 I8-98192 940-0 SEAL; TAPE 2 1809- F REAR BODY DBL WALL C LOWER 20X60
350 I8-98192 937-0 SEAL; TAPE 1 1809- D REAR BODY DBL WALL C UPPER 20X280
296 I8-98138 649-3 BRACKET; RR BODY 1 1809- R F REAR BODY DBL WALL C (D)
294 I8-98104 406-3 PANEL; OUTER,RR BODY 1 1809- R B REAR BODY DBL WALL C OUTER ROPE HOOKS< 7MZ HIGH RIDE SUSPENSION
349 I8-98139 650-1 REINFORCEMENT; RR BODY,SILL 1 1809- L C REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ EXC. HIGH RIDE SUSPE (C)
290 I8-98113 244-2 BRACE; RR BODY 1 1809- R B REAR BODY DBL WALL C OUTER ROPE HOOKS< 7MZ HIGH RIDE SUSPENSION (B)
303 I8-97381 277-0 SNAP; LATCH,END GATE 1 1809- L A CD F REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK
290 I8-98113 245-2 BRACE; RR BODY 1 1809- L DEF REAR BODY DBL WALL C (B)
291 I8-98136 077-0 BOLT; RR BODY 2 1809-1809 C F REAR BODY DBL WALL CT 01 . 540 (B) M8X32.5 W/PL WASHER
348 I8-98104 619-0 REINFORCEMENT; RR BODY,INRL 2 1809- A REAR BODY DBL WALL CT GUARD FRAME BAR CARG EXC. HIGH RIDE SUSPE
296 I8-98104 649-0 BRACKET; RR BODY 2 1809- A REAR BODY DBL WALL CT GUARD FRAME BAR CARG EXC. HIGH RIDE SUSPE (A)
112 I8-98104 561-7 PANEL; SIDE GATE 1 1809- R C REAR BODY DBL WALL CT HIGH RIDE SUSPENSION EXC. OUTER ROPE HOOK
347 I8-98104 604-1 REINFORCEMENT; RR BODY,SIDE 1 1809- R B E REAR BODY DBL WALL C OUTER ROPE HOOKS< 7MZ
350 I8-98192 940-0 SEAL; TAPE 1 1809- A REAR BODY DBL WALL C HIGH RIDE SUSPENSION LOWER 20X60
347 I8-98104 603-1 REINFORCEMENT; RR BODY,SIDE 1 1809- L C REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ EXC. HIGH RIDE SUSPEN
50 I8-98061 099-0 LOCK ASM; TAIL GATE,RR BODY 2 1809- BC E REAR BODY DBL WALL C OUTER ROPE HOOKS< 7MZ
53 I8-98239 435-3 HANDLE ASM; OUTSIDE,TAIL GATE 1 1809- A CD F OUTSIDE HANDLE CHROM REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK ATE<8CW>,REAR CAMERA DLE<8PK>
189 I0-50641 035-0 BOLT; HINGE,RR GATE 2 1809- ABCDEF REAR BODY DBL WALL C (B) M10X35 W/LK&PL WASHE
349 I8-98139 651-1 REINFORCEMENT; RR BODY,SILL 1 1809- R C REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ EXC. HIGH RIDE SUSPE (C)
215 I8-97247 698-0 BOLT; HANDLE TO GUARD FRAME 1 1809- A CD F REAR BODY DBL WALL CT POLLEN FILTER FOR AI > EXC. OUTER ROPE HOOK M6X14 FLANGE
349 I8-98104 614-2 REINFORCEMENT; RR BODY,SILL 2 1809- C REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK (A)
290 I8-98187 117-0 BRACE; RR BODY 1 1809- L A REAR BODY DBL WALL C HIGH RIDE SUSPENSION (C)
189 I8-98050 437-0 BOLT; HINGE,RR GATE 2 1809- F CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CT (C) M8X22
350 I8-98192 940-0 SEAL; TAPE 2 1809- B E REAR BODY DBL WALL C OUTER ROPE HOOKS< 7MZ LOWER 20X60
350 I8-98192 937-0 SEAL; TAPE 1 1809- A REAR BODY DBL WALL C EXC. GUARD FRAME BAR 8 9>,HIGH RIDE SUSPEN UPPER 20X280
292 I8-98104 156-0 EXTENSION; RR BODY 2 1809- D REAR BODY DBL WALL C (A)
349 I8-98104 613-2 REINFORCEMENT; RR BODY,SILL 1 1809- A REAR BODY DBL WALL CT EXC. GUARD FRAME BAR 8 9>,HIGH RIDE SUSPEN (B)
37 I8-98290 484-0 SCREW 4 1809- A CD F REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK 17.400 M8X16.5 HEXALOBULAR
295 I8-98104 666-1 BRACKET; FILLER 1 1809- L A D F REAR BODY DBL WALL C
296 I8-98104 665-1 BRACKET; RR BODY 2 1809- F REAR BODY DBL WALL C (B)
350 I8-98192 937-0 SEAL; TAPE 1 1809- D REAR BODY DBL WALL C UPPER 20X280
133 I8-98134 726-1 STOPPER; TAIL GATE LINK,RR BODY 1 1809- R A CD F REAR BODY DBL WALL CT EXC. REAR STEP BUMPE BUMPER CHROME(V42),S TY X-SERIES HIGH RID HOOKS< 7MZ> (A)
296 I8-98104 665-1 BRACKET; RR BODY 1 1809- D REAR BODY DBL WALL C (B)
279 I8-97357 403-0 SPACER 2 1809- ABCDEF REAR BODY DBL WALL C
248 I8-98104 333-0 PATCH; CARGO RR 1 1809- L B E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ
293 I8-98104 612-2 REINFORCEMENT; RR BODY 1 1809- R F REAR BODY DBL WALL C
125 I8-98104 192-4 RECESS; FUEL FILLER NECK,RR BODY 1 1809- R F REAR BODY DBL WALL C (B)
348 I8-98104 619-0 REINFORCEMENT; RR BODY,INRL 1 1809- A REAR BODY DBL WALL C HIGH RIDE SUSPENSION
349 I8-98104 613-2 REINFORCEMENT; RR BODY,SILL 1 1809- A REAR BODY DBL WALL CT EXC. GUARD FRAME BAR 8 9>,HIGH RIDE SUSPEN (B)
349 I8-98104 614-2 REINFORCEMENT; RR BODY,SILL 1 1809- A REAR BODY DBL WALL CT HIGH RIDE SUSPENSION (A)
349 I8-98104 613-2 REINFORCEMENT; RR BODY,SILL 1 1809- D REAR BODY DBL WALL C (B)
125 I8-98104 180-1 RECESS; FUEL FILLER NECK,RR BODY 1 1809- L B E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ (B)
347 I8-98104 603-1 REINFORCEMENT; RR BODY,SIDE 1 1809- L B E REAR BODY DBL WALL C OUTER ROPE HOOKS< 7MZ
350 I8-98192 937-0 SEAL; TAPE 2 1809- C REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ EXC. HIGH RIDE SUSPE UPPER 20X280
300 I8-98057 114-0 COLLAR; GATE HINGE 2 1809- ABCDEF REAR BODY DBL WALL CT
296 I8-98138 643-3 BRACKET; RR BODY 1 1809- R F REAR BODY DBL WALL CT (C)
7 I8-98180 949-0 HINGE ASM; RR GATE 1 1809- R ABCDEF REAR BODY DBL WALL CT (A)
1 I8-98272 985-2 GATE ASM; RR 1 1809- A CD REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK
126 I8-98144 635-1 RUBBER; STOPPER,FUEL FILLER LID 3 1809- ABCDEF REAR BODY DBL WALL C
296 I8-98104 665-1 BRACKET; RR BODY 1 1809- A REAR BODY DBL WALL CT HIGH RIDE SUSPENSION (B)
121 I8-98104 927-6 PANEL; SIDE INNER,RR BODY 1 1809- L B E REAR BODY DBL WALL C OUTER ROPE HOOKS< 7MZ
349 I8-98104 614-2 REINFORCEMENT; RR BODY,SILL 2 1809- B E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ (A)
55 I8-98104 381-4 PANEL; RR CORNER 1 1809- R C REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ EXC. HIGH RIDE SUSPE (B)
132 I0-28650 820-0 BOLT; TAIL GATE LINK,RR BODY 4 1809- ABCDEF REAR BODY DBL WALL CT 01 . 531 M8X2 0 FLANGE
55 I8-98104 264-5 PANEL; RR CORNER 1 1809- R C REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ EXC. HIGH RIDE SUSPE (A)
348 I8-98104 619-0 REINFORCEMENT; RR BODY,INRL 1 1809- A REAR BODY DBL WALL CT EXC. GUARD FRAME BAR 8 9>,HIGH RIDE SUSPEN
293 I8-98104 612-2 REINFORCEMENT; RR BODY 1 1809- R C REAR BODY DBL WALL C EXC. OUTER ROPE HOOK
292 I8-98104 156-0 EXTENSION; RR BODY 2 1809- A REAR BODY DBL WALL CT EXC. GUARD FRAME BAR 8 9>,HIGH RIDE SUSPEN (A)
257 I8-98057 864-0 RIVET 4 1809- B REAR BODY DBL WALL C OUTER ROPE HOOKS< 7MZ HIGH RIDE SUSPENSION 17.490
257 I8-98057 864-0 RIVET 4 1809- F REAR BODY DBL WALL C 17.490
158 I8-98050 437-0 SCREW; STRIKER,TAIL GATE 4 1809- BC E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ 17.208 M8X22
112 I8-98104 560-9 PANEL; SIDE GATE 1 1809- L F REAR BODY DBL WALL C
125 I8-98104 189-4 RECESS; FUEL FILLER NECK,RR BODY 1 1809- L F REAR BODY DBL WALL C (B)
292 I8-98104 156-0 EXTENSION; RR BODY 4 1809- F REAR BODY DBL WALL C (A)
291 I8-98290 484-0 BOLT; RR BODY 2 1809- ABCDEF REAR BODY DBL WALL CT (A) M8X16.5 HEXALOBULAR
55 I8-98104 261-6 PANEL; RR CORNER 1 1809- R A CD F REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK (A)
350 I8-98192 940-0 SEAL; TAPE 1 1809- A REAR BODY DBL WALL C EXC. GUARD FRAME BAR 8 9>,HIGH RIDE SUSPEN LOWER 20X60
350 I8-98192 937-0 SEAL; TAPE 1 1809- A REAR BODY DBL WALL C HIGH RIDE SUSPENSION UPPER 20X280
350 I8-98192 940-0 SEAL; TAPE 1 1809- D REAR BODY DBL WALL CT LOWER 20X60
348 I8-98104 619-0 REINFORCEMENT; RR BODY,INRL 2 1809- B E REAR BODY DBL WALL C OUTER ROPE HOOKS< 7MZ
296 I8-98138 642-3 BRACKET; RR BODY 1 1809- L F REAR BODY DBL WALL CT (C)
133 I8-98126 088-1 STOPPER; TAIL GATE LINK,RR BODY 1 1809- R BC E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ EXC. REAR STEP BUMPE BUMPER CHROME(V42) (A)
135 I8-98050 334-0 STRIKER; TAIL GATE,RR BODY 1 1809- L A CD F REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK
125 I8-98104 181-1 RECESS; FUEL FILLER NECK,RR BODY 1 1809- R B E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ (B)
349 I8-98104 614-2 REINFORCEMENT; RR BODY,SILL 1 1809- A REAR BODY DBL WALL CT EXC. GUARD FRAME BAR 8 9>,HIGH RIDE SUSPEN (A)
121 I8-98104 294-7 PANEL; SIDE INNER,RR BODY 1 1809- L F REAR BODY DBL WALL C
125 I8-98104 234-7 RECESS; FUEL FILLER NECK,RR BODY 1 1809- L B REAR BODY DBL WALL C OUTER ROPE HOOKS< 7MZ HIGH RIDE SUSPENSION (A)
294 I8-98104 405-3 PANEL; OUTER,RR BODY 1 1809- L C REAR BODY DBL WALL CT HIGH RIDE SUSPENSION EXC. OUTER ROPE HOOK
142 I0-91180 108-0 NUT 2 1809- C F REAR BODY DBL WALL CT 01.062 M8 FLANGE
291 I8-98290 484-0 BOLT; RR BODY 2 1809- AB DE REAR BODY DBL WALL CT (A) M8X16.5 HEXALOBULAR
293 I8-98104 611-2 REINFORCEMENT; RR BODY 1 1809- L F REAR BODY DBL WALL C
112 I8-98122 518-7 PANEL; SIDE GATE 1 1809- R E REAR BODY DBL WALL C OUTER ROPE HOOKS< 7MZ
125 I8-98104 192-4 RECESS; FUEL FILLER NECK,RR BODY 1 1809- R C REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK (B)
294 I8-98104 405-3 PANEL; OUTER,RR BODY 1 1809- L B REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ HIGH RIDE SUSPENSION
55 I8-98104 264-5 PANEL; RR CORNER 1 1809- R B E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ (A)
189 I8-98152 995-2 BOLT; HINGE,RR GATE 6 1809- ABCDEF REAR BODY DBL WALL CT 17.400 (A) M8X2 0.5 HEXALOBULAR
54 I8-97247 699-0 SCREW; TAIL GATE LOCK,RR BODY 4 1809- A CD F REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK M8X20
349 I8-98104 613-2 REINFORCEMENT; RR BODY,SILL 4 1809- B E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ (B)
349 I8-98139 650-1 REINFORCEMENT; RR BODY,SILL 1 1809- L F REAR BODY DBL WALL C (C)
296 I8-98104 665-1 BRACKET; RR BODY 1 1809- A REAR BODY DBL WALL CT HIGH RIDE SUSPENSION (B)
290 I8-98187 118-0 BRACE; RR BODY 1 1809- R DE REAR BODY DBL WALL C (C)
348 I8-98104 619-0 REINFORCEMENT; RR BODY,INRL 1 1809- D REAR BODY DBL WALL C
296 I8-98104 649-0 BRACKET; RR BODY 2 1809- B E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ (A)
349 I8-98104 613-2 REINFORCEMENT; RR BODY,SILL 1 1809- A REAR BODY DBL WALL CT HIGH RIDE SUSPENSION (B)
55 I8-98104 262-5 PANEL; RR CORNER 1 1809- L B E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ (A)
170 I8-98056 282-0 BOLT; TAIL GATE LOCK 4 1809- BC E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ 09.744 M6X2 0 W/WASHER
350 I8-98192 940-0 SEAL; TAPE 2 1809- C REAR BODY DBL WALL C OUTER ROPE HOOKS< 7MZ EXC. HIGH RIDE SUSPE LOWER 20X60
130 I8-98180 462-1 LINK ASM; TAIL GATE,RR BODY 1 1809- R ABCDEF REAR BODY DBL WALL C
53 I8-98239 434-3 HANDLE ASM; OUTSIDE,TAIL GATE 1 1809- A CD F REAR BODY DBL WALL CT EXC. HANDLE O/S DOOR OUTSIDE HANDLE CHROM HOOKS<7MZ>,LOCK END AMERA AT TAIL GATE H
349 I8-98139 650-1 REINFORCEMENT; RR BODY,SILL 1 1809- L C REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK (C)
349 I8-98104 613-2 REINFORCEMENT; RR BODY,SILL 2 1809- A REAR BODY DBL WALL CT GUARD FRAME BAR CARG EXC. HIGH RIDE SUSPE (B)
292 I8-98104 156-0 EXTENSION; RR BODY 4 1809- C REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK (A)
112 I8-98104 560-9 PANEL; SIDE GATE 1 1809- L C REAR BODY DBL WALL CT HIGH RIDE SUSPENSION EXC. OUTER ROPE HOOK
350 I8-98192 940-0 SEAL; TAPE 1 1809- D REAR BODY DBL WALL C LOWER 20X60
350 I8-98192 940-0 SEAL; TAPE 2 1809- A REAR BODY DBL WALL C GUARD FRAME BAR CARGO EXC. HIGH RIDE SUSPE LOWER 20X60
296 I8-98104 649-0 BRACKET; RR BODY 1 1809- D REAR BODY DBL WALL C (A)
349 I8-98104 614-2 REINFORCEMENT; RR BODY,SILL 2 1809- A REAR BODY DBL WALL CT GUARD FRAME BAR CARG EXC. HIGH RIDE SUSPE (A)
125 I8-98104 234-7 RECESS; FUEL FILLER NECK,RR BODY 1 1809- L A REAR BODY DBL WALL CT HIGH RIDE SUSPENSION (A)
1 I8-98198 539-2 GATE ASM; RR 1 1809- BC E REAR BODY DBL WALL CT OUTER ROPE HOOKS<7MZ>
296 I8-98138 643-3 BRACKET; RR BODY 1 1809- R C REAR BODY DBL WALL C HIGH RIDE SUSPENSION EXC. OUTER ROPE HOOK (C)
294 I8-98104 405-3 PANEL; OUTER,RR BODY 1 1809- L A REAR BODY DBL WALL C HIGH RIDE SUSPENSION
55 I8-98104 378-7 PANEL; RR CORNER 1 1809- L A CD F REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK (B)
350 I8-98192 937-0 SEAL; TAPE 2 1809- A REAR BODY DBL WALL CT GUARD FRAME BAR CARGO EXC. HIGH RIDE SUSPE UPPER 20X280
55 I8-98104 379-7 PANEL; RR CORNER 1 1809- R A CD F REAR BODY DBL WALL C EXC. OUTER ROPE HOOK (B)
257 I8-98057 864-0 RIVET 2 1809- A REAR BODY DBL WALL C HIGH RIDE SUSPENSION 17.490
215 I8-98048 996-0 BOLT; HANDLE TO GUARD FRAME 1 1809- A CD F REAR BODY DBL WALL CT POLLEN FILTER FOR AI > EXC. OUTER ROPE HOOK 10.765 M6X8 FLANGE
55 I8-98104 380-4 PANEL; RR CORNER 1 1809- L B E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ (B)
350 I8-98192 937-0 SEAL; TAPE 1 1809- A REAR BODY DBL WALL C EXC. GUARD FRAME BAR 8 9>,HIGH RIDE SUSPEN UPPER 20X280
293 I8-98104 611-2 REINFORCEMENT; RR BODY 1 1809- L C REAR BODY DBL WALL C EXC. OUTER ROPE HOOK
215 I8-98048 996-0 BOLT; HANDLE TO GUARD FRAME 2 1809- A CD F REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK TER FOR AIR CONDITIO 10.765 M6X8 FLANGE
342 I8-98139 776-4 TAPE 1 1809- L D F REAR BODY DBL WALL CT (A)
350 I8-98192 937-0 SEAL; TAPE 2 1809- B E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ UPPER 20X280
147 I8-97264 487-0 HOOK ASM; ROPE,FRT 4 1809- A CD F REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK
292 I8-98104 156-0 EXTENSION; RR BODY 4 1809- A REAR BODY DBL WALL CT GUARD FRAME BAR CARGO EXC. HIGH RIDE SUSPE (A)
303 I8-97381 276-0 SNAP; LATCH,END GATE 1 1809- R A CD F REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK
296 I8-98104 649-0 BRACKET; RR BODY 1 1809- D REAR BODY DBL WALL C (A)
292 I8-98104 156-0 EXTENSION; RR BODY 8 1809- B E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ (A)
248 I8-98104 336-0 PATCH; CARGO RR 1 1809- R B E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ
135 I8-98115 657-2 STRIKER; TAIL GATE,RR BODY 1 1809- L BC E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ
348 I8-98104 619-0 REINFORCEMENT; RR BODY,INRL 1 1809- A REAR BODY DBL WALL CT EXC. GUARD FRAME BAR 8 9>,HIGH RIDE SUSPEN
295 I8-98104 666-1 BRACKET; FILLER 1 1809- L C REAR BODY DBL WALL C EXC. OUTER ROPE HOOK
294 I8-98104 405-3 PANEL; OUTER,RR BODY 1 1809- L D F REAR BODY DBL WALL C
301 I8-97493 755-0 SUPPORT; TAIL GATE 1 1809- A CD F REAR BODY DBL WALL CT POLLEN FILTER FOR AI > EXC. OUTER ROPE HOOK (B)
7 I8-98180 948-0 HINGE ASM; RR GATE 1 1809- L ABCDEF REAR BODY DBL WALL CT (A)
342 I8-98139 776-4 TAPE 1 1809- L E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ (A)
121 I8-98104 296-7 PANEL; SIDE INNER,RR BODY 1 1809- R C REAR BODY DBL WALL C EXC. OUTER ROPE HOOK
348 I8-98104 619-0 REINFORCEMENT; RR BODY,INRL 1 1809- D REAR BODY DBL WALL C
350 I8-98192 940-0 SEAL; TAPE 1 1809- A REAR BODY DBL WALL C EXC. GUARD FRAME BAR 8 9>,HIGH RIDE SUSPEN LOWER 20X60
296 I8-98104 649-0 BRACKET; RR BODY 1 1809- A REAR BODY DBL WALL CT HIGH RIDE SUSPENSION (A)
37 I8-98290 484-0 SCREW 6 1809- BC E REAR BODY DBL WALL CT OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR
350 I8-98192 937-0 SEAL; TAPE 1 1809- A REAR BODY DBL WALL C HIGH RIDE SUSPENSION UPPER 20X280
121 I8-98104 928-5 PANEL; SIDE INNER,RR BODY 1 1809- R B E REAR BODY DBL WALL C OUTER ROPE HOOKS< 7MZ
290 I8-98187 118-0 BRACE; RR BODY 1 1809- R A REAR BODY DBL WALL C HIGH RIDE SUSPENSION (C)
296 I8-98104 649-0 BRACKET; RR BODY 2 1809- F REAR BODY DBL WALL C (A)
349 I8-98104 613-2 REINFORCEMENT; RR BODY,SILL 1 1809- A REAR BODY DBL WALL CT HIGH RIDE SUSPENSION (B)
296 I8-98104 665-1 BRACKET; RR BODY 2 1809- A REAR BODY DBL WALL CT GUARD FRAME BAR CARG EXC. HIGH RIDE SUSPE (B)
296 I8-98104 649-0 BRACKET; RR BODY 1 1809- A REAR BODY DBL WALL C EXC. GUARD FRAME BAR 8 9>,HIGH RIDE SUSPEN (A)
257 I8-98057 864-0 RIVET 4 1809- E REAR BODY DBL WALL C OUTER ROPE HOOKS< 7MZ 17.490
46 I8-98165 002-2 GROMMET; SCREW,TAIL GATE HOLE CO 12 1809- A CD F REAR BODY DBL WALL C EXC. OUTER ROPE HOOK
169 I8-97166 110-0 GROMMET; TAIL GATE INNER,RR BODY 4 1809- BC E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ
121 I8-98104 296-7 PANEL; SIDE INNER,RR BODY 1 1809- R F REAR BODY DBL WALL C
296 I8-98104 665-1 BRACKET; RR BODY 1 1809- D REAR BODY DBL WALL C (B)
301 I8-98053 899-0 SUPPORT; TAIL GATE 1 1809- F CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CT (A)
290 I8-98187 117-0 BRACE; RR BODY 1 1809- L B REAR BODY DBL WALL C OUTER ROPE HOOKS< 7MZ HIGH RIDE SUSPENSION (C)
230 I8-98104 565-2 RAIL; SIDE GATE UPR 1 1809- L B E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ
296 I8-98138 648-3 BRACKET; RR BODY 1 1809- L C REAR BODY DBL WALL CT HIGH RIDE SUSPENSION (D)
347 I8-98104 604-1 REINFORCEMENT; RR BODY,SIDE 1 1809- R C REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ EXC. HIGH RIDE SUSPEN
349 I8-98139 651-1 REINFORCEMENT; RR BODY,SILL 1 1809- R F REAR BODY DBL WALL C (C)
348 I8-98104 619-0 REINFORCEMENT; RR BODY,INRL 1 1809- A REAR BODY DBL WALL C HIGH RIDE SUSPENSION
296 I8-98104 649-0 BRACKET; RR BODY 2 1809- C REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ EXC. HIGH RIDE SUSPE (A)
349 I8-98104 614-2 REINFORCEMENT; RR BODY,SILL 1 1809- A REAR BODY DBL WALL CT HIGH RIDE SUSPENSION (A)
296 I8-98138 648-3 BRACKET; RR BODY 1 1809- L F REAR BODY DBL WALL C (D)
133 I8-98126 089-1 STOPPER; TAIL GATE LINK,RR BODY 1 1809- L BC E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ EXC. REAR STEP BUMPE BUMPER CHROME(V42) (A)
349 I8-98104 614-2 REINFORCEMENT; RR BODY,SILL 1 1809- D REAR BODY DBL WALL C (A)
296 I8-98104 665-1 BRACKET; RR BODY 2 1809- C REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ EXC. HIGH RIDE SUSPE (B)
230 I8-98104 566-2 RAIL; SIDE GATE UPR 1 1809- R B E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ
295 I8-98104 666-1 BRACKET; FILLER 1 1809- L C REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ EXC. HIGH RIDE SUSPEN
125 I8-98104 189-4 RECESS; FUEL FILLER NECK,RR BODY 1 1809- L C REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK (B)
349 I8-98104 614-2 REINFORCEMENT; RR BODY,SILL 2 1809- F REAR BODY DBL WALL C (A)
292 I8-98104 156-0 EXTENSION; RR BODY 2 1809- A REAR BODY DBL WALL CT EXC. GUARD FRAME BAR 8 9>,HIGH RIDE SUSPEN (A)
350 I8-98192 940-0 SEAL; TAPE 1 1809- A REAR BODY DBL WALL C HIGH RIDE SUSPENSION LOWER 20X60
129 I8-98103 298-7 LID ASM; FUEL FILLER,RR BODY 1 1809- ABC REAR BODY DBL WALL C HIGH RIDE SUSPENSION
349 I8-98104 614-2 REINFORCEMENT; RR BODY,SILL 2 1809- C REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ EXC. HIGH RIDE SUSPE (A)
55 I8-98104 381-4 PANEL; RR CORNER 1 1809- R B E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ (B)
133 I8-97302 185-2 STOPPER; TAIL GATE LINK,RR BODY 2 1809- ABCDEF REAR BODY DBL WALL C (C)
55 I8-98104 259-6 PANEL; RR CORNER 1 1809- L A CD F REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK (A)
350 I8-98192 940-0 SEAL; TAPE 2 1809- C REAR BODY DBL WALL C EXC. OUTER ROPE HOOK LOWER 20X60
189 I8-98050 437-0 BOLT; HINGE,RR GATE 2 1809- BC E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ (C) M8X22
290 I8-98113 245-2 BRACE; RR BODY 1 1809- L B REAR BODY DBL WALL C OUTER ROPE HOOKS< 7MZ HIGH RIDE SUSPENSION (B)
188 I8-97329 277-1 PLATE; HINGE UPR,RR GATE AR 1809- ABCDEF REAR BODY DBL WALL CT
296 I8-98104 649-0 BRACKET; RR BODY 1 1809- A REAR BODY DBL WALL CT HIGH RIDE SUSPENSION (A)
127 I8-98056 287-0 BOLT; FUEL FILLER LID 2 1809- ABCDEF REAR BODY DBL WALL C M6X16
125 I8-98104 234-7 RECESS; FUEL FILLER NECK,RR BODY 1 1809- L D F REAR BODY DBL WALL C (A)
133 I8-98110 231-2 STOPPER; TAIL GATE LINK,RR BODY 2 1809- ABCDEF REAR BODY DBL WALL C (B)
349 I8-98104 613-2 REINFORCEMENT; RR BODY,SILL 1 1809- D REAR BODY DBL WALL CT (B)
290 I8-98187 118-0 BRACE; RR BODY 1 1809- R B REAR BODY DBL WALL C OUTER ROPE HOOKS< 7MZ HIGH RIDE SUSPENSION (C)
342 I8-98139 776-4 TAPE 1 1809- L A REAR BODY DBL WALL CT HIGH RIDE SUSPENSION (A)
112 I8-98122 518-7 PANEL; SIDE GATE 1 1809- R B REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ HIGH RIDE SUSPENSION
296 I8-98138 649-3 BRACKET; RR BODY 1 1809- R C REAR BODY DBL WALL CT HIGH RIDE SUSPENSION (D)
290 I8-98113 244-2 BRACE; RR BODY 1 1809- R A C REAR BODY DBL WALL C HIGH RIDE SUSPENSION (B)
112 I8-98122 519-9 PANEL; SIDE GATE 1 1809- L E REAR BODY DBL WALL C OUTER ROPE HOOKS< 7MZ
350 I8-98192 937-0 SEAL; TAPE 2 1809- C REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK UPPER 20X280
129 I8-98103 298-7 LID ASM; FUEL FILLER,RR BODY 1 1809- DEF REAR BODY DBL WALL C
292 I8-98104 156-0 EXTENSION; RR BODY 2 1809- A REAR BODY DBL WALL CT HIGH RIDE SUSPENSION (A)
112 I8-98104 561-7 PANEL; SIDE GATE 1 1809- R F REAR BODY DBL WALL C
125 I8-98104 234-7 RECESS; FUEL FILLER NECK,RR BODY 1 1809- L C REAR BODY DBL WALL CT HIGH RIDE SUSPENSION EXC. OUTER ROPE HOOK (A)
121 I8-98104 294-7 PANEL; SIDE INNER,RR BODY 1 1809- L C REAR BODY DBL WALL C EXC. OUTER ROPE HOOK
291 I8-97494 496-0 BOLT; RR BODY 2 1809- C F REAR BODY DBL WALL CT (B) M8X22.5 W/PL WASHER
349 I8-98139 651-1 REINFORCEMENT; RR BODY,SILL 1 1809- R C REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK (C)
296 I8-98138 642-3 BRACKET; RR BODY 1 1809- L C REAR BODY DBL WALL CT HIGH RIDE SUSPENSION EXC. OUTER ROPE HOOK (C)
290 I8-98113 244-2 BRACE; RR BODY 1 1809- R DEF REAR BODY DBL WALL C (B)
256 I8-98141 610-3 SPRING; LID,FUEL FILLER 1 1809- ABCDEF REAR BODY DBL WALL CT
135 I8-98115 656-2 STRIKER; TAIL GATE,RR BODY 1 1809- R BC E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ
295 I8-98104 666-1 BRACKET; FILLER 1 1809- L B E REAR BODY DBL WALL C OUTER ROPE HOOKS< 7MZ
175 I8-98294 857-0 BOLT; SET,RR GATE HOOK 8 1809- A CD F REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK 17.400 M8X20
290 I8-98113 245-2 BRACE; RR BODY 1 1809- L A C REAR BODY DBL WALL C HIGH RIDE SUSPENSION (B)
292 I8-98104 156-0 EXTENSION; RR BODY 4 1809- C REAR BODY DBL WALL C OUTER ROPE HOOKS< 7MZ EXC. HIGH RIDE SUSPE (A)
158 I0-28650 820-0 SCREW; STRIKER,TAIL GATE 4 1809- A CD F REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK 01.531 M8X2 0 FLANGE
238 I8-98181 076-2 COVER; RR GATE 1 1809- A CD F REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK
296 I8-98104 665-1 BRACKET; RR BODY 2 1809- C REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK (B)
133 I8-98134 727-1 STOPPER; TAIL GATE LINK,RR BODY 1 1809- L A CD F REAR BODY DBL WALL CT EXC. REAR STEP BUMPE BUMPER CHROME(V42),S TY X-SERIES HIGH RID HOOKS< 7MZ> (A)
257 I8-98057 864-0 RIVET 2 1809- A REAR BODY DBL WALL CT HIGH RIDE SUSPENSION 17.490
257 I8-98057 864-0 RIVET 4 1809- C REAR BODY DBL WALL C HIGH RIDE SUSPENSION EXC. OUTER ROPE HOOK 17.490
294 I8-98104 406-3 PANEL; OUTER,RR BODY 1 1809- R E REAR BODY DBL WALL C OUTER ROPE HOOKS< 7MZ
350 I8-98192 937-0 SEAL; TAPE 2 1809- F REAR BODY DBL WALL CT UPPER 20X280
342 I8-98139 776-4 TAPE 1 1809- L B REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ HIGH RIDE SUSPENSION (A)
55 I8-98104 262-5 PANEL; RR CORNER 1 1809- L C REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ EXC. HIGH RIDE SUSPE (A)
301 I8-98053 899-0 SUPPORT; TAIL GATE 1 1809- BC E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ (A)
55 I8-98104 380-4 PANEL; RR CORNER 1 1809- L C REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ EXC. HIGH RIDE SUSPE (B)
342 I8-98139 776-4 TAPE 1 1809- L C REAR BODY DBL WALL CT HIGH RIDE SUSPENSION EXC. OUTER ROPE HOOK (A)
294 I8-98104 406-3 PANEL; OUTER,RR BODY 1 1809- R A REAR BODY DBL WALL C HIGH RIDE SUSPENSION
294 I8-98104 405-3 PANEL; OUTER,RR BODY 1 1809- L E REAR BODY DBL WALL C OUTER ROPE HOOKS< 7MZ
296 I8-98104 665-1 BRACKET; RR BODY 2 1809- B E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ (B)
290 I8-98187 117-0 BRACE; RR BODY 1 1809- L DE REAR BODY DBL WALL C (C)
257 I8-98057 864-0 RIVET 2 1809- D REAR BODY DBL WALL C 17.490
125 I8-98104 234-7 RECESS; FUEL FILLER NECK,RR BODY 1 1809- L E REAR BODY DBL WALL CT OUTER ROPE HOOKS< 7MZ (A)
293 I8-98104 611-2 REINFORCEMENT; RR BODY 1 1809- L A D REAR BODY DBL WALL C GUARD FRAME BAR CARG
130 I8-98180 461-1 LINK ASM; TAIL GATE,RR BODY 1 1809- L ABCDEF REAR BODY DBL WALL C
299 I8-98243 807-0 LATCH; END GATE 1 1809- R A CD F REAR BODY DBL WALL CT EXC. OUTER ROPE HOOK
