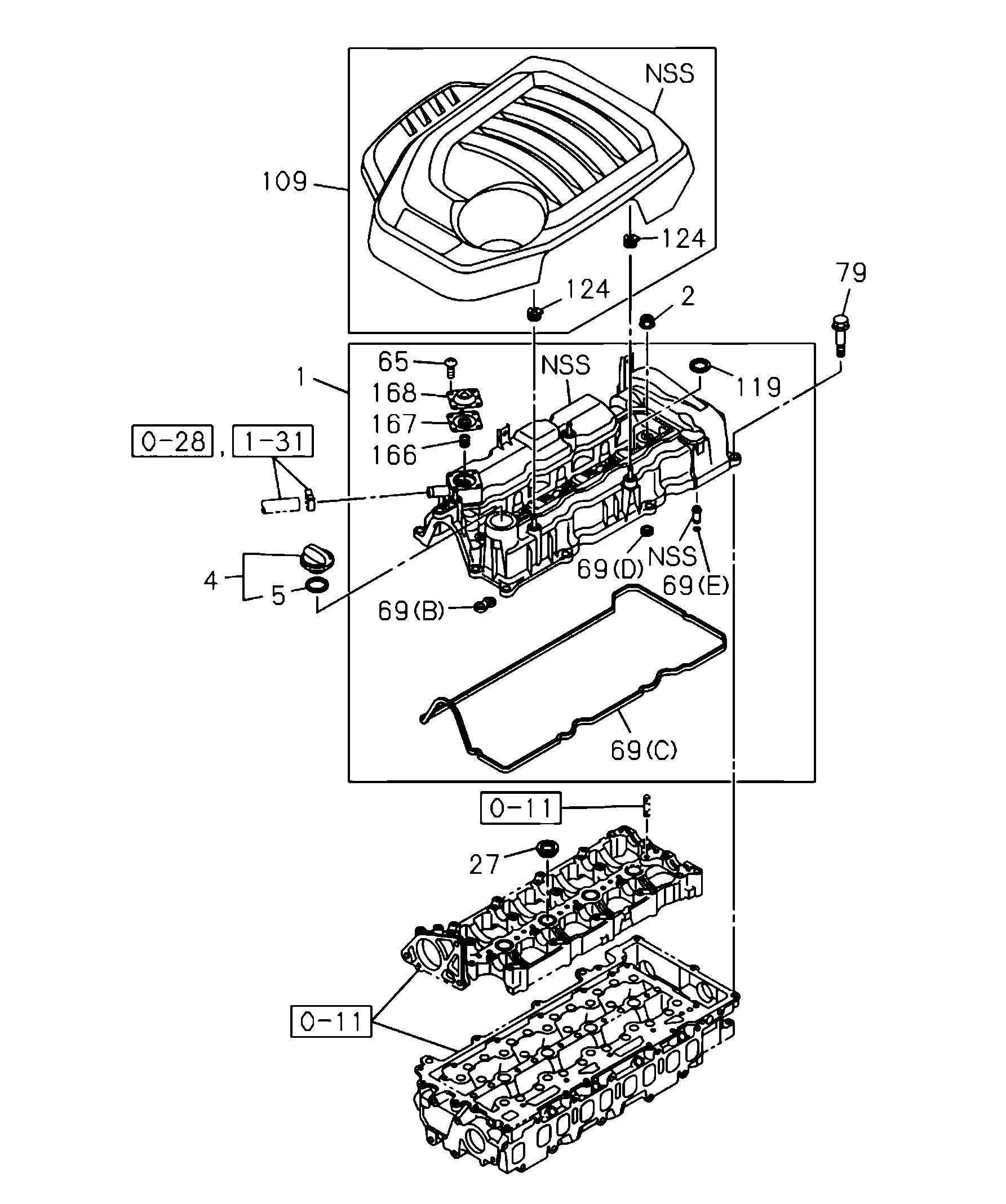

0-10 | 0-10 - CYLINDER HEAD COVER
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 79 | I8-98228 370-0 | BOLT; COVER | 12 | 2007- | AB | M6X25.7 FLANGE | ||
| 4 | I8-98026 084-0 | CAP; OIL FILLER | 1 | 2007- | ABC | |||
| 166 | I8-97088 445-0 | SPRING; VENTILATOR | 1 | 2007- | ABC | |||
| 168 | I8-98234 092-0 | COVER; VENTILATOR | 1 | 2007- | ABC | |||
| 69 | I8-98336 417-0 | GASKET; HD TO COVER | 4 | 2007- | AB | (B) | ||
| 65 | I8-98209 387-0 | SCREW; ADAPTER | 4 | 2007- | ABC | M4X10 | ||
| 1 | I8-98350 871-0 | COVER; CYL HD | 1 | 2007- | AB | |||
| 69 | I8-98336 419-0 | GASKET; HD TO COVER | 1 | 2007- | AB | (E) | ||
| 69 | I8-98336 418-0 | GASKET; HD TO COVER | 1 | 2007- | AB | (D) | ||
| 167 | I8-98226 101-1 | DIAPHRAGM; VENTILATOR | 1 | 2007- | ABC | |||
| 2 | I0-91180 106-0 | NUT; COVER.HD | 1 | 2007- | AB | M6 FLANGE | ||
| 69 | I8-98304 025-0 | GASKET; HD TO COVER | 1 | 2007- | AB | (C) | ||
| 119 | I8-98304 024-0 | COVER; SEAL.NOZZLE | 4 | 2007- | AB | |||
| 5 | I8-97918 298-0 | GASKET; OIL FILLER | 1 | 2007- | ABC | ID=32 OD=40 |
