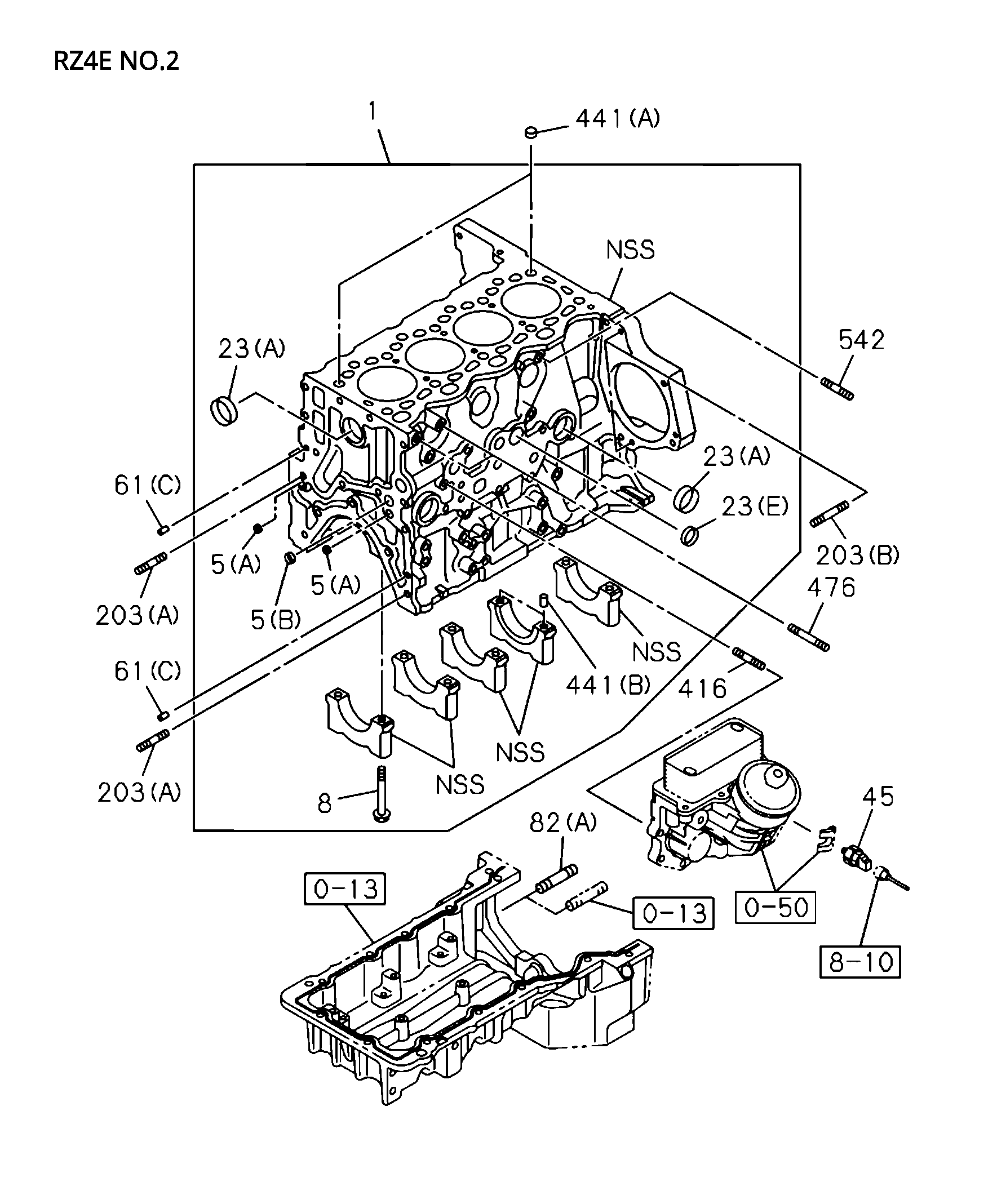

0-12 | 0-12 - CYLINDER BLOCK
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 23 | I8-97333 120-0 | CUP; SEALING.C/BL FRT 8. RR | 3 | 2007- | AB | (E) OD=24 | ||
| 1 | I8-98348 629-3 | BLOCK ASM; CYL | 1 | 2007- | AB | |||
| 8 | I8-98257 516-0 | BOLT; BRG CAP | 10 | 2007-2009 | B | M11X88 FLANGE | ||
| 8 | I8-98257 516-0 | BOLT; BRG CAP | 10 | 2007-2009 | A | M11X88 FLANGE | ||
| 441 | I8-94453 344-0 | DOWEL; CYL BLOCK | 2 | 2007-2009 | B | (B) OD=14 | ||
| 8 | I8-98257 516-0 | BOLT; BRG CAP | 10 | 2007-2009 | B | M11X88 FLANGE | ||
| 441 | I8-94200 819-0 | DOWEL; CYL BLOCK | 2 | 2007- | AB | (A) OD=15.25 | ||
| 15 | I8-98336 980-0 | PLUG; OIL GALLERY | 2 | 2007- | AB | M12X11 | ||
| 23 | I5-11219 018-0 | CUP; SEALING.C/BL FRT & RR | 10 | 2007- | AB | (A) OD=36 | ||
| 323 | I9-09571 412-0 | GASKET; PLUG | 2 | 2007- | AB | ID=12.2 OD=18 | ||
| 15 | I8-98322 217-0 | PLUG; OIL GALLERY | 4 | 2009- | C | PT1/8 | ||
| 45 | I8-97176 230-0 | SWITCH; OIL PRESSURE | 1 | 2007- | ABC | |||
| 1 | I8-98348 629-3 | BLOCK ASM; CYL | 1 | 2007- | AB | |||
| 83 | I8-94483 674-0 | PIN; FLYWHEEL HSG | 2 | 2007- | AB | L=22 | ||
| 61 | I9-08150 616-0 | PIN; STRAIGHT | 2 | 2007- | AB | (c) L=16 | ||
| 211 | I0-28650 825-0 | BOLT; CRANKCASE | 12 | 2007- | C | (B) M8X25 FLANGE | ||
| 8 | I8-98257 516-0 | BOLT; BRG CAP | 10 | 2007-2009 | A | M11X88 FLANGE | ||
| 7 | I9-09664 001-0 | PLUG; WATER DRAIN | 1 | 2007-2009 | B | PT1/4 | ||
| 542 | I0-41010 816-0 | STUD | 2 | 2007- | AB | M8X16 L=28 | ||
| 90 | I8-98247 320-0 | PIPE; OILJET | 4 | 2007- | AB | |||
| 21 | I5-11219 018-0 | CUP; SEALING.RR | 1 | 2007- | C | (B) OD=36 | ||
| 476 | I0-44011 070-0 | STUD; BRKT | 2 | 2007- | AB | M10X70 L=85 | ||
| 21 | I5-09600 013-0 | CUP; SEALING,RR | 1 | 2007- | C | (C) OD=12.3 | ||
| 213 | I9-09571 410-0 | GASKET; NIPPLE.OIL FEED | 1 | 2007- | C | ID=10.2 OD-16.0 | ||
| 7 | I9-09664 001-0 | PLUG; WATER DRAIN | 1 | 2010- | AB | PT1/4 | ||
| 23 | I5-11219 008-0 | CUP; SEALING,C/BL FRT & RR | 2 | 2007- | C | (B) OD=18 | ||
| 13 | I8-94453 344-0 | DOWEL; C/BL TO HD | 2 | 2007- | C | OD=14 | ||
| 23 | I5-11219 018-0 | CUP; SEALING,C/BL FRT & RR | 2 | 2007- | C | (A) OD=36 | ||
| 203 | I0-49140 818-0 | STUD; C/BL | 2 | 2007- | B | (B) M8X18 L=36 | ||
| 8 | I8-98257 516-0 | BOLT; BRG CAP | 10 | 2010- | AB | M11X88 FLANGE | ||
| 61 | I8-94483 674-0 | PIN; STRAIGHT | 2 | 2007- | AB | (B) L=22 | ||
| 8 | I8-98257 516-0 | BOLT; BRG CAP | 10 | 2010- | AB | M11X88 FLANGE | ||
| 7 | I9-09664 001-0 | PLUG; WATER DRAIN | 1 | 2010- | C | PT1/4 | ||
| 441 | I8-94453 344-0 | DOWEL; CYL BLOCK | 2 | 2007-2009 | A | (B) OD=14 | ||
| 70 | I5-11129 006-0 | CUP; SEALING,FRT 8c RR | 6 | 2007- | C | OD=16 | ||
| 7 | I9-09664 001-0 | PLUG; WATER DRAIN | 1 | 2007-2009 | A C | PT1/4 | ||
| 82 | I0-44011 050-0 | STUD; FLYWHEEL HSG | 1 | 2007- | B | (A) M10X50 L=65 | ||
| 203 | I0-49140 818-0 | STUD; C/BL | 1 | 2007- | A | (B) M8X18 L=36 | ||
| 401 | I0-28050 616-0 | BOLT; SENSOR | 1 | 2007- | C M6X16 FL | |||
| 23 | I5-11219 018-0 | CUP; SEALING,C/BL FRT & RR | 2 | 2007- | C | (A) OD=36 | ||
| 385 | I0-28050 820-0 | BOLT; OIL PIPE | 4 | 2007- | AB | M8X20 FLANGE | ||
| 7 | I9-09664 001-0 | PLUG; WATER DRAIN | 1 | 2010- | C | PT1/4 | ||
| 416 | I0-49140 828-0 | STUD; OIL FILTER | 2 | 2007- | AB | M8X28 L=46 | ||
| 15 | I8-98336 980-0 | PLUG; OIL GALLERY | 2 | 2007- | AB | M12X11 | ||
| 23 | I5-11219 018-0 | CUP; SEALING,C/BL FRT 8. RR | 2 | 2007- | C | (A) OD=36 | ||
| 23 | I5-11219 008-0 | CUP; SEALING,C/BL FRT & RR | 2 | 2007- | C | (B) OD=18 | ||
| 15 | I8-98322 217-0 | PLUG; OIL GALLERY | 4 | 2009- | C | PT1/8 | ||
| 82 | I8-97515 875-0 | STUD; FLYWHEEL HSG | 1 | 2007- | AB | (B) M10X65 L=80 | ||
| 1 | I8-98348 629-3 | BLOCK ASM; CYL | 1 | 2007- | AB | |||
| 5 | I5-09600 013-0 | CUP; SEALING,OIL GALLERY | 4 | 2007- | AB | (A) OD=12.3 | ||
| 7 | I9-09664 001-0 | PLUG; WATER DRAIN | 1 | 2010- | AB | PT1/4 | ||
| 441 | I8-94453 344-0 | DOWEL; CYL BLOCK | 2 | 2010- | AB | (B) OD=14 | ||
| 1 | I8-98348 629-3 | BLOCK ASM; CYL | 1 | 2007- | AB | |||
| 70 | I5-11129 006-0 | CUP; SEALING,FRT & RR | 6 | 2007- | C | OD=16 | ||
| 7 | I9-09664 001-0 | PLUG; WATER DRAIN | 1 | 2007-2009 | A C | PT1/4 | ||
| 203 | I0-41010 820-0 | STUD; C/BL | 2 | 2007- | AB | (A) M8X20 L=32 | ||
| 45 | I8-97176 230-0 | SWITCH; OIL PRESSURE | 1 | 2007- | ABC | |||
| 23 | I5-11219 018-0 | CUP; SEALING,C/BL FRT 8. RR | 10 | 2007- | AB | (A) OD=36 | ||
| 7 | I9-09664 001-0 | PLUG; WATER DRAIN | 1 | 2007-2009 | B | PT1/4 | ||
| 23 | I5-11219 018-0 | CUP; SEALING.C/BL FRT 8. RR | 10 | 2007- | AB | (A) OD=36 | ||
| 5 | I5-09600 013-0 | CUP; SEALING,OIL GALLERY | 4 | 2007- | AB | (A) OD=12.3 | ||
| 5 | I5-11129 006-0 | CUP; SEALING,OIL GALLERY | 2 | 2007- | AB | (B) OD=16 | ||
| 23 | I8-97333 120-0 | CUP; SEALING,C/BL FRT 8. RR | 3 | 2007- | AB | (E) OD=24 | ||
| 5 | I5-11129 006-0 | CUP; SEALING,OIL GALLERY | 2 | 2007- | AB | (B) OD=16 |
