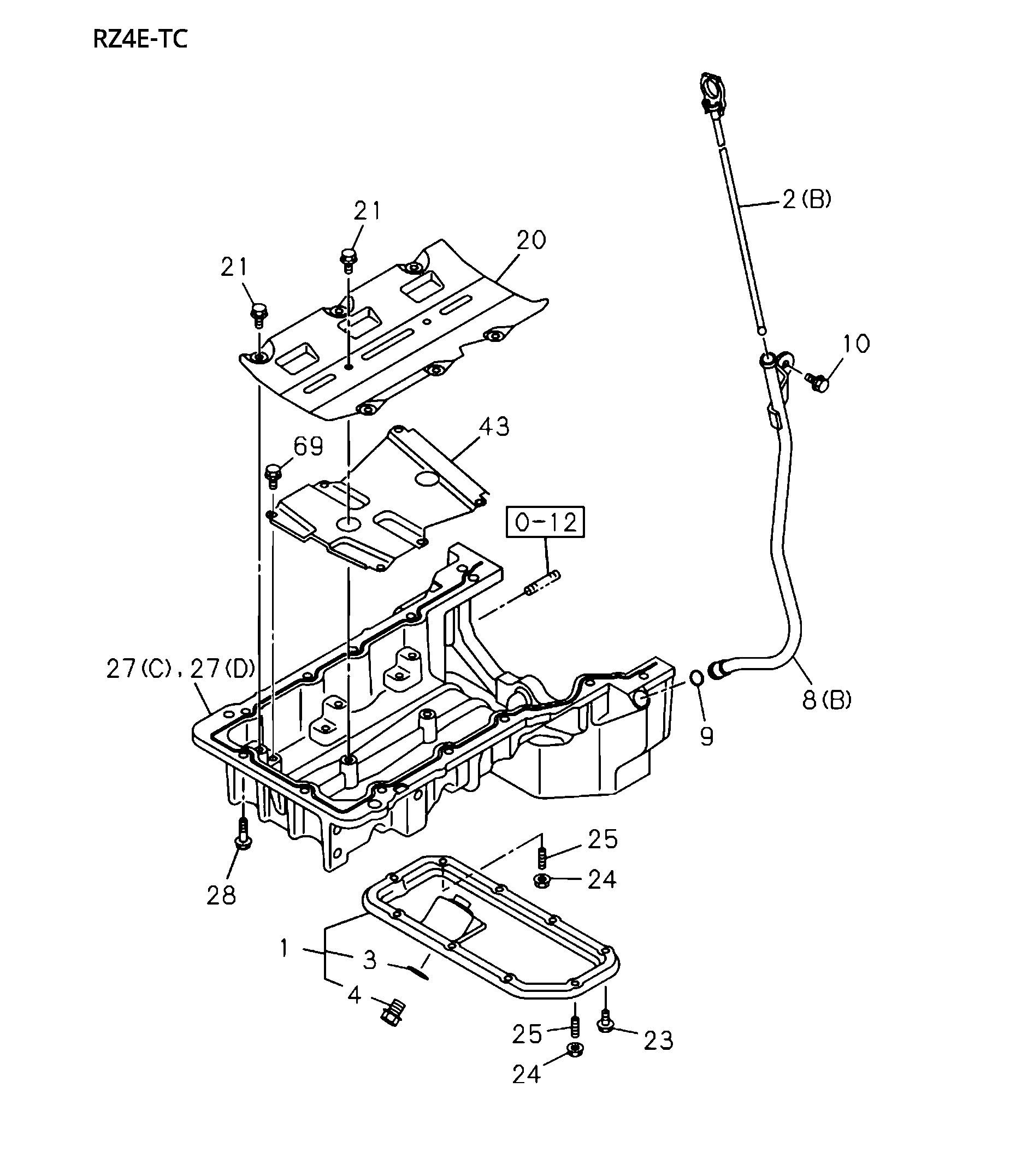

0-13 | 0-13 - OIL PAN AND LEVEL GAUGE
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 28 | I0-28050 816-0 | BOLT; CRANKCASE TO C/BL | 6 | 2007- | C | M8X16 FLANGE | ||
| 8 | I8-98318 019-0 | TUBE; GUIDE.OIL LEVEL GAUGE | 1 | 2007- | B | (B) | ||
| 27 | I8-97533 464-1 | CRANKCASE | 1 | 2007- | A | (D) | ||
| 28 | I0-28050 825-0 | BOLT; CRANKCASE TO C/BL | 12 | 2007- | AB | M8X25 FLANGE | ||
| 28 | I0-28050 816-0 | BOLT; CRANKCASE TO C/BL | 7 | 2007- | C | 4X2(TFB***) M8X16 FLANGE | ||
| 28 | I0-28050 825-0 | BOLT; CRANKCASE TO C/BL | 12 | 2007- | AB | M8X25 FLANGE | ||
| 3 | I8-98316 093-1 | GASKET; DRAIN PLUG | 1 | 2007- | AB | ID=14.2 OD=24 | ||
| 28 | I0-28050 816-0 | BOLT; CRANKCASE TO C/BL | 8 | 2007- | C | 4X4(TFS***) M8X16 FLANGE | ||
| 28 | I0-28050 816-0 | BOLT; CRANKCASE TO C/BL | 8 | 2007- | C | 4X4(TFS***) M8X16 FLANGE | ||
| 28 | I0-28050 816-0 | BOLT; CRANKCASE TO C/BL | 6 | 2007- | C | M8X16 FLANGE | ||
| 9 | I8-98394 152-0 | GASKET; GUIDE TUBE.OIL LEVEL GAUGE | 1 | 2007- | AB | ID=11 | ||
| 25 | I0-41010 616-0 | STUD; OIL PAN | 2 | 2007- | AB | M6X16 L=25 | ||
| 10 | I0-28050 816-0 | BOLT; GUIDE TUBE | 1 | 2007- | AB | M8X16 FLANGE | ||
| 1 | I8-97533 466-0 | PAN ASM; OIL | 1 | 2007- | A | |||
| 28 | I0-28050 816-0 | BOLT; CRANKCASE TO C/BL | 6 | 2007- | C | M8X16 FLANGE | ||
| 25 | I0-41010 816-0 | STUD; OIL PAN | 2 | 2007- | C | M8X16 L=28 | ||
| 25 | I0-41010 816-0 | STUD; OIL PAN | 2 | 2007- | C | M8X16 L=28 | ||
| 21 | I0-28050 612-0 | BOLT; BAFFLE PLATE.CRANKCASE | 8 | 2007- | AB | M6X12 FLANGE | ||
| 24 | I0-91180 106-0 | NUT; OIL PAN | 2 | 2007- | AB | M6 FLANGE | ||
| 21 | I0-28050 612-0 | BOLT; BAFFLE PLATE.CRANKCASE | 8 | 2007- | AB | M6X12 FLANGE | ||
| 24 | I0-91180 106-0 | NUT; OIL PAN | 2 | 2007- | AB | M6 FLANGE | ||
| 20 | I8-98247 188-0 | PLATE; BAFFLE,CRANKCASE | 1 | 2007- | AB | |||
| 30 | I0-44011 050-0 | STUD; CRANKCASE | 1 | 2007- | A | M10X50 L=65 | ||
| 28 | I0-28050 816-0 | BOLT; CRANKCASE TO C/BL | 7 | 2007- | C | 4X2(TFB***) M8X16 FLANGE | ||
| 1 | I8-97533 466-0 | PAN ASM; OIL | 1 | 2007- | A | |||
| 10 | I0-28050 816-0 | BOLT; GUIDE TUBE | 2 | 2007- | C | EUR05 SPECIFlCATION(NT5) M8X16 FLANGE | ||
| 43 | I8-98292 481-1 | PLATE; CRANKCASE | 1 | 2007- | AB | |||
| 10 | I0-28050 816-0 | BOLT; GUIDE TUBE | 2 | 2007- | C | EUR05 SPECIFlCATION(NT5) M8X16 FLANGE | ||
| 24 | I0-91180 208-0 | NUT; OIL PAN | 2 | 2007- | C | M8 FLANGE | ||
| 345 | I0-28050 816-0 | BOLT; SENSOR.OIL LEVEL | 14 | 2007- | C | 4X4(TFS***) M8X16 FLANGE | ||
| 28 | I0-28050 816-0 | BOLT; CRANKCASE TO C/BL | 8 | 2007- | C | 4X4(TFS***) M8X16 FLANGE | ||
| 24 | I0-91180 106-0 | NUT; OIL PAN | 2 | 2007- | AB | M6 FLANGE | ||
| 23 | I0-28050 612-0 | BOLT; OIL PAN | 9 | 2007- | A | M6X12 FLANGE | ||
| 3 | I8-98316 093-1 | GASKET; DRAIN PLUG | 1 | 2007- | AB | ID=14.2 OD=24 | ||
| 28 | I0-28050 816-0 | BOLT; CRANKCASE TO C/BL | 8 | 2007- | C | 4X4(TFS***) M8X16 FLANGE | ||
| 10 | I0-28050 816-0 | BOLT; GUIDE TUBE | 1 | 2007- | AB | M8X16 FLANGE | ||
| 4 | I8-97329 621-0 | PLUG; DRAIN.OIL | 1 | 2007- | ABC | M14X14 | ||
| 25 | I0-41010 616-0 | STUD; OIL PAN | 2 | 2007- | AB | M6X16 L=25 | ||
| 28 | I0-28050 816-0 | BOLT; CRANKCASE TO C/BL | 7 | 2007- | C | 4X2(TFB***) M8X16 FLANGE | ||
| 9 | I8-98394 152-0 | GASKET; GUIDE TUBE,OIL LEVEL GAUGE | 1 | 2007- | AB | ID=11 | ||
| 9 | I8-98394 152-0 | GASKET; GUIDE TUBE,OIL LEVEL GAUGE | 1 | 2007- | AB | ID=11 | ||
| 28 | I0-28050 825-0 | BOLT; CRANKCASE TO C/BL | 12 | 2007- | AB | M8X25 FLANGE | ||
| 23 | I0-28050 612-0 | BOLT; OIL PAN | 9 | 2007- | A | M6X12 FLANGE | ||
| 345 | I0-28050 816-0 | BOLT; SENSOR.OIL LEVEL | 21 | 2007- | C | 4X2(TFB***) M8X16 FLANGE | ||
| 10 | I0-28050 816-0 | BOLT; GUIDE TUBE | 1 | 2007- | AB | M8X16 FLANGE | ||
| 28 | I0-28050 825-0 | BOLT; CRANKCASE TO C/BL | 12 | 2007- | AB | M8X25 FLANGE | ||
| 4 | I8-97329 621-0 | PLUG; DRAIN.OIL | 1 | 2007- | ABC | M14X14 | ||
| 10 | I0-28050 816-0 | BOLT; GUIDE TUBE | 1 | 2007- | C | EUROO SPECIFICATION^),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) M8X16 FLANGE | ||
| 28 | I0-28050 816-0 | BOLT; CRANKCASE TO C/BL | 6 | 2007- | C | M8X16 FLANGE | ||
| 25 | I0-41010 616-0 | STUD; OIL PAN | 2 | 2007- | AB | M6X16 L=25 | ||
| 69 | I0-28050 612-0 | BOLT; PLATE | 6 | 2007- | AB | M6X12 FLANGE | ||
| 25 | I0-41010 816-0 | STUD; OIL PAN | 2 | 2007- | C | M8X16 L=28 | ||
| 9 | I8-98394 152-0 | GASKET; GUIDE TUBE.OIL LEVEL GAUGE | 1 | 2007- | AB | ID=11 | ||
| 10 | I0-28050 816-0 | BOLT; GUIDE TUBE | 1 | 2007- | C | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) M8X16 FLANGE | ||
| 24 | I0-91180 208-0 | NUT; OIL PAN | 2 | 2007- | C | M8 FLANGE | ||
| 10 | I0-28050 816-0 | BOLT; GUIDE TUBE | 2 | 2007- | C | EUR05 SPECIFICATION(NT5) M8X16 FLANGE | ||
| 69 | I0-28050 612-0 | BOLT; PLATE | 6 | 2007- | AB | M6X12 FLANGE | ||
| 28 | I0-28050 816-0 | BOLT; CRANKCASE TO C/BL | 6 | 2007- | C | M8X16 FLANGE | ||
| 1 | I8-97533 466-0 | PAN ASM; OIL | 1 | 2007- | A | |||
| 10 | I0-28050 816-0 | BOLT; GUIDE TUBE | 1 | 2007- | C | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) M8X16 FLANGE | ||
| 10 | I0-28050 816-0 | BOLT; GUIDE TUBE | 2 | 2007- | C | EUR05 SPECIFICATION(NT5) M8X16 FLANGE | ||
| 23 | I0-28050 612-0 | BOLT; OIL PAN | 7 | 2007- | B | M6X12 FLANGE | ||
| 4 | I8-97329 621-0 | PLUG; DRAIN,OIL | 1 | 2007- | ABC | M14X14 | ||
| 10 | I0-28050 816-0 | BOLT; GUIDE TUBE | 1 | 2007- | AB | M8X16 FLANGE | ||
| 23 | I0-28050 612-0 | BOLT; OIL PAN | 7 | 2007- | B | M6X12 FLANGE | ||
| 28 | I0-28050 825-0 | BOLT; CRANKCASE TO C/BL | 12 | 2007- | AB | M8X25 FLANGE | ||
| 24 | I0-91180 106-0 | NUT; OIL PAN | 2 | 2007- | AB | M6 FLANGE | ||
| 3 | I8-98316 093-1 | GASKET; DRAIN PLUG | 1 | 2007- | AB | ID=14.2 OD-24 | ||
| 1 | I8-97533 466-0 | PAN ASM; OIL | 1 | 2007- | A | |||
| 28 | I0-28050 816-0 | BOLT; CRANKCASE TO C/BL | 7 | 2007- | C | 4X2(TFB***) M8X16 FLANGE | ||
| 24 | I0-91180 208-0 | NUT; OIL PAN | 2 | 2007- | C | M8 FLANGE | ||
| 20 | I8-98247 188-0 | PLATE; BAFFLE,CRANKCASE | 1 | 2007- | AB | |||
| 10 | I0-28050 816-0 | BOLT; GUIDE TUBE | 1 | 2007- | C | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) M8X16 FLANGE | ||
| 24 | I0-91180 208-0 | NUT; OIL PAN | 2 | 2007- | C | M8 FLANGE | ||
| 345 | I0-28050 816-0 | BOLT; SENSOR.OIL LEVEL | 21 | 2007- | C | 4X2(TFB***) M8X16 FLANGE | ||
| 28 | I0-28050 816-0 | BOLT; CRANKCASE TO C/BL | 8 | 2007- | C | 4X4(TFS***) M8X16 FLANGE | ||
| 25 | I0-41010 816-0 | STUD; OIL PAN | 2 | 2007- | C | M8X16 L=28 | ||
| 28 | I0-28050 816-0 | BOLT; CRANKCASE TO C/BL | 7 | 2007- | C | 4X2(TFB***) M8X16 FLANGE | ||
| 25 | I0-41010 616-0 | STUD; OIL PAN | 2 | 2007- | AB | M6X16 L=25 | ||
| 345 | I0-28050 816-0 | BOLT; SENSOR.OIL LEVEL | 14 | 2007- | C | 4X4(TFS***) M8X16 FLANGE | ||
| 3 | I8-98316 093-1 | GASKET; DRAIN PLUG | 1 | 2007- | AB | ID=14.2 OD-24 | ||
| 43 | I8-98292 481-1 | PLATE; CRANKCASE | 1 | 2007- | AB | |||
| 4 | I8-97329 621-0 | PLUG; DRAIN,OIL | 1 | 2007- | ABC | M14X14 |
