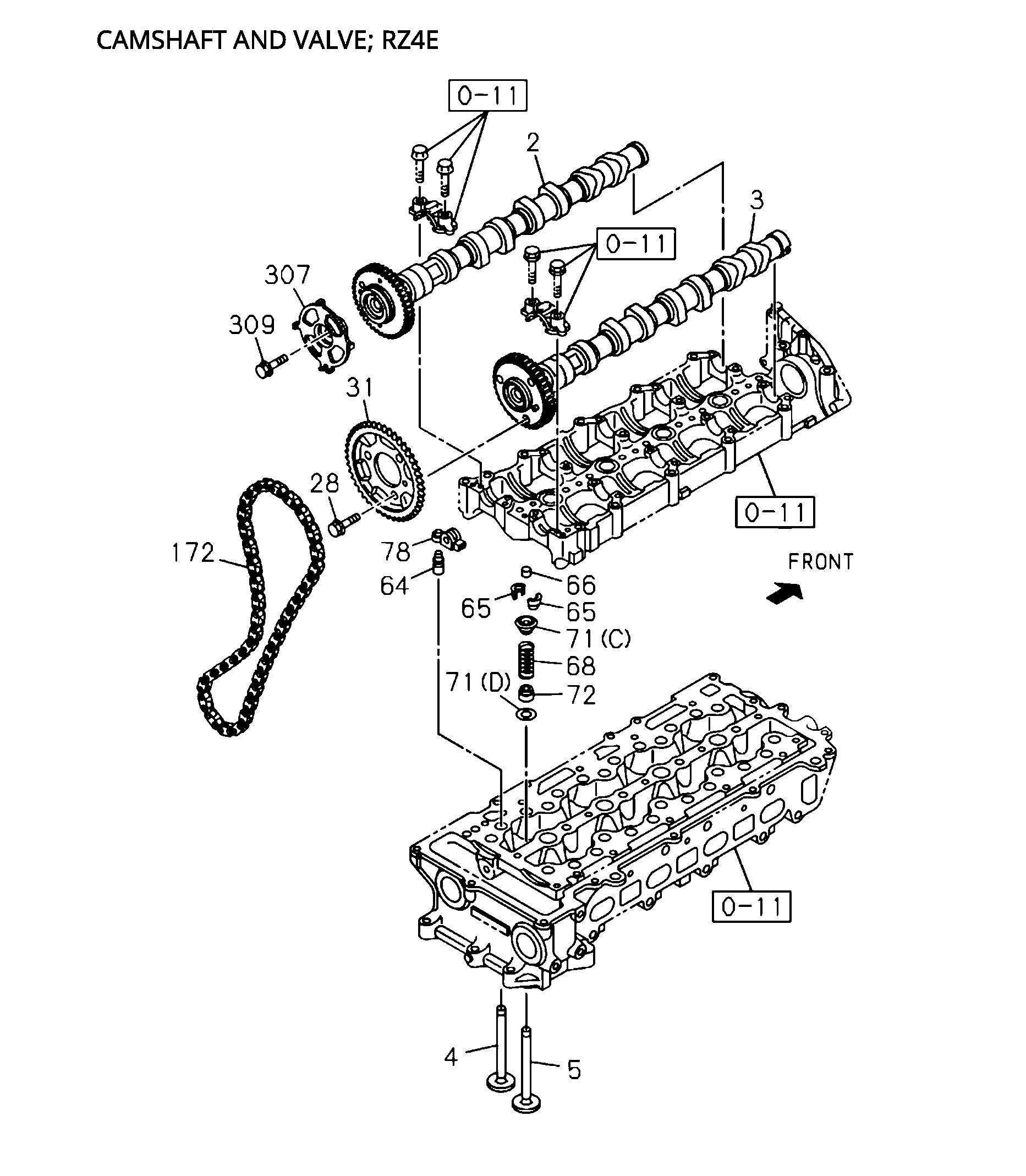

0-14 | 0-14 - CAMSHAFT AND VALVE
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I8-98331 641-1 | CAMSHAFT; INL | 1 | 2007- | AB | |||
| 65 | I8-98250 250-0 | COLLAR; SPLIT | 32 | 2007- | AB | |||
| 185 | I8-98248 163-2 | TENSIONER; CHAIN | 1 | 2007- | AB | |||

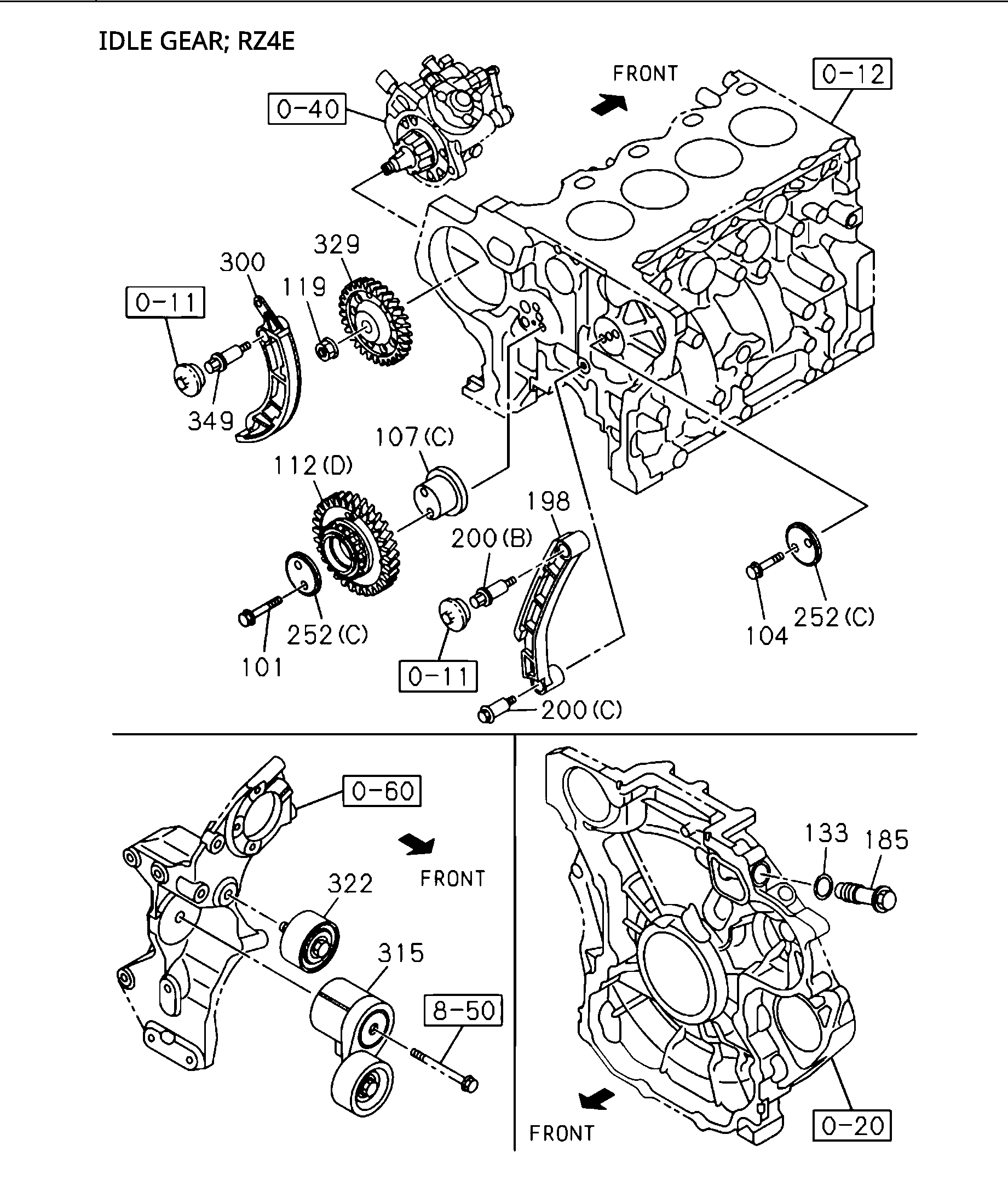

| 112 | I8-98351 801-1 | GEAR; IDLE | 1 | 2007- | B | (D) Z=66 | ||
| 349 | I8-98351 646-0 | PIVOT; CHAIN LEVER | 1 | 2007- | AB | |||
| 5 | I8-98247 696-1 | VALVE; EXH | 8 | 2007- | A B | |||
| 71 | I8-98250 252-0 | SEAT; SPR | 16 | 2007- | AB | (D) LOWER OD=22.6 | ||
| 68 | I8-98250 115-1 | SPRING; VLV | 8 | 2007- | A B | INLET H=51 | ||
| 3 | I8-98398 234-1 | CAMSHAFT; EXH | 1 | 2007- | A B | |||
| 68 | I8-98250 115-1 | SPRING; VLV | 8 | 2007- | AB | INLET H=51 | ||
| 349 | I8-98351 646-0 | PIVOT; CHAIN LEVER | 1 | 2007- | AB | |||
| 329 | I8-98351 804-0 | GEAR; INJ PUMP | 1 | 2007- | B | Z=57 | ||
| 119 | I0-91180 114-0 | NUT; PULLEY | 1 | 2007- | B | M14 FLANGE | ||
| 4 | I8-97490 215-1 | VALVE; INL | 8 | 2007- | AB | |||
| 3 | I8-98398 234-1 | CAMSHAFT; EXH | 1 | 2007- | A B | |||
| 329 | I8-98351 804-0 | GEAR; INJ PUMP | 1 | 2007- | B | Z=57 | ||
| 200 | I8-98351 647-0 | BOLT; CHAIN GUIDE,LWR | 1 | 2007- | AB | (C) | ||
| 133 | I9-09571 422-0 | GASKET; CHAIN TENSIONER | 1 | 2007- | AB | ID=22.5 | ||
| 200 | I8-98351 646-0 | BOLT; CHAIN GUIDE,LWR | 1 | 2007- | AB | (B) | ||
| 65 | I8-98250 250-0 | COLLAR; SPLIT | 32 | 2007- | AB | |||
| 72 | I8-98250 249-0 | SEAL; VLV GUIDE | 16 | 2007- | AB | |||
| 309 | I0-28050 840-0 | BOLT; ROTOR | 1 | 2007- | AB | M8X40 FLANGE | ||
| 28 | I0-28050 820-0 | BOLT; CAM PULLEY | 3 | 2007- | AB | M8X20 FLANGE | ||
| 5 | I8-98247 696-1 | VALVE; EXH | 8 | 2007- | A B | |||
| 78 | I8-98247 698-0 | ARM; ROCKER | 16 | 2007- | AB | |||
| 198 | I8-98351 830-1 | GUIDE; TIMING CHAIN | 1 | 2007- | B | |||
| 78 | I8-98247 698-0 | ARM; ROCKER | 16 | 2007- | A B | |||
| 190 | I0-91180 206-0 | NUT; CHAIN TENSIONER | 2 | 2007- | C | M6 FLANGE | ||
| 66 | I8-98299 554-0 | CAP; VLVSTEM END | 16 | 2007- | AB | |||
| 66 | I8-98299 554-0 | CAP; VLV STEM END | 16 | 2007- | A B | |||
| 101 | I0-28161 060-0 | BOLT; THRUST COLLAR | 2 | 2007- | AB | M10X60 FLANGE | ||
| 322 | I8-98377 692-2 | PULLEY; IDLE | 1 | 2007- | AB | |||
| 107 | I8-98351 840-0 | SHAFT; IDLE GEAR | 1 | 2007- | AB | (c) | ||
| 4 | I8-97490 215-1 | VALVE; INL | 8 | 2007- | AB | |||
| 300 | I8-98351 831-1 | LEVER; TENSION.TIMING CHAIN | 1 | 2007- | B | |||
| 68 | I8-98306 921-1 | SPRING; VLV | 8 | 2007- | AB | EXHAUST H=57 | ||
| 2 | I8-98331 641-1 | CAMSHAFT; INL | 1 | 2007- | AB | |||
| 198 | I8-98351 830-1 | GUIDE; TIMING CHAIN | 1 | 2007- | B | |||
| 68 | I8-98306 921-1 | SPRING; VLV | 8 | 2007- | A B | EXHAUST H =57 | ||
| 72 | I8-98250 249-0 | SEAL; VLV GUIDE | 16 | 2007- | AB | |||
| 172 | I8-98247 668-0 | CHAIN; TIMING,CM/SHF | 1 | 2007- | AB | |||
| 185 | I8-98248 163-2 | TENSIONER; CHAIN | 1 | 2007- | AB | |||
| 133 | I9-09571 422-0 | GASKET; CHAIN TENSIONER | 1 | 2007- | AB | ID=22.5 | ||
| 252 | I8-98248 173-0 | FLANGE; IDLE SHAFT | 2 | 2007- | AB | (C) | ||
| 31 | I8-98247 667-1 | SPROCKET; CM/SHF | 1 | 2007- | AB | Z=38 | ||
| 64 | I8-98248 261-0 | ADJUSTER; VLV LASH | 16 | 2007- | AB | |||
| 71 | I8-98250 251-0 | SEAT; SPR | 16 | 2007- | AB | (C) UPPER | ||
| 307 | I8-98351 820-0 | ROTOR; CAM ANGLE SENSOR | 1 | 2007- | AB | |||
| 104 | I0-28151 020-0 | BOLT; SHAFT IDLE | 2 | 2007- | AB | M10X20 FLANGE | ||
| 172 | I8-98247 668-0 | CHAIN; TIMING,CM/SHF | 1 | 2007- | AB | |||
| 300 | I8-98351 831-1 | LEVER; TENSION,TIMING CHAIN | 1 | 2007- | B |
