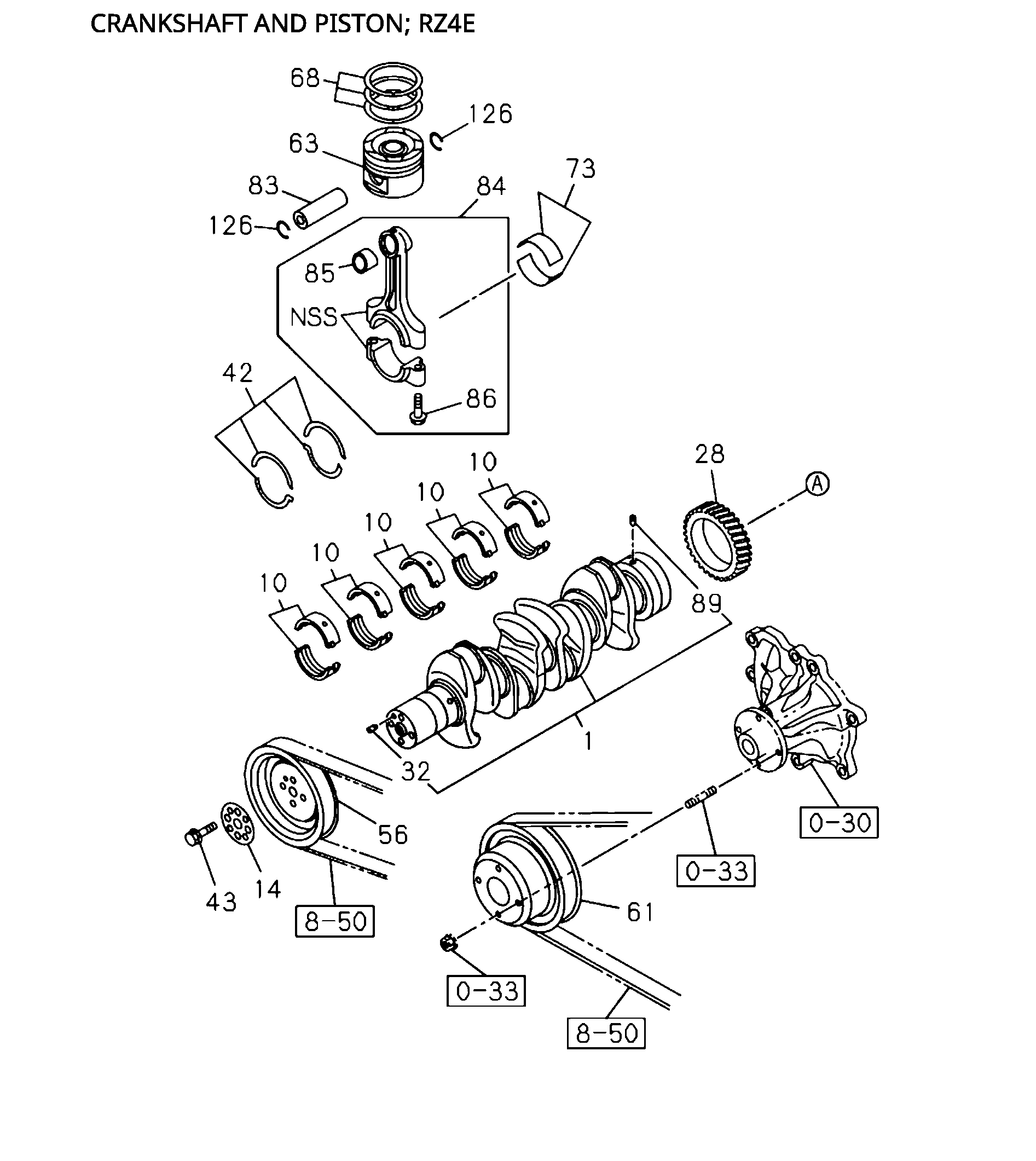

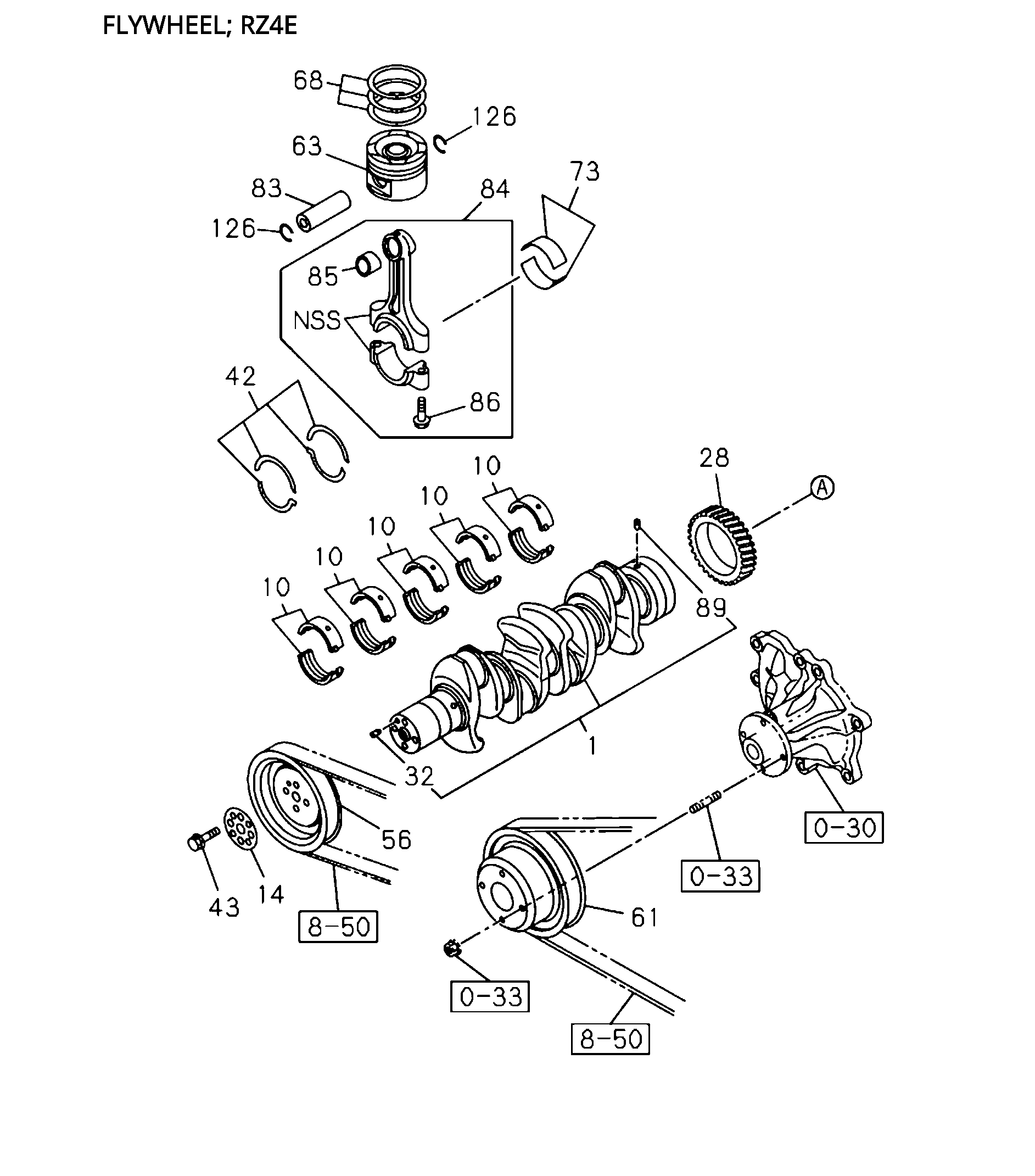

0-15 | 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 68 | I8-98333 347-0 | RING SET; PISTON.STANDARD | 4 | 2007- | B | |||
| 56 | I8-98378 672-0 | PULLEY; CR/SHF DAMPER | 1 | 2007- | AB | 1-GROOVE | ||
| 43 | I8-98287 328-0 | BOLT; CR/SHF PULLEY | 4 | 2007- | AB | M10X31 FLANGE | ||
| 126 | I8-94460 687-0 | RING; SNAP,PISTON PIN | 8 | 2007- | ABC | OD=37.5 | ||
| 63 | I8-98248 254-1 | PISTON | 4 | 2007- | B | GRADE=C | ||
| 63 | I8-98248 253-1 | PISTON | 4 | 2007- | B | GRADE=B | ||
| 40 | I8-98286 206-0 | BOLT; FLYWHEEL | 8 | 2007- | AB | M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (B) M12X38 FLANGE | ||
| 28 | I8-98351 802-0 | GEAR; CR/SHF | 1 | 2007- | B | Z=57 | ||
| 28 | I8-98351 802-0 | GEAR; CR/SHF | 1 | 2007- | B | Z=57 | ||
| 89 | I9-09878 626-0 | PIN; STRAIGHT,GEAR | 1 | 2007- | AB | OD=5 L=6 | ||
| 32 | I9-08160 512-0 | PIN; FLYWHEEL | 2 | 2007- | AB | OD=5 L=12 | ||
| 61 | I8-98383 362-1 | PULLEY; FAN DRIVE | 1 | 2007- | AB | 1-GROOVE | ||
| 10 | I8-98333 352-0 | METAL SET; CRANKSHAFT.STANDARD | 5 | 2007- | B | GRADE=4 | ||
| 84 | I8-98330 197-0 | ROD ASM; CONN | 4 | 2007- | AB | |||
| 83 | I8-98285 227-0 | PIN; PISTON | 4 | 2007- | AB | |||
| 83 | I8-98285 227-0 | PIN; PISTON | 4 | 2007- | AB | |||
| 61 | I8-98383 362-1 | PULLEY; FAN DRIVE | 1 | 2007- | AB | 1-GROOVE | ||
| 56 | I8-98378 672-0 | PULLEY; CR/SHF DAMPER | 1 | 2007- | AB | 1-GROOVE | ||
| 35 | I8-98247 327-0 | GEAR; RING | 1 | 2007- | AB | Z=122 | ||
| 100 | I8-98278 962-0 | PLATE; FLEX | 1 | 2007- | AB | A/T 6 SPEED-AISIN(Y6A) | ||
| 10 | I8-98333 351-0 | METAL SET; CRANKSHAFT.STANDARD | 5 | 2007- | B | GRADE=3 | ||
| 63 | I8-98248 253-1 | PISTON | 4 | 2007- | B | GRADE=B | ||
| 86 | I8-98258 467-0 | BOLT; CONNROD | 8 | 2007- | AB | M9X45.5 FLANGE | ||
| 73 | I8-98333 348-0 | METAL SET; CONN ROD.STANDARD | 4 | 2007- | AB | |||
| 35 | I8-98247 327-0 | GEAR; RING | 1 | 2007- | AB | Z=122 | ||
| 63 | I8-98248 252-1 | PISTON | 4 | 2007- | B | GRADE=A | ||
| 1 | I8-98373 020-0 | CRANKSHAFT | 1 | 2007- | AB | |||
| 12 | I8-98372 427-0 | FLYWHEEL | 1 | 2007- | AB | A/T 6 SPEED-AISIN(Y6A) (D) | ||
| 10 | I8-98333 349-0 | METAL SET; CRANKSHAFT,STANDARD | 5 | 2007- | B | GRADE=1 | ||
| 12 | I8-97497 693-0 | FLYWHEEL | 1 | 2007- | AB | M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (C) | ||
| 85 | I8-98247 334-0 | BUSHING; CONNROD | 4 | 2007- | AB | AFTER PRESS FITTING, MACHINE IT. | ||
| 42 | I8-98334 690-0 | WASHER; THRUST,CR/SHF | 1 | 2007- | B | |||
| 84 | I8-98330 197-0 | ROD ASM; CONN | 4 | 2007- | AB | |||
| 126 | I8-94460 687-0 | RING; SNAP,PISTON PIN | 8 | 2007- | ABC | OD=37.5 | ||
| 10 | I8-98333 351-0 | METAL SET; CRANKSHAFT.STANDARD | 5 | 2007- | B | GRADE=3 | ||
| 38 | I8-98281 810-0 | WASHER; FLYWHEEL | 1 | 2007- | AB | A/T 6 SPEED-AISIN(Y6A) (D) ID=35 OD=120 | ||
| 43 | I8-98287 328-0 | BOLT; CR/SHF PULLEY | 4 | 2007- | AB | M10X31 FLANGE | ||
| 14 | I8-98286 647-1 | WASHER; PULLEY DAMPER | 1 | 2007- | AB | |||
| 40 | I8-98286 207-0 | BOLT; FLYWHEEL | 8 | 2007- | AB | A/T 6 SPEED-AISIN(Y6A) (c) M12X102 FLANGE | ||
| 68 | I8-98333 347-0 | RING SET; PISTON.STANDARD | 4 | 2007- | B | |||
| 63 | I8-98248 252-1 | PISTON | 4 | 2007- | B | GRADE=A | ||
| 85 | I8-98247 334-0 | BUSHING; CONNROD | 4 | 2007- | AB | AFTER PRESS FITTING, MACHINE IT. | ||
| 42 | I8-98334 690-0 | WASHER; THRUST,CR/SHF | 1 | 2007- | B | |||
| 100 | I8-98278 962-0 | PLATE; FLEX | 1 | 2007- | AB | A/T 6 SPEED-AI5IN(Y6A) | ||
| 63 | I8-98248 254-1 | PISTON | 4 | 2007- | B | GRADE=C | ||
| 10 | I8-98333 350-0 | METAL SET; CRANKSHAFT.STANDARD | 5 | 2007- | B | GRADE=2 | ||
| 1 | I8-98373 020-0 | CRANKSHAFT | 1 | 2007- | AB | |||
| 73 | I8-98333 348-0 | METAL SET; CONN ROD.STANDARD | 4 | 2007- | AB | |||
| 14 | I8-98286 647-1 | WASHER; PULLEY DAMPER | 1 | 2007- | AB | |||
| 10 | I8-98333 349-0 | METAL SET; CRANKSHAFT,STANDARD | 5 | 2007- | B | GRADE=1 | ||
| 10 | I8-98333 350-0 | METAL SET; CRANKSHAFT.STANDARD | 5 | 2007- | B | GRADE=2 | ||
| 86 | I8-98258 467-0 | BOLT; CONNROD | 8 | 2007- | AB | M9X45.5 FLANGE | ||
| 10 | I8-98333 352-0 | METAL SET; CRANKSHAFT.STANDARD | 5 | 2007- | B | GRADE=4 | ||
| 38 | I8-98286 638-0 | WASHER; FLYWHEEL | 1 | 2007- | AB | M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (C) ID=42 OD-90 |
