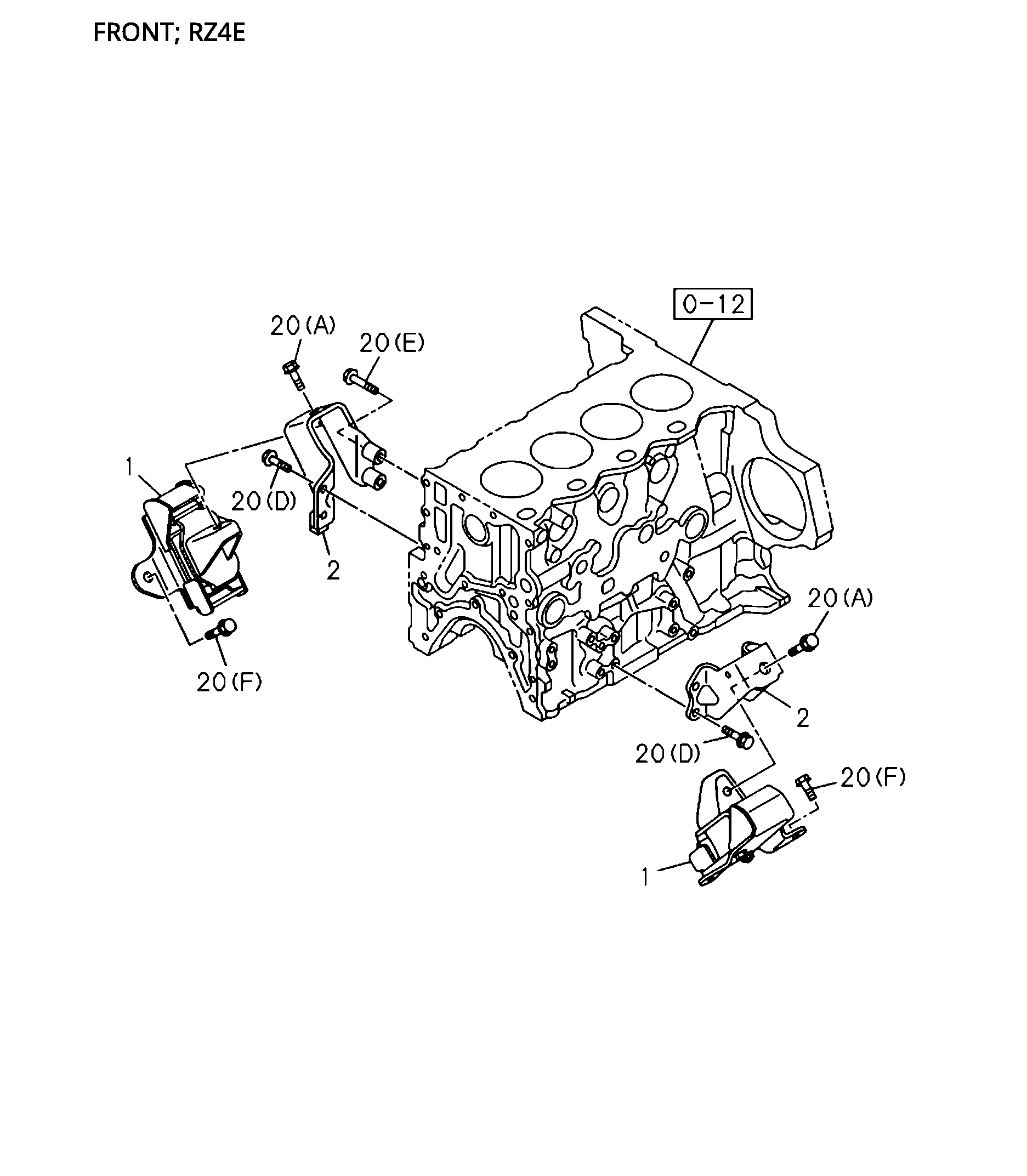

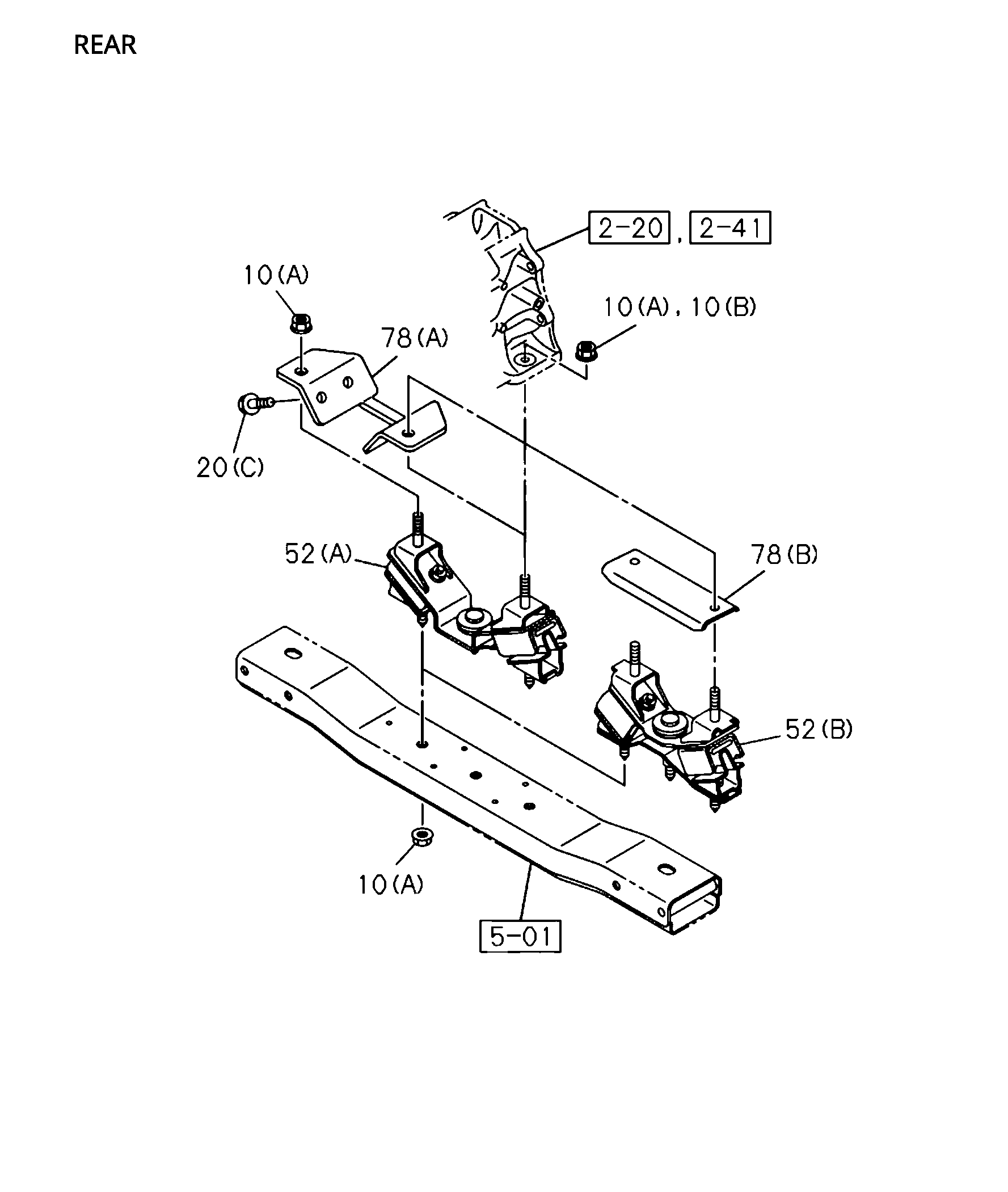

0-22 | 0-22 - ENGINE MOUNTING
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 10 | I0-91180 212-0 | NUT; MTG RUBBER | 5 | 2007- | ABC | 4X2(TFB***) (A) M12 FLANGE | ||
| 20 | I8-98278 658-0 | BOLT; ENG FOOT | 4 | 2007- | C | (A) M 12X27.8 FLANGE | ||
| 1 | I8-98369 976-0 | RUBBER; ENG FOOT.FRT | 1 | 2007- | B | A/T 6 SPEED-AISIN(Y6A) | ||
| 52 | I8-98369 982-2 | RUBBER; CUSHIONING MTG.RR | 1 | 2007-2009 | AB | 4X4(TFS***) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (A) | ||
| 20 | I8-98278 658-0 | BOLT; ENG FOOT | 4 | 2007- | C | (A) M12X27.8 FLANGE | ||
| 1 | I8-98369 974-0 | RUBBER; ENG FOOT.FRT | 1 | 2007- | B | M/T MVL 6 SPEED 6Y(Y6P) | ||
| 1 | I8-98369 977-1 | RUBBER; ENG FOOT.FRT | 1 | 2007- | AB | A/T 6 SPEED-AISIN(Y6A) | ||
| 20 | I0-28051 020-0 | BOLT; ENG FOOT | 8 | 2007- | C | (B) M10X20 FLANGE | ||
| 52 | I8-98369 983-2 | RUBBER; CUSHIONING MTG.RR | 1 | 2010- | AB | 4X4(TFS***) A/T 6 SPEED-AISIN(Y6A) (A) | ||
| 20 | I8-98278 658-0 | BOLT; ENG FOOT | 2 | 2007- | A B | (A) M 12X27.8 FLANGE | ||
| 52 | I8-98369 982-2 | RUBBER; CUSHIONING MTG.RR | 1 | 2010- | AB | 4X4(TFS***) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (A) | ||
| 20 | I8-98278 658-0 | BOLT; ENG FOOT | 2 | 2007- | A B | (A) M 12X27.8 FLANGE | ||
| 20 | I0-28661 230-0 | BOLT; ENG FOOT | 4 | 2007- | ABC | (F) M12X3D FLANGE | ||
| 10 | I8-97544 488-0 | NUT; MTG RUBBER | 2 | 2007- | ABC | 4X4(TFS***) (B) M12 FLANGE | ||
| 1 | I8-98369 976-0 | RUBBER; ENG FOOT.FRT | 1 | 2007- | B | A/T 6 SPEED-AISIN(Y6A) | ||
| 1 | I8-98369 974-0 | RUBBER; ENG FOOT.FRT | 1 | 2007- | B | M/T MVL 6 SPEED 6Y(Y6P) | ||
| 1 | I8-98369 975-1 | RUBBER; ENG FOOT.FRT | 1 | 2007- | A B | M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) | ||
| 52 | I8-98369 983-2 | RUBBER; CUSHIONING MTG.RR | 1 | 2007-2009 | AB | 4X4(TFS***) A/T 6 SPEED-AISIN(Y6A) (A) | ||
| 1 | I8-98369 977-1 | RUBBER; ENG FOOT,FRT | 1 | 2007- | AB | A/T 6 SPEED-AISIN(Y6A) | ||
| 20 | I0-28151 020-0 | BOLT; ENG FOOT | 6 | 2007- | A B | (D) M10X20 FLANGE | ||
| 2 | I8-98248 256-2 | FOOT; ENG | 1 | 2007- | B | |||
| 10 | I0-91180 212-0 | NUT; MTG RUBBER | 3 | 2007- | ABC | 4X4(TFS***) (A) M12 FLANGE | ||
| 2 | I8-98248 256-2 | FOOT; ENG | 1 | 2007- | B | |||
| 2 | I8-98248 257-1 | FOOT; ENG | 1 | 2007- | AB | |||
| 20 | I0-28651 025-0 | BOLT; ENG FOOT | 4 | 2007- | ABC | 4X2(TFB***) A/T 6 SPEED-AISIN(Y6A) (C) M10X25 FLANGE | ||
| 1 | I8-98369 975-1 | RUBBER; ENG FOOT.FRT | 1 | 2007- | A B | M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) | ||
| 2 | I8-98248 257-1 | FOOT; ENG | 1 | 2007- | AB | |||
| 20 | I0-28661 230-0 | BOLT; ENG FOOT | 4 | 2007- | ABC | (F) M12X3D FLANGE |
