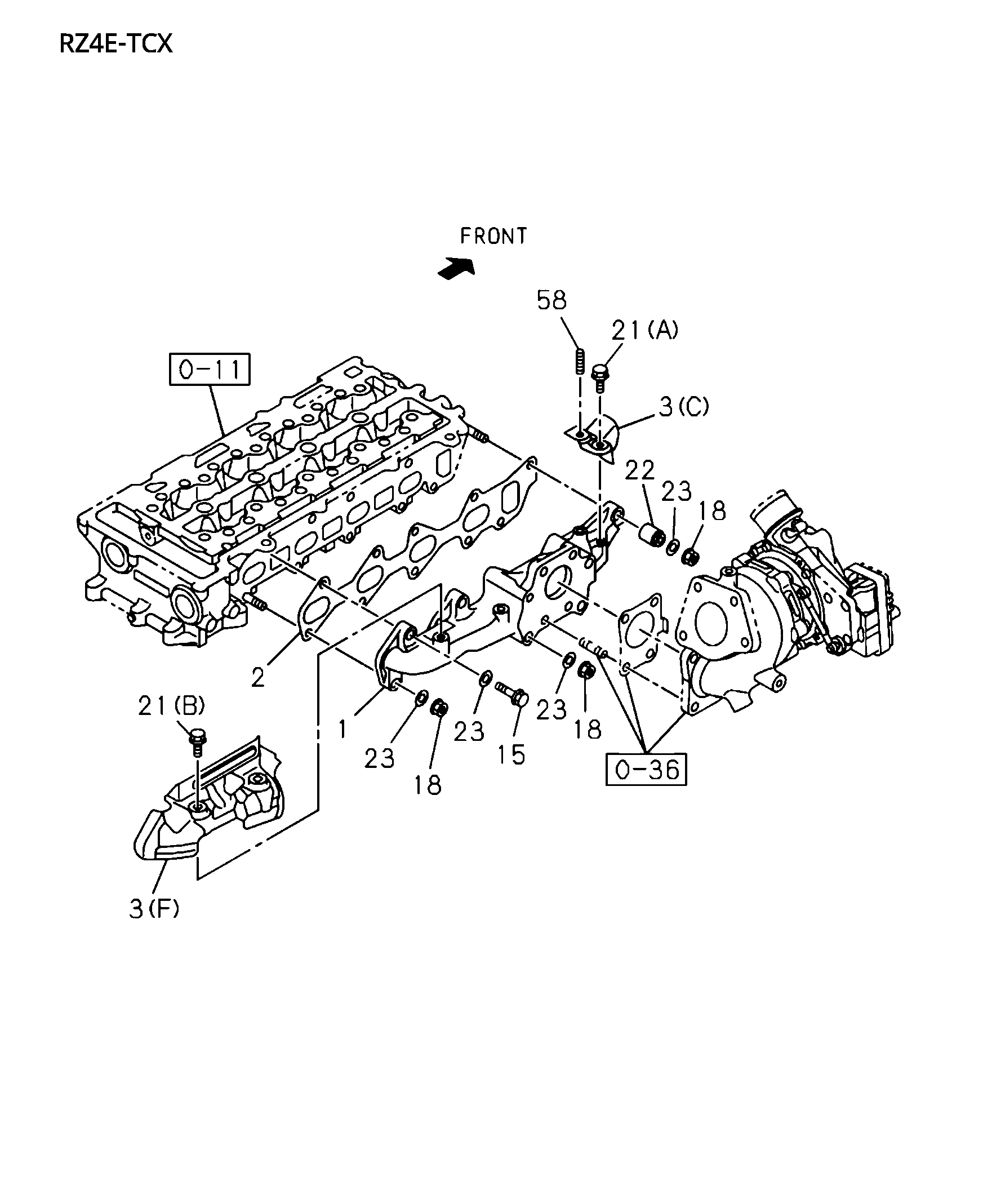

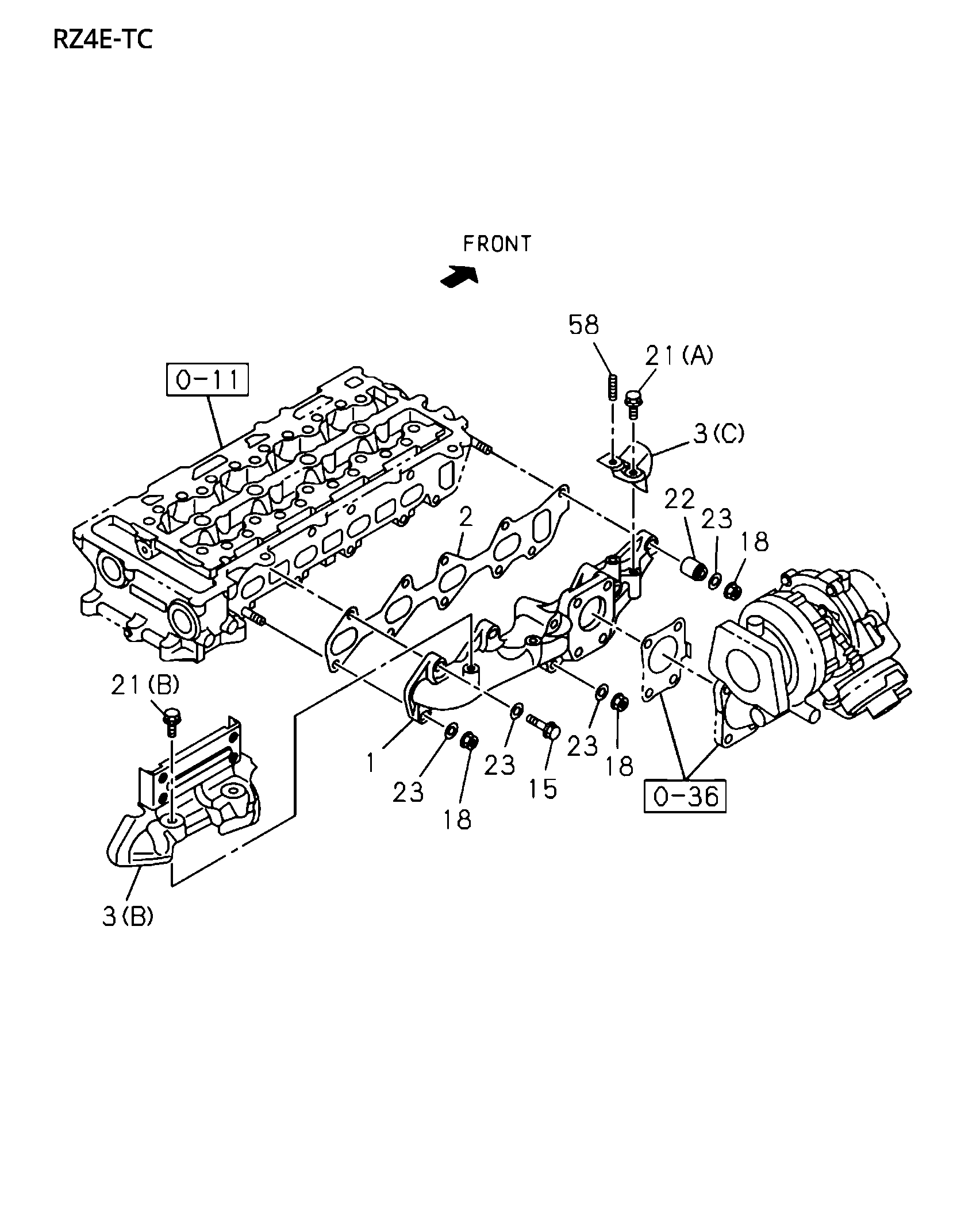

0-27 | 0-27 - EXHAUST MANIFOLD
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 18 | I8-97309 942-0 | NUT; EXH MANIF | 7 | 2007- | AB | M10 FLANGE | ||
| 3 | I8-98247 218-2 | PROTECTOR; HEAT,EXH MANIF | 1 | 2007- | AB | (C) | ||
| 1 | I8-98247 605-3 | MANIFOLD; EXHAUST | 1 | 2007- | B | |||
| 2 | I8-98247 606-2 | GASKET; EXH MANIF TO HD | 1 | 2007- | AB | |||
| 2 | I8-98247 606-2 | GASKET; EXH MANIF TO HD | 1 | 2007- | AB | |||
| 58 | I8-98360 821-0 | STUD; HEAT PROTECTOR | 1 | 2007- | AB | M8X25 L=33 | ||
| 15 | I8-98032 158-0 | BOLT; EXH MANIF | 6 | 2007- | C | M10X30 FLANGE | ||
| 15 | I8-98032 158-0 | BOLT; EXH MANIF | 3 | 2007- | AB | M10X30 FLANGE | ||
| 3 | I8-97541 163-0 | PROTECTOR; HEAT,EXH MANIF | 1 | 2007- | B | (B) | ||
| 15 | I8-98032 158-0 | BOLT; EXH MANIF | 3 | 2007- | AB | M10X30 FLANGE | ||
| 3 | I8-98247 218-2 | PROTECTOR; HEAT,EXH MANIF | 1 | 2007- | AB | (c) | ||
| 15 | I8-98032 158-0 | BOLT; EXH MANIF | 6 | 2007- | C | M10X30 FLANGE | ||
| 23 | I5-09500 013-0 | WASHER; PL EXH MANIF BRICT | 10 | 2007- | AB | ID=10.5 | ||
| 15 | I8-98032 158-0 | BOLT; EXH MANIF | 6 | 2007- | C | M10X30 FLANGE | ||
| 21 | I0-28050 820-0 | BOLT; HEAT PROTECTOR | 2 | 2007- | AB | (B) M8X20 FLANGE | ||
| 2 | I8-98247 606-2 | GASKET; EXH MANIF TO HD | 1 | 2007- | AB | |||
| 18 | I8-97309 942-0 | NUT; EXH MANIF | 7 | 2007- | AB | M10 FLANGE | ||
| 1 | I8-98247 605-3 | MANIFOLD; EXHAUST | 1 | 2007- | B | |||
| 15 | I8-98032 158-0 | BOLT; EXH MANIF | 3 | 2007- | AB | M10X30 FLANGE | ||
| 1 | I8-98247 605-3 | MANIFOLD; EXHAUST | 1 | 2007- | B | |||
| 33 | I5-09500 013-0 | WASHER; EXH MANIF | 8 | 2007- | C | ID=10.5 | ||
| 19 | I8-97379 383-0 | STUD; MANIF TO CYL HD | 2 | 2007- | C | M10X33L=4S | ||
| 15 | I8-98032 158-0 | BOLT; EXH MANIF | 6 | 2007- | C | M10X30 FLANGE | ||
| 21 | I0-28050 820-0 | BOLT; HEAT PROTECTOR | 2 | 2007- | AB | (B) M8X20 FLANGE | ||
| 2 | I8-98247 606-2 | GASKET; EXH MANIF TO HD | 1 | 2007- | AB | |||
| 33 | I5-09500 013-0 | WASHER; EXH MANIF | 8 | 2007- | C | ID=10.5 | ||
| 1 | I8-98247 605-3 | MANIFOLD; EXHAUST | 1 | 2007- | B | |||
| 15 | I8-98032 158-0 | BOLT; EXH MANIF | 3 | 2007- | AB | M10X30 FLANGE | ||
| 58 | I8-98360 821-0 | STUD; HEAT PROTECTOR | 1 | 2007- | AB | M8X25 L=33 | ||
| 18 | I8-97309 942-0 | NUT; EXH MANIF | 7 | 2007- | AB | M10 FLANGE | ||
| 18 | I8-97309 942-0 | NUT; EXH MANIF | 7 | 2007- | AB | M10 FLANGE | ||
| 22 | I8-98307 650-0 | SPACER; EXH MANIF BRKT | 2 | 2007- | AB | |||
| 22 | I8-98307 650-0 | SPACER; EXH MANIF BRKT | 2 | 2007- | AB | |||
| 23 | I5-09500 013-0 | WASHER; PL EXH MANIF BRICT | 10 | 2007- | AB | ID=10.5 | ||
| 19 | I8-97379 383-0 | STUD; MANIF TO CYL HD | 2 | 2007- | C | M10X33 L=48 |
