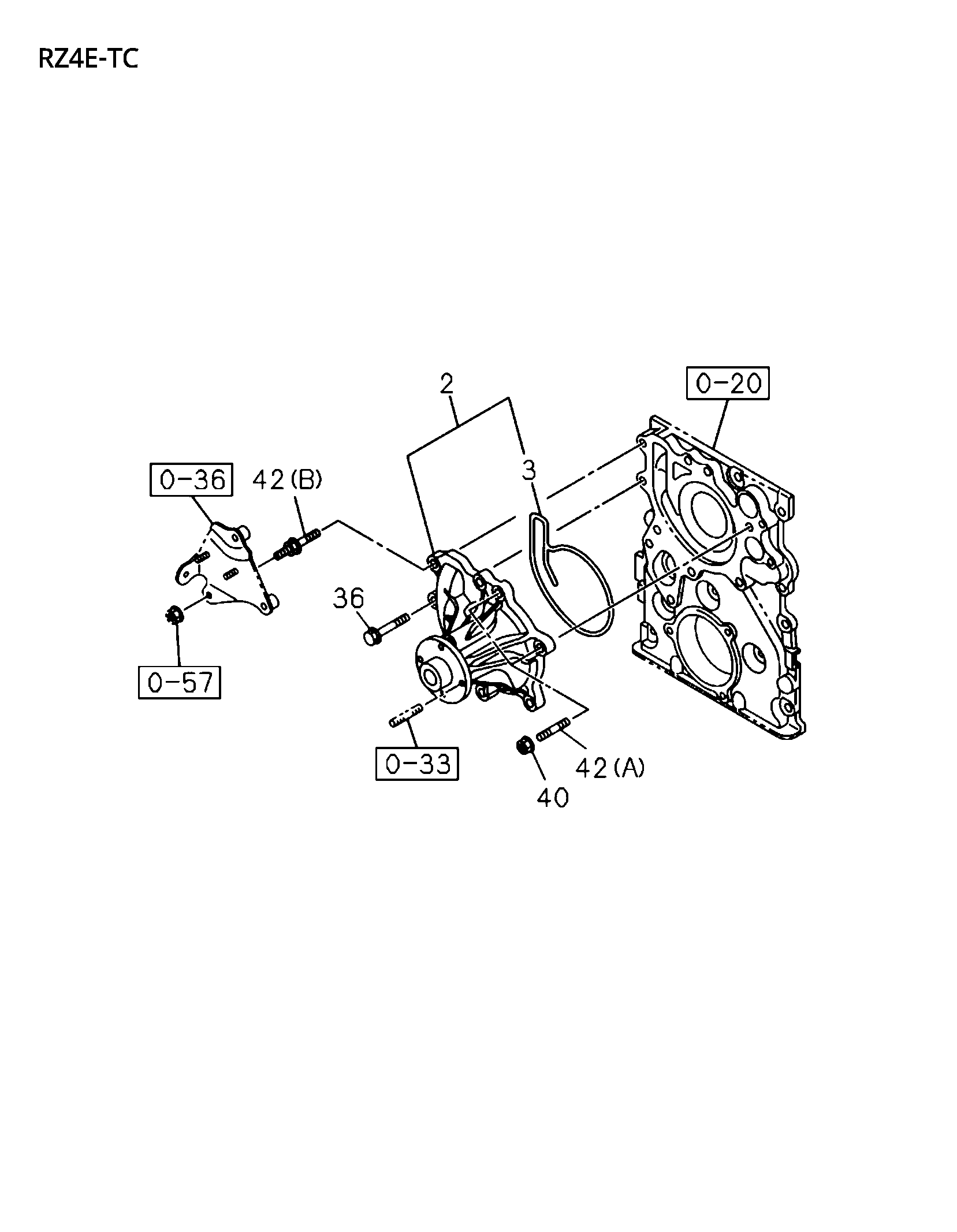

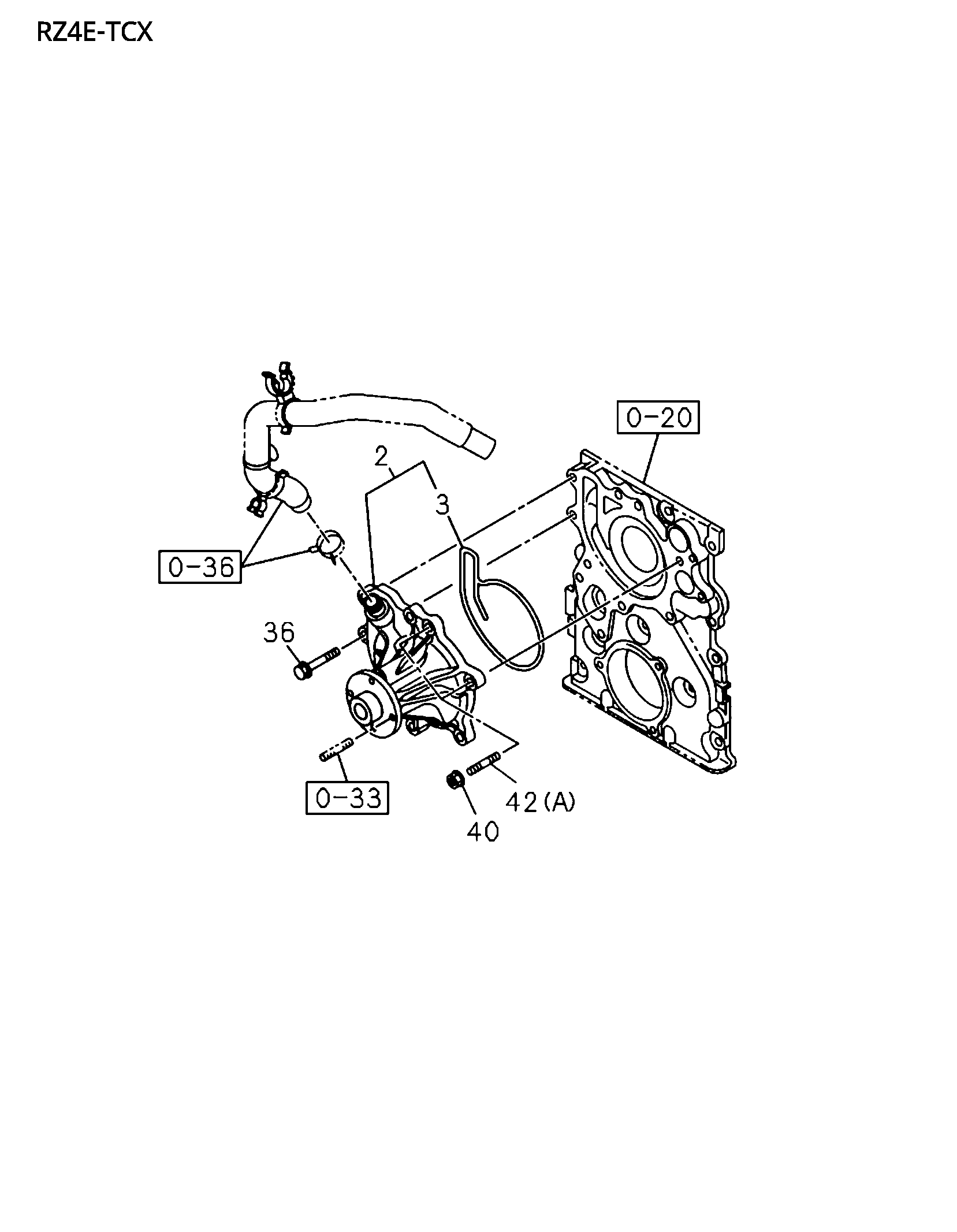

0-30 | 0-30 - WATER PUMP AND CORROSION RESISTOR
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 42 | I0-41010 825-0 | STUD; WATER PUMP | 2 | 2007- | AB | (A) M8X25 L=37 | ||
| 36 | I0-28050 850-0 | BOLT; WATER PUMP TO C/BL | 4 | 2007- | C | M8X50 FLANGE | ||
| 2 | I8-98382 836-0 | PUMP ASM; WATER | 1 | 2007- | B | |||
| 36 | I0-28050 850-0 | BOLT; WATER PUMP TO C/BL | 5 | 2007- | B | M8X50 FLANGE | ||
| 36 | I0-28050 850-0 | BOLT; WATER PUMP TO C/BL | 5 | 2007- | B | M8X50 FLANGE | ||
| 2 | I8-98382 836-0 | PUMP ASM; WATER | 1 | 2007- | B | |||
| 63 | I0-28050 816-0 | BOLT; INL PIPE | 2 | 2007- | C | (A) M8X16 FLANGE | ||
| 42 | I8-97262 717-1 | STUD; WATER PUMP | 1 | 2007- | B | (B) M 8X20, M 8X45 L=73 | ||
| 63 | I0-28050 816-0 | BOLT; INL PIPE | 1 | 2007- | C | EUR04 SPECIFICATI0N(NT4)fEUR05 SPECIFICATION(NT5) (A) M8X16 FLANGE | ||
| 155 | I0-91180 208-0 | NUT; PIPE | 2 | 2007- | c | M8 FLANGE | ||
| 40 | I0-91180 208-0 | NUT; WATER PUMP | 2 | 2007- | ABC | M8 FLANGE | ||
| 3 | I8-98386 067-0 | GASKET; PUMPTOC/BL | 1 | 2007- | AB | |||
| 40 | I0-91180 208-0 | NUT; WATER PUMP | 2 | 2007- | ABC | M8 FLANGE | ||
| 36 | I0-28050 850-0 | BOLT; WATER PUMP TO C/BL | 4 | 2007- | C | M8X50 FLANGE | ||
| 36 | I0-28050 850-0 | BOLT; WATER PUMP TO C/BL | 5 | 2007- | B | M8X50 FLANGE | ||
| 36 | I0-28050 850-0 | BOLT; WATER PUMP TO C/BL | 4 | 2007- | C | M8X50 FLANGE | ||
| 36 | I0-28050 850-0 | BOLT; WATER PUMP TO C/BL | 6 | 2007- | A | M8X50 FLANGE | ||
| 3 | I8-98386 067-0 | GASKET; PUMPTOC/BL | 1 | 2007- | AB | |||
| 36 | I0-28050 850-0 | BOLT; WATER PUMP TO C/BL | 6 | 2007- | A | M8X50 FLANGE | ||
| 63 | I0-28050 816-0 | BOLT; INL PIPE | 2 | 2007- | C | (A) M8X16 FLANGE | ||
| 36 | I0-28050 850-0 | BOLT; WATER PUMP TO C/BL | 6 | 2007- | A | M8X50 FLANGE | ||
| 42 | I0-41010 825-0 | STUD; WATER PUMP | 2 | 2007- | AB | (A) M8X25 L=37 | ||
| 155 | I0-91180 208-0 | NUT; PIPE | 2 | 2007- | C | M8 FLANGE | ||
| 2 | I8-98382 836-0 | PUMP ASM; WATER | 1 | 2007- | B | |||
| 40 | I0-91180 208-0 | NUT; WATER PUMP | 2 | 2007- | ABC | M8 FLANGE | ||
| 63 | I0-28050 816-0 | BOLT; INL PIPE | 1 | 2007- | C | EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) (A) M8X16 FLANGE | ||
| 3 | I8-98386 067-0 | GASKET; PUMPTOC/BL | 1 | 2007- | AB |
