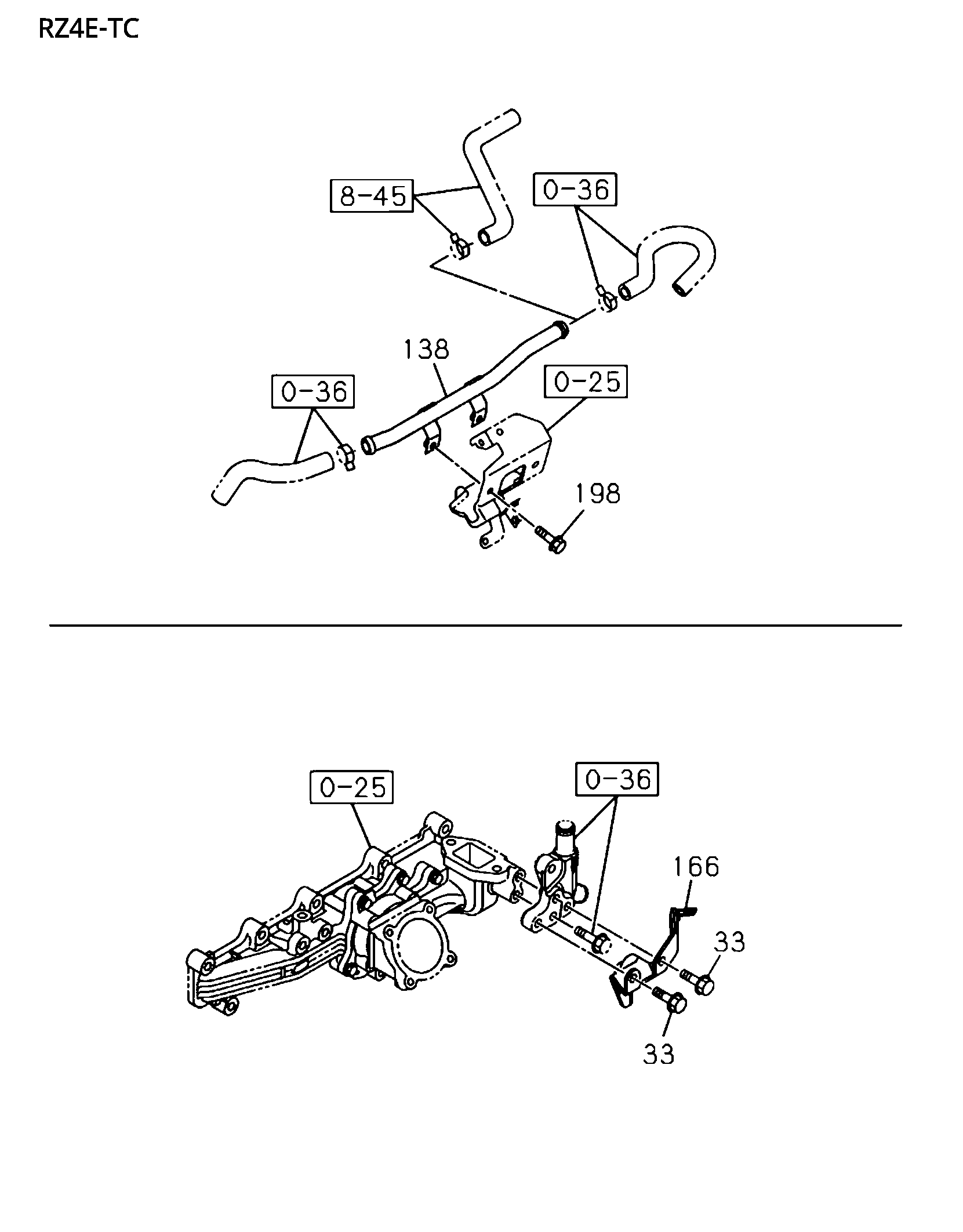

0-32 | 0-32 - WATER PIPING; ENGINE
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 198 | I0-28050 616-0 | BOLT; PIPE | 2 | 2007- | B | EXC. EUR04 SPECIFICATIONS) M6X16 FLANGE | ||
| 166 | I8-97498 120-0 | BRACKET; CUP | 1 | 2007- | B | A/T 6 SPEED-AISIN(Y6A) | ||
| 97 | I0-28050 616-0 | BOLT; WATER PIPE | 1 | 2007- | C | M6X16 FLANGE | ||
| 22 | I8-97329 627-0 | CLIP; WATER HOSE | 4 | 2007- | A | (C) ID=13 | ||
| 33 | I0-28050 825-0 | BOLT; BRKT | 2 | 2007- | B | A/T 6 SPEED-AISIN(Y6A) M8X25 FLANGE | ||
| 138 | I8-98487 360-0 | PIPE; WATER | 1 | 2007- | B | EXC. EUR04 SPECIFICATION(NT4) | ||
| 69 | I0-91180 206-0 | NUT; WATER PIPE | 1 | 2007- | C | M6 FLANGE |
