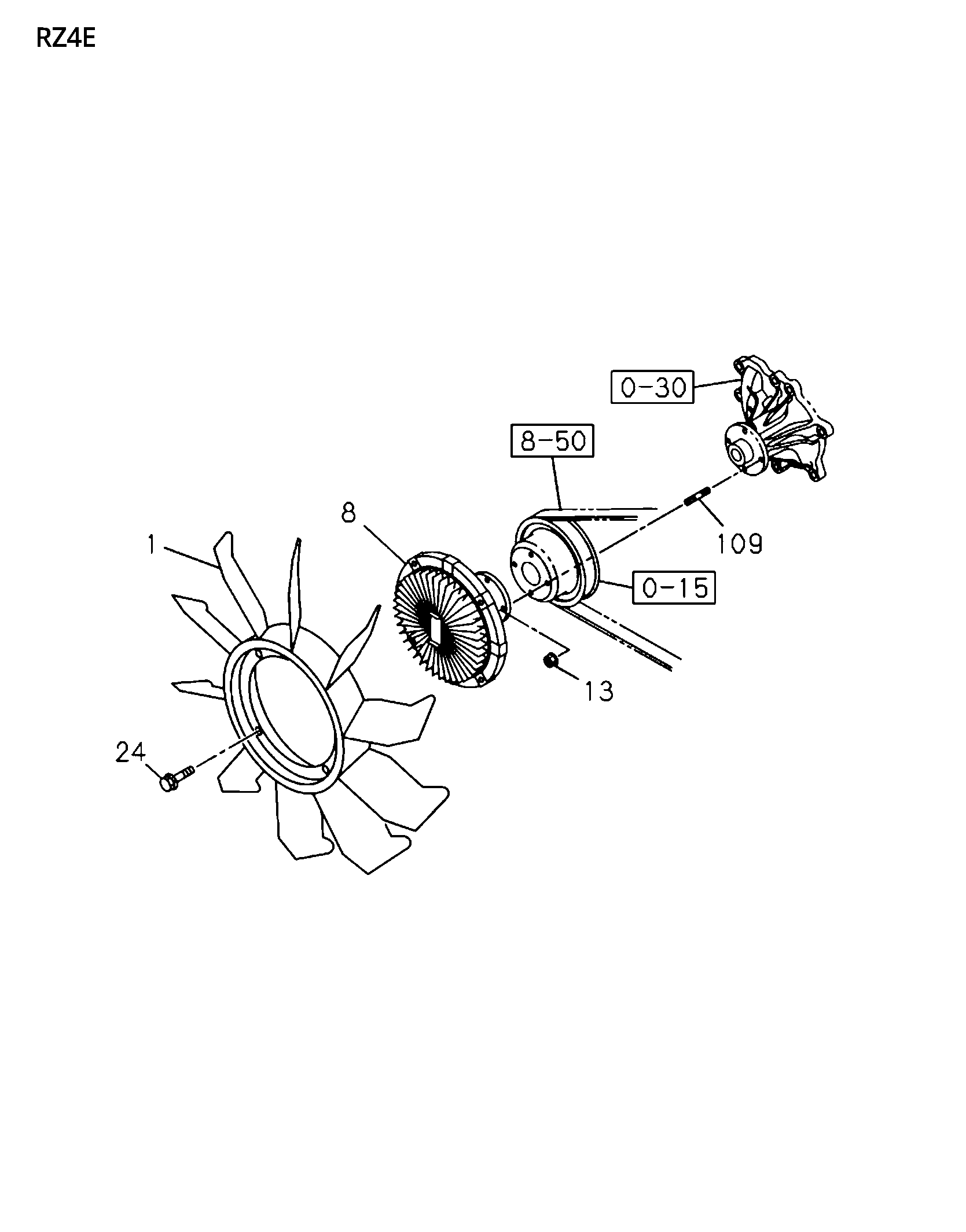

0-33 | 0-33 - FAN AND FAN BELT
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 8 | I8-98119 213-1 | CLUTCH; COOLING FAN | 1 | 2007- | ABC | |||
| 147 | I0-28651 020-0 | BOLT; BELT TENSIONER | 3 | 2007- | C | M10X20 FLANGE | ||
| 13 | I8-98049 362-0 | NUT; COOLING FAN | 4 | 2007- | ABC | M6 FLANGE | ||
| 109 | I8-98318 479-0 | STUD; FAN CLU | 4 | 2007- | AB | M6X19 L=27 | ||
| 24 | I0-28650 625-0 | BOLT; FAN | 4 | 2007- | ABC | M6X25 FLANGE | ||
| 24 | I0-28650 625-0 | BOLT; FAN | 4 | 2007- | ABC | M6X25 FLANGE | ||
| 109 | I8-98318 479-0 | STUD; FAN CLU | 4 | 2007- | AB | M6X19 L=27 | ||
| 8 | I8-98119 213-1 | CLUTCH; COOLING FAN | 1 | 2007- | ABC | |||
| 1 | I8-98162 703-0 | FAN; COOLING | 1 | 2007- | ABC | |||
| 13 | I8-98049 362-0 | NUT; COOLING FAN | 4 | 2007- | ABC | M6 FLANGE | ||
| 1 | I8-98162 703-0 | FAN; COOLING | 1 | 2007- | ABC |
