| 101 |
I0-28050 820-0 |
|
BOLT; HEAT PROTECTOR |
1 |
2007- |
|
A |
M8X20 FLANGE |
| 540 |
I8-98247 211-2 |
|
PIPE; WATER |
1 |
2007- |
|
B M/T MVL |
|
| 21 |
I0-28050 840-0 |
|
BOLT; PIPE |
1 |
2007- |
|
C |
(A) M8X40 FLANGE |
| 118 |
I8-97944 127-0 |
|
CLIP; WATER HOSE |
4 |
2007- |
|
B |
(B) ID=20.8 |
| 526 |
I8-98299 210-0 |
|
GASKET; PLATE |
1 |
2007- |
|
C |
|
| 217 |
I0-28661 230-0 |
|
BOLT; BRKT |
3 |
2007- |
|
C |
(A) M12X30 FLANGE |
| 118 |
I8-97944 127-0 |
|
CLIP; WATER HOSE |
4 |
2007- |
|
B |
(B) ID=20.8 |
| 118 |
I8-98179 581-0 |
|
CLIP; WATER HOSE |
2 |
2007- |
|
C |
EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATION(NT2) (A) ID=15.1 |
| 320 |
I8-98189 923-0 |
|
BOLT; BRKTJURBOCHARGER |
1 |
2007- |
|
BC |
(D) M10X25 FLANGE |
| 118 |
I8-98179 581-0 |
|
CLIP; WATER HOSE |
6 |
2007- |
|
C |
(A) ID=15.1 |
| 32 |
I8-98247 223-2 |
|
PROTECTOR; HEAT.TURBOCHARGER |
1 |
2007- |
|
B |
|
| 527 |
I8-98248 089-2 |
|
BRACKET; TURBOCHARGER |
1 |
2007- |
|
B |
(C) |
| 11 |
I8-97309 942-0 |
|
NUT; TURBOCHARGER |
4 |
2007- |
|
AB |
M10 FLANGE |
| 101 |
I0-28050 820-0 |
|
BOLT; HEAT PROTECTOR |
1 |
2007- |
|
A |
M8X20 FLANGE |
| 2 |
I8-98248 088-2 |
|
GASKET; TURBOCHARGER TO EXH MANIF |
1 |
2007- |
|
AB |
|
| 118 |
I8-97944 127-0 |
|
CLIP; WATER HOSE |
4 |
2007- |
|
B |
(B) ID=20.8 |
| 118 |
I8-97944 127-0 |
|
CLIP; WATER HOSE |
4 |
2007- |
|
C |
EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) (B) ID=20.8 |
| 117 |
I8-98299 210-0 |
|
GASKET; WATER PIPE |
1 |
2007- |
|
AB |
(B) |
| 217 |
I0-28050 845-0 |
|
BOLT; BRKT |
2 |
2007- |
|
C |
EUR05 SPECIFICATION(NT5) (G) M8X45 FLANGE |
| 118 |
I8-98179 581-0 |
|
CLIP; WATER HOSE |
4 |
2007- |
|
AB |
(A) ID=15.1 |
| 231 |
I8-98332 238-0 |
|
HOSE; RUBBER.TURBOCHARGER OUT |
1 |
2007- |
|
B |
|
| 21 |
I0-28050 816-0 |
|
BOLT; PIPE |
1 |
2007- |
|
C |
(B) M8X16 FLANGE |
| 118 |
I8-97944 127-0 |
|
CLIP; WATER HOSE |
4 |
2007- |
|
B |
(B) ID=20.8 |
| 12 |
I8-97378 063-0 |
|
STUD; TURBOCHARGER |
4 |
2007- |
|
AB |
M10X28.5 L=41.5 |
| 118 |
I8-98179 581-0 |
|
CLIP; WATER HOSE |
4 |
2007- |
|
AB |
(A) ID=15.1 |
| 12 |
I8-97378 063-0 |
|
STUD; TURBOCHARGER |
4 |
2007- |
|
AB |
M10X28.5 L=41.5 |
| 21 |
I0-28050 825-0 |
|
BOLT; PIPE |
2 |
2007- |
|
B |
A/T 6 SPEED-AISIN(Y6A) (D) M8X25 FLANGE |
| 118 |
I8-97944 126-0 |
|
CLIP; WATER HOSE |
4 |
2007- |
|
A |
(D) ID=10.5 |
| 101 |
I0-28050 820-0 |
|
BOLT; HEAT PROTECTOR |
1 |
2007- |
|
A |
M8X20 FLANGE |
| 11 |
I8-97309 942-0 |
|
NUT; TURBOCHARGER |
4 |
2007- |
|
AB |
M10 FLANGE |
| 101 |
I0-28050 820-0 |
|
BOLT; HEAT PROTECTOR |
2 |
2007- |
|
B |
M8X20 FLANGE |
| 1 |
I8-97652 435-0 |
|
TURBOCHARGERASM |
1 |
2007- |
|
B |
EXC. EUR04 SPECIFICATION(NT4) |
| 155 |
I8-98294 857-0 |
|
BOLT; HEAT PROTECTOR |
4 |
2007- |
|
C |
M/T MVL 6 SPEED 6S(Y6S) EUROO SPECIFICATION^),EUR02 SPECIFICATTON(NT2) M8X20 |
| 11 |
I8-97309 942-0 |
|
NUT; TURBOCHARGER |
2 |
2007- |
|
C |
M10 FLANGE |
| 162 |
I0-28060 825-0 |
|
BOLT; ADAPTER |
2 |
2007- |
|
C |
EUROO SPECIFICATIONS),EUR02 SPECIFICATION(NT2) M8X25 FLANGE |
| 540 |
I8-97498 115-0 |
|
PIPE; WATER |
1 |
2007- |
|
AB |
(B) |
| 116 |
I0-58330 620-0 |
|
BOLT; WATER PIPE |
2 |
2007- |
|
AB |
(A) M6X20 HEX SOCKET |
| 12 |
I8-97378 063-0 |
|
STUD; TURBOCHARGER |
2 |
2007- |
|
C |
M10X28.5 L=41.5 |
| 191 |
I0-91180 108-0 |
|
NUT; HEAT PROTECTOR |
1 |
2007- |
|
AB |
M8 FLANGE |
| 1 |
I8-97652 435-0 |
|
TURBOCHARGERASM |
1 |
2007- |
|
B |
EXC. EUR04 SPECIFICATION(NT4) |
| 101 |
I0-28050 820-0 |
|
BOLT; HEAT PROTECTOR |
2 |
2007- |
|
B |
M8X20 FLANGE |
| 21 |
I0-28050 816-0 |
|
BOLT; PIPE |
2 |
2007- |
|
B |
M/T MVL 6 SPEED 6Y(Y6P) (B) M8X16 FLANGE |
| 217 |
I0-28151 020-0 |
|
BOLT; BRKT |
2 |
2007- |
|
B |
(D) M10X20 FLANGE |
| 459 |
I8-98487 362-0 |
|
HOSE; WATER |
1 |
2007- |
|
B |
EXC. EUR04 SPECIFICATION(NT4) (E) |
| 66 |
I0-44011 025-0 |
|
STUD; EXH PIPE |
2 |
2007- |
|
C |
M10X25 L=40 |
| 426 |
I8-98332 270-0 |
|
BRACKET; VLV |
1 |
2007- |
|
B |
|
| 70 |
I0-91180 108-0 |
|
NUT; BRKT |
4 |
2007- |
|
A |
M8 FLANGE |
| 118 |
I8-97944 127-0 |
|
CLIP; WATER HOSE |
12 |
2007- |
|
A |
(B) ID=20.8 |
| 21 |
I0-28050 820-0 |
|
BOLT; PIPE |
2 |
2007- |
|
A |
(F) M8X20 FLANGE |
| 66 |
I0-44011 025-0 |
|
STUD; EXH PIPE |
2 |
2007- |
|
C |
M10X25 L=40 |
| 540 |
I8-97498 116-0 |
|
PIPE; WATER |
1 |
2007- |
|
B |
A/T 6 SPEED-AISIN(Y6A) (D) |
| 217 |
I0-28050 820-0 |
|
BOLT; BRKT |
5 |
2007- |
|
C |
EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) (E) M8X20 FLANGE |
| 12 |
I8-97378 063-0 |
|
STUD; TURBOCHARGER |
4 |
2007- |
|
AB |
M10X28.5 L=41.5 |
| 118 |
I8-98179 581-0 |
|
CLIP; WATER HOSE |
6 |
2007- |
|
C |
(A) ID=15.1 |
| 118 |
I8-98179 581-0 |
|
CLIP; WATER HOSE |
4 |
2007- |
|
AB |
(A) ID=15.1 |
| 70 |
I0-91180 108-0 |
|
NUT; BRIO" |
4 |
2007- |
|
A |
M8 FLANGE |
| 320 |
I0-28151 020-0 |
|
BOLT; BRKTJURBOCHARGER |
2 |
2007- |
|
B |
(C) M10X20 FLANGE |
| 116 |
I0-28050 820-0 |
|
BOLT; WATER PIPE |
2 |
2007- |
|
A |
(B) M8X20 FLANGE |
| 118 |
I8-98179 581-0 |
|
CLIP; WATER HOSE |
6 |
2007- |
|
C |
(A) ID=15.1 |
| 2 |
I8-98248 088-2 |
|
GASKET; TURBOCHARGER TO EXH MANIF |
1 |
2007- |
|
AB |
|
| 118 |
I8-98179 581-0 |
|
CLIP; WATER HOSE |
4 |
2007- |
|
AB |
(A) ID=15.1 |
| 460 |
I0-91180 108-0 |
|
NUT; PIPE |
2 |
2007- |
|
AB |
(A) M8 FLANGE |
| 32 |
I8-98247 223-2 |
|
PROTECTOR; HEAT,TURBOCHARGER |
1 |
2007- |
|
B |
|
| 118 |
I8-97944 127-0 |
|
CLIP; WATER HOSE |
4 |
2007- |
|
C |
EUR04 SPECIFICAT[0N(NT4),EUR05 SPECIFICATION(NT5) (B) ID=20.B |
| 217 |
I0-28050 820-0 |
|
BOLT; BRKT |
1 |
2007- |
|
C |
EUR05 SPECIFICATION(NT5) (E) M8X20 FLANGE |
| 11 |
I8-97309 942-0 |
|
NUT; TURBOCHARGER |
4 |
2007- |
|
AB |
M10 FLANGE |
| 118 |
I8-98179 581-0 |
|
CLIP; WATER HOSE |
2 |
2007- |
|
C |
EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATION(NT2) (A) ID=15.1 |
| 11 |
I8-97309 942-0 |
|
NUT; TURBOCHARGER |
2 |
2007- |
|
C |
M10 FLANGE |
| 118 |
I8-97944 127-0 |
|
CLIP; WATER HOSE |
4 |
2007- |
|
C |
EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) (B) ID=20.8 |
| 217 |
I0-28050 830-0 |
|
BOLT; BRKT |
2 |
2007- |
|
B |
(C) M8X30 FLANGE |
| 118 |
I8-98179 581-0 |
|
CLIP; WATER HOSE |
2 |
2007- |
|
C |
EUROO SPECIFICATION^),EUR02 SPECIFICATIONS) (A) ID=15.1 |
| 118 |
I8-97944 127-0 |
|
CLIP; WATER HOSE |
12 |
2007- |
|
A |
(B) ID=20.8 |
| 540 |
I8-97498 115-0 |
|
PIPE; WATER |
1 |
2007- |
|
AB |
(B) |
| 13 |
I0-44011 025-0 |
|
STUD; EXH PIPE |
2 |
2007- |
|
AB |
M10X25 L=40 |
| 320 |
I8-98189 923-0 |
|
BOLT; BRKT.TURBOCHARGER |
1 |
2007- |
|
BC |
(D) M10X25 FLANGE |
| 157 |
I8-98194 605-0 |
|
CLIP; HOSE.INL |
2 |
2007- |
|
A |
ID-60-65 |
| 101 |
I0-28050 820-0 |
|
BOLT; HEAT PROTECTOR |
2 |
2007- |
|
B |
M8X20 FLANGE |
| 5 |
I0-28751 025-0 |
|
BOLT; BRKTTO EXH PIPE |
5 |
2007- |
|
AB |
M10X25 FLANGE |
| 540 |
I8-97498 114-1 |
|
PIPE; WATER |
1 |
2007- |
|
B |
A/T 6 SPEED-AI5IN(Y6A) (C) |
| 116 |
I0-58330 620-0 |
|
BOLT; WATER PIPE |
2 |
2007- |
|
AB |
(A) M6X20 HEX SOCKET |
| 77 |
I0-28050 835-0 |
|
BOLT; INL DUCT |
3 |
2007- |
|
A |
M8X35 FLANGE |
| 217 |
I0-28060 825-0 |
|
BOLT; BRKT |
1 |
2007- |
|
C |
EUROO SPECIFICATIONS),EUR02 SPECIFICATTON(NT2) (F) M8X25 FLANGE |
| 118 |
I8-97944 126-0 |
|
CLIP; WATER HOSE |
4 |
2007- |
|
A |
(D) ID=10.5 |
| 231 |
I8-98332 238-0 |
|
HOSE; RUBBER.TURBOCHARGER OUT |
1 |
2007- |
|
B |
|
| 1 |
I8-97652 435-0 |
|
TURBOCHARGERASM |
1 |
2007- |
|
B |
EXC. EUR04 SPECIFICATION(NT4) |
| 12 |
I8-97378 063-0 |
|
STUD; TURBOCHARGER |
2 |
2007- |
|
C |
M10X28.5 L=41.5 |
| 118 |
I8-98179 581-0 |
|
CLIP; WATER HOSE |
2 |
2007- |
|
C |
EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATION(NT2) (A) ID=15.1 |
| 384 |
I8-97263 052-0 |
|
GASKET; EXH PIPE |
1 |
2007- |
|
c |
EUROO SPECIRCAT10N(K75),EUR02 SPECIFICATION(NT2) ID=65 |
| 191 |
I0-91180 108-0 |
|
NUT; HEAT PROTECTOR |
1 |
2007- |
|
AB |
M8 FLANGE |
| 309 |
I0-28050 835-0 |
|
BOLT; TURBOCHARGER |
1 |
2007- |
|
C |
EUR04 SPECIFlCATION(NT4) (B) M8X35 FLANGE |
| 21 |
I0-28050 816-0 |
|
BOLT; PIPE |
1 |
2007- |
|
C |
(B) M8X16 FLANGE |
| 11 |
I8-97309 942-0 |
|
NUT; TURBOCHARGER |
2 |
2007- |
|
C |
M10 FLANGE |
| 458 |
I8-98298 390-1 |
|
PIPE; WATER,TURBOCHARGER |
1 |
2007- |
|
B |
(C) |
| 119 |
I8-98298 388-0 |
|
HOSE; WATER,TURBOCHARGER |
1 |
2007- |
|
B |
(C) |
| 13 |
I0-44011 025-0 |
|
STUD; EXH PIPE |
2 |
2007- |
|
AB |
M10X25 L=40 |
| 118 |
I8-97944 127-0 |
|
CLIP; WATER HOSE |
12 |
2007- |
|
A |
(B) ID=20.8 |
| 5 |
I0-28751 025-0 |
|
BOLT; BRKTTO EXH PIPE |
5 |
2007- |
|
AB |
M10X25 FLANGE |
| 118 |
I8-97944 127-0 |
|
CLIP; WATER HOSE |
12 |
2007- |
|
A |
(B) ID=20.8 |
| 118 |
I8-97944 127-0 |
|
CLIP; WATER HOSE |
4 |
2007- |
|
B |
(B) ID=20.8 |
| 1 |
I8-97652 435-0 |
|
TURBOCHARGERASM |
1 |
2007- |
|
B |
EXC. EUR04 SPECIFICATION(NT4) |
| 2 |
I8-98248 088-2 |
|
GASKET; TURBOCHARGER TO EXH MANIF |
1 |
2007- |
|
AB |
|
| 252 |
I0-28050 820-0 |
|
BOLT; BRKT |
1 |
2007- |
|
A |
M8X20 FLANGE |
| 118 |
I8-98179 581-0 |
|
CLIP; WATER HOSE |
6 |
2007- |
|
C |
(A) ID=15.1 |
| 32 |
I8-98247 223-2 |
|
PROTECTOR; HEAT,TURBOCHARGER |
1 |
2007- |
|
B |
|
| 21 |
I0-28050 612-0 |
|
BOLT; PIPE |
2 |
2007- |
|
A |
M6X12 FLANGE |
| 118 |
I8-97944 127-0 |
|
CLIP; WATER HOSE |
12 |
2007- |
|
A |
(B) ID=20.8 |
| 317 |
I0-28151 025-0 |
|
BOLT; EXH PIPE |
2 |
2007- |
|
C |
EUROO SPECIFICAT10N(K75),EUR02 SPECIFICATTON(NT2) M10X25 FLANGE |
| 117 |
I8-98299 210-0 |
|
GASKET; WATER PIPE |
1 |
2007- |
|
AB |
(B) |
| 528 |
I0-91180 106-0 |
|
NUT; VLV |
2 |
2007- |
|
B |
M6 FLANGE |
| 118 |
I8-97944 127-0 |
|
CLIP; WATER HOSE |
4 |
2007- |
|
C |
EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) (B) ID=20.8 |
| 12 |
I8-97378 063-0 |
|
STUD; TURBOCHARGER |
2 |
2007- |
|
C |
M10X28.5 L=41.5 |
| 1 |
I8-97652 435-0 |
|

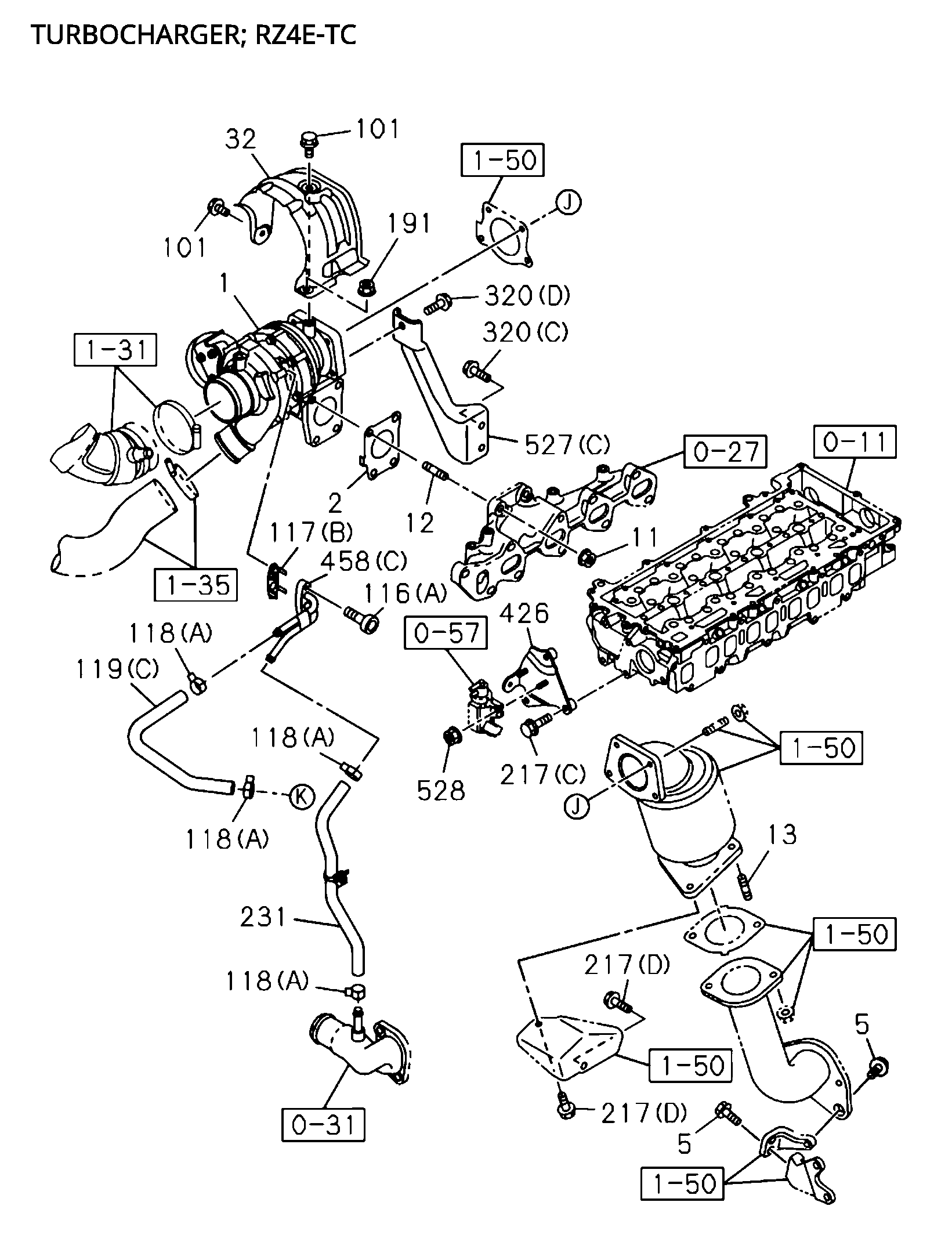

TURBOCHARGERASM |
1 |
2007- |
|
B |
EXC. EUR04 SPECIFICATION(NT4) |
| 217 |
I0-28661 230-0 |
|
BOLT; BRKT |
3 |
2007- |
|
C |
(A) M12X30 FLANGE |
| 118 |
I8-97944 127-0 |
|

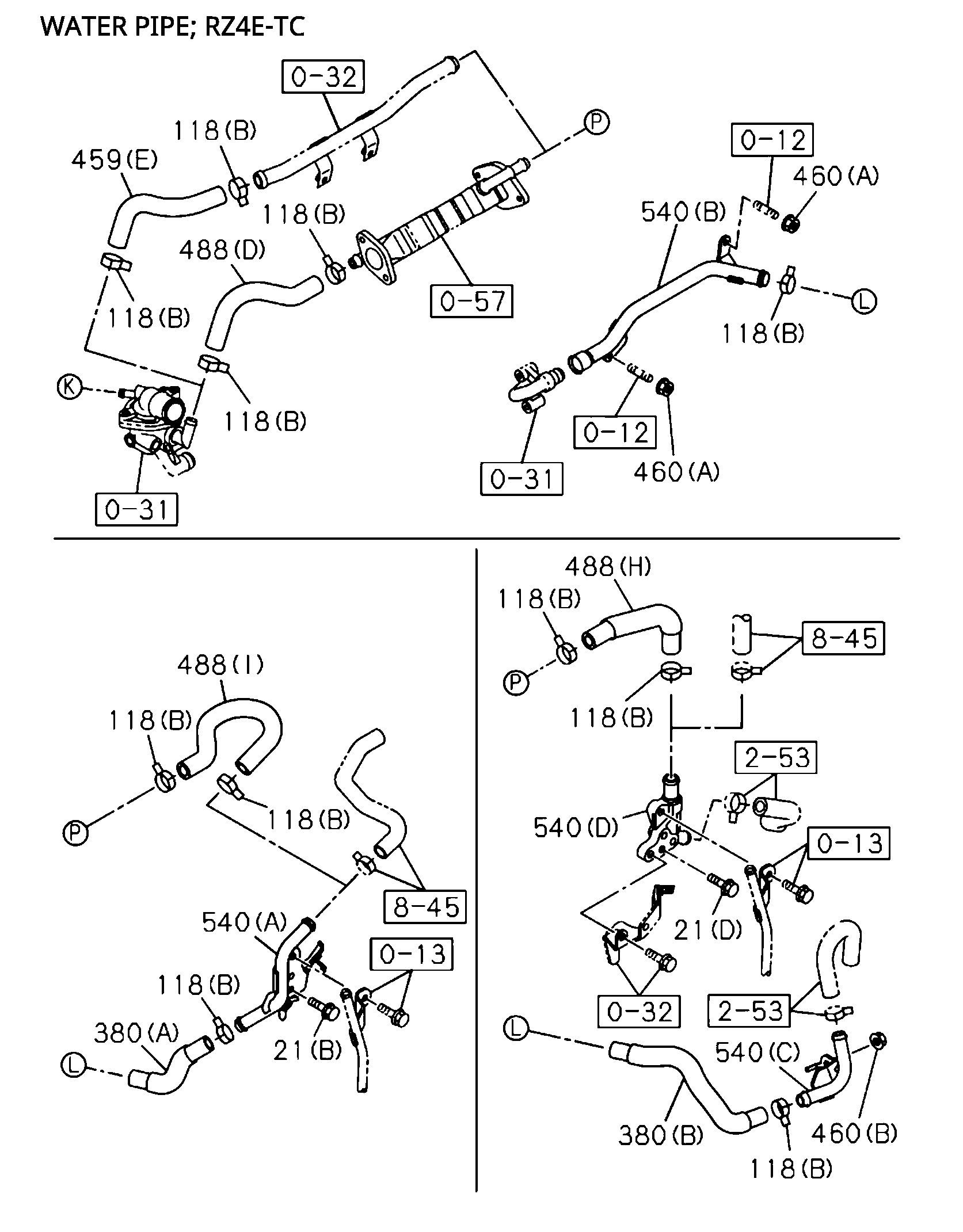

CLIP; WATER HOSE |
4 |
2007- |
|
C |
EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) (B) ID=20.8 |
| 320 |
I8-98189 923-0 |
|
BOLT; BRKT.TURBOCHARGER |
1 |
2007- |
|
BC |
(D) M10X25 FLANGE |
| 380 |
I8-97498 117-0 |
|
HOSE; RUBBER,PIPE TO PIPE |
1 |
2007- |
|
B |
M/T MVL 6 SPEED 6Y(Y6P) (A) |
| 122 |
I0-91180 108-0 |
|
NUT; ADAPTER |
2 |
2007- |
|
C |
EUROO SPECinCATI0N(K75),EUR02 SPECIFICATION(NT2) M8 FLANGE |
| 460 |
I0-91180 108-0 |
|
NUT; PIPE |
2 |
2007- |
|
AB |
(A) M8 FLANGE |
| 380 |
I8-97498 118-0 |
|
HOSE; RUBBER,PIPE TO PIPE |
1 |
2007- |
|
B |
A/T 6 SPEED-AISIN(Y6A) (B) |
| 231 |
I8-98332 238-0 |
|
HOSE; RUBBER.TURBOCHARGER OUT |
1 |
2007- |
|
B |
|
| 21 |
I0-28050 816-0 |
|
BOLT; PIPE |
2 |
2007- |
|
B |
M/T MVL 6 SPEED 6Y(Y6P) (B) M8X16 FLANGE |
