0-40 | 0-40 - FUEL INJECTION SYSTEM
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 382 | I8-98161 995-0 | KEY; DRIVE SHAFT | 1 | 2007- | B | |||
| 388 | I8-98356 094-0 | STUD; RAIL | 2 | 2007- | AB | M 8X72.5 L=100 | ||
| 120 | I8-98315 357-1 | BRACKET; INJ PIPE | 1 | 2007- | B | (B) | ||
| 210 | I8-98247 225-1 | PIPE; INJ.C/R | 1 | 2007- | B | |||
| 453 | I8-98302 470-0 | WASHER; INJ NOZZLE | 4 | 2007- | AB | |||
| 29 | I8-97329 627-0 | CLIP; HOSE | 2 | 2007- | B | (B) ID=13 | ||
| 169 | I0-91180 208-0 | NUT; BRK1" | 4 | 2007- | A | M8 FLANGE | ||
| 128 | I8-98247 229-3 | PIPE ASM; INJ | 2 | 2007- | B | (B) | ||
| 289 | I8-98138 695-0 | ?MITER; FUEL PRESS | 1 | 2007- | B | |||
| 334 | I0-91180 108-0 | NUT; FLANGE | 2 | 2007- | A | M8 FLANGE | ||
| 450 | I8-98248 086-4 | ADAPTER; SUPPLY PUMP | 1 | 2007- | B | |||
| 110 | I0-91180 106-0 | NUT; CLIP | 2 | 2007- | A C | M6 FLANGE | ||
| 31 | I8-98247 354-0 | NOZZLE ASM; INJ | 4 | 2007- | B | |||
| 324 | I8-98248 159-0 | PIPE; FUEL RETURN | 1 | 2007- | B | |||
| 285 | I8-98356 094-0 | STUD; BRKT | 4 | 2007- | A | M 8X72.5 L-100 | ||
| 169 | I0-91180 108-0 | NUT; BRIO" | 1 | 2007- | B | M8 FLANGE | ||
| 313 | I8-98247 614-1 | BOLT; BRKT.INJ NOZZLE | 4 | 2007- | AB | M6X25 FLANGE | ||
| 451 | I0-28050 825-0 | BOLT; SUPPLY PUMP | 5 | 2007- | A | M8X25 FLANGE | ||
| 66 | I8-98181 540-0 | GASKET; INJ NOZZLE | 4 | 2007- | AB | ID=7.1 | ||

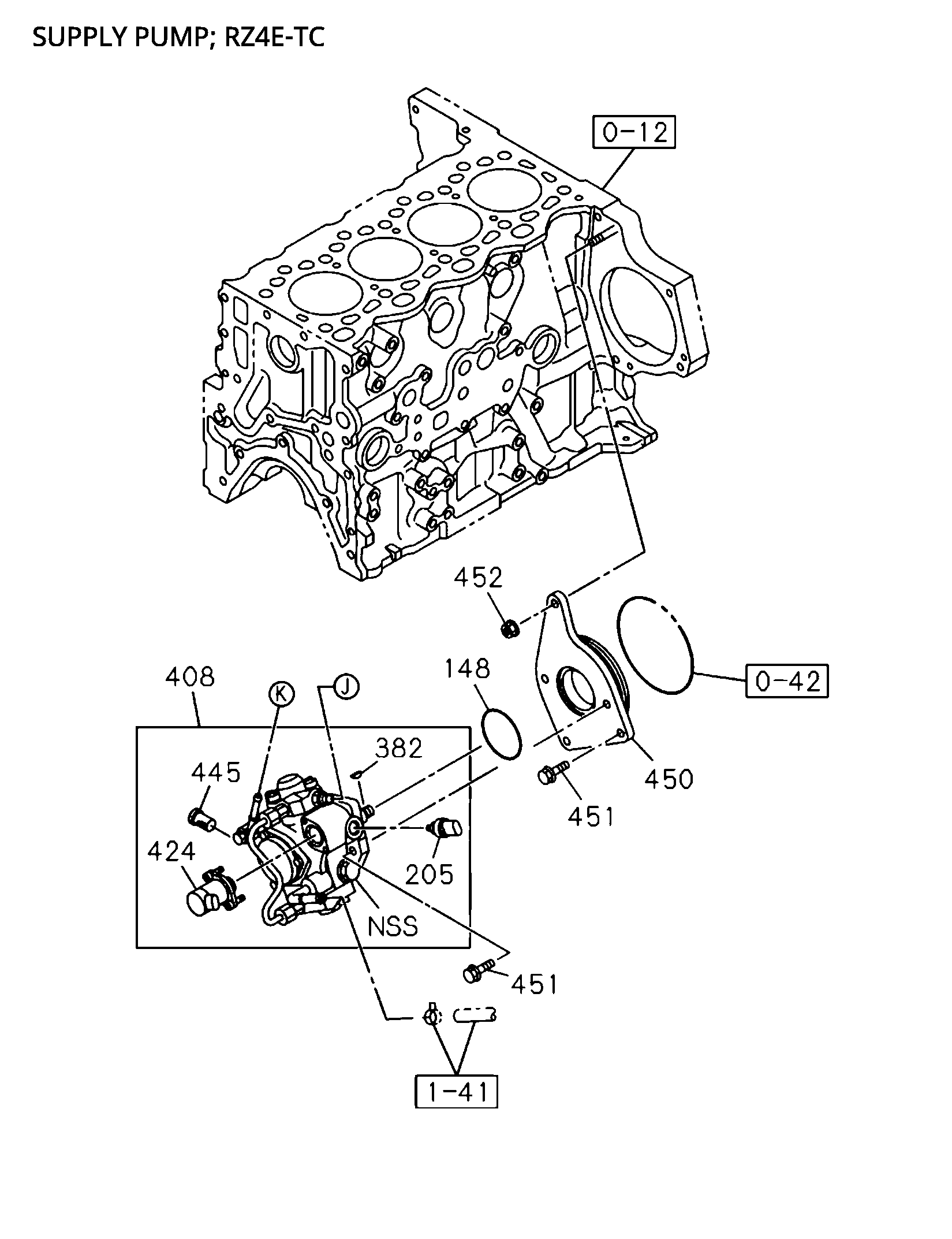

| 408 | I8-98247 350-2 | PUMP ASM; FUEL.SUPPLY | 1 | 2007- | B | |||
| 216 | I8-98220 020-0 | BOLT; EYE | 1 | 2007- | B | (C) | ||
| 388 | I8-98356 094-0 | STUD; RAIL | 2 | 2007- | AB | M 8X72.5 L=100 | ||
| 110 | I0-91180 106-0 | NUT; CLIP | 2 | 2007- | A C | M6 FLANGE | ||
| 313 | I8-98247 614-1 | BOLT; BRKTJNJ NOZZLE | 4 | 2007- | AB | M6X25 FLANGE | ||

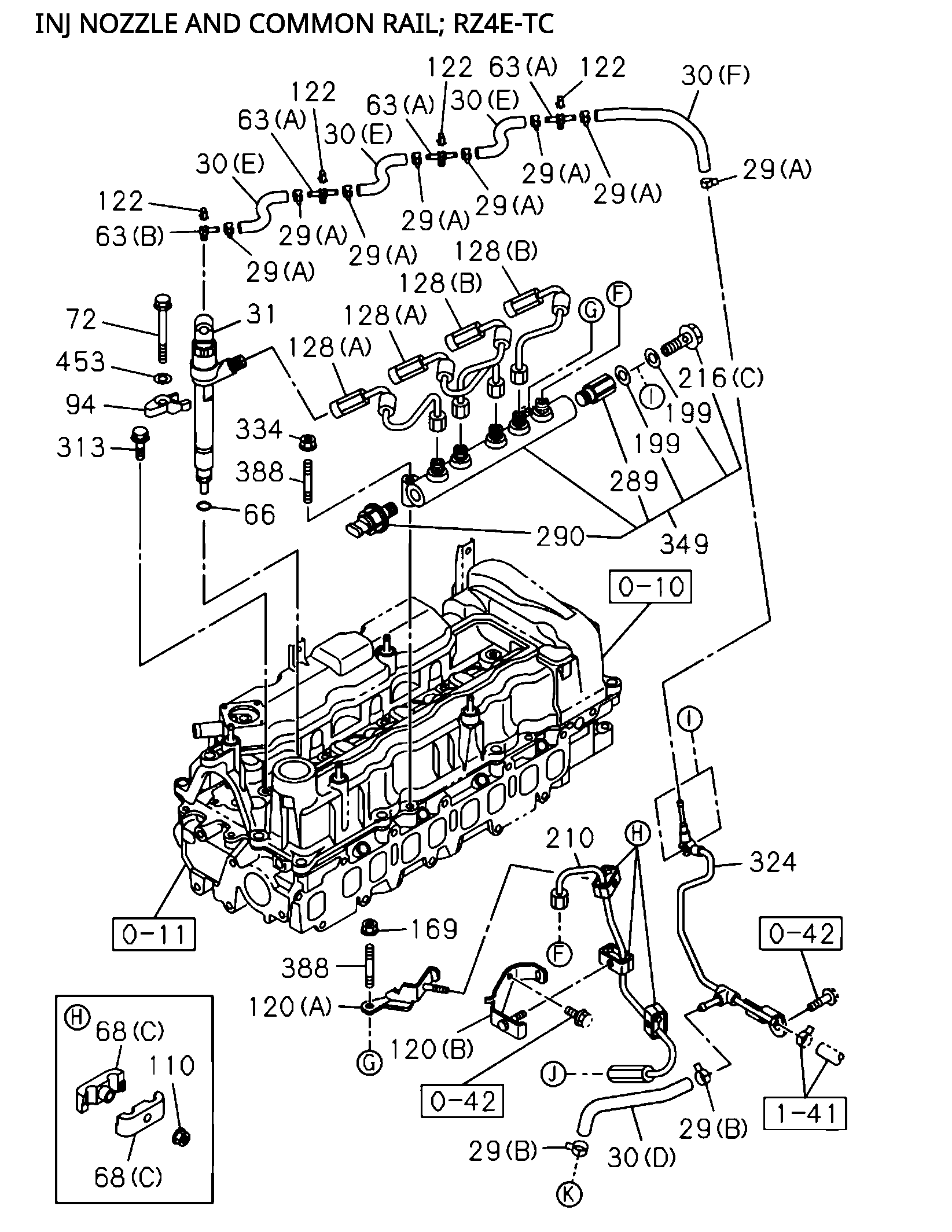

| 349 | I8-98247 356-0 | RAIL; COMMON | 1 | 2007- | B | |||
| 210 | I8-98247 225-1 | PIPE; INJ.C/R | 1 | 2007- | B | |||
| 110 | I0-91180 106-0 | NUT; CLIP | 3 | 2007- | B | M6 FLANGE | ||
| 349 | I8-98247 356-0 | RAIL; COMMON | 1 | 2007- | B | |||
| 94 | I8-98248 087-1 | BRACKET; INJ NOZZLE | 4 | 2007- | AB | |||
| 30 | I8-98250 851-0 | HOSE; RUBBER,FUEL LEAK | 1 | 2007- | B | (F) | ||
| 110 | I0-91180 106-0 | NUT; CLIP | 3 | 2007- | B | M6 FLANGE | ||
| 94 | I8-98248 087-1 | BRACKET; INJ NOZZLE | 4 | 2007- | AB | |||
| 324 | I8-98248 159-0 | PIPE; FUEL RETURN | 1 | 2007- | B | |||
| 169 | I0-91180 208-0 | NUT; BRKT | 4 | 2007- | A | M8 FLANGE | ||
| 408 | I8-98247 350-2 | PUMP ASM; FUEL.SUPPLY | 1 | 2007- | B | |||
| 334 | I0-91180 208-0 | NUT; FLANGE | 2 | 2007- | B | M8 FLANGE | ||
| 210 | I8-98247 225-1 | PIPE; INJ.C/R | 1 | 2007- | B | |||
| 122 | I8-97315 286-0 | CLIP; LEAK OFF PIPE | 4 | 2007- | BC | |||
| 450 | I8-98248 086-4 | ADAPTER; SUPPLY PUMP | 1 | 2007- | B | |||
| 72 | I8-98287 955-2 | BOLT; BRKTTO INJ PUMP | 4 | 2007- | B | M8X80 FLANGE | ||
| 290 | I8-98178 706-0 | SENSOR; PRESS | 1 | 2007- | B | |||
| 29 | I8-97944 126-0 | CLIP; HOSE | 10 | 2007- | C | (A) ID=10.S | ||
| 408 | I8-98247 350-2 | PUMP ASM; FUELSUPPLY | 1 | 2007- | B | |||
| 219 | I1-09623 541-0 | GASKET | 1 | 2007- | C | ID=49.7 | ||
| 334 | I0-91180 208-0 | NUT; FLANGE | 2 | 2007- | B | M8 FLANGE | ||
| 110 | I0-91180 106-0 | NUT; CLIP | 2 | 2007- | A C | M6 FLANGE | ||
| 31 | I8-98247 354-0 | NOZZLE ASM; INJ | 4 | 2007- | B | |||
| 110 | I0-91180 106-0 | NUT; CLIP | 3 | 2007- | B | M6 FLANGE | ||
| 452 | I0-91180 208-0 | NUT; SUPPLY PUMP | 2 | 2007- | B | M8 FLANGE | ||
| 169 | I0-91180 108-0 | NUT; BRKT | 1 | 2007- | B | M8 FLANGE | ||
| 122 | I8-97315 286-0 | CLIP; LEAK OFF PIPE | 4 | 2007- | BC | |||
| 68 | I8-98148 996-2 | CLIP; INJ PIPE | 6 | 2007- | B | (C) ID=11 & 11 L=19 | ||
| 452 | I0-91180 208-0 | NUT; SUPPLY PUMP | 1 | 2007- | A | M8 FLANGE | ||
| 29 | I8-97944 126-0 | CLIP; HOSE | 8 | 2007- | B | (A) ID=10.5 | ||
| 66 | I8-98181 540-0 | GASKET; INJ NOZZLE | 4 | 2007- | AB | ID=7.1 | ||
| 66 | I8-98181 540-0 | GASKET; INJ NOZZLE | 4 | 2007- | AB | ID=7.1 | ||
| 445 | I8-98209 778-0 | SCREW; FILTER.INLET | 1 | 2007- | B | |||
| 30 | I0-01558 300-0 | HOSE; RUBBER,FUEL LEAK | 1 | 2007- | B | (D) L=160 SERVICED BY L=3000 | ||
| 63 | I8-98161 061-0 | PIPE; FUEL,NOZZLE LEAK OFF | 3 | 2007- | B | (A) | ||
| 313 | I8-98247 614-1 | BOLT; BRKT.INJ NOZZLE | 4 | 2007- | AB | M6X25 FLANGE | ||
| 148 | I1-09623 541-0 | RING | 1 | 2007- | B | ID=49.7 | ||
| 120 | I8-98248 157-2 | BRACKET; INJ PIPE | 1 | 2007- | B | (A) | ||
| 68 | I8-98148 996-2 | CLIP; INJ PIPE | 4 | 2007- | A | (C) ID=11 &11 L=19 | ||
| 29 | I8-97944 126-0 | CLIP; HOSE | 8 | 2007- | B | (A) ID=10.5 | ||
| 68 | I8-98148 996-2 | CLIP; INJ PIPE | 4 | 2007- | A | (c) ID=11 & 11 L=19 | ||
| 29 | I8-97944 126-0 | CLIP; HOSE | 8 | 2007- | B | (A) ID=10.5 | ||
| 30 | I8-98250 822-0 | HOSE; RUBBER,FUEL LEAK | 3 | 2007- | B | (E) | ||
| 452 | I0-91180 208-0 | NUT; SUPPLY PUMP | 1 | 2007- | A | M8 FLANGE | ||
| 451 | I0-28050 825-0 | BOLT; SUPPLY PUMP | 3 | 2007- | B | M8X25 FLANGE | ||
| 63 | I8-98161 062-0 | PIPE; FUEL.NOZZLE LEAK OFF | 1 | 2007- | B | (B) | ||
| 205 | I8-98023 581-0 | SENSOR; FUEL TEMP | 1 | 2007- | B | |||
| 68 | I8-98148 996-2 | CLIP; INJ PIPE | 6 | 2007- | B | (C) ID=11 & 11 L=19 | ||
| 453 | I8-98302 470-0 | WASHER; INJ NOZZLE | 4 | 2007- | AB | |||
| 128 | I8-98247 227-3 | PIPE ASM; INJ | 2 | 2007- | B | (A) | ||
| 451 | I0-28050 825-0 | BOLT; SUPPLY PUMP | 5 | 2007- | A | M8X25 FLANGE | ||
| 452 | I0-91180 208-0 | NUT; SUPPLY PUMP | 2 | 2007- | B | M8 FLANGE | ||
| 451 | I0-28050 825-0 | BOLT; SUPPLY PUMP | 3 | 2007- | B | M8X25 FLANGE | ||
| 424 | I8-98283 485-0 | OVERHAUL KIT; SUPPLY PUMP | 1 | 2007- | B | |||
| 334 | I0-91180 108-0 | NUT; FLANGE | 2 | 2007- | A | M8 FLANGE | ||
| 31 | I8-98247 354-0 | NOZZLE ASM; INJ | 4 | 2007- | B | |||
| 199 | I8-97602 218-0 | GASKET; EYE BOLT | 2 | 2007- | B |
