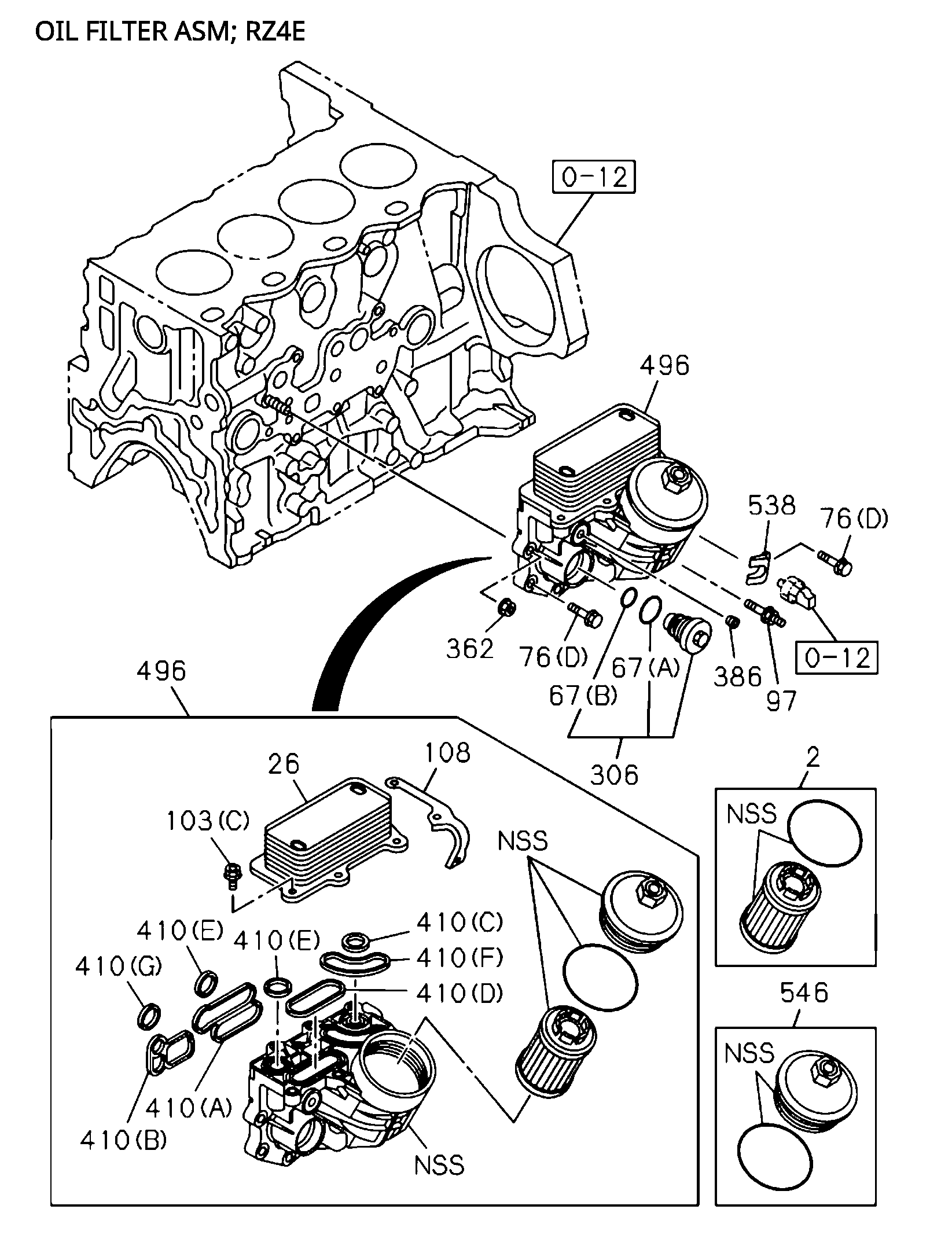

0-50 | 0-50 - OIL COOLER AND OIL FILTER
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 410 | I8-98312 765-0 | GASKET | 1 | 2007- | AB | (F) | ||
| 546 | I8-98312 728-0 | CAP; OIL FILTER | 1 | 2007- | AB | |||
| 76 | I0-28050 830-0 | BOLT; OIL FILTER | 5 | 2007- | AB | (D) M8X30 FLANGE | ||
| 496 | I8-98347 600-3 | FILTER ASM; OIL | 1 | 2007- | AB | |||
| 496 | I8-98347 600-3 | FILTER ASM; OIL | 1 | 2007- | AB | |||
| 105 | I0-41010 820-0 | STUD; OIL COOLER | 2 | 2007- | C | (A) M8X20 L=32 | ||
| 410 | I8-98312 760-0 | GASKET | 1 | 2007- | AB | (A) | ||
| 9 | I9-09566 226-0 | GASKET; CENTER BOLT | 2 | 2007- | C | ID=26.2 | ||
| 410 | I8-98312 764-0 | GASKET | 2 | 2007- | AB | (E) | ||
| 2 | I8-98270 524-A | ELEMENT; OIL FILTER | 1 | 2007- | AB | (IADG) | ||
| 2 | I8-98270 524-0 | ELEMENT; OIL FILTER | 1 | 2007- | AB | |||
| 538 | I8-98312 152-0 | CLIP; FLEX | 1 | 2007- | AB | |||
| 76 | I0-28050 800-0 | BOLT; OIL FILTER | 1 | 2007- | C | (A) M8X100 FLANGE | ||
| 386 | I8-98322 217-0 | PLUG; OIL FILTER | 1 | 2009- | AB | PT1/8 | ||
| 103 | I0-28050 845-0 | BOLT; OIL COOLER | 13 | 2007- | C | (B) M8X45 FLANGE | ||
| 103 | I8-98332 978-0 | BOLT; OIL COOLER | 6 | 2007- | AB | (C) | ||
| 26 | I8-98347 601-0 | CORE ASM; OIL COOLER | 1 | 2007- | AB | |||
| 306 | I8-98307 472-0 | VALVE; OIL FILTER | 1 | 2007- | AB | |||
| 103 | I0-28050 820-0 | BOLT; OIL COOLER | 1 | 2007- | C | (A) M8X20 FLANGE | ||
| 97 | I8-98028 225-0 | STUD; OIL COOLER BRKT | 1 | 2007- | AB | M 8X12, M 8X30 L=50 | ||
| 267 | I0-91180 208-0 | NUT; OIL COOLER | 2 | 2007- | C | M8 FLANGE | ||
| 108 | I8-98332 979-1 | BRACKET; OIL COOLER | 1 | 2007- | AB | |||
| 410 | I8-98312 762-0 | GASKET | 1 | 2007- | AB | (C) | ||
| 362 | I0-91180 208-0 | NUT; OIL FILTER | 2 | 2007- | ABC | M8 FLANGE | ||
| 410 | I8-98312 761-0 | GASKET | 1 | 2007- | AB | (B) | ||
| 67 | I1-09623 479-0 | GASKET; VLV | 1 | 2007- | AB | (A) ID=31.2 | ||
| 76 | I0-28050 825-0 | BOLT; OIL FILTER | 2 | 2007- | C | (B) M8X25 FLANGE | ||
| 105 | I0-41010 825-0 | STUD; OIL COOLER | 2 | 2007- | C | (B) M8X25 L=37 | ||
| 67 | I9-09566 226-0 | GASKET; VLV | 1 | 2007- | AB | (B) ID=26.2 | ||
| 340 | I0-28650 840-0 | BOLT; BRKT | 1 | 2007- | C | M8X40 FLANGE | ||
| 362 | I0-91180 208-0 | NUT; OIL FILTER | 2 | 2007- | ABC | M8 FLANGE | ||
| 410 | I8-98312 766-0 | GASKET | 1 | 2007- | AB | (G) | ||
| 410 | I8-98312 763-0 | GASKET | 1 | 2007- | AB | (D) |
