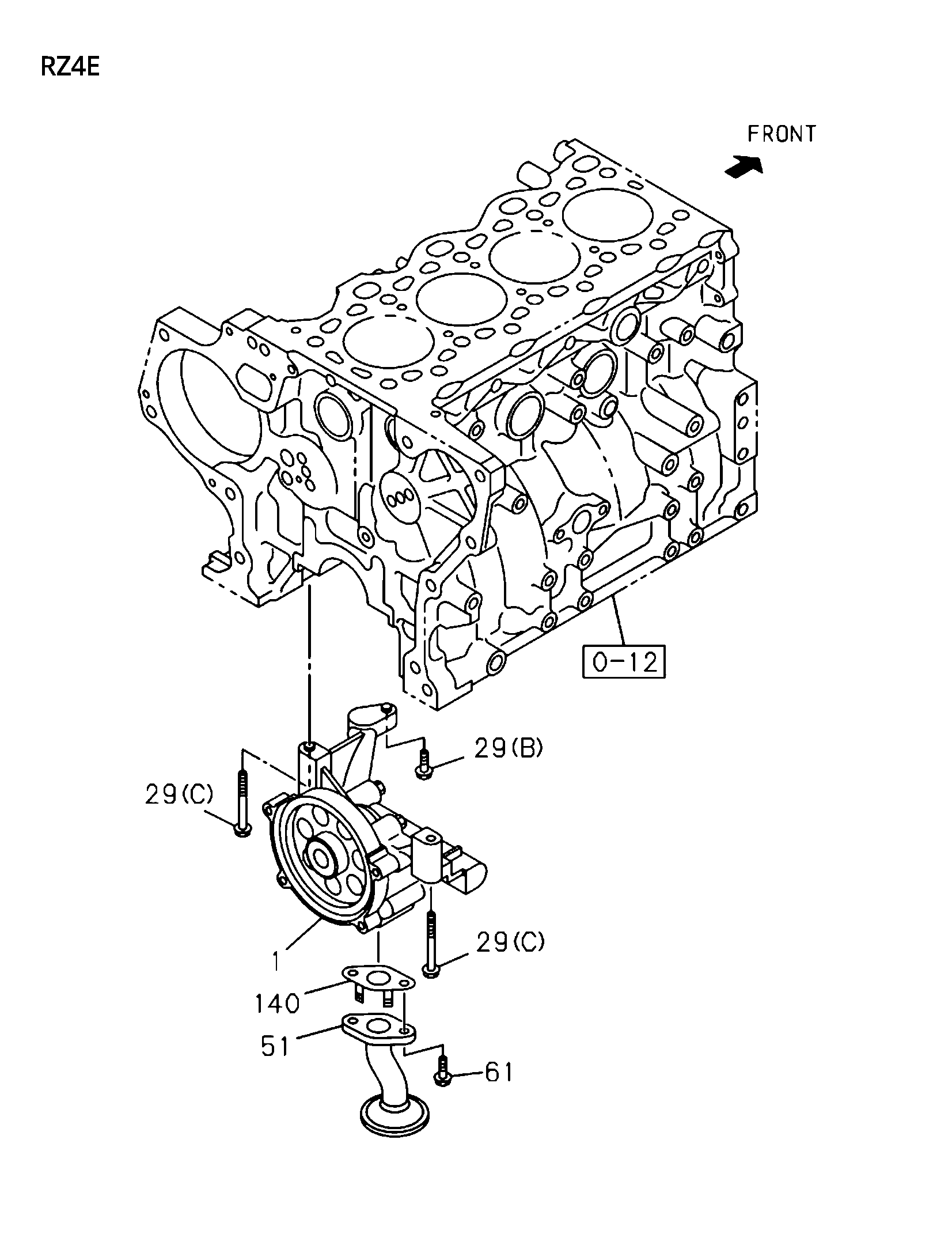

0-51 | 0-51 - OIL PUMP AND OIL STRAINER
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 29 | I0-28050 845-0 | BOLT; OIL PUMP | 2 | 2007- | C | (A) M8X45 FLANGE | ||
| 49 | I0-28050 816-0 | BOLT; STRAINER,OIL PUMP | 2 | 2007- | C | M8X16 FLANGE | ||
| 51 | I8-97534 006-1 | STRAINER & PIPE ASM; OIL | 1 | 2007- | A | |||
| 29 | I0-28050 830-0 | BOLT; OIL PUMP | 4 | 2007- | C | (B) M8X30 FLANGE | ||
| 1 | I8-97529 942-0 | PUMP ASM; OIL | 1 | 2007- | AB | |||
| 29 | I0-28050 830-0 | BOLT; OIL PUMP | 1 | 2007- | AB | (B) M8X30 FLANGE | ||
| 29 | I0-28050 860-0 | BOLT; OIL PUMP | 2 | 2007- | AB | (C) M8X60 FLANGE | ||
| 29 | I0-28050 830-0 | BOLT; OIL PUMP | 4 | 2007- | C | (B) M8X30 FLANGE | ||
| 140 | I8-98248 225-1 | GASKET; OIL STRAINER | 1 | 2007- | AB | |||
| 140 | I8-98248 225-1 | GASKET; OIL STRAINER | 1 | 2007- | AB | |||
| 29 | I0-28050 830-0 | BOLT; OIL PUMP | 1 | 2007- | AB | (B) M8X30 FLANGE | ||
| 1 | I8-97529 942-0 | PUMP ASM; OIL | 1 | 2007- | AB | |||
| 61 | I0-58330 820-0 | BOLT; OIL STRAINER | 2 | 2007- | AB | M8X20 HEX SOCKET |
