0-60 | 0-60 - ENGINE ELECTRICAL CONTROL PARTS
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 13 | I0-28650 616-0 | BOLT; BRKT | 2 | 2007- | ABC | EUROS SPECIFICATI0N(NT5),EUR06 SPECIFICATION(NT6), EUR06D SPECIFICATION^) EXC. SAFETY PACKAGE FT<8SW>,SAFETY PACKAGE FT & RR<8SY> M6X16 FLANGE | ||

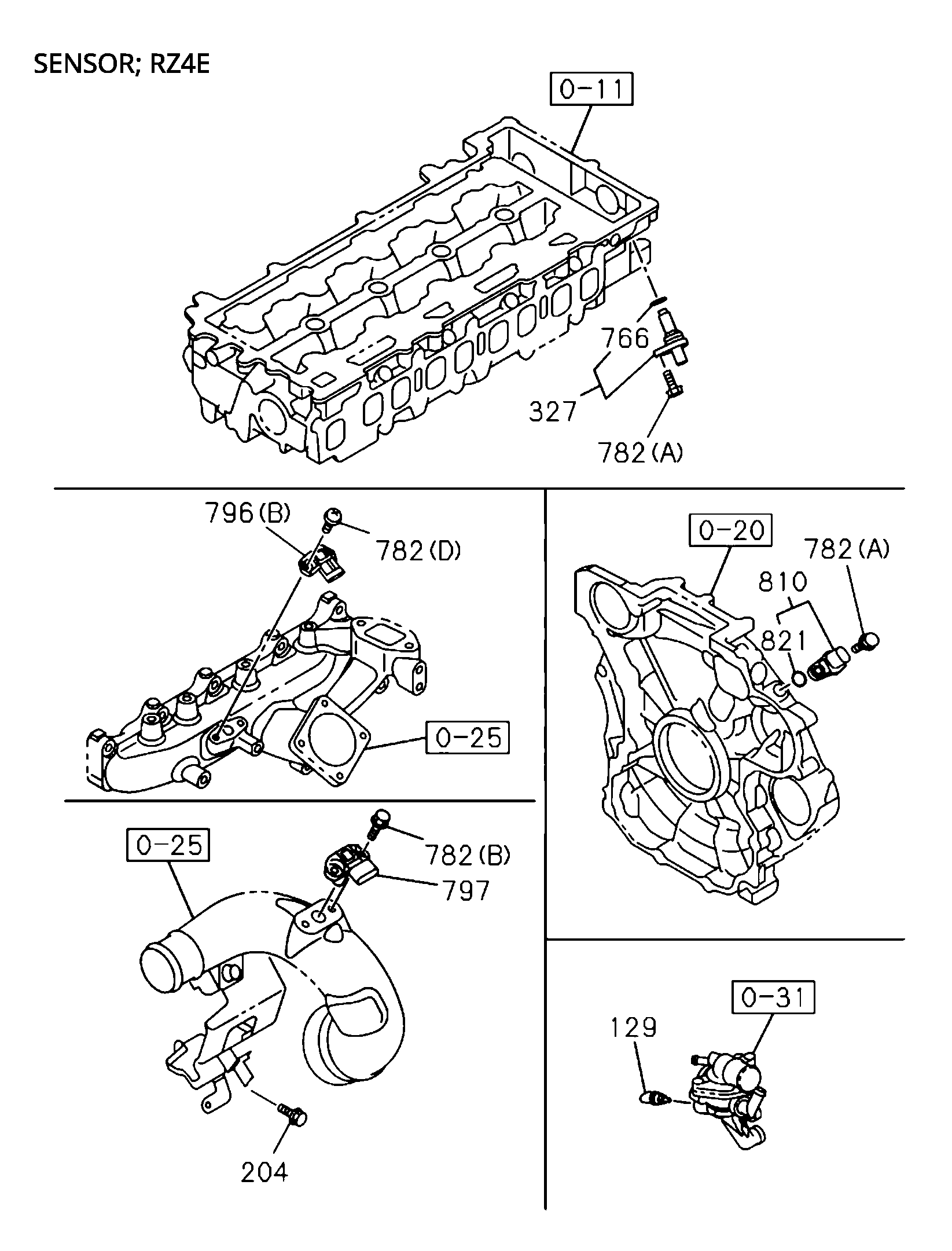

| 797 | I8-98121 697-1 | SENSOR; MAT | 1 | 2007- | B | |||
| 782 | I0-28050 616-0 | BOLT; SENSOR | 1 | (A) M6X16 FLANGE | ||||
| 766 | I8-98318 106-0 | GASKET; SENSOR | 1 | ID=17.8 OD=22.6 | ||||
| 13 | I0-28650 616-0 | BOLT; BRKT | 2 | 2007- | ABC | IDLE STOP SYSTEM<8BM> M6X16 FLANGE | ||
| 782 | I0-28050 616-0 | BOLT; SENSOR | 2 | 2007- | AB | (A) M6X16 FLANGE | ||
| 980 | I0-91180 106-0 | NUT; CONT UNIT | 4 | 2007- | A | M6 FLANGE | ||
| 797 | I8-98121 697-1 | SENSOR; MAT | 1 | |||||
| 24 | I0-28050 825-0 | BOLT; GEN BRKT | 1 | 2007- | C | (A) M8X25 FLANGE | ||
| 766 | I8-97369 404-0 | GASKET; SENSOR | 1 | 2007- | C | ID=14.2 OD=18.B | ||
| 129 | I8-98260 257-0 | SENSOR; GLOW PLUG.THERMO | 1 | 2007- | ABC | NISHIDA | ||
| 782 | I0-28050 616-0 | BOLT; SENSOR | 2 | (A) M6X16 FLANGE | ||||
| 608 | I8-98008 687-0 | SENSOR; AIR TEMP | 1 | 2007- | ABC | ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> TIRE PRESSURE MONITORING SENSOR<UJ6> EXC. SAFETY PACKAGE FT 81 RR<8SY> | ||
| 748 | I0-28650 616-0 | BOLT; CONT UNIT | 1 | 2007- | A | (B) M6X16 FLANGE | ||
| 327 | I8-98258 187-0 | SENSOR; CAMSHAFT POSITION | 1 | 2007- | AB | |||
| 24 | I0-28151 025-0 | BOLT; GEN BRKT | 2 | 2007- | AB | (c) M10X25 FLANGE | ||
| 766 | I8-98318 106-0 | GASKET; SENSOR | 1 | 2007- | AB | ID=17.8 OD=22.6 | ||
| 153 | I8-97012 320-1 | BOLT; BRKT FIX | 1 | 2007- | ABC | (A) M8X12 FLANGE | ||
| 129 | I8-98260 257-0 | SENSOR; GLOW PLUG.THERMO | 1 | 2007- | ABC | NISHIDA | ||
| 797 | I8-98121 697-1 | SENSOR; MAT | 1 | 2007- | B | |||
| 327 | I8-98258 187-0 | SENSOR; CAMSHAFT POSITION | 1 | |||||

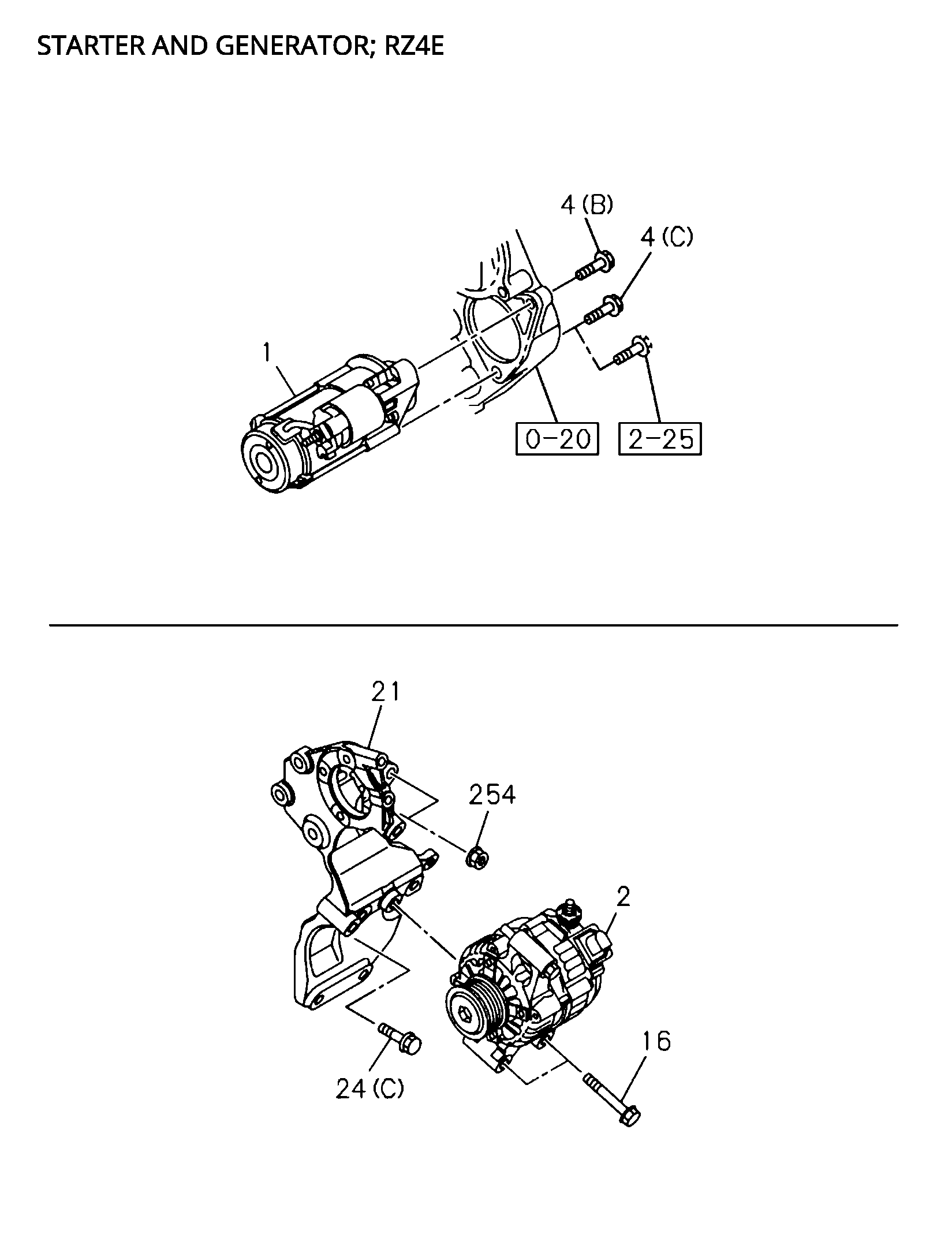

| 2 | I8-98385 217-0 | GENERATOR ASM | 1 | 2007- | B | SEE FIG-NO 0-66 FOR COMPONENT. 12V90A | ||
| 766 | I8-98318 106-0 | GASKET; SENSOR | 1 | 2007- | AB | ID=17.8 OD=22.6 | ||
| 24 | I0-28650 820-0 | BOLT; GEN BRKT | 1 | 2009- | C | (B) M8X20 FLANGE | ||
| 821 | I8-97369 404-0 | GASKET; CRANKSHAFT SENSOR | 1 | 2007- | AB | ID=14.2 OD=18.8 | ||
| 748 | I0-28650 616-0 | BOLT; CONT UNIT | 4 | 2007- | B | (B) M6X16 FLANGE | ||
| 327 | I8-98258 187-0 | SENSOR; CAMSHAFT POSITION | 1 | 2007- | AB | |||
| 24 | I0-28650 820-0 | BOLT; GEN BRKT | 1 | 2007-2007 | C | (B) M8X20 FLANGE | ||
| 782 | I0-28050 616-0 | BOLT; SENSOR | 2 | 2007- | AB | (A) M6X16 FLANGE | ||
| 21 | I8-98378 725-2 | BRACKET; GEN | 1 | 2007- | AB | |||
| 608 | I8-98008 687-0 | SENSOR; AIR TEMP | 1 | 2007- | ABC | HEATER Sl DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) TIRE PRESSURE MONITORING SENSOR<UJ6> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>,WARNING - DISTANCE, PARKING ASSIST.FRT Si RR<8SU>,SAFETY PACKAGE FT 8, RR<8SY> | ||
| 26 | I0-28051 045-0 | BOLT; GEN BRKT | 1 | 2007- | C | (A) M10X45 FLANGE | ||
| 24 | I0-28650 820-0 | BOLT; GEN BRKT | 1 | 2008-2008 | C | EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) M8X20 FLANGE | ||
| 1 | I8-98248 271-2 | STARTER ASM | 1 | 2007- | B | SEE FIG-NO 0-65 FOR COMPONENT. 12V1.6KW | ||
| 782 | I0-28050 612-0 | BOLT; SENSOR | 2 | 2007- | B | (B) M6X12 FLANGE | ||
| 810 | I8-98183 621-0 | SENSOR; CRANK ANGLE | 1 | 2007- | AB | |||
| 16 | I0-28151 070-0 | BOLT; GEN | 3 | 2007- | AB | M10X70 FLANGE | ||
| 608 | I8-98008 687-0 | SENSOR; AIR TEMP | 1 | 2007- | ABC | AIR CONDmONER AUTOMATIC CONT(C61) ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> TIRE PRESSURE MONITORING SENSOR<UJ6> SAFETY PACKAGE FT 8, RR<8SY> | ||
| 393 | I8-98480 358-0 | BRACKET; HARNESS TO BODY | 1 | 2007- | AB | (B) | ||
| 782 | I0-28050 616-0 | BOLT; SENSOR | 1 | 2007- | C | (A) M6X16 FLANGE | ||
| 13 | I0-28650 616-0 | BOLT; BRKT | 2 | 2007- | ABC | SAFETY PACKAGE FT<8SW>,SAFETY PACKAGE FT & RR<8SY> M6X16 FLANGE | ||
| 748 | I0-28650 616-0 | BOLT; CONT UNIT | 1 | 2007- | C | EUROS SPECIFICAnON(NT5) (B) M6X16 FLANGE | ||
| 2 | I8-98385 217-0 | GENERATOR ASM | 1 | 2007- | B | SEE FIG-NO 0-66 FOR COMPONENT. 12V90A | ||
| 593 | I0-91180 106-0 | NUT; BRKT | 2 | 2007- | A | M6 FLANGE | ||
| 782 | I0-28050 616-0 | BOLT; SENSOR | 1 | 2007- | C | (A) M6X16 FLANGE | ||
| 766 | I8-97369 404-0 | GASKET; SENSOR | 1 | 2007- | C | ID=14.2 OD=18.8 | ||
| 204 | I0-28050 816-0 | BOLT; BRKT | 2 | 2007- | B | M8X16 FLANGE | ||
| 4 | I0-28151 040-0 | BOLT; STARTER | 1 | 2007- | AB | (B) M10X40 FLANGE | ||
| 766 | I8-97369 404-0 | GASKET; SENSOR | 1 | ID=14.2 OD=18.8 | ||||
| 1 | I8-98248 271-2 | STARTER ASM | 1 | 2007- | B | SEE FIG-NO 0-65 FOR COMPONENT. 12V1.6KW | ||
| 608 | I8-98008 687-0 | SENSOR; AIR TEMP | 1 | 2007- | ABC | ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. TIRE PRESSURE MONITORING SENSOR<UJ6> | ||
| 21 | I8-98378 725-2 | BRACKET; GEN | 1 | 2007- | AB | |||

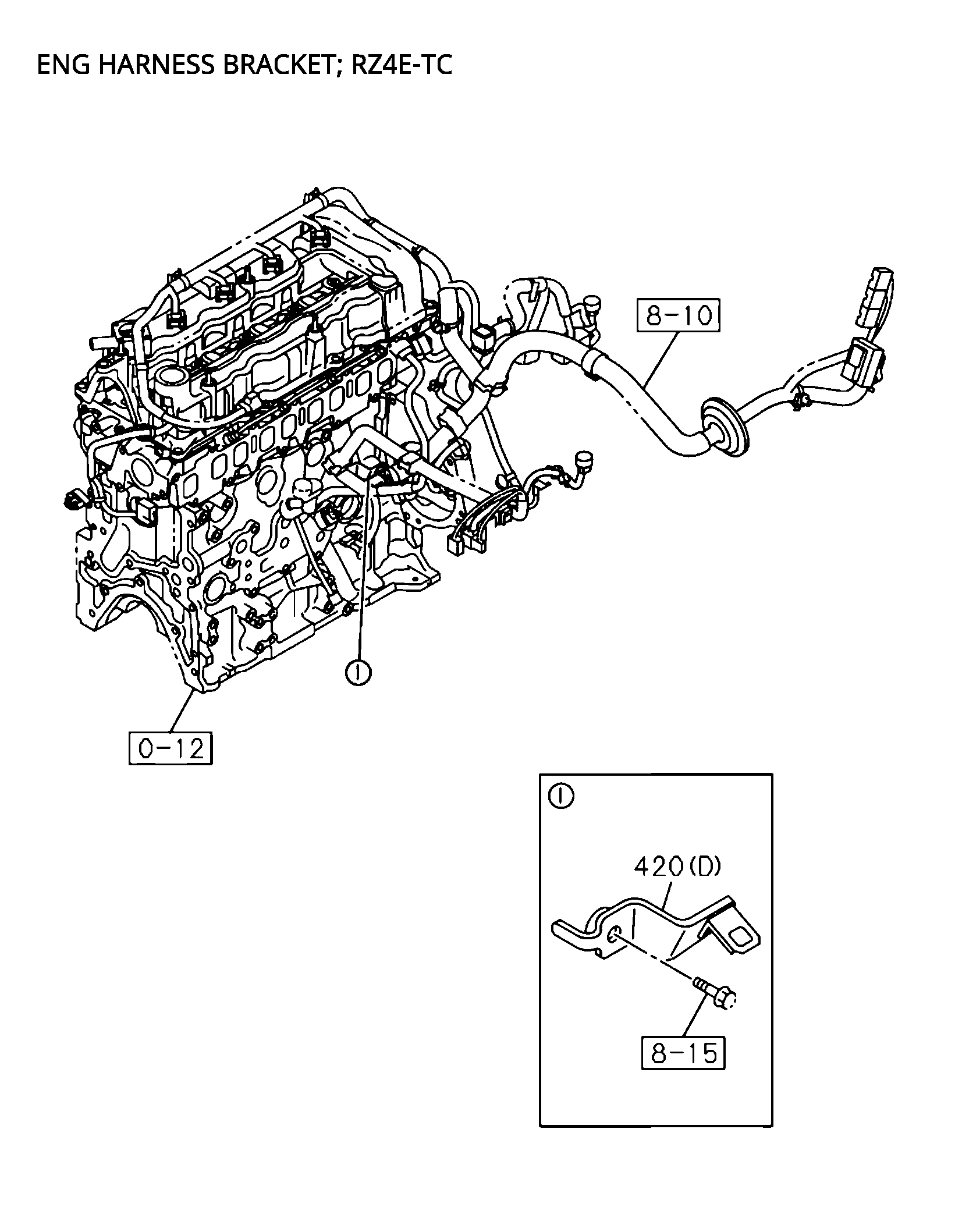

| 420 | I8-97498 154-0 | BRACKET; HARNESS | 1 | 2007- | B | (D) | ||
| 1 | I8-98248 271-2 | STARTER ASM | 1 | 2007- | B | SEE FIG-NO 0-65 FOR COMPONENT. 12V1.6KW | ||
| 129 | I8-98260 257-0 | SENSOR; GLOW PLUG,THERMO | 1 | NISHIDA | ||||
| 16 | I0-28151 070-0 | BOLT; GEN | 3 | 2007- | AB | M10X70 FLANGE | ||
| 4 | I0-28051 200-0 | BOLT; STARTER | 1 | 2007- | AB | A/T 6 SPEED-AISIN(Y6A) (c) M12X100 FLANGE |
