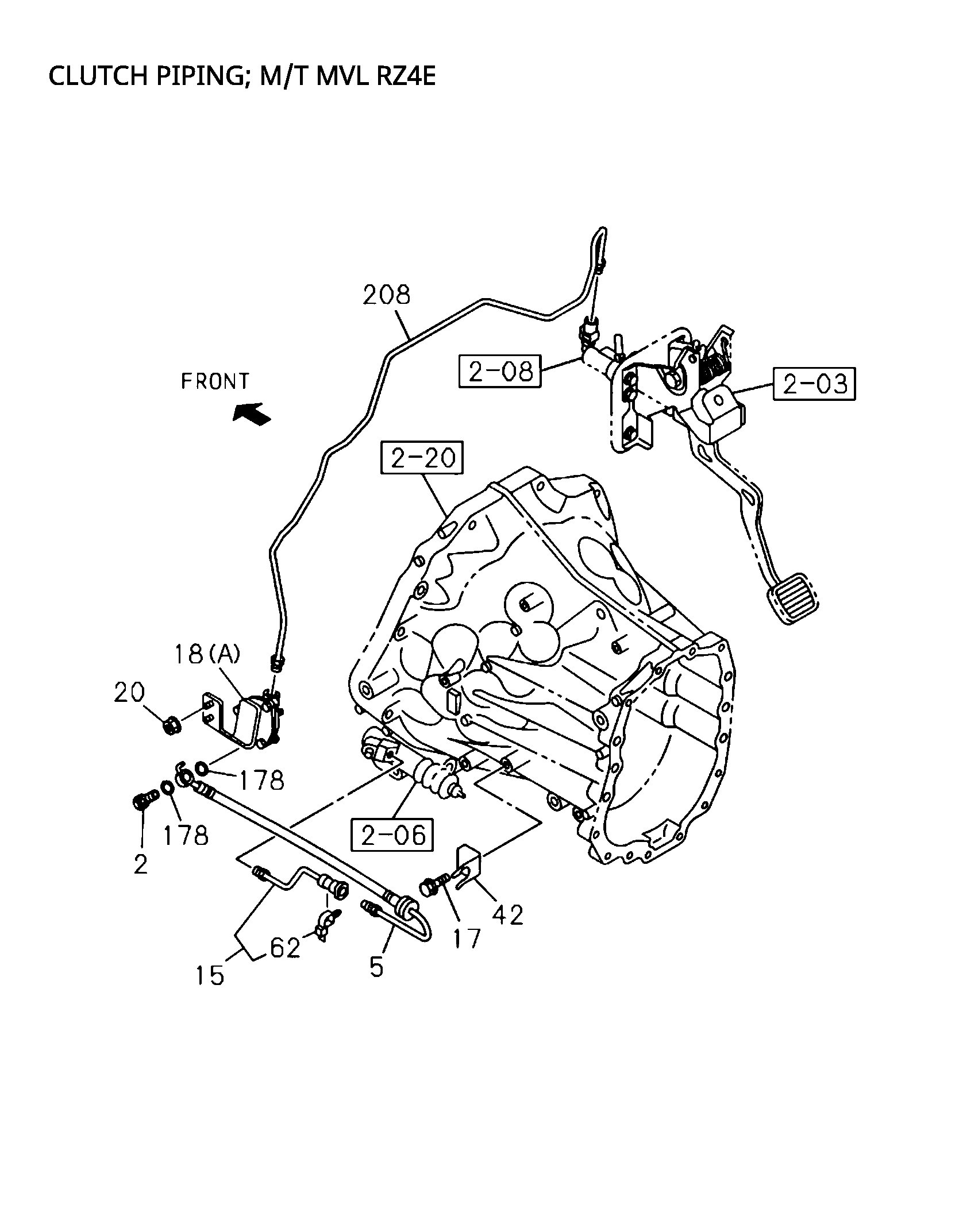

2-05 | 2-05 - CLUTCH PIPING
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 42 | I8-98398 927-0 | BRACKET; FLEX HOSE.CLU CONT | 1 | 2007- | B | |||
| 17 | I0-28050 816-0 | BOLT; BRKT | 1 | 2007- | AB | M8X16 FLANGE | ||
| 18 | I8-98398 919-0 | DAMPER ASM; CLU OIL | 1 | 2007- | A | 4U3 ENG(LNG) EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (A) | ||
| 2 | I8-97359 818-0 | BOLT; EYE,SLAVE CYL | 1 | 2007- | AB | M10X22 EYE-BOLT | ||
| 208 | I8-98395 385-1 | PIPE; OIL,M/CYL TO DAMPER CYL | 1 | 2007- | A | 41)3 ENG(LNG) EUR02 SPEGFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||

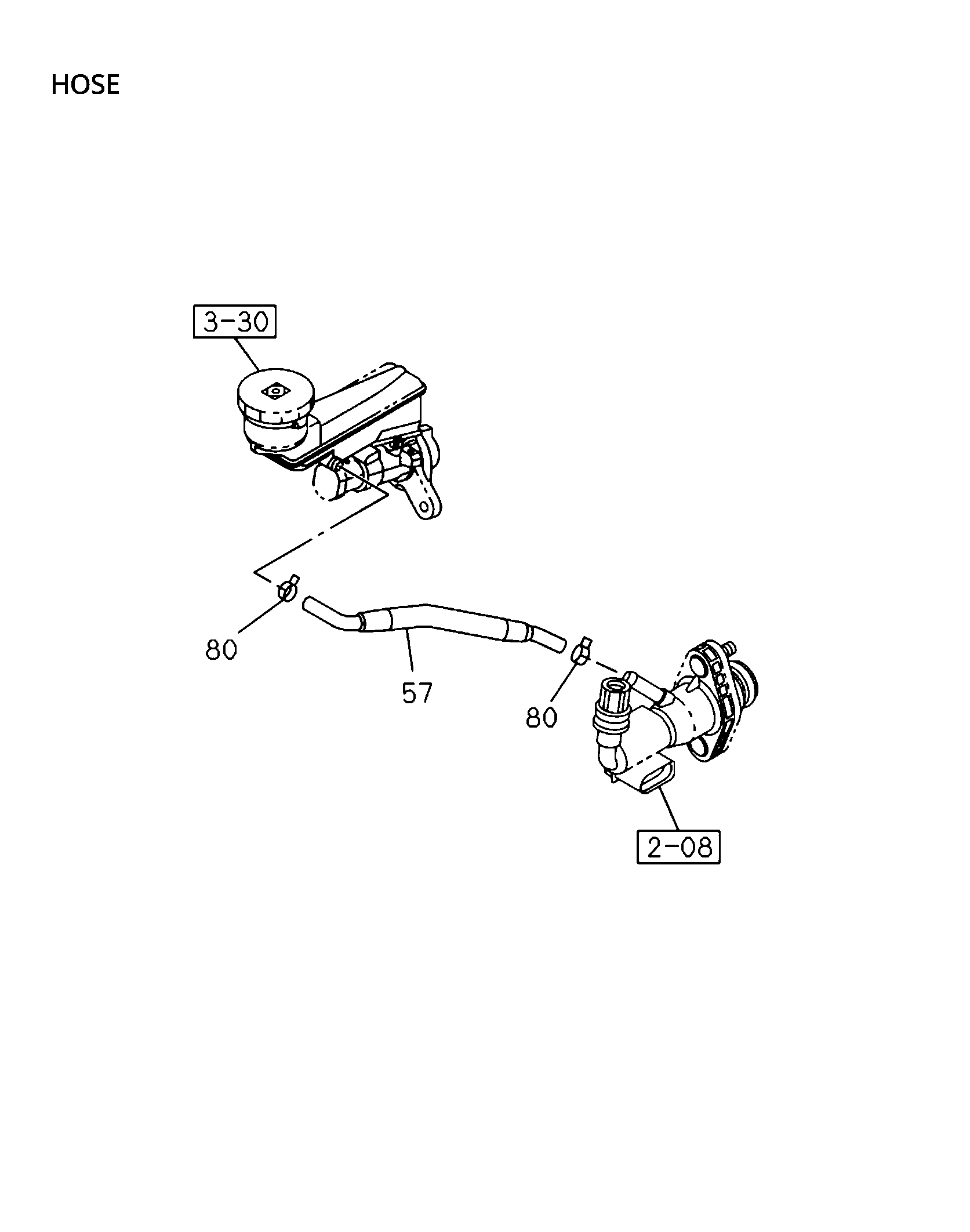

| 57 | I8-98398 912-0 | HOSE; CLU M/CYLTO OIL TANK | 1 | 2007- | AB | |||
| 15 | I8-97541 767-0 | PIPE; CLU.FLEX HOSE | 1 | 2007- | A | RZ4E-TCX HI-POWER ENG(LNC) | ||
| 80 | I8-97947 824-0 | CLIP; HOSE | 2 | 2007- | AB | ID=12 WO/PVC COATING | ||
| 5 | I8-97541 765-0 | HOSE; FLEX.CLU PIPE | 1 | 2007- | B | |||
| 5 | I8-97541 765-0 | HOSE; FLEX.CLU PIPE | 1 | 2007- | B | |||
| 208 | I8-98395 385-1 | PIPE; OIL.M/CYL TO DAMPER CYL | 1 | 2007- | B | |||
| 42 | I8-98398 927-0 | BRACKET; FLEX HOSE.CLU CONT | 1 | 2007- | A | RZ4E-TCX HI-POWER ENG(LNC) | ||
| 20 | I0-91180 106-0 | NUT; CLU OIL DAMPER | 2 | 2007- | AB | M6 FLANGE | ||
| 18 | I8-98398 919-0 | DAMPER ASM; CLU OIL | 1 | 2007- | A | RZ4E-TCX HI-POWER ENG(LNC) (A) | ||
| 18 | I8-98398 919-0 | DAMPER ASM; CLU OIL | 1 | 2007- | B | (A) | ||
| 18 | I8-98398 919-0 | DAMPER ASM; CLU OIL | 1 | 2007- | B | (A) | ||
| 42 | I8-98398 927-0 | BRACKET; FLEX HOSE.CLU CONT | 1 | 2007- | B | |||
| 178 | I9-09571 410-0 | GASKET; FLEX HOSE TO M/CYL | 2 | 2007- | AB | ID=10.2 OD-16.0 | ||
| 15 | I8-97541 767-0 | PIPE; CLU.FLEX HOSE | 1 | 2007- | B | |||
| 208 | I8-98395 385-1 | PIPE; OIL.M/CYL TO DAMPER CYL | 1 | 2007- | A | 4JJ3 ENG(LNG) EUR02 SPECIRCATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||
| 178 | I9-09571 410-0 | GASKET; FLEX HOSE TO M/CYL | 2 | 2007- | AB | ID=10.2 OD=16.0 | ||
| 18 | I8-98398 919-0 | DAMPER ASM; CLU OIL | 1 | 2007- | A | RZ4E-TCX HI-POWER ENG(LNC) (A) | ||
| 20 | I0-91180 106-0 | NUT; CLU OIL DAMPER | 2 | 2007- | AB | M6 FLANGE | ||
| 5 | I8-97541 765-0 | HOSE; FLEX.CLU PIPE | 1 | 2007- | A | RZ4E-TCX HI-POWER ENG(LNC) | ||
| 42 | I8-98398 927-0 | BRACKET; FLEX HOSE,CLU CONT | 1 | 2007- | A | RZ4E-TCX HI-POWER ENG(LNC) | ||
| 208 | I8-98395 385-1 | PIPE; OIL,M/CYL TO DAMPER CYL | 1 | 2007- | B | |||
| 18 | I8-98398 919-0 | DAMPER ASM; CLU OIL | 1 | 2007- | A | 4JJ3 ENG(LNG) EUR02 SPECIFICA"n0N(NT2),EUR04 SPECIFICATION(NT4) (A) | ||
| 2 | I8-97359 818-0 | BOLT; EYE,SLAVE CYL | 1 | 2007- | AB | M10X22 EYE-BOLT | ||
| 15 | I8-97541 767-0 | PIPE; CLU.FLEX HOSE | 1 | 2007- | A | RZ4E-TCX HI-POWER ENG(LNC) | ||
| 17 | I0-28050 816-0 | BOLT; BRKT | 1 | 2007- | AB | M8X16 FLANGE | ||
| 134 | I8-97553 110-0 | GASKET | 1 | 2007- | A | 41)3 ENG(LNG) (A) | ||
| 15 | I8-97541 767-0 | PIPE; CLU.FLEX HOSE | 1 | 2007- | B | |||
| 5 | I8-97541 765-0 | HOSE; FLEX.CLU PIPE | 1 | 2007- | A | RZ4E-TCX HI-POWER ENG(LNC) |
