Isuzu | Part Center System

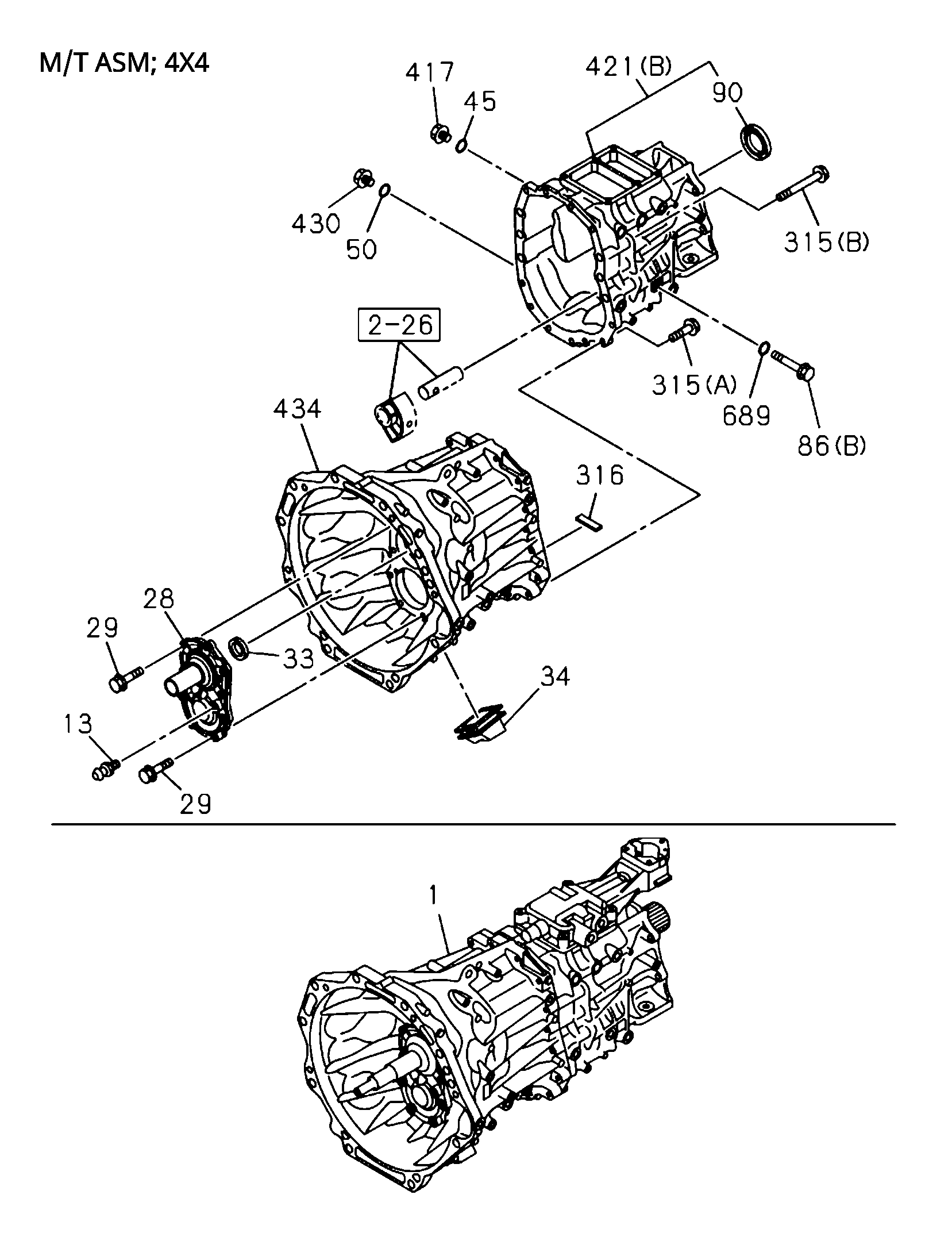

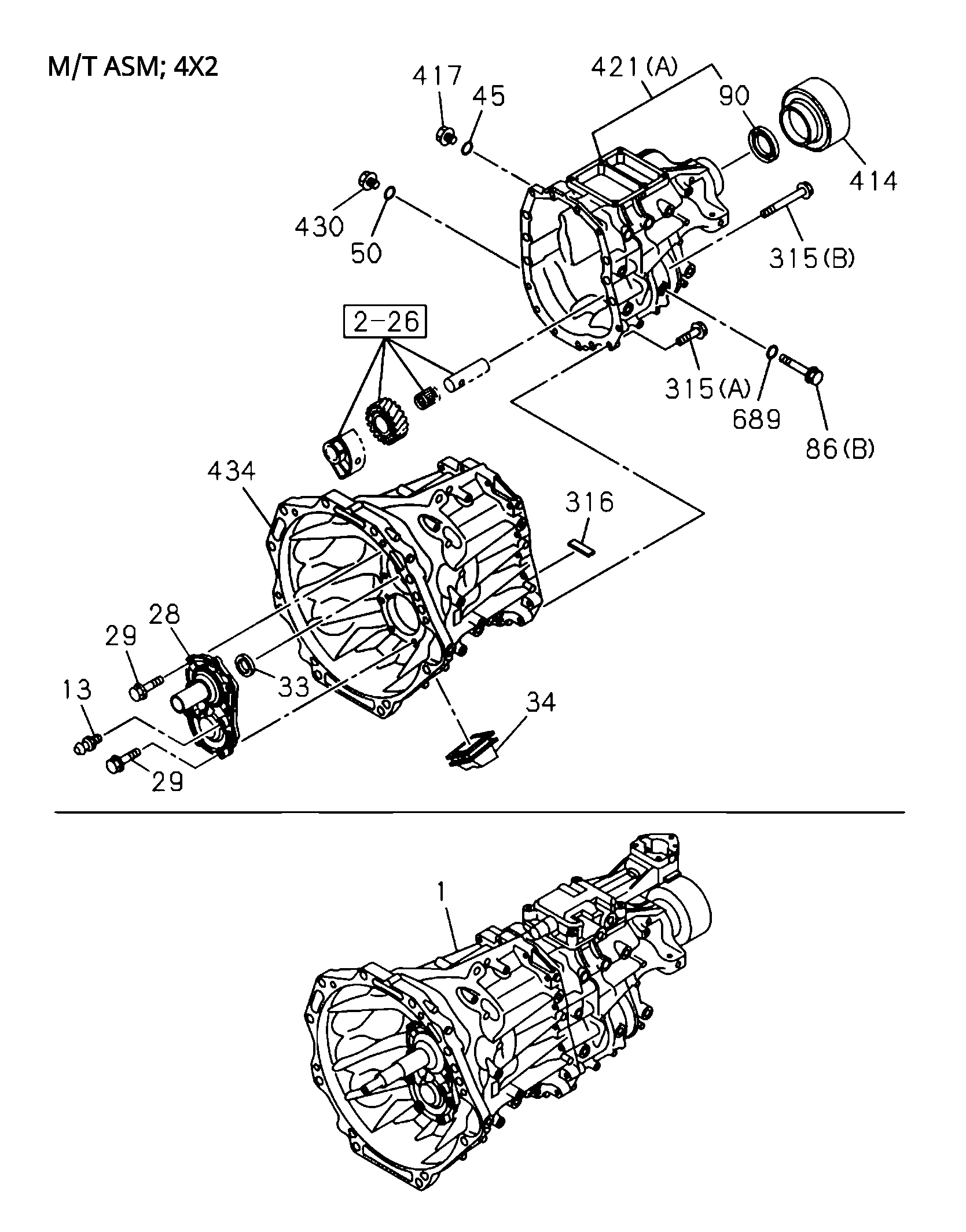

2-20 | 2-20 - MANUAL TRANSMISSION ASM AND CASE

DMAX

D-MAX 2021

Key	PART NO	DESCRIPTION	QTY	APP DATE	MODEL	REMARKS

29	I8-98275 947-0	BOLT; FRT COVER	9	2007-	A B	M8X30 FLANGE
28	I8-98275 338-1	COVER; FRT,TRANS CASE	1	2007-	B

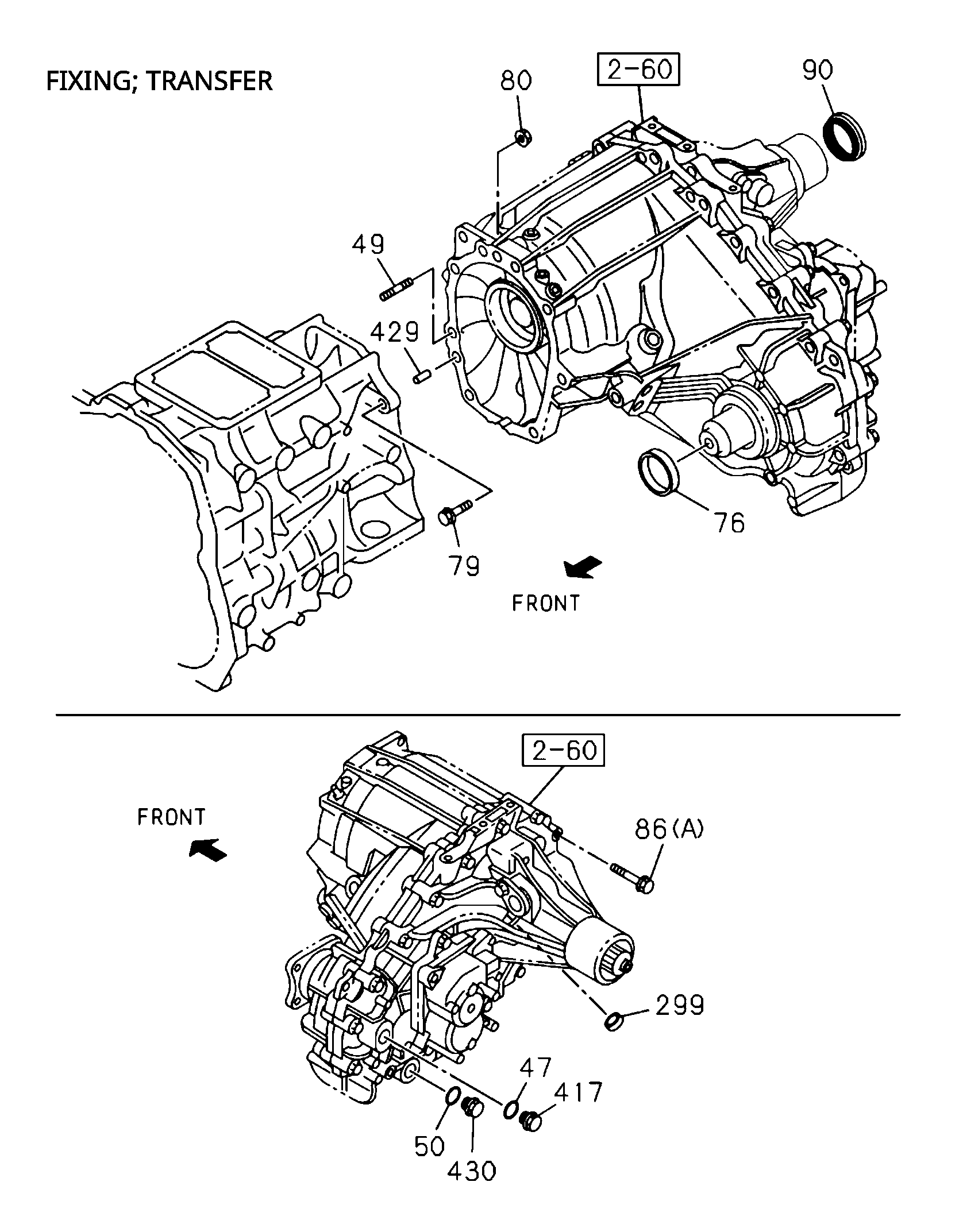

80	I0-91180 110-0	NUT; TRANSFER CASE	2	2007-	A	4X4(TFS***) RZ4E-TCX HI-POWER ENG(LNC) M10 FLANGE
430	I8-97365 374-0	PLUG; OIL DRAIN	1	2007-	ABC	4X4(TFS***) M20X12 W/MAGNET
47	I8-97115 712-0	GASKET; FILLER PLUG.TRANSFER CASE	1	2007-	ABC	4X4(TFS***) ALSO INCLUDED IN GASKET SET(M/T). ID=17
421	I8-98358 889-1	COVER; RR.TRANS	1	2007-	AB	4X4(TFS***) EXC. MADE IN JAPAN TRANSMISSION<8QP> (B)
417	I8-97365 373-0	PLUG; OIL FILLERJRANS	1	2007-	A B
689	I9-09571 412-0	GASKET	1	2007-	A B	ALSO INCLUDED IN GASKET SET(M/T). ID=12.2 OD=18
90	I6-98189 443-0	SEAL; OIL.RR COVER	1	2007-	ABC	(IADG) 4X4(TFS***) ALSO INCLUDED IN GASKET SET(M/T). NOK
90	I8-98189 443-0	SEAL; OIL,RR COVER	1	2007-	A B	ALSO INCLUDED IN GASKET SET(M/T). NOK
316	I8-94249 524-2	MAGNET; TRANS CASE	1	2007-	AB
28	I8-98275 338-1	COVER; FRT.TRANS CASE	1	2007-	A	RZ4E-TCX HI-POWER ENG(LNC)
49	I8-97490 621-0	STUD; TRANSFER CASE	1	2007-	A	4X4(TFS***) RZ4E-TCX HI-POWER ENG(LNC) M10X56 L=72.5
90	I6-98189 443-0	SEAL; OIL,RR COVER	1	2007-	A B	(IADG) ALSO INCLUDED IN GASKET SET(M/T). NOK
315	I0-28050 800-0	BOLT; CASE	6	2007-	AB	(B) M8X100 FLANGE
50	I8-97115 712-0	GASKET; DRAIN PLUG	1	2007-	AB	ALSO INCLUDED IN GASKET SET(M/T). ID=17
434	I8-98303 300-0	HOUSING; CLU	1	2007-	A	RZ4E-TCX HI-POWER ENG(LNC)
315	I0-28050 840-0	BOLT; CASE	11	2007-	AB	(A) M8X40 FLANGE
86	I8-98275 948-0	BOLT; RR COVER	1	2007-	AB	(B) M12X63 FLANGE
49	I8-97490 621-0	STUD; TRANSFER CASE	1	2007-	B	4X4(TFS***) M10X56 L=72.5
79	I0-28051 035-0	BOLT; TRANSFER CASE	5	2007-	B	4X4(TFS***) M10X35 FLANGE
79	I0-28051 035-0	BOLT; TRANSFER CASE	5	2007-	A	4X4(TFS***) RZ4E-TCX HI-POWER ENG(LNC) M10X35 FLANGE
429	I8-97135 423-0	PIN; STRAIGHT	2	2007-	A	4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> OD=10 L=20
50	I8-97115 712-0	GASKET; DRAIN PLUG	1	2007-	ABC	4X4(TFS***) ALSO INCLUDED IN GASKET SET(M/T). ID=17
50	I8-97115 712-0	GASKET; DRAIN PLUG	1	2007-	ABC	4X4(TFS***) ALSO INCLUDED IN GASKET SET(M/T). ID=17
76	I8-97238 999-0	SEAL; OIL/TRANSFER CASE	1	2007-	ABC	4X4(TFS***) ALSO INCLUDED IN GASKET SET(M/T). NOK
417	I8-97365 373-0	PLUG; OIL FILLERJRANS	1	2007-	AB
430	I8-97365 374-0	PLUG; OIL DRAIN	1	2007-	ABC	4X4(TFS***) M20X12 W/MAGNET
430	I8-97365 374-0	PLUG; OIL DRAIN	1	2007-	AB	M20X12 W/MAGNET
34	I8-97500 668-0	COVER; DUST,SHIFT FORK	1	2007-	A B
90	I8-98189 443-0	SEAL; OIL,RR COVER	1	2007-	A B	ALSO INCLUDED IN GASKET SET(M/T). NOK
45	I8-97115 712-0	GASKET; FILLER PLUG	1	2007-	A B	ALSO INCLUDED IN GASKET SET(M/T). ID=17
28	I8-98275 338-1	COVER; FRT,TRANS CASE	1	2007-	B
417	I8-97365 373-0	PLUG; OIL FILLERJRANS	1	2007-	ABC	4X4(TFS***)
417	I8-97365 373-0	PLUG; OIL FILLER,TRANS	1	2007-	ABC	4X4(TFS***)
90	I8-98189 443-0	SEAL; OIL,RR COVER	1	2007-	A B	ALSO INCLUDED IN GASKET SET(M/T). NOK
86	I8-98275 948-0	BOLT; RR COVER	1	2007-	AB	(B) M12X63 FLANGE
79	I0-28051 035-0	BOLT; TRANSFER CASE	6	2007-	A	4X4(TFS***) 4JJ3 ENG(LNG) M10X35 FLANGE
417	I8-97365 373-0	PLUG; OIL FILLERJRANS	1	2007-	ABC	4X4(TFS***)
417	I8-97365 373-0	PLUG; OIL FILLER.TRANS	1	2007-	AB
29	I8-98275 947-0	BOLT; FRT COVER	9	2007-	AB	M8X30 FLANGE
49	I8-98035 675-0	STUD; TRANSFER CASE	1	2007-	AB	4X4(TFS***) M10X30 L=45
79	I0-28051 045-0	BOLT; TRANSFER CASE	7	2007-	C	4X4(TFS***) M10X45 FLANGE
90	I6-98189 443-0	SEAL; OIL,RR COVER	1	2007-	A B	(IADG) ALSO INCLUDED IN GASKET SET(M/T). NOK
430	I8-97365 374-0	PLUG; OIL DRAIN	1	2007-	AB	M20X12W/MAGNET
34	I8-97500 668-0	COVER; DUST,SHIFT FORK	1	2007-	A B
28	I8-98275 338-1	COVER; FRT,TRANS CASE	1	2007-	A	RZ4E-TCX HI-POWER ENG(LNC)
15	I0-28050 840-0	BOLT; CASE	11	2007-	AB	(A) M8X40 FLANGE
430	I8-97365 374-0	PLUG; OIL DRAIN	1	2007-	AB	M20X12 W/MAGNET
50	I8-97115 712-0	GASKET; DRAIN PLUG	1	2007-	ABC	4X4(TFS***) ALSO INCLUDED IN GASKET SET(M/T). ID=17
316	I8-94249 524-2	MAGNET; TRANS CASE	1	2007-	AB
90	I6-98189 443-0	SEAL; OIL,RR COVER	1	2007-	A B	(IADG) ALSO INCLUDED IN GASKET SET(M/T). NOK
90	I8-98189 443-0	SEAL; OIL.RR COVER	1	2007-	ABC	4X4(TFS***) ALSO INCLUDED IN GASKET SET(M/T). NOK
13	I8-97072 827-0	SUPPORT; SHIFT FORK	1	2007-	AB	L=47.5
90	I6-98189 443-0	SEAL; OIL,RR COVER	1	2007-	ABC	(IADG) 4X4(TFS***) ALSO INCLUDED IN GASKET SET(M/T). NOK
430	I8-97365 374-0	PLUG; OIL DRAIN	1	2007-	ABC	4X4(TFS***) M20X12 W/MAGNET
315	I0-28050 800-0	BOLT; CASE	6	2007-	AB	(B) M8X100 FLANGE
90	I8-98189 443-0	SEAL; OIL,RR COVER	1	2007-	ABC	4X4(TFS***) ALSO INCLUDED IN GASKET SET(M/T). NOK
80	I0-91180 110-0	NUT; TRANSFER CASE	1	2007-	A	4X4(TFS***) 4JJ3 ENG(LNG) M10 FLANGE
434	I8-98303 300-0	HOUSING; CLU	1	2007-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP>
50	I8-97115 712-0	GASKET; DRAIN PLUG	1	2007-	AB	ALSO INCLUDED IN GASKET SET(M/T). ID=17
13	I8-97072 827-0	SUPPORT; SHIFT FORK	1	2007-	AB	L=47.5
50	I8-97115 712-0	GASKET; DRAIN PLUG	1	2007-	AB	ALSO INCLUDED IN GASKET SET(M/T). ID=17
689	I9-09571 412-0	GASKET	1	2007-	AB	ALSO INCLUDED IN GASKET SET(M/T). ID=12.2 OD=18
90	I6-98189 443-0	SEAL; OIL,RR COVER	1	2007-	ABC	(IADG) 4X4(TFS***) ALSO INCLUDED IN GASKET SET(M/T). NOK
434	I8-98303 300-0	HOUSING; CLU	1	2007-	A	RZ4E-TCX HI-POWER ENG(LNC)
429	I8-97135 423-0	PIN; STRAIGHT	2	2007-	BC	4X4(TFS***) OD=10 L=20
86	I0-28050 845-0	BOLT; RR COVER	16	2007-	ABC	4X4(TFS***) (A) M8X45 FLANGE
90	I8-98189 443-0	SEAL; OIL,RR COVER	1	2007-	ABC	4X4(TFS***) ALSO INCLUDED IN GASKET SET(M/T). NOK
434	I8-98303 300-0	HOUSING; CLU	1	2007-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP>
45	I8-97115 712-0	GASKET; FILLER PLUG	1	2007-	AB	ALSO INCLUDED IN GASKET SET(M/T). ID=17
80	I0-91180 110-0	NUT; TRANSFER CASE	2	2007-	B	4X4(TFS***) M10 FLANGE
