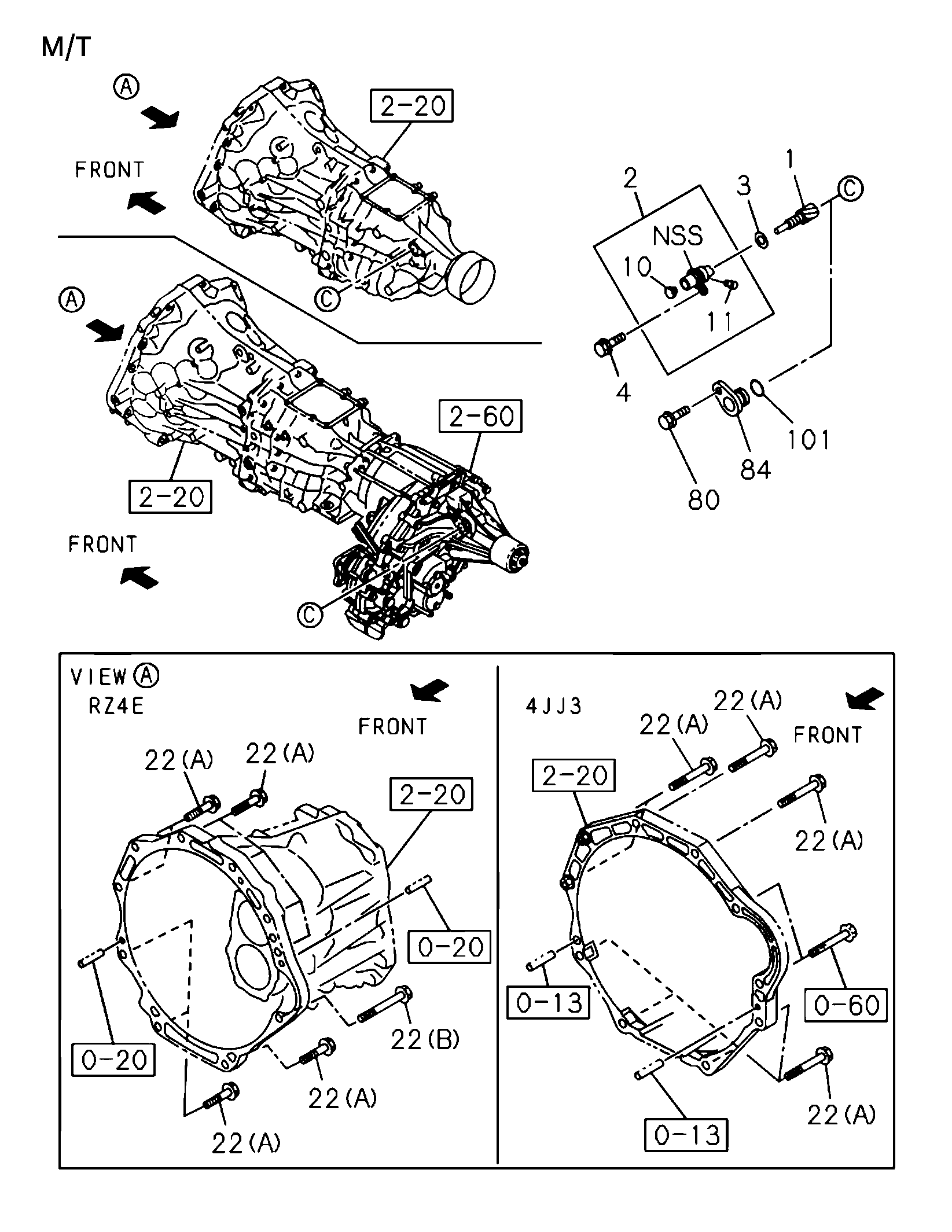

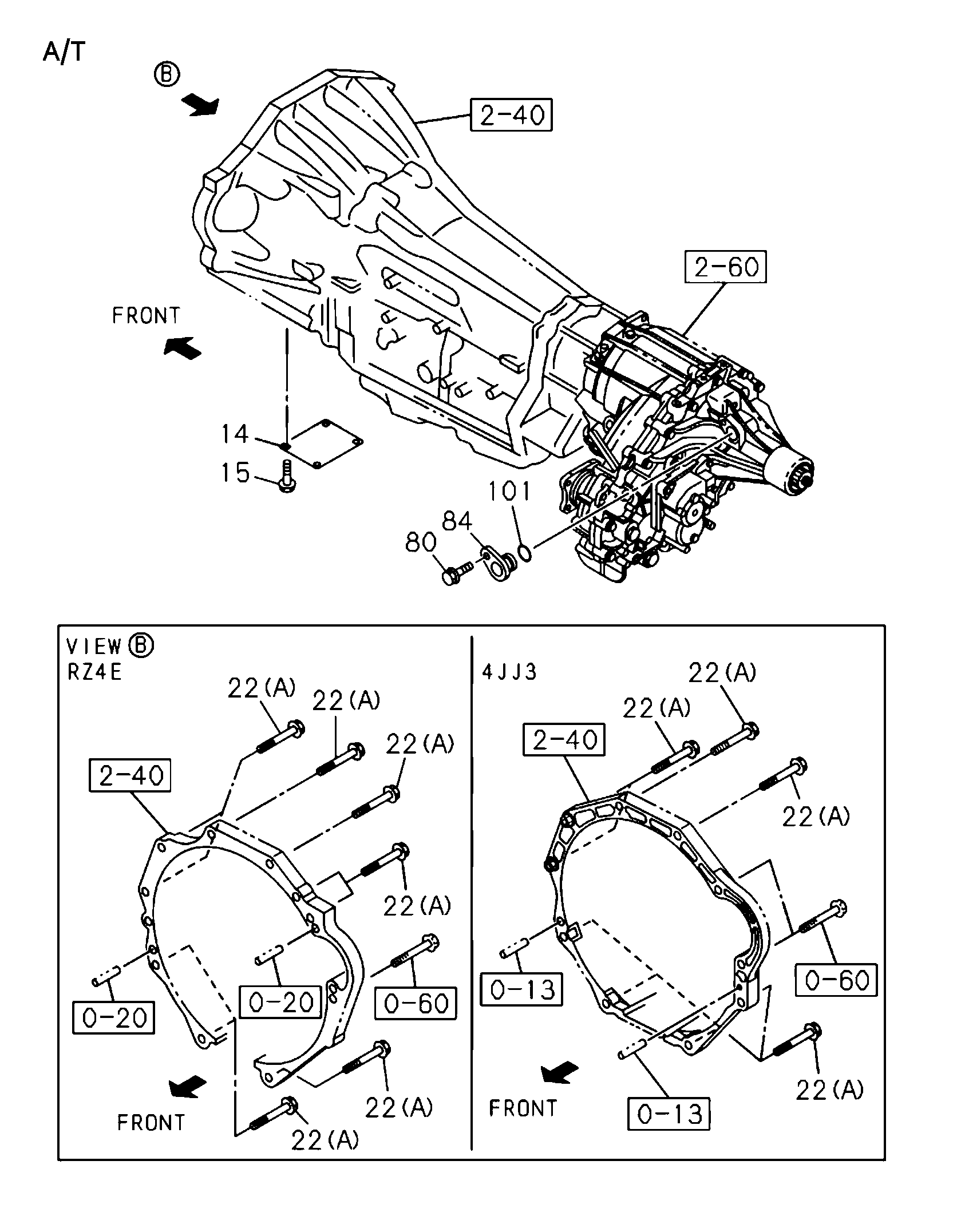

| 101 |
I9-09921 100-0 |
|
GASKET; CAP |
1 |
2007- |
|
D E F |
4 WHEEL ANT1 LOCK BRAKE<JE5> ID=21.7 OD=28.7 |
| 22 |
I0-28051 200-0 |
|
BOLT; TRANS CASE TO ENG |
1 |
2007-2009 |
|
A |
RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P) (B) M12X100 FLANGE |
| 22 |
I0-28051 200-0 |
|
BOLT; TRANS CASE TO ENG |
1 |
2010- |
|
B C D E F |
RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (B) M12X100 FLANGE |
| 22 |
I0-28051 250-0 |
|
BOLT; TRANS CASE TO ENG |
9 |
2007- |
|
A B C D E |
RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) (A) M12X50 FLANGE |
| 22 |
I0-28051 200-0 |
|
BOLT; TRANS CASE TO ENG |
1 |
2007-2009 |
|
B C D E F |
RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (B) M12X100 FLANGE |
| 80 |
I0-28050 820-0 |
|
BOLT; SPD SENSOR |
1 |
2007- |
|
D E F |
4 WHEEL ANT! LOCK BRAKE<JE5> M8X20 FLANGE |
| 4 |
I0-28050 820-0 |
|
BOLT; RET,DRIVEN GEAR |
1 |
2007- |
|
B C D E F |
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE |
| 22 |
I0-28051 200-0 |
|
BOLT; TRANS CASE TO ENG |
1 |
2010- |
|
A |
RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P) (B) M12X100 FLANGE |
| 101 |
I9-09921 100-0 |
|
GASKET; CAP |
1 |
2007- |
|
D E F |
4 WHEEL ANT1 LOCK BRAKE<JE5> ID=21.7 OD=28.7 |
| 4 |
I0-28050 820-0 |
|
BOLT; RET,DRIVEN GEAR |
1 |
2007- |
|
B C D E F |
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE |
| 22 |
I0-28051 200-0 |
|
BOLT; TRANS CASE TO ENG |
1 |
2007-2009 |
|
A |
RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P) (B) M12X100 FLANGE |
| 3 |
I9-09921 100-0 |
|
GASKET; BUSHING |
1 |
2007- |
|
B C D E F |
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 |
| 22 |
I0-28051 250-0 |
|
BOLT; TRANS CASE TO ENG |
8 |
2007- |
|
ABCDE F |
4jJ3 ENG(LNG) (A) M12X50 FLANGE |
| 80 |
I0-28050 820-0 |
|
BOLT; SPD SENSOR |
1 |
2007- |
|
D E F |
4 WHEEL ANT! LOCK BRAKE<JE5> M8X20 FLANGE |
| 22 |
I0-28051 200-0 |
|
BOLT; TRANS CASE TO ENG |
1 |
2007-2009 |
|
B C D E F |
RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (B) M12X100 FLANGE |
| 22 |
I0-28051 250-0 |
|
BOLT; TRANS CASE TO ENG |
8 |
2007- |
|
ABCDE F |
4jJ3 ENG(LNG) (A) M12X50 FLANGE |
| 22 |
I0-28051 200-0 |
|
BOLT; TRANS CASE TO ENG |
1 |
2010- |
|
B C D E F |
RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (B) M12X100 FLANGE |
| 22 |
I0-28051 250-0 |
|
BOLT; TRANS CASE TO ENG |
9 |
2007- |
|
A B C D E |
RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) (A) M12X50 FLANGE |
| 3 |
I9-09921 100-0 |
|
GASKET; BUSHING |
1 |
2007- |
|
B C D E F |
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 |
| 22 |
I0-28051 200-0 |
|
BOLT; TRANS CASE TO ENG |
1 |
2010- |
|
A |
RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P) (B) M12X100 FLANGE |
