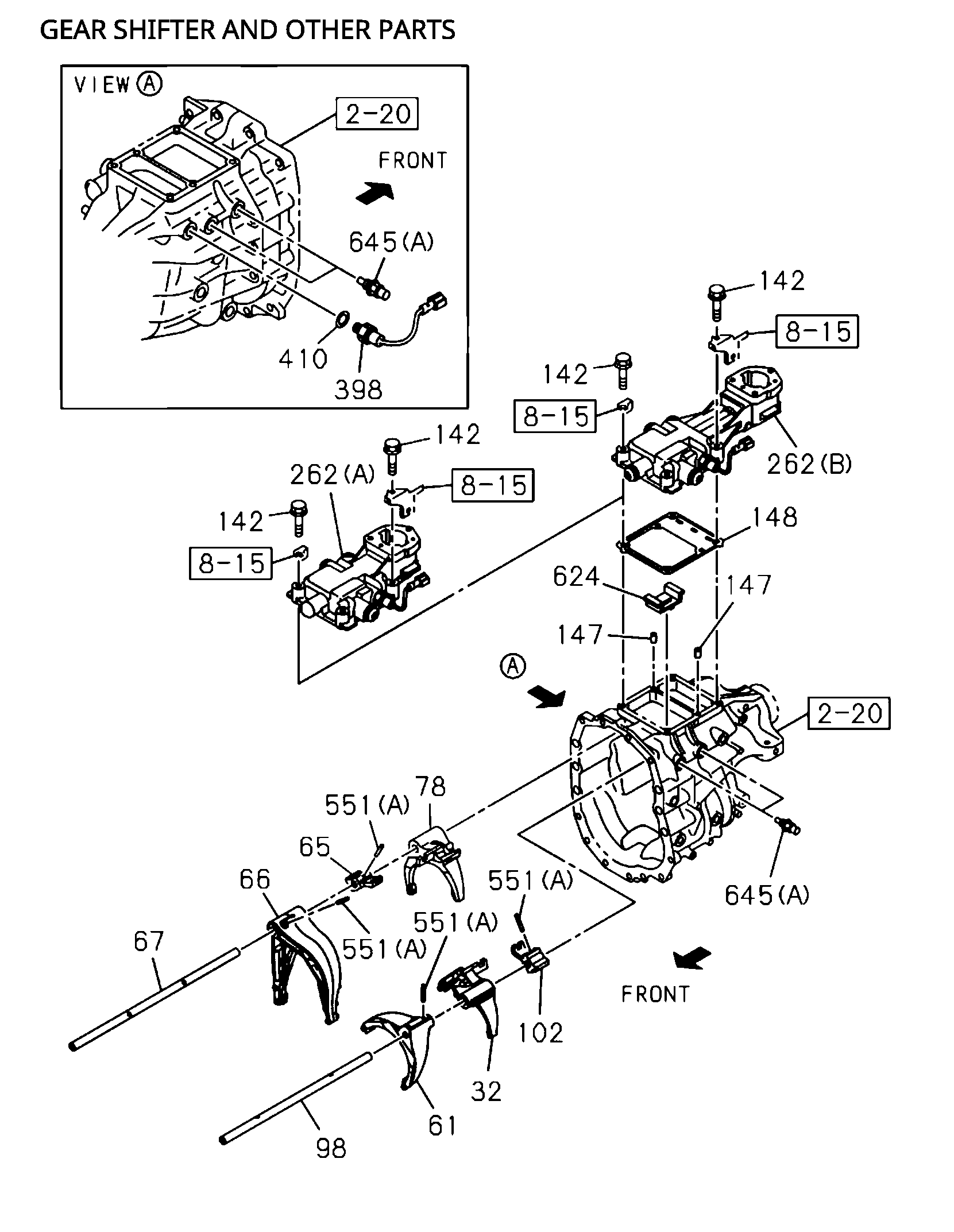

2-30 | 2-30 - GEAR SHIFTER AND QUADRANT BOX

DMAX

D-MAX 2021

Key	PART NO	DESCRIPTION	QTY	APP DATE	MODEL	REMARKS

535	I8-97543 730-0	SPRING; LEVER	1	2007-2009	AB	(A) OUTER
78	I8-97494 015-1	ARM; SHIFT.REV	1	2007-	A
142	I8-98275 946-0	BOLT; QUAD BOX	4	2010-	A	M8X45 FLANGE
645	I8-97499 106-0	DETENT ASM	2	2010-	A	(B)
396	I8-97671 709-0	PLUNGER; SHIFT ROD	1	2011-	B	MADE IN JAPAN TRANSMISSION<8QP> (B)
148	I8-97525 188-0	GASKET; QUAD BOX	1	2010-	A	ALSO INCLUDED IN GASKET SET(M/T).
171	I8-97499 567-0	SWITCH; NEUTRAL	1	2010-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP>
635	I8-97507 671-0	PLUG; DETENT	3	2007-2009	B
551	I8-97507 700-0	PIN; SPRING	2	2007-2009	AB	(B)
102	I8-97494 016-1	BLOCK; SHIFT.3RD & 4TH	1	2010-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP>
635	I8-97507 671-0	PLUG; DETENT	3	2010-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP>
635	I8-97507 671-0	PLUG; DETENT	3	2010-	A	RZ4E-TCX HI-POWER ENG(LNC)
32	I8-97494 015-1	ARM; SHIFT,1ST8i2ND	1	2007-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP>
535	I8-97543 731-0	SPRING; LEVER	1	2010-	A	(B) INNER
142	I8-98275 946-0	BOLT; QUAD BOX	4	2007-2009	AB	M8X45 FLANGE
274	I8-97507 674-0	COVER; SHAFT.QUAD BOX	1	2007-2009	A	RZ4E-TCX HI-POWER ENG(LNC)
645	I8-97499 106-0	DETENT ASM	2	2007-2009	AB	(B)

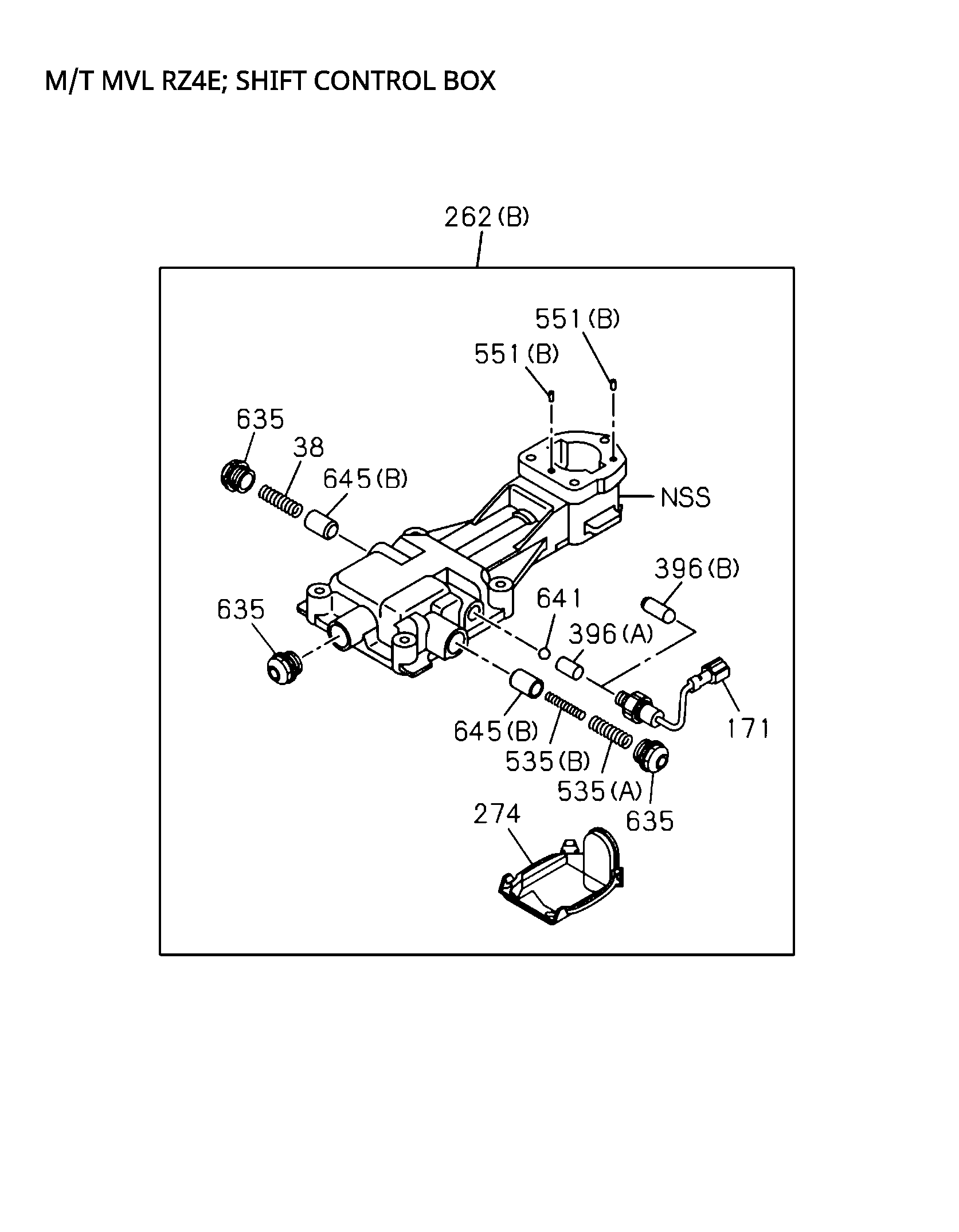

262	I8-97660 735-0	BOX ASM; SHIFT CONT	1	2011-	B	MADE IN JAPAN TRANSMISSION<8QP> (B)
535	I8-97543 730-0	SPRING; LEVER	1	2010-	A	(A) OUTER
635	I8-97507 671-0	PLUG; DETENT	3	2007-2009	A	RZ4E-TCX HI-POWER ENG(LNC)
274	I8-97507 674-0	COVER; SHAFT.QUAD BOX	1	2010-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP>
171	I8-97499 567-0	SWITCH; NEUTRAL	1	2007-2009	AB
38	I8-97507 673-0	SPRING; DETENT	1	2010-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP>
635	I8-97507 671-0	PLUG; DETENT	3	2007-2009	A	RZ4E-TCX HI-POWER ENG(LNC)
148	I8-97525 188-0	GASKET; QUAD BOX	1	2010-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP> ALSO INCLUDED IN GASKET SET(M/T).
171	I8-97499 567-0	SWITCH; NEUTRAL	1	2010-	A
274	I8-97507 674-0	COVER; SHAFT,QUAD BOX	1	2007-2009	B
274	I8-97507 674-0	COVER; SHAFT.QUAD BOX	1	2007-2009	B
38	I8-97507 673-0	SPRING; DETENT	1	2010-	A
102	I8-97494 016-1	BLOCK; SHIFT.3RD & 4TH	1	2010-	A
535	I8-97543 731-0	SPRING; LEVER	1	2007-2009	AB	(B) INNER
274	I8-97507 674-0	COVER; SHAFT,QUAD BOX	1	2010-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP>
78	I8-97494 015-1	ARM; SHIFT.REV	1	2007-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP>
624	I8-98275 459-0	PLATE; INTER LOCK	1	2010-	A
551	I8-97507 700-0	PIN; SPRING	2	2010-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP> (B)
102	I8-97494 016-1	BLOCK; SHIFT,3RD & 4TH	1	2007-2009	AB
398	I8-98180 974-0	SWITCH; REV LAMP	1	2007-	AB
635	I8-97507 671-0	PLUG; DETENT	3	2010-	A	RZ4E-TCX HI-POWER ENG(LNC)
65	I8-97494 016-1	BLOCK ASM; SHIFT,5TH & 6TH	1	2010-	A
410	I9-09571 414-0	GASKET; REV SW	1	2007-	AB	ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 OD-2Q
38	I8-97507 673-0	SPRING; DETENT	1	2010-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP>
645	I8-97499 106-0	DETENT ASM	2	2010-	A	(B)
635	I8-97507 671-0	PLUG; DETENT	3	2010-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP>
535	I8-97543 731-0	SPRING; LEVER	1	2007-2009	AB	(B) INNER
535	I8-97543 730-0	SPRING; LEVER	1	2010-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP> (A) OUTER
551	I8-97507 700-0	PIN; SPRING	2	2010-	A	(B)
535	I8-97543 731-0	SPRING; LEVER	1	2010-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP> (B) INNER
645	I8-97499 106-0	DETENT ASM	2	2010-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP> (B)
551	I8-97507 700-0	PIN; SPRING	2	2007-2009	AB	(B)
262	I8-97660 735-0	BOX ASM; SHIFT CONT	1	2011-	B	MADE IN JAPAN TRANSMISSION<8QP> (B)
142	I8-98275 946-0	BOLT; QUAD BOX	4	2010-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP> M8X45 FLANGE
535	I8-97543 731-0	SPRING; LEVER	1	2010-	A	(B) INNER
148	I8-97525 188-0	GASKET; QUAD BOX	1	2007-2009	AB	ALSO INCLUDED IN GASKET SET(M/T).
551	I8-97507 700-0	PIN; SPRING	2	2010-	A	(B)
32	I8-97494 015-1	ARM; SHIFT,1ST8i2ND	1	2007-	A
171	I8-97499 567-0	SWITCH; NEUTRAL	1	2010-	A
645	I8-97499 106-0	DETENT ASM	2	2007-2009	AB	(B)
65	I8-97494 016-1	BLOCK ASM; SHIFT,5TH & 6TH	1	2007-2009	AB
635	I8-97507 671-0	PLUG; DETENT	2	2007-	A	4JJ3 ENG(LNG)
551	I8-97507 700-0	PIN; SPRING	2	2010-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP> (B)
535	I8-97543 731-0	SPRING; LEVER	1	2010-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP> (B) INNER
535	I8-97543 730-0	SPRING; LEVER	1	2010-	A	(A) OUTER
624	I8-98275 459-0	PLATE; INTER LOCK	1	2007-2009	AB
645	I8-98019 536-0	DETENT ASM	4	2007-	A B	(A)
65	I8-97494 016-1	BLOCK ASM; SHIFT,5TH & 6TH	1	2010-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP>
635	I8-97507 671-0	PLUG; DETENT	2	2007-	A	4JJ3 ENG(LNG)
635	I8-97507 671-0	PLUG; DETENT	3	2007-2009	B
274	I8-97507 674-0	COVER; SHAFT.QUAD BOX	1	2010-	A	RZ4E-TCX HI-POWER ENG(LNC)
61	I8-98275 455-0	ARM; SHIFT.3RD 8t 4TH	1	2007-	AB
274	I8-97507 674-0	COVER; SHAFT,QUAD BOX	1	2010-	A	RZ4E-TCX HI-POWER ENG(LNC)
171	I8-97499 567-0	SWITCH; NEUTRAL	1	2007-2009	AB
171	I8-97499 567-0	SWITCH; NEUTRAL	1	2010-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP>
535	I8-97543 730-0	SPRING; LEVER	1	2007-2009	AB	(A) OUTER
645	I8-97499 106-0	DETENT ASM	2	2010-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP> (B)
38	I8-97507 673-0	SPRING; DETENT	1	2007-2009	AB
98	I8-98303 002-0	ROD; SHIFT,TOP & 3RD	1	2007-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP>
98	I8-98303 002-0	ROD; SHIFT,TOP & 3RD	1	2007-	A
274	I8-97507 674-0	COVER; SHAFT,QUAD BOX	1	2007-2009	A	RZ4E-TCX HI-POWER ENG(LNC)
38	I8-97507 673-0	SPRING; DETENT	1	2007-2009	AB
551	I8-97011 596-2	PIN; SPRING	4	2007-	AB	(A) L=32
66	I8-98275 456-1	ARM; SHIFT,5TH 8c 6TH	1	2007-	AB
67	I8-98303 003-0	ROD; SHIFT,5TH 8.6TH	1	2007-	A
624	I8-98275 459-0	PLATE; INTER LOCK	1	2010-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP>
67	I8-98303 003-0	ROD; SHIFT,5TH 8.6TH	1	2007-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP>
38	I8-97507 673-0	SPRING; DETENT	1	2010-	A
535	I8-97543 730-0	SPRING; LEVER	1	2010-	B	EXC. MADE IN JAPAN TRANSMISSION<8QP> (A) OUTER
