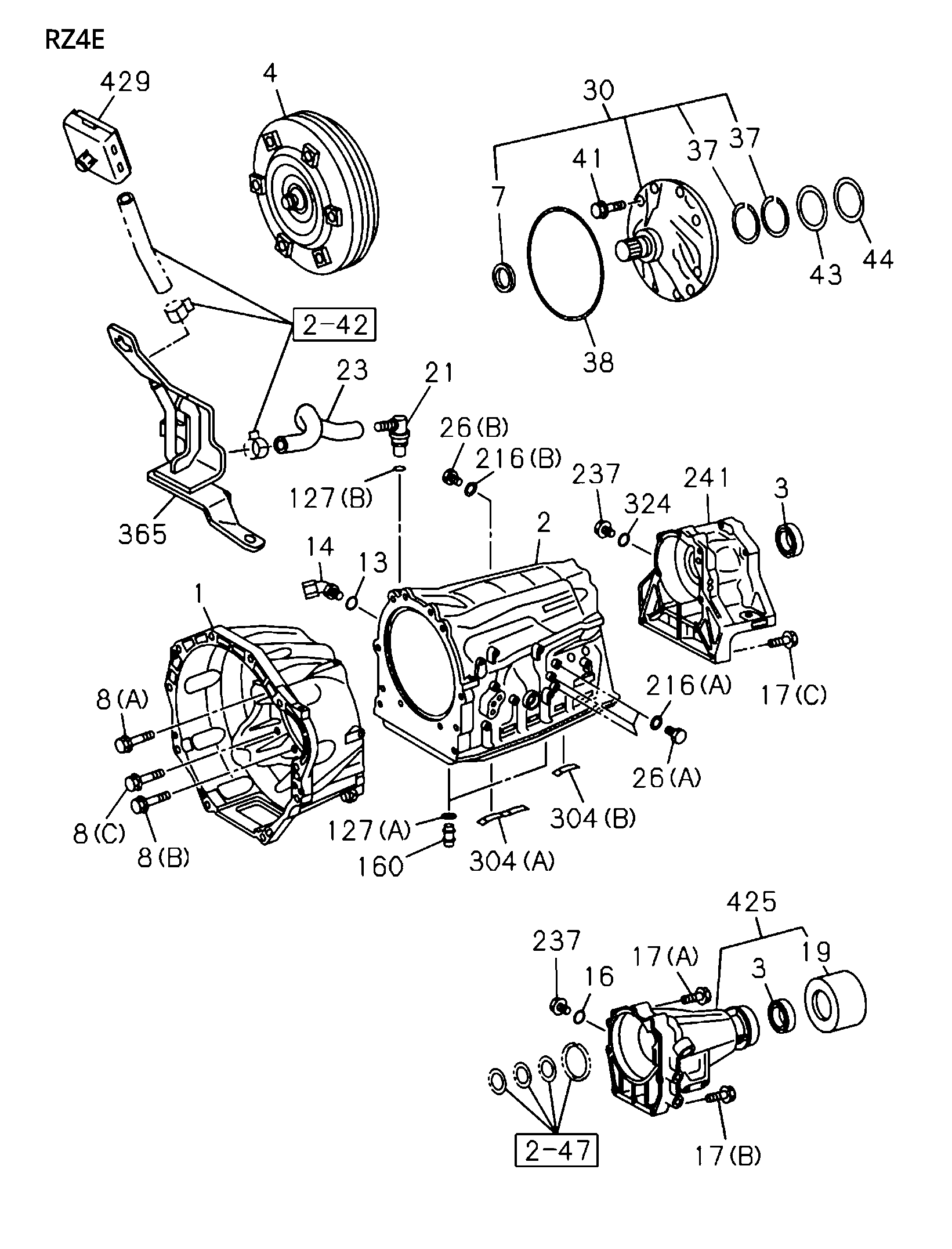

| 3 |
I8-98336 875-0 |
|
SEAL; OIL.RR COVER.A/T |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 3 |
I8-98336 875-0 |
|
SEAL; OIL.RR COVER,A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 38 |
I8-98329 780-0 |
|
GASKET; OIL PUMP,A/T |
1 |
2007-2009 |
|
c |
4X4(TFS***) |
| 30 |
I8-97550 325-0 |
|
PUMP ASM; OIL,A/T |
1 |
2010- |
|
C |
4X4(TFS***) RZ4E-TCX HI-POWER ENG(LNC) IDLE STOP SYSTEM<8BM> |
| 23 |
I0-02857 300-0 |
|
HOSE; BREATHER.A/T |
1 |
2010- |
|
C |
4X4(TFS***) RZ4E-TC ENG(RDZ) L=220 SERVICED BY L=3000 |
| 26 |
I5-34119 002-0 |
|
PLUG; TRANS CASE |
6 |
2010- |
|
C |
4X2(TFB***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) |
| 216 |
I8-94479 724-0 |
|
GASKET; SOLENOID OUTER |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> (B) ID=11.7 |
| 37 |
I8-98189 492-0 |
|
RING; SEAL,OIL PUMP,A/T |
2 |
2007-2009 |
|
C |
4X4(TFS***) ID=63 |
| 23 |
I0-02857 300-0 |
|
HOSE; BREATHER.A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> L=220 SERVICED BY L=3000 |
| 304 |
I8-98342 002-0 |
|
SPRING; LEAF.A/T |
1 |
2010- |
|
C |
4X2(TFB***) 4]]3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) |
| 43 |
I8-98341 720-0 |
|
RACE; THRUST BRG.OIL PUMP,A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 30 |
I8-97550 325-0 |
|
PUMP ASM; OIL.A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 13 |
I8-94479 724-0 |
|
GASKET; OIL COOLER PIPE |
2 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> ID=11.7 |
| 304 |
I8-98342 002-0 |
|
SPRING; LEAF.A/T |
1 |
2010- |
|
C |
41)3 ENG(LNG),RZ4E-TC ENG(RDZ) (B) |
| 216 |
I5-34119 001-0 |
|
GASKET; SOLENOID OUTER |
6 |
2010- |
|
c |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) ID=6 |
| 37 |
I8-98189 492-0 |
|
RING; SEAL,OIL PUMP,A/T |
2 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) ID=63 |
| 304 |
I8-98342 001-0 |
|
SPRING; LEAF,A/T |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) |
| 304 |
I8-98342 001-0 |
|
SPRING; LEAF,A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) (A) |
| 23 |
I0-02857 300-0 |
|
HOSE; BREATHER.A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) L=220 SERVICED BY L=3000 |
| 43 |
I8-98341 720-0 |
|
RACE; THRUST BRG.OIL PUMP.A/T |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 304 |
I8-98342 001-0 |
|
SPRING; LEAF,A/T |
1 |
2010- |
|
c |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> (A) |
| 26 |
I5-34119 002-0 |
|
PLUG; TRANS CASE |
6 |
2007-2009 |
|
C |
4X4(TFS***) (A) |
| 38 |
I8-98329 780-0 |
|
GASKET; OIL PUMP,A/T |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| -2 |
I8-98189 490-0 |
|
PLUG; TRANS CASE |
1 |
2010- |
|
C |
41)3 ENG(LNG),RZ4E-TC ENG(RDZ) (B) M14X12 |
| 2 |
I8-98341 907-0 |
|
CASE ASM; A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 8 |
I8-98189 487-0 |
|
BOLT; HSG TO CASE |
2 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> (C) M12X38 |
| 21 |
I8-98341 990-0 |
|
PLUG; BREATHER.A/T |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 27 |
I8-98341 730-0 |
|
GASKET; CASE TO COVER |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) (B) |
| 216 |
I8-94479 724-0 |
|
GASKET; SOLENOID OUTER |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) ID=11.7 |
| 237 |
I8-98189 760-0 |
|
PLUG; COVER |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 38 |
I8-98329 780-0 |
|
GASKET; OIL PUMP,A/T |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| -2 |
I8-98189 490-0 |
|
PLUG; TRANS CASE |
1 |
2007-2009 |
|
C |
4X4(TFS***) (B) M14X12 |
| 26 |
I5-34119 002-0 |
|
PLUG; TRANS CASE |
6 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) |
| 30 |
I8-97550 325-0 |
|
PUMP ASM; OIL.A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) |
| 8 |
I8-98189 486-0 |
|
BOLT; HSG TO CASE |
2 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> M10X35 |
| 17 |
I8-94479 935-0 |
|
BOLT; REAR COVER TO CASE |
10 |
2010- |
|
c |
4X4(TFS***) RZ4E-TCX HI-POWER ENG(LNC) IDLE STOP SYSTEM<8BM> (C) M10X50 |
| 365 |
I8-98393 846-1 |
|
BRACKET; BREATHER HOSE.A/T |
1 |
2007- |
|
C |
RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) |
| 3 |
I8-98336 875-0 |
|
SEAL; OIL.RR COVER,A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 7 |
I8-98341 992-0 |
|
SEAL; OIL,UP,A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 44 |
I8-98341 744-0 |
|
BEARING; THRUST.OIL PUMP.A/T |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 43 |
I8-98341 720-0 |
|
RACE; THRUST BRG.OIL PUMP.A/T |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 21 |
I8-98341 990-0 |
|
PLUG; BREATHER,A/T |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 44 |
I8-98341 744-0 |
|
BEARING; THRUST.OIL PUMP.A/T |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 127 |
I8-98189 488-0 |
|
GASKET; CASE TO COVER |
2 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> (A) ID=10 |
| 2 |
I8-98341 907-0 |
|
CASE ASM; A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 216 |
I8-94479 724-0 |
|
GASKET; SOLENOID OUTER |
1 |
2007-2009 |
|
C |
4X4(TFS***) (B) ID=11.7 |
| -2 |
I8-98189 490-0 |
|
PLUG; TRANS CASE |
1 |
2010- |
|
C |
4X4(TFS***) 4U3 ENG(LNG) IDLE STOP SYSTEM<8BM> (B) M14X12 |
| 241 |
I8-98342 209-0 |
|
ADAPTER; A/T |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 216 |
I8-94479 724-0 |
|
GASKET; SOLENOID OUTER |
1 |
2010- |
|
C |
41)3 ENG(LNG),RZ4E-TC ENG(RDZ) (B) ID=11.7 |
| 26 |
I5-34119 002-0 |
|
PLUG; TRANS CASE |
6 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> (A) |
| 37 |
I8-98189 492-0 |
|
RING; SEAL,OIL PUMP,A/T |
2 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) ID=63 |
| 1 |
I8-97550 319-0 |
|
HOUSING; CONV.A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) |
| 44 |
I8-98341 744-0 |
|
BEARING; THRUST.OIL PUMP.A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 216 |
I8-94479 724-0 |
|
GASKET; SOLENOID OUTER |
1 |
2010- |
|
C |
4X2(TFB***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) ID=11.7 |
| 160 |
I8-98341 911-0 |
|
GASKET; BRK DRUM.A/T |
2 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 26 |
I5-34119 002-0 |
|
PLUG; TRANS CASE |
6 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) (A) |
| 8 |
I8-98189 486-0 |
|
BOLT; HSG TO CASE |
2 |
2010- |
|
C |
41)3 ENG(LNG),RZ4E-TC ENG(RDZ) (B) M10X35 |
| 44 |
I8-98341 744-0 |
|
BEARING; THRUST.OIL PUMP.A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 16 |
I8-98189 759-0 |
|
GASKET; EXT HSG |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> ID=15.4 |
| 8 |
I8-98189 486-0 |
|
BOLT; HSG TO CASE |
2 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) M10X35 |
| 304 |
I8-98342 001-0 |
|
SPRING; LEAF,A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> (A) |
| 23 |
I0-02857 300-0 |
|
HOSE; BREATHER,A/T |
1 |
2010- |
|
C |
4X4(TFS***) RZ4E-TCX HI-POWER ENG(LNC) IDLE STOP SYSTEM<8BM> L=220 SERVICED BY L=3000 |
| 304 |
I8-98342 002-0 |
|
SPRING; LEAF.A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> (B) |
| 14 |
I8-97550 324-0 |
|
UNION; OIL COOLER RETURN PIPE |
2 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 8 |
I8-98189 487-0 |
|
BOLT; HSG TO CASE |
2 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (O M12X38 |
| 324 |
I8-98189 759-0 |
|
GASKET; PLUG,REAR COVER |
1 |
2007-2009 |
|
C |
4X4(TFS***) ID=15.4 |
| 7 |
I8-98341 992-0 |
|
SEAL; OIL,LIP,A/T |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 8 |
I8-98189 486-0 |
|
BOLT; HSG TO CASE |
2 |
2007-2009 |
|
C |
4X4(TFS***) (B) M10X35 |
| 3 |
I8-98336 875-0 |
|
SEAL; OIL.RR COVER.A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 1 |
I8-97550 319-0 |
|
HOUSING; CONV.A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 17 |
I8-94479 935-0 |
|
BOLT; REAR COVER TO CASE |
10 |
2010- |
|
c |
4X4(TFS***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) (C) M10X50 |
| 27 |
I8-98341 730-0 |
|
GASKET; CASE TO COVER |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> (B) |
| 127 |
I8-98341 730-0 |
|
GASKET; CASE TO COVER |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) |
| 3 |
I8-98336 875-0 |
|
SEAL; OIL.RR COVER.A/T |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 324 |
I8-98189 759-0 |
|
GASKET; PLUG,REAR COVER |
1 |
2010- |
|
C |
4X4(TFS***) RZ4E-TCX HI-POWER ENG(LNC) IDLE STOP SYSTEM<8BM> ID=15.4 |
| 304 |
I8-98342 002-0 |
|
SPRING; LEAF.A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) (B) |
| 8 |
I8-98189 487-0 |
|
BOLT; HSG TO CASE |
2 |
2010- |
|
C |
4X2(TFB***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) M12X38 |
| 21 |
I8-98341 990-0 |
|
PLUG; BREATHER,A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 41 |
I8-94479 749-0 |
|
BOLT; OIL PUMP HSG.A/T |
10 |
2010- |
|
C |
4X4(TFS***) 41)3 ENG(LNG) IDLE STOP SYSTEM<8BM> M8X35 |
| 13 |
I8-94479 724-0 |
|
GASKET; OIL COOLER PIPE |
2 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) ID=11.7 |
| 1 |
I8-97550 319-0 |
|
HOUSING; CONV.A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 216 |
I5-34119 001-0 |
|
GASKET; SOLENOID OUTER |
6 |
2010- |
|
c |
4X4(TFS***) 4j]3 ENG(LNG) IDLE STOP SYSTEM<8BM> ID-6 |
| 38 |
I8-98329 780-0 |
|
GASKET; OIL PUMP.A/T |
1 |
2010- |
|
c |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 21 |
I8-98341 990-0 |
|
PLUG; BREATHER.A/T |
1 |
2007-2009 |
|
c |
4X4(TFS***) |
| 16 |
I8-98189 759-0 |
|
GASKET; EXT HSG |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTÃ? LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) ID=15.4 |
| 8 |
I8-98189 487-0 |
|
BOLT; HSG TO CASE |
2 |
2007-2009 |
|
C |
4X4(TFS***) (C) M12X38 |
| 44 |
I8-98341 744-0 |
|
BEARING; THRUST.OIL PUMP.A/T |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 7 |
I8-98341 992-0 |
|
SEAL; OIL,LIP,A/T |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 304 |
I8-98342 002-0 |
|
SPRING; LEAF,A/T |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> (B) |
| 237 |
I8-98189 760-0 |
|
PLUG; COVER |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 216 |
I5-34119 001-0 |
|
GASKET; SOLENOID OUTER |
6 |
2010- |
|
c |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> ID=6 |
| 30 |
I8-97550 325-0 |
|
PUMP ASM; OIL.A/T |
1 |
2010- |
|
c |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 1 |
I8-97550 319-0 |
|
HOUSING; CONV.A/T |
1 |
2010- |
|
C |
4X4(TFS***) RZ4E-TCX HI-POWER ENG(LNC) IDLE STOP SYSTEM<8BM> |
| 160 |
I8-98341 911-0 |
|
GASKET; BRK DRUM.A/T |
2 |
2010- |
|
c |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 4 |
I8-97550 318-0 |
|
CONVERTER ASM; TORQUE,A/T |
1 |
2010- |
|
C |
4X4(TFS***) RZ4E-TC ENG(RDZ) |
| 324 |
I8-98189 759-0 |
|
GASKET; PLUG, REAR COVER |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) ID=15.4 |
| 14 |
I8-97550 324-0 |
|
UNION; OIL COOLER RETURN PIPE |
2 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 7 |
I8-98341 992-0 |
|
SEAL; OIL,LIP,A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 127 |
I8-98189 488-0 |
|
GASKET; CASE TO COVER |
2 |
2007-2009 |
|
C |
4X4(TFS***) (A) ID=10 |
| 1 |
I8-97550 319-0 |
|
HOUSING; CONV.A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 43 |
I8-98341 720-0 |
|
RACE; THRUST BRG.OIL PUMP,A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 304 |
I8-98342 001-0 |
|
SPRING; LEAF,A/T |
1 |
2010- |
|
c |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) (A) |
| 37 |
I8-98189 492-0 |
|
RING; SEAL.OIL PUMP.A/T |
2 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> ID=63 |
| 4 |
I8-97550 318-0 |
|
CONVERTER ASM; TORQUE,A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 237 |
I8-98189 760-0 |
|
PLUG; COVER |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP 5YSTEM<8BM> |
| 41 |
I8-94479 749-0 |
|
BOLT; OIL PUMP HSG.A/T |
10 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) M8X35 |
| -2 |
I8-98189 490-0 |
|
PLUG; TRANS CASE |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> (B) M14X12 |
| 429 |
I8-98161 881-0 |
|
CLIP; BREATHER HOSE |
1 |
2007- |
|
C |
|
| 8 |
I8-98189 486-0 |
|
BOLT; HSG TO CASE |
2 |
2010- |
|
C |
4X2 (TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) M10X35 |
| 26 |
I5-34119 002-0 |
|
PLUG; TRANS CASE |
6 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> (A) |
| 216 |
I5-34119 001-0 |
|
GASKET; SOLENOID OUTER |
6 |
2007-2009 |
|
c |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) ID=6 |
| 216 |
I8-94479 724-0 |
|
GASKET; SOLENOID OUTER |
1 |
2010- |
|
C |
4X4(TFS***) 41)3 ENG(LNG) IDLE STOP SYSTEM<8BM> (B) ID=11.7 |
| 127 |
I8-98189 488-0 |
|
GASKET; CASE TO COVER |
2 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) ID=10 |
| 38 |
I8-98329 780-0 |
|
GASKET; OIL PUMP.A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 13 |
I8-94479 724-0 |
|
GASKET; OIL COOLER PIPE |
2 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) ID=11.7 |
| 4 |
I8-97550 318-0 |
|
CONVERTER ASM; TORQUE,A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) |
| 2 |
I8-98341 907-0 |
|
CASE ASM; A/T |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 216 |
I5-34119 001-0 |
|
GASKET; SOLENOID OUTER |
6 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) (A) ID=6 |
| 14 |
I8-97550 324-0 |
|
UNION; OIL COOLER RETURN PIPE |
2 |
2007-2009 |
|
C |
4X4(TFS***) |
| 2 |
I8-98341 907-0 |
|
CASE ASM; A/T |
1 |
2010- |
|
C |
4X4(TFS***) 41)3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| -12 |
I8-98341 730-0 |
|
GASKET; CASE TO COVER |
1 |
2007-2009 |
|
C |
4X4(TFS***) (B) |
| 37 |
I8-98189 492-0 |
|
RING; SEAL,OIL PUMP,A/T |
2 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) ID=63 |
| 23 |
I0-02857 300-0 |
|
HOSE; BREATHER.A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) L=220 SERVICED BY L=3000 |
| 13 |
I8-94479 724-0 |
|
GASKET; OIL COOLER PIPE |
2 |
2007-2009 |
|
C |
4X4(TFS***) ID=11.7 |
| 4 |
I8-97550 318-0 |
|
CONVERTER ASM; TORQUE.A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 44 |
I8-98341 744-0 |
|
BEARING; THRUST,OIL PUMP.A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 4 |
I8-97550 318-0 |
|
CONVERTER ASM; TORQUE,A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 41 |
I8-94479 749-0 |
|
BOLT; OIL PUMP HSG.A/T |
10 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) M8X35 |
| 304 |
I8-98342 001-0 |
|
SPRING; LEAF,A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) |
| 127 |
I8-98341 730-0 |
|
GASKET; CASE TO COVER |
1 |
2010- |
|
C |
4X2(TFB***) 4])3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) |
| 127 |
I8-98189 488-0 |
|
GASKET; CASE TO COVER |
2 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> (A) ID=10 |
| -12 |
I8-98189 488-0 |
|
GASKET; CASE TO COVER |
2 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) ID=10 |
| 8 |
I8-98189 487-0 |
|
BOLT; HSG TO CASE |
2 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> (C) M12X38 |
| 237 |
I8-98189 760-0 |
|
PLUG; COVER |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 13 |
I8-94479 724-0 |
|
GASKET; OIL COOLER PIPE |
2 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) ID=11.7 |
| 41 |
I8-94479 749-0 |
|
BOLT; OIL PUMP HSG.A/T |
10 |
2007-2009 |
|
C |
4X4(TFS***) M8X35 |
| 160 |
I8-98341 911-0 |
|
GASKET; BRK DRUM.A/T |
2 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 41 |
I8-94479 749-0 |
|
BOLT; OIL PUMP HSG.A/T |
10 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> M8X35 |
| 304 |
I8-98342 002-0 |
|
SPRING; LEAF,A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) |
| 41 |
I8-94479 749-0 |
|
BOLT; OIL PUMP HSG.A/T |
10 |
2010- |
|
C |
4X2(TFB***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) M8X35 |
| 127 |
I8-98189 488-0 |
|
GASKET; CASE TO COVER |
2 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) (A) ID=10 |
| 8 |
I8-98189 486-0 |
|
BOLT; HSG TO CASE |
2 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> M10X35 |
| 21 |
I8-98341 990-0 |
|
PLUG; BREATHER,A/T |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 16 |
I8-98189 759-0 |
|
GASKET; EXT HSG |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) ID=15.4 |
| 7 |
I8-98341 992-0 |
|
SEAL; OIL,LIP,A/T |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 7 |
I8-98341 992-0 |
|
SEAL; OIL,LIP,A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 17 |
I8-94479 935-0 |
|
BOLT; REAR COVER TO CASE |
10 |
2007-2009 |
|
c |
4X4(TFS***) (C) M10X50 |
| 160 |
I8-98341 911-0 |
|
GASKET; BRK DRUM.A/T |
2 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 216 |
I5-34119 001-0 |
|
GASKET; SOLENOID OUTER |
6 |
2007-2009 |
|
c |
4X4(TFS***) (A) ID=6 |
| 23 |
I0-02857 300-0 |
|
HOSE; BREATHER.A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) L=220 SERVICED BY L=3000 |
| 13 |
I8-94479 724-0 |
|
GASKET; OIL COOLER PIPE |
2 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> ID=11.7 |
| 2 |
I8-98341 907-0 |
|
CASE ASM; A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 14 |
I8-97550 324-0 |
|
UNION; OIL COOLER RETURN PIPE |
2 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 30 |
I8-97550 325-0 |
|
PUMP ASM; OIL.A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 237 |
I8-98189 760-0 |
|
PLUG; COVER |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 160 |
I8-98341 911-0 |
|
GASKET; BRK DRUM.A/T |
2 |
2007-2009 |
|
C |
4X4(TFS***) |
| 21 |
I8-98341 990-0 |
|
PLUG; BREATHER.A/T |
1 |
2007-2009 |
|
c |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 30 |
I8-97550 325-0 |
|
PUMP ASM; OILA/T |
1 |
2010- |
|
C |
4X4(TFS***) RZ4E-TC ENG(RDZ) |
| 38 |
I8-98329 780-0 |
|
GASKET; OIL PUMP.A/T |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 160 |
I8-98341 911-0 |
|
GASKET; BRK DRUM.A/T |
2 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 1 |
I8-97550 319-0 |
|
HOUSING; CONV.A/T |
1 |
2010- |
|
C |
4X4(TFS***) RZ4E-TC ENG(RDZ) |
| 241 |
I8-98342 209-0 |
|
ADAPTER; A/T |
1 |
2010- |
|
C |
4X4(TFS***) RZ4E-TCX HI-POWER ENG(LNC) IDLE STOP SYSTEM<8BM> |
| -2 |
I8-98189 490-0 |
|
PLUG; TRANS CASE |
1 |
2010- |
|
C |
4X2(TFB***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) M14X12 |
| 14 |
I8-97550 324-0 |
|
UNION; OIL COOLER RETURN PIPE |
2 |
2010- |
|
C |
4X4(TFS***) 41)3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 3 |
I8-98336 875-0 |
|
SEAL; OIL.RR COVER.A/T |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 2 |
I8-98341 907-0 |
|
CASE ASM; A/T |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 127 |
I8-98341 730-0 |
|
GASKET; CASE TO COVER |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> (B) |
| 43 |
I8-98341 720-0 |
|
RACE; THRUST BRG.OIL PUMP.A/T |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 4 |
I8-97550 318-0 |
|
CONVERTER ASM; TORQUE,A/T |
1 |
2010- |
|
C |
4X4(TFS***) RZ4E-TCX HI-POWER ENG(LNC) IDLE STOP SYSTEM<8BM> |
| 37 |
I8-98189 492-0 |
|
RING; SEAL,OIL PUMP,A/T |
2 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> ID=63 |
| 26 |
I8-98189 490-0 |
|
PLUG; TRANS CASE |
1 |
2007-2009 |
|
c |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) M14X12 |
| 241 |
I8-98342 209-0 |
|
ADAPTER; A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 14 |
I8-97550 324-0 |
|
UNION; OIL COOLER RETURN PIPE |
2 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 237 |
I8-98189 760-0 |
|
PLUG; COVER |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 43 |
I8-98341 720-0 |
|
RACE; THRUST BRG.OIL PUMP,A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
