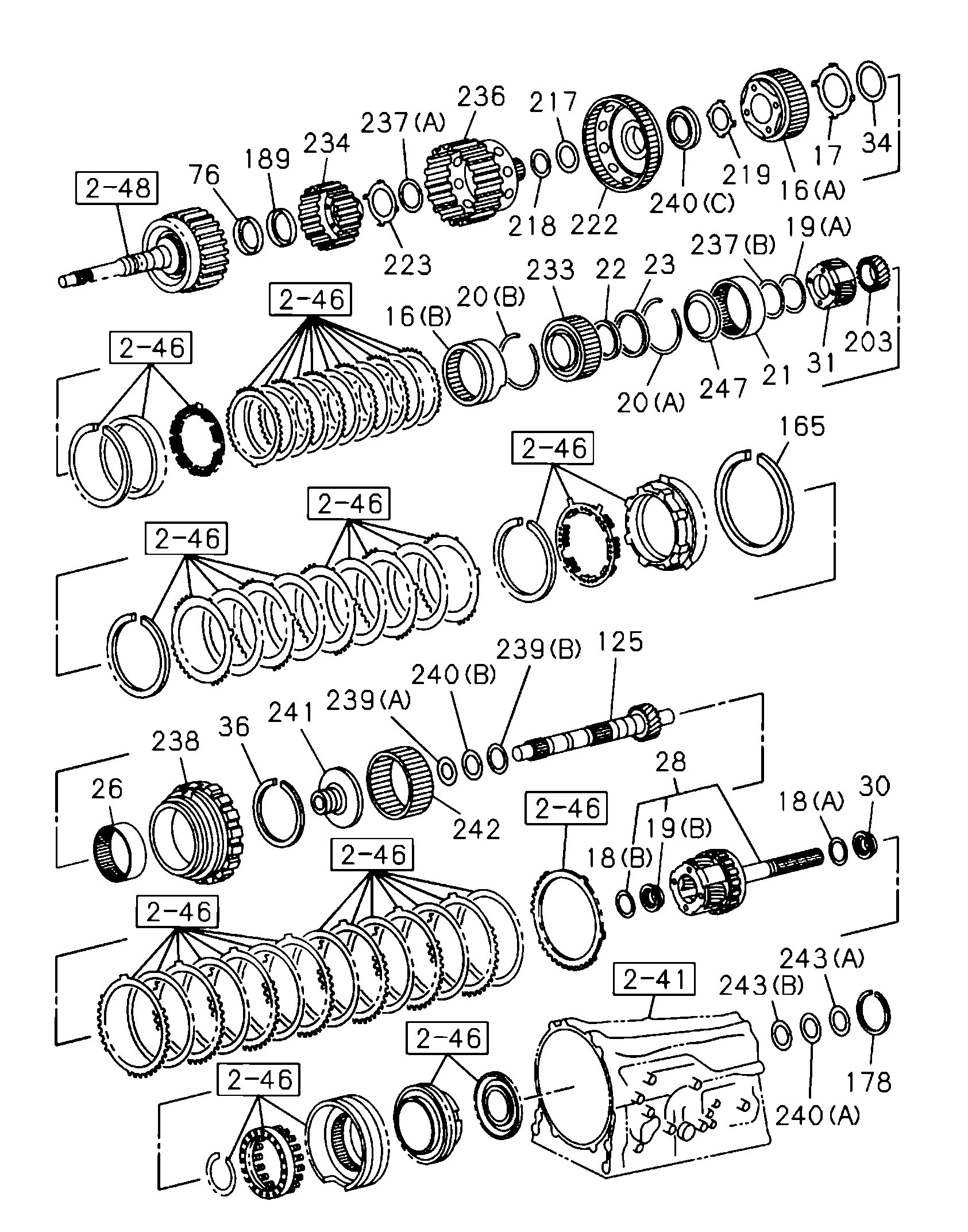

| 26 |
I8-98189 701-0 |
|
RACE; ONEWAY CLU.A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 222 |
I8-98342 025-0 |
|
DRUM; LOW CLUTCH |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 189 |
I8-98341 722-0 |
|
RACE; INNER,LOW CLU |
1 |
2010- |
|
C |
41)3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 76 |
I8-98189 673-0 |
|
BEARING; THRUST.CARRIER |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 31 |
I8-98341 916-0 |
|
GEAR ASM; INTERNAL,PLAN ETARYA/T |
1 |
2007-2009 |
|
c |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 26 |
I8-98189 701-0 |
|
RACE; ONEWAY CLU.A/T |
1 |
2010- |
|
C |
4X4(TFS***) 41)3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 236 |
I8-98341 902-0 |
|
HUB; CLUTCH |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 240 |
I8-98189 705-0 |
|
BEARING; THRUST NEEDLE ROLLER |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> (B) |
| 34 |
I8-98341 743-0 |
|
BEARING; THRUST,FRT PLANETARY SHAFT.A/T |
1 |
2010- |
|
c |
4X4(TFS***) 41)3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 23 |
I8-98341 743-0 |
|
BEARING; THRUST,PLANETARY SHAFT,A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANH LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 223 |
I8-98189 675-0 |
|
RACE; BRG,CARRIER |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 247 |
I8-98341 691-0 |
|
FLANGE; MIDDLE PLANETARY |
1 |
2010- |
|
c |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 217 |
I8-98341 723-0 |
|
RACE; THRUST BRG.INTERNAL GEAR |
1 |
2010- |
|
C |
41)3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 22 |
I8-98341 726-0 |
|
RACE; THRUST BRG.FRT PLANETARY SHAFT, A/T |
1 |
2010- |
|
c |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 239 |
I8-98189 703-0 |
|
RACE; INTERMEDIATE SHAFT |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> (A) |
| 242 |
I8-98341 922-0 |
|
GEAR; RR PLANETARY |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 242 |
I8-98341 922-0 |
|
GEAR; RR PLANETARY |
1 |
2010- |
|
c |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 20 |
I8-98341 879-0 |
|
RING; RET.PLANETARY GEARA/T |
1 |
2010- |
|
c |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) (A) |
| 239 |
I8-98189 704-0 |
|
RACE; INTERMEDIATE SHAFT |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) |
| 17 |
I8-98341 725-0 |
|
RACE; THRUST BRG.PLANETARY SHAFT,A/T |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 217 |
I8-98341 723-0 |
|
RACE; THRUST BRG,INTERNAL GEAR |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 236 |
I8-98341 902-0 |
|
HUB; CLUTCH |
1 |
2010- |
|
C |
4X2(TFB***) 4L)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 165 |
I8-98189 702-0 |
|
RING; RET |
1 |
2010- |
|
c |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> ID=151 |
| 240 |
I8-98341 741-0 |
|
BEARING; THRUST NEEDLE ROLLER |
1 |
2010- |
|
c |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) (C) |
| 241 |
I8-98341 687-0 |
|
FLANGE; RR PLANETARY |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 238 |
I8-98329 782-0 |
|
CLUTCH ASM; 1WAY |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 237 |
I8-98189 693-0 |
|
BEARING; THRUST |
1 |
2007-2009 |
|
C |
4X2 (TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) |
| 20 |
I8-98341 879-0 |
|
RING; RET.PLANETARY GEAR.A/T |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> (A) |
| 18 |
I8-98189 712-0 |
|
BEARING; THRUST,RR PLANETARY GEAR,A/T |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) |
| 31 |
I8-98341 916-0 |
|
GEAR ASM; INTERNAL,PLANETARY,A/T |
1 |
2010- |
|
C |
41)3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 16 |
I8-98341 918-0 |
|
GEAR ASM; FRT PLANETARY,A/T |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) (B) |
| 239 |
I8-98189 704-0 |
|
RACE; INTERMEDIATE SHAFT |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) |
| 237 |
I8-98189 693-0 |
|
BEARING; THRUST |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> (B) |
| 242 |
I8-98341 922-0 |
|
GEAR; RR PLANETARY |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 34 |
I8-98341 743-0 |
|
BEARING; THRUST.FRT PLANETARY SHAFT.A/T |
1 |
2010- |
|
c |
41)3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 236 |
I8-98341 902-0 |
|
HUB; CLUTCH |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 125 |
I8-98341 994-0 |
|
SHAFT ASM; INTERMEDIATE,PLANETARY GEAR |
1 |
2010- |
|
c |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 34 |
I8-98341 743-0 |
|
BEARING; THRUST,FRT PLANETARY SHAFT.A/T |
1 |
2010- |
|
c |
4X2(TFB***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 22 |
I8-98341 726-0 |
|
RACE; THRUST BRG.FRT PLANETARY SHAFT, A/T |
1 |
2007-2009 |
|
c |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 31 |
I8-98341 916-0 |
|
GEAR ASM; INTERNAL,PLANETARY,A/T |
1 |
2010- |
|
C |
4X2(TFB***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 28 |
I8-98342 207-0 |
|
GEAR ASM; RR PLANETARY,A/T |
1 |
2010- |
|
C |
4X4(TFS***) RZ4E-TCX HI-POWER ENG(LNC) IDLE STOP SYSTEM<8BM> |
| 21 |
I8-98341 919-0 |
|
GEAR; PLANETARY.INTERNAL FRT.A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 222 |
I8-98342 025-0 |
|
DRUM; LOW CLUTCH |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 217 |
I8-98341 723-0 |
|
RACE; THRUST BRG,INTERNAL GEAR |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 17 |
I8-98341 725-0 |
|
RACE; THRUST BRG.PLANETARY SHAFT.A/T |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 203 |
I8-98341 921-0 |
|
GEAR; SUN |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 240 |
I8-98341 741-0 |
|
BEARING; THRUST NEEDLE ROLLER |
1 |
2010- |
|
c |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> (C) |
| 165 |
I8-98189 702-0 |
|
RING; RET |
1 |
2007-2009 |
|
c |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) ID=151 |
| 36 |
I8-98189 710-0 |
|
RING; SEALING.FRT PLANETARY SHAFT.A/T |
1 |
2010- |
|
C |
4X2(TFB***) 4L)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) T=1.4 |
| 239 |
I8-98189 703-0 |
|
RACE; INTERMEDIATE SHAFT |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) |
| 20 |
I8-98341 880-0 |
|
RING; RET,PLANETARY GEAR,A/T |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) |
| 219 |
I8-98341 724-0 |
|
RACE; BRG.LOW CLUTCH |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 30 |
I8-98189 711-0 |
|
RACE; THRUST BRG.RR PLANETARY FLANGE |
1 |
2010- |
|
c |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 241 |
I8-98341 687-0 |
|
FLANGE; RR PLANETARY |
1 |
2010- |
|
C |
4JJ3 ENG[LNG),RZ4E-TC ENG(RDZ) |
| 19 |
I8-98189 692-0 |
|
RACE; THRUST BRG.PLANETARY SHAFT.A/T |
1 |
2010- |
|
C |
4X2(TFB***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) |
| 30 |
I8-98189 711-0 |
|
RACE; THRUST BRG.RR PLANETARY FLANGE |
1 |
2007-2009 |
|
c |
4X4(TFS***) |
| 30 |
I8-98189 711-0 |
|
RACE; THRUST BRG.RR PLANETARY FLANGE |
1 |
2010- |
|
c |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 239 |
I8-98189 703-0 |
|
RACE; INTERMEDIATE SHAFT |
1 |
2010- |
|
c |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> (A) |
| 247 |
I8-98341 691-0 |
|
FLANGE; MIDDLE PLANETARY |
1 |
2010- |
|
c |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 219 |
I8-98341 724-0 |
|
RACE; BRG.LOW CLUTCH |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 219 |
I8-98341 724-0 |
|
RACE; BRG.LOW CLUTCH |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 20 |
I8-98341 880-0 |
|
RING; RET.PLANETARY GEAR.A/T |
1 |
2007-2009 |
|
c |
4X4(TFS***) (B) |
| 165 |
I8-98189 702-0 |
|
RING; RET |
1 |
2010- |
|
c |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> ID=151 |
| 237 |
I8-98189 676-0 |
|
BEARING; THRUST |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) (A) |
| 19 |
I8-98189 692-0 |
|
RACE; THRUST BRG,PLANETARY SHAFT,A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) |
| 219 |
I8-98341 724-0 |
|
RACE; BRG.LOW CLUTCH |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 203 |
I8-98341 921-0 |
|
GEAR; SUN |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 222 |
I8-98342 025-0 |
|
DRUM; LOW CLUTCH |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 30 |
I8-98189 711-0 |
|
RACE; THRUST BRG,RR PLANETARY FLANGE |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 219 |
I8-98341 724-0 |
|
RACE; BRG.LOW CLUTCH |
1 |
2010- |
|
c |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 242 |
I8-98341 922-0 |
|
GEAR; RR PLANETARY |
1 |
2010- |
|
c |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 26 |
I8-98189 701-0 |
|
RACE; ONEWAY CLU.A/T |
1 |
2010- |
|
C |
4X2(TFB***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 234 |
I8-98341 903-0 |
|
HUB; FORWARD CLUTCH |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 233 |
I8-98341 685-0 |
|
FLANGE; FR PLANETARY |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 241 |
I8-98341 687-0 |
|
FLANGE; RR PLANETARY |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 239 |
I8-98189 704-0 |
|
RACE; INTERMEDIATE SHAFT |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> (B) |
| 233 |
I8-98341 685-0 |
|
FLANGE; FR PLANETARY |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 239 |
I8-98189 704-0 |
|
RACE; INTERMEDIATE SHAFT |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) (B) |
| 247 |
I8-98341 691-0 |
|
FLANGE; MIDDLE PLANETARY |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 19 |
I8-98341 727-0 |
|
RACE; THRUST BRG.PLANETARY SHAFT,A/T |
1 |
2010- |
|
c |
4X2(TFB***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) |
| 203 |
I8-98341 921-0 |
|
GEAR; SUN |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 20 |
I8-98341 880-0 |
|
RING; RET.PLANETARY GEAR,A/T |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) (B) |
| 36 |
I8-98189 710-0 |
|
RING; SEALING,FRT PLANETARY SHAFT,A/T |
1 |
2007-2009 |
|
c |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) T-1.4 |
| 222 |
I8-98342 025-0 |
|
DRUM; LOW CLUTCH |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 219 |
I8-98341 724-0 |
|
RACE; BRG.LOW CLUTCH |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 237 |
I8-98189 693-0 |
|
BEARING; THRUST |
1 |
2007-2009 |
|
C |
4X4(TFS***) (B) |
| 217 |
I8-98341 723-0 |
|
RACE; THRUST BRG,INTERNAL GEAR |
1 |
2010- |
|
C |
4X2(TFB***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 237 |
I8-98189 693-0 |
|
BEARING; THRUST |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> (B) |
| 236 |
I8-98341 902-0 |
|
HUB; CLUTCH |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 21 |
I8-98341 919-0 |
|
GEAR; PLANETARY.INTERNAL FRT.A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 16 |
I8-98341 915-0 |
|
GEAR ASM; FRT PLANETARY,A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) |
| 238 |
I8-98329 782-0 |
|
CLUTCH ASM; 1WAY |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 217 |
I8-98341 723-0 |
|
RACE; THRUST BRG,INTERNAL GEAR |
1 |
2010- |
|
C |
4X4(TFS***) 41)3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 19 |
I8-98341 727-0 |
|
RACE; THRUST BRG.PLANETARY SHAFT,A/T |
1 |
2010- |
|
c |
41)3 ENG(LNG),RZ4E-TC ENG(RDZ) (B) |
| 218 |
I8-98341 742-0 |
|
BEARING; THRUST.INTERNAL GEAR |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 203 |
I8-98341 921-0 |
|
GEAR; SUN |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 22 |
I8-98341 726-0 |
|
RACE; THRUST BRG.FRT PLANETARY SHAFT, A/T |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANH LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 236 |
I8-98341 902-0 |
|
HUB; CLUTCH |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 242 |
I8-98341 922-0 |
|
GEAR; RR PLANETARY |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 240 |
I8-98189 705-0 |
|
BEARING; THRUST NEEDLE ROLLER |
1 |
2010- |
|
c |
4X2(TFB***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) |
| 241 |
I8-98341 687-0 |
|
FLANGE; RR PLANETARY |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 218 |
I8-98341 742-0 |
|
BEARING; THRUST.INTERNAL GEAR |
1 |
2010- |
|
C |
41)3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 18 |
I8-98341 739-0 |
|
BEARING; THRUST.RR PLANETARY GEAR.A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) |
| 241 |
I8-98341 687-0 |
|
FLANGE; RR PLANETARY |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 238 |
I8-98329 782-0 |
|
CLUTCH ASM; 1WAY |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 234 |
I8-98341 903-0 |
|
HUB; FORWARD CLUTCH |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE 5USPENSION(7YC) |
| 34 |
I8-98341 743-0 |
|
BEARING; THRUST,FRT PLANETARY SHAFT,A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 26 |
I8-98189 701-0 |
|
RACE; ONEWAY CLU.A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 20 |
I8-98341 880-0 |
|
RING; RET.PLANETARY GEAR.A/T |
1 |
2010- |
|
c |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> (B) |
| 240 |
I8-98189 705-0 |
|
BEARING; THRUST NEEDLE ROLLER |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) |
| 23 |
I8-98341 743-0 |
|
BEARING; THRUST,PLANETARY SHAFT,A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 237 |
I8-98189 693-0 |
|
BEARING; THRUST |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) |
| 125 |
I8-98341 994-0 |
|
SHAFT ASM; INTERMEDIATE,PLANETARY GEAR |
1 |
2010- |
|
c |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 36 |
I8-98189 710-0 |
|
RING; SEALING,FRT PLANETARY SHAFT,A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> T=1.4 |
| 26 |
I8-98189 701-0 |
|
RACE; ONEWAY CLU.A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 18 |
I8-98189 712-0 |
|
BEARING; THRUST.RR PLANETARY GEAR.A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> (A) |
| 189 |
I8-98341 722-0 |
|
RACE; INNER.LOWCLU |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 36 |
I8-98189 710-0 |
|
RING; SEALING,FRT PLANETARY SHAFT,A/T |
1 |
2010- |
|
C |
4X4(TFS***) 4U3 ENG(LNG) IDLE STOP SYSTEM<8BM> T=1.4 |
| 16 |
I8-98341 918-0 |
|
GEAR ASM; FRT PLANETARY,A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) (B) |
| 76 |
I8-98189 673-0 |
|
BEARING; THRUST.CARRIER |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG[LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 219 |
I8-98341 724-0 |
|
RACE; BRG.LOW CLUTCH |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 17 |
I8-98341 725-0 |
|
RACE; THRUST BRG.PLANETARY SHAFT,A/T |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 16 |
I8-98341 915-0 |
|
GEAR ASM; FRT PLANETARY,A/T |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) (A) |
| 16 |
I8-98341 918-0 |
|
GEAR ASM; FRT PLANETARY,A/T |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) |
| 19 |
I8-98189 692-0 |
|
RACE; THRUST BRG,PLANETARY SHAFT,A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> (A) |
| 222 |
I8-98342 025-0 |
|
DRUM; LOW CLUTCH |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 31 |
I8-98341 916-0 |
|
GEAR ASM; INTERNAL,PLANETARY,A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 247 |
I8-98341 691-0 |
|
FLANGE; MIDDLE PLANETARY |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 218 |
I8-98341 742-0 |
|
BEARING; THRUST.INTERNAL GEAR |
1 |
2010- |
|
C |
4X2(TFB***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 76 |
I8-98189 673-0 |
|
BEARING; THRUST.CARRIER |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 234 |
I8-98341 903-0 |
|
HUB; FORWARD CLUTCH |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 18 |
I8-98341 739-0 |
|
BEARING; THRUST.RR PLANETARY GEAR.A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> (B) |
| 218 |
I8-98341 742-0 |
|
BEARING; THRUST.INTERNAL GEAR |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 19 |
I8-98341 727-0 |
|
RACE; THRUST BRG.PLANETARY SHAFT,A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) |
| 223 |
I8-98189 675-0 |
|
RACE; BRG.CARRIER |
1 |
2007-2009 |
|
c |
4X4(TFS***) |
| 16 |
I8-98341 915-0 |
|
GEAR ASM; FRT PLANETARY,A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> (A) |
| 21 |
I8-98341 919-0 |
|
GEAR; PLANETARY.INTERNAL FRT.A/T |
1 |
2010- |
|
c |
4])3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 16 |
I8-98341 918-0 |
|
GEAR ASM; FRT PLANETARY.A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> (B) |
| 16 |
I8-98341 915-0 |
|
GEAR ASM; FRT PLANETARY.A/T |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) |
| 203 |
I8-98341 921-0 |
|
GEAR; SUN |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 240 |
I8-98341 741-0 |
|
BEARING; THRUST NEEDLE ROLLER |
1 |
2010- |
|
c |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) |
| 247 |
I8-98341 691-0 |
|
FLANGE; MIDDLE PLANETARY |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANT1 LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 237 |
I8-98189 676-0 |
|
BEARING; THRUST |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP 5YSTEM<8BM> (A) |
| 237 |
I8-98189 693-0 |
|
BEARING; THRUST |
1 |
2010- |
|
c |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) (B) |
| 189 |
I8-98341 722-0 |
|
RACE; INNER.LOW CLU |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 17 |
I8-98341 725-0 |
|
RACE; THRUST BRG.PLANETARY SHAFT,A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 19 |
I8-98189 692-0 |
|
RACE; THRUST BRG.PLANETARY SHAFT.A/T |
1 |
2010- |
|
C |
41)3 ENG(LNG),RZ4E-TC ENG(RDZ) (A) |
| 236 |
I8-98341 902-0 |
|
HUB; CLUTCH |
1 |
2010- |
|
C |
4X2 (TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 222 |
I8-98342 025-0 |
|
DRUM; LOW CLUTCH |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 165 |
I8-98189 702-0 |
|
RING; RET |
1 |
2010- |
|
c |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) ID=151 |
| 23 |
I8-98341 743-0 |
|
BEARING; THRUST,PLANETARY SHAFT,A/T |
1 |
2010- |
|
C |
41)3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 18 |
I8-98189 712-0 |
|
BEARING; THRUST,RR PLANETARY GEAR.A/T |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> (A) |
| 218 |
I8-98341 742-0 |
|
BEARING; THRUST,INTERNAL GEAR |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 19 |
I8-98341 727-0 |
|
RACE; THRUST BRG.PLANETARY SHAFT,A/T |
1 |
2010- |
|
c |
4X4(TFS***) 41)3 ENG(LNG) IDLE STOP SYSTEM<8BM> (B) |
| 20 |
I8-98341 880-0 |
|
RING; RET.PLANETARY GEAR.A/T |
1 |
2010- |
|
c |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> (B) |
| 239 |
I8-98189 703-0 |
|
RACE; INTERMEDIATE SHAFT |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) (A) |
| 234 |
I8-98341 903-0 |
|
HUB; FORWARD CLUTCH |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP 5YSTEM<8BM> |
| 16 |
I8-98341 918-0 |
|
GEAR ASM; FRT PLANETARY,A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) |
| 125 |
I8-98341 994-0 |
|
SHAFT ASM; INTERMEDIATE,PLANETARY GEAR |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 219 |
I8-98341 724-0 |
|
RACE; BRG.LOW CLUTCH |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG[LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 18 |
I8-98341 739-0 |
|
BEARING; THRUST.RR PLANETARY GEAR.A/T |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) |
| 217 |
I8-98341 723-0 |
|
RACE; THRUST BRG,INTERNAL GEAR |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 30 |
I8-98189 711-0 |
|
RACE; THRUST BRG.RR PLANETARY FLANGE |
1 |
2010- |
|
c |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 18 |
I8-98341 739-0 |
|
BEARING; THRUST.RR PLANETARY GEAR.A/T |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) (B) |
| 76 |
I8-98189 673-0 |
|
BEARING; THRUST.CARRIER |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 222 |
I8-98342 025-0 |
|
DRUM; LOW CLUTCH |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 21 |
I8-98341 919-0 |
|
GEAR; PLANETARY.INTERNAL FRT.A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 233 |
I8-98341 685-0 |
|
FLANGE; FR PLANETARY |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 19 |
I8-98341 727-0 |
|
RACE; THRUST BRG.PLANETARY SHAFT.A/T |
1 |
2010- |
|
c |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> (B) |
| 219 |
I8-98341 724-0 |
|
RACE; BRG.LOW CLUTCH |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 18 |
I8-98189 712-0 |
|
BEARING; THRUST,RR PLANETARY GEAR,A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) |
| 233 |
I8-98341 685-0 |
|
FLANGE; FR PLANETARY |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 234 |
I8-98341 903-0 |
|
HUB; FORWARD CLUTCH |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 125 |
I8-98341 994-0 |
|
SHAFT ASM; INTERMEDIATE,PLANETARY GEAR |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 21 |
I8-98341 919-0 |
|
GEAR; PLANETARY.INTERNAL FRT.A/T |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 36 |
I8-98189 710-0 |
|
RING; SEALING.FRT PLANETARY SHAFT.A/T |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) T=1.4 |
| 23 |
I8-98341 743-0 |
|
BEARING; THRUST,PLANETARY SHAFT,A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 239 |
I8-98189 704-0 |
|
RACE; INTERMEDIATE SHAFT |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> (B) |
| 16 |
I8-98341 915-0 |
|
GEAR ASM; FRT PLANETARY,A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) (A) |
| 165 |
I8-98189 702-0 |
|
RING; RET |
1 |
2007-2009 |
|
c |
4X4(TFS***) ID=151 |
| 239 |
I8-98189 703-0 |
|
RACE; INTERMEDIATE SHAFT |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) |
| 18 |
I8-98189 712-0 |
|
BEARING; THRUST,RR PLANETARY GEAR,A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) (A) |
| 18 |
I8-98341 739-0 |
|
BEARING; THRUST.RR PLANETARY GEAR.A/T |
1 |
2010- |
|
C |
4X4(TFS***) 4U3 ENG(LNG) IDLE STOP SYSTEM<8BM> (B) |
| 203 |
I8-98341 921-0 |
|
GEAR; SUN |
1 |
2010- |
|
C |
41)3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 31 |
I8-98341 916-0 |
|
GEAR ASM; INTERNAL.PLAN ETARY,A/T |
1 |
2010- |
|
C |
4X4(TFS***) 41)3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 17 |
I8-98341 725-0 |
|
RACE; THRUST BRG.PLANETARY SHAFT.A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 241 |
I8-98341 687-0 |
|
FLANGE; RR PLANETARY |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 239 |
I8-98189 704-0 |
|
RACE; INTERMEDIATE SHAFT |
1 |
2007-2009 |
|
C |
4X4(TFS***) (B) |
| 189 |
I8-98341 722-0 |
|
RACE; INNER.LOWCLU |
1 |
2010- |
|
C |
4X4(TFS***) 41)3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 237 |
I8-98189 676-0 |
|
BEARING; THRUST |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> (A) |
| 237 |
I8-98189 676-0 |
|
BEARING; THRUST |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) |
| 18 |
I8-98189 712-0 |
|
BEARING; THRUST,RR PLANETARY GEAR.A/T |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) (A) |
| 37 |
I8-98189 676-0 |
|
BEARING; THRUST |
1 |
2007-2009 |
|
C |
4X2 (TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) |
| 18 |
I8-98341 739-0 |
|
BEARING; THRUST.RR PLANETARY GEAR.A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) (B) |
| 219 |
I8-98341 724-0 |
|
RACE; BRG.LOW CLUTCH |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 28 |
I8-98342 207-0 |
|
GEAR ASM; RR PLANETARY,A/T |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 240 |
I8-98189 705-0 |
|
BEARING; THRUST NEEDLE ROLLER |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) (B) |
| 189 |
I8-98341 722-0 |
|
RACE; INNER.LOW CLU |
1 |
2010- |
|
C |
4X2(TFB***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 22 |
I8-98341 726-0 |
|
RACE; THRUST BRG.FRT PLANETARY SHAFT, A/T |
1 |
2010- |
|
C |
41)3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 223 |
I8-98189 675-0 |
|
RACE; BRG,CARRIER |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTl LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 16 |
I8-98341 918-0 |
|
GEAR ASM; FRT PLANETARY,A/T |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> (B) |
| 233 |
I8-98341 685-0 |
|
FLANGE; FR PLANETARY |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 31 |
I8-98341 916-0 |
|
GEAR ASM; INTERNAL,PLAN ETARY,A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANH LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 219 |
I8-98341 724-0 |
|
RACE; BRG.LOW CLUTCH |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG[LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 219 |
I8-98341 724-0 |
|
RACE; BRG.LOW CLUTCH |
1 |
2010- |
|
c |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 21 |
I8-98341 919-0 |
|
GEAR; PLANETARY.INTERNAL FRT.A/T |
1 |
2010- |
|
C |
4X2(TFB***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 222 |
I8-98342 025-0 |
|
DRUM; LOW CLUTCH |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 16 |
I8-98341 915-0 |
|
GEAR ASM; FRT PLANETARY.A/T |
1 |
2010- |
|
C |
4X4(TFS***) 41)3 ENG(LNG) IDLE STOP SYSTEM<8BM> (A) |
| 238 |
I8-98329 782-0 |
|
CLUTCH ASM; 1WAY |
1 |
2007-2009 |
|
c |
4X4(TFS***) |
| 240 |
I8-98341 741-0 |
|
BEARING; THRUST NEEDLE ROLLER |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (O |
| 19 |
I8-98341 727-0 |
|
RACE; THRUST BRG.PLANETARY SHAFT,A/T |
1 |
2007-2009 |
|
c |
4X4(TFS***) (B) |
| 30 |
I8-98189 711-0 |
|
RACE; THRUST BRG.RR PLANETARY FLANGE |
1 |
2010- |
|
c |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 240 |
I8-98189 705-0 |
|
BEARING; THRUST NEEDLE ROLLER |
1 |
2007-2009 |
|
C |
4X4(TFS***) (B) |
| 125 |
I8-98341 994-0 |
|
SHAFT ASM; INTERMEDIATE,PLANETARY GEAR |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 20 |
I8-98341 879-0 |
|
RING; RET,PLANETARY GEAR,A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) |
| 17 |
I8-98341 725-0 |
|
RACE; THRUST BRG.PLANETARY SHAFT.A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 238 |
I8-98329 782-0 |
|
CLUTCH ASM; 1 WAY |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 76 |
I8-98189 673-0 |
|
BEARING; THRUST.CARRIER |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 76 |
I8-98189 673-0 |
|
BEARING; THRUST,CARRIER |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 19 |
I8-98189 692-0 |
|
RACE; THRUST BRG,PLANETARY SHAFT,A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) (A) |
| 23 |
I8-98341 743-0 |
|
BEARING; THRUST,PLANETARY SHAFT,A/T |
1 |
2010- |
|
C |
4X4(TFS***) 41)3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 218 |
I8-98341 742-0 |
|
BEARING; THRUST.INTERNAL GEAR |
1 |
2010- |
|
C |
4X4(TFS***) 41)3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 223 |
I8-98189 675-0 |
|
RACE; BRG,CARRIER |
1 |
2010- |
|
C |
4X4(TFS***) 41)3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 189 |
I8-98341 722-0 |
|
RACE; INNER.LOW CLU |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 34 |
I8-98341 743-0 |
|
BEARING; THRUST,FRT PLANETARY SHAFT A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 238 |
I8-98329 782-0 |
|
CLUTCH ASM; 1WAY |
1 |
2007-2009 |
|
c |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 234 |
I8-98341 903-0 |
|
HUB; FORWARD CLUTCH |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 223 |
I8-98189 675-0 |
|
RACE; BRG,CARRIER |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 20 |
I8-98341 880-0 |
|
RING; RET.PLANETARY GEAR.A/T |
1 |
2007-2009 |
|
c |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) |
| 247 |
I8-98341 691-0 |
|
FLANGE; MIDDLE PLANETARY |
1 |
2010- |
|
C |
4X4(TFS***) 41)3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 36 |
I8-98189 710-0 |
|
RING; SEALING,FRT PLANETARY SHAFT,A/T |
1 |
2007-2009 |
|
c |
4X4(TFS***) T=1.4 |
| 20 |
I8-98341 879-0 |
|
RING; RET,PLANETARY GEAR,A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) (A) |
| 26 |
I8-98189 701-0 |
|
RACE; ONEWAY CLU.A/T |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 240 |
I8-98341 741-0 |
|
BEARING; THRUST NEEDLE ROLLER |
1 |
2010- |
|
c |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> (C) |
| 19 |
I8-98189 692-0 |
|
RACE; THRUST BRG.PLANETARY SHAFT.A/T |
1 |
2010- |
|
C |
4X4(TFS***) 4L)3 ENG(LNG) IDLE STOP SYSTEM<8BM> (A) |
| 165 |
I8-98189 702-0 |
|
RING; RET |
1 |
2010- |
|
c |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) ID=151 |
| 20 |
I8-98341 879-0 |
|
RING; RET.PLANETARY GEAR.A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> (A) |
| 242 |
I8-98341 922-0 |
|
GEAR; RR PLANETARY |
1 |
2010- |
|
c |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 125 |
I8-98341 994-0 |
|
SHAFT ASM; INTERMEDIATE,PLANETARY GEAR |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 240 |
I8-98341 741-0 |
|
BEARING; THRUST NEEDLE ROLLER |
1 |
2007-2009 |
|
C |
4X4(TFS***) (C) |
| 28 |
I8-98342 207-0 |
|
GEAR ASM; RR PLANETARY,A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 22 |
I8-98341 726-0 |
|
RACE; THRUST BRG.FRT PLANETARY SHAFT, A/T |
1 |
2007-2009 |
|
c |
4X4(TFS***) |
| 20 |
I8-98341 879-0 |
|
RING; RET.PLANETARY GEAR,A/T |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) |
| 237 |
I8-98189 676-0 |
|
BEARING; THRUST |
1 |
2007-2009 |
|
C |
4X4(TFS***) (A) |
| 34 |
I8-98341 743-0 |
|
BEARING; THRUST,FRT PLANETARY SHAFT.A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 223 |
I8-98189 675-0 |
|
RACE; BRG.CARRIER |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 239 |
I8-98189 703-0 |
|
RACE; INTERMEDIATE SHAFT |
1 |
2007-2009 |
|
C |
4X4(TFS***) (A) |
| 240 |
I8-98189 705-0 |
|
BEARING; THRUST NEEDLE ROLLER |
1 |
2010- |
|
c |
4X4(TFS***) 41)3 ENG(LNG) IDLE STOP SYSTEM<8BM> (B) |
| 233 |
I8-98341 685-0 |
|
FLANGE; FR PLANETARY |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 22 |
I8-98341 726-0 |
|
RACE; THRUST BRG.FRT PLANETARY SHAFT, A/T |
1 |
2010- |
|
c |
4X4(TFS***) 41)3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 222 |
I8-98342 025-0 |
|
DRUM; LOW CLUTCH |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 23 |
I8-98341 743-0 |
|
BEARING; THRUST,PLANETARY SHAFT,A/T |
1 |
2010- |
|
C |
4X2(TFB***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
