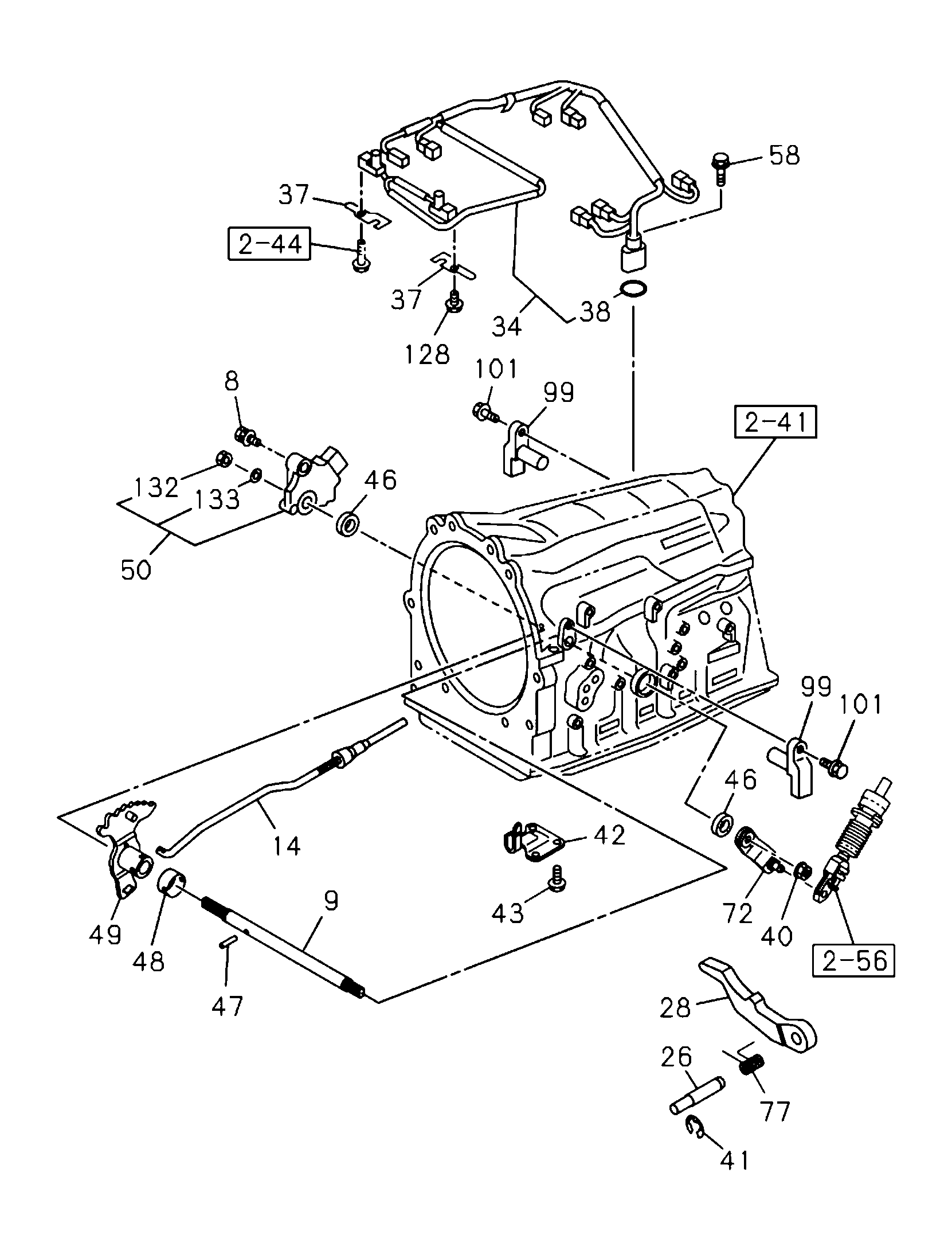

| 128 |
I8-98189 500-0 |
|
BOLT; CLAMP |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) M6X14 |
| 43 |
I8-98341 689-0 |
|
BOLT; BRKT |
3 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 48 |
I8-97362 483-0 |
|
COVER; SLEEVE |
1 |
2007-2009 |
|
c |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 34 |
I8-98357 313-0 |
|
SOLENOID ASM; A/T |
1 |
2010- |
|
c |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. IDLE STOP SY5TEM<8BM> |
| 133 |
I8-97354 889-0 |
|
WASHER; SWrTCH |
1 |
2007-2009 |
|
C |
4X4(TFS***) ID=16 |
| 58 |
I8-94479 978-0 |
|
BOLT; SOLENOID TO A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> M 6X14 |
| 47 |
I8-94257 081-0 |
|
PIN; ROLL SHAFT |
1 |
2010- |
|
C |
41)3 ENG(LNG),RZ4E-TC ENG(RDZ) D=4 |
| 48 |
I8-97362 483-0 |
|
COVER; SLEEVE |
1 |
2010- |
|
c |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 37 |
I8-98341 908-0 |
|
CLAMP; SOLENOID,A/T |
2 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 46 |
I8-94479 740-0 |
|
SEAL; OIL |
2 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) OD=22 |
| 101 |
I8-94479 978-0 |
|
BOLT; SPD SENSOR |
2 |
2010- |
|
c |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> M6X14 |
| 101 |
I8-94479 978-0 |
|
BOLT; SPD SENSOR |
2 |
2010- |
|
c |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) M6X14 |
| 99 |
I8-98342 063-0 |
|
SENSOR; SPD |
2 |
2010- |
|
C |
4U3 ENG(LNG).RZ4E-TC ENG(RDZ) |
| 14 |
I8-98341 899-0 |
|
ROD ASM; PARKING.A/T |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 8 |
I8-97130 929-0 |
|
BOLT; NEUTRAL START SW.A/T |
1 |
2010- |
|
C |
4X4(TFS***) 41)3 ENG(LNG) IDLE STOP SYSTEM<8BM> M 8X30 |
| 99 |
I8-98342 063-0 |
|
SENSOR; SPD |
2 |
2007-2009 |
|
c |
4X2(TFB***) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 58 |
I8-94479 978-0 |
|
BOLT; SOLENOID TO A/T |
1 |
2010- |
|
C |
41)3 ENG(LNG),RZ4E-TC ENG(RDZ) M 6X14 |
| 48 |
I8-97362 483-0 |
|
COVER; SLEEVE |
1 |
2007-2009 |
|
c |
4X4(TFS***) |
| 14 |
I8-98341 899-0 |
|
ROD ASM; PARKING,A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 101 |
I8-94479 978-0 |
|
BOLT; SPD SENSOR |
2 |
2007-2009 |
|
c |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) M 6X14 |
| 43 |
I8-98341 689-0 |
|
BOLT; BRKT |
3 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 77 |
I8-98189 506-0 |
|
SPRING; TORSION.PARKING BRK LK.A/T |
1 |
2007-2009 |
|
c |
4X4(TFS***) |
| 14 |
I8-98341 899-0 |
|
ROD ASM; PARKING.A/T |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 37 |
I8-98341 908-0 |
|
CLAMP; SOLENOID,A/T |
2 |
2007-2009 |
|
C |
4X4(TFS***) |
| 38 |
I8-98341 733-0 |
|
GASKET; SOLENOID INNER |
1 |
2010- |
|
c |
41)3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 37 |
I8-98341 908-0 |
|
CLAMP; SOLENOID,A/T |
2 |
2010- |
|
C |
4X2(TFB***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 101 |
I8-94479 978-0 |
|
BOLT; SPD SENSOR |
2 |
2010- |
|
c |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> M 6X14 |
| 40 |
I0-91180 108-0 |
|
NUT; LEVER TO SHAFT |
1 |
2007- |
|
c |
M8 FLANGE |
| 34 |
I8-98357 313-0 |
|
SOLENOID ASM; A/T |
1 |
2007-2009 |
|
c |
4X4(TFS***) EXC. IDLE STOP SYSTEM<8BM> |
| 132 |
I8-97354 883-0 |
|
NUT; SWTTCH |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> M16 |
| 43 |
I8-98341 689-0 |
|
BOLT; BRKT |
3 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 43 |
I8-98341 689-0 |
|
BOLT; BRKT |
3 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 37 |
I8-98341 908-0 |
|
CLAMP; SOLENOID.A/T |
2 |
2007-2009 |
|
c |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 99 |
I8-98342 063-0 |
|
SENSOR; SPD |
2 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 28 |
I8-98341 923-0 |
|
PAWL; PARKING.A/T |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 99 |
I8-98342 063-0 |
|
SENSOR; SPD |
2 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 42 |
I8-98342 009-0 |
|
BRACKET; PARKING LOCK |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 8 |
I8-97130 929-0 |
|
BOLT; NEUTRAL START SW.A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) M 8X30 |
| 9 |
I8-98189 472-0 |
|
SHAFT; MANUAL,A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 37 |
I8-98341 908-0 |
|
CLAMP; SOLENOID,A/T |
2 |
2010- |
|
C |
41)3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 26 |
I8-98189 505-0 |
|
SHAFT; PARKING PAWL.A/T |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 49 |
I8-98341 900-0 |
|
LEVER ASM; CAM |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 50 |
I8-98189 469-0 |
|
SWITCH; NEUTRAL,A/T |
1 |
2007-2009 |
|
C |
4X2 (TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 132 |
I8-97354 883-0 |
|
NUT; SWITCH |
1 |
2007-2009 |
|
C |
4X4(TFS***) M16 |
| 41 |
I5-34488 002-0 |
|
RETAINER; SPR.SHAFT |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 9 |
I8-98189 472-0 |
|
SHAFT; MANUAL,A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 42 |
I8-98342 009-0 |
|
BRACKET; PARKING LOCK |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 132 |
I8-97354 883-0 |
|
NUT; SWITCH |
1 |
2010- |
|
C |
4jJ3 ENG(LNG),RZ4E-TC ENG(RDZ) M16 |
| 47 |
I8-94257 081-0 |
|
PIN; ROLL SHAFT |
1 |
2007-2009 |
|
C |
4X2 (TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SU5PENSION(7YC) D=4 |
| 133 |
I8-97354 889-0 |
|
WASHER; SWITCH |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) ID=16 |
| 128 |
I8-98189 500-0 |
|
BOLT; CLAMP |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) M6X14 |
| 9 |
I8-98189 472-0 |
|
SHAFT; MANUAL,A/T |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 77 |
I8-98189 506-0 |
|
SPRING; TORSION.PARKING BRK LK.A/T |
1 |
2010- |
|
c |
4X4(TFS***) 41)3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 26 |
I8-98189 505-0 |
|
SHAFT; PARKING PAWL.A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 14 |
I8-98341 899-0 |
|
ROD ASM; PARKING.A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 77 |
I8-98189 506-0 |
|
SPRING; TORSION.PARKING BRK LK.A/T |
1 |
2010- |
|
c |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 128 |
I8-98189 500-0 |
|
BOLT; CLAMP |
1 |
2007-2009 |
|
c |
4X2[TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) M6X14 |
| 43 |
I8-98341 689-0 |
|
BOLT; BRKT |
3 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 49 |
I8-98341 900-0 |
|
LEVER ASM; CAM |
1 |
2007-2009 |
|
c |
4X4(TFS***) |
| 72 |
I8-98393 845-0 |
|
LEVER; SELECT CONT |
1 |
2007- |
|
C |
|
| 26 |
I8-98189 505-0 |
|
SHAFT; PARKING PAWL.A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 48 |
I8-97362 483-0 |
|
COVER; SLEEVE |
1 |
2010- |
|
c |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 8 |
I8-97130 929-0 |
|
BOLT; NEUTRAL START SW.A/T |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) M 8X30 |
| 58 |
I8-94479 978-0 |
|
BOLT; SOLENOID TO A/T |
1 |
2007-2009 |
|
c |
4X4(TFS***) M6X14 |
| 128 |
I8-98189 500-0 |
|
BOLT; CLAMP |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> M6X14 |
| 38 |
I8-98341 733-0 |
|
GASKET; SOLENOID INNER |
1 |
2010- |
|
C |
4X4(TFS***) 4L)3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 26 |
I8-98189 505-0 |
|
SHAFT; PARKING PAWL.A/T |
1 |
2010- |
|
C |
41)3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 128 |
I8-98189 500-0 |
|
BOLT; CLAMP |
1 |
2007-2009 |
|
C |
4X4(TFS***) M6X14 |
| 99 |
I8-98342 063-0 |
|
SENSOR; SPD |
2 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 47 |
I8-94257 081-0 |
|
PIN; ROLL SHAFT |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTT LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SY5TEM<8BM> D=4 |
| 49 |
I8-98341 900-0 |
|
LEVER ASM; CAM |
1 |
2010- |
|
C |
4X2 (TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 42 |
I8-98342 009-0 |
|
BRACKET; PARKING LOCK |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 77 |
I8-98189 506-0 |
|
SPRING; TORSION.PARKING BRK LK.A/T |
1 |
2010- |
|
c |
4X2(TFB***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 50 |
I8-98189 469-0 |
|
SWITCH; NEUTRAL.A/T |
1 |
2010- |
|
c |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 47 |
I8-94257 081-0 |
|
PIN; ROLL SHAFT |
1 |
2007-2009 |
|
C |
4X4(TFS***) D=4 |
| 132 |
I8-97354 883-0 |
|
NUT; SWTTCH |
1 |
2010- |
|
c |
4X2(TFB***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) M16 |
| 8 |
I8-97130 929-0 |
|
BOLT; NEUTRAL START SW,A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> M 8X30 |
| 26 |
I8-98189 505-0 |
|
SHAFT; PARKING PAWL.A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 41 |
I5-34488 002-0 |
|
RETAINER; SPR.SHAFT |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 58 |
I8-94479 978-0 |
|
BOLT; SOLENOID TO A/T |
1 |
2007-2009 |
|
c |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) M6X14 |
| 28 |
I8-98341 923-0 |
|
PAWL; PARKING,A/T |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 48 |
I8-97362 483-0 |
|
COVER; SLEEVE |
1 |
2010- |
|
c |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 77 |
I8-98189 506-0 |
|
SPRING; TORSION.PARKING BRK LK.A/T |
1 |
2010- |
|
c |
41|3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 128 |
I8-98189 500-0 |
|
BOLT; CLAMP |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> M6X14 |
| 46 |
I8-94479 740-0 |
|
SEAL; OIL |
2 |
2007-2009 |
|
C |
4X2 (TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) OD=22 |
| 133 |
I8-97354 889-0 |
|
WASHER; SWITCH |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> ID=16 |
| 133 |
I8-97354 889-0 |
|
WASHER; SWrTCH |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) ID=16 |
| 41 |
I5-34488 002-0 |
|
RETAINER; SPR.SHAFT |
1 |
2007-2009 |
|
c |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 14 |
I8-98341 899-0 |
|
ROD ASM; PARKINGA/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 46 |
I8-94479 740-0 |
|
SEAL; OIL |
2 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> OD=22 |
| 99 |
I8-98342 063-0 |
|
SENSOR; SPD |
2 |
2007-2009 |
|
c |
4X4(TFS***) |
| 101 |
I8-94479 978-0 |
|
BOLT; SPD SENSOR |
2 |
2007-2009 |
|
c |
4X4(TFS***) M6X14 |
| 58 |
I8-94479 978-0 |
|
BOLT; SOLENOID TO A/T |
1 |
2010- |
|
C |
4X2(TFB***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) M 6X14 |
| 50 |
I8-98189 469-0 |
|
SWITCH; NEUTRAL.A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 42 |
I8-98342 009-0 |
|
BRACKET; PARKING LOCK |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 9 |
I8-98189 472-0 |
|
SHAFT; MANUAL,A/T |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 133 |
I8-97354 889-0 |
|
WASHER; SWITCH |
1 |
2010- |
|
C |
4X2(TFB***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) ID=16 |
| 58 |
I8-94479 978-0 |
|
BOLT; SOLENOID TO A/T |
1 |
2010- |
|
C |
4X4(TFS***) 4L)3 ENG(LNG) IDLE STOP SYSTEM<8BM> M 6X14 |
| 26 |
I8-98189 505-0 |
|
SHAFT; PARKING PAWL.A/T |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 49 |
I8-98341 900-0 |
|
LEVER ASM; CAM |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 28 |
I8-98341 923-0 |
|
PAWL; PARKING,A/T |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 8 |
I8-97130 929-0 |
|
BOLT; NEUTRAL START SW.A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) M 8X30 |
| 77 |
I8-98189 506-0 |
|
SPRING; TORSION.PARKING BRK LK.A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 28 |
I8-98341 923-0 |
|
PAWL; PARKING,A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 38 |
I8-98341 733-0 |
|
GASKET; SOLENOID INNER |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 47 |
I8-94257 081-0 |
|
PIN; ROLL SHAFT |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) D=4 |
| 47 |
I8-94257 081-0 |
|
PIN; ROLL SHAFT |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> D=4 |
| 41 |
I5-34488 002-0 |
|
RETAINER; SPR.SHAFT |
1 |
2007-2009 |
|
c |
4X4(TFS***) |
| 42 |
I8-98342 009-0 |
|
BRACKET; PARKING LOCK |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 28 |
I8-98341 923-0 |
|
PAWL; PARKING,A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 38 |
I8-98341 733-0 |
|
GASKET; SOLENOID INNER |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 28 |
I8-98341 923-0 |
|
PAWL; PARKING,A/T |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 41 |
I5-34488 002-0 |
|
RETAINER; SPR,SHAFT |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 14 |
I8-98341 899-0 |
|
ROD ASM; PARKING.A/T |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 101 |
I8-94479 978-0 |
|
BOLT; SPD SENSOR |
2 |
2010- |
|
c |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) M 6X14 |
| 38 |
I8-98341 733-0 |
|
GASKET; SOLENOID INNER |
1 |
2010- |
|
c |
4X2(TFB***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 46 |
I8-94479 740-0 |
|
SEAL; OIL |
2 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) OD=22 |
| 34 |
I8-98357 313-0 |
|
SOLENOID ASM; A/T |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. IDLE STOP SYSTEM<8BM> |
| 50 |
I8-98189 469-0 |
|
SWITCH; NEUTRAL.A/T |
1 |
2010- |
|
c |
4X2 (TFB***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 41 |
I5-34488 002-0 |
|
RETAINER; SPR,SHAFT |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> |
| 50 |
I8-98189 469-0 |
|
SWITCH; NEUTRAL.A/T |
1 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 43 |
I8-98341 689-0 |
|
BOLT; BRKT |
3 |
2007-2009 |
|
C |
4X4(TFS***) |
| 48 |
I8-97362 483-0 |
|
COVER; SLEEVE |
1 |
2010- |
|
c |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 38 |
I8-98341 733-0 |
|
GASKET; SOLENOID INNER |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 50 |
I8-98189 469-0 |
|
SWITCH; NEUTRAL.A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 42 |
I8-98342 009-0 |
|
BRACKET; PARKING LOCK |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANT! LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 37 |
I8-98341 908-0 |
|
CLAMP; SOLENOID,A/T |
2 |
2010- |
|
C |
4X4(TFS***) 41)3 ENG(LNG) IDLE STOP SYSTEM<8BM> |
| 133 |
I8-97354 889-0 |
|
WASHER; SWITCH |
1 |
2010- |
|
C |
4X2(TFB***) RZ4E-TCX HI-POWER ENG(LNC) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) IDLE STOP SYSTEM<8BM> ID=16 |
| 9 |
I8-98189 472-0 |
|
SHAFT; MANUAL,A/T |
1 |
2007-2009 |
|
C |
4X4(TFS***) |
| 46 |
I8-94479 740-0 |
|
SEAL; OIL |
2 |
2007-2009 |
|
C |
4X4(TFS***) OD=22 |
| 49 |
I8-98341 900-0 |
|
LEVER ASM; CAM |
1 |
2007-2009 |
|
c |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSIONSC) |
| 132 |
I8-97354 883-0 |
|
NUT; SWTTCH |
1 |
2010- |
|
c |
4X4(TFS***) 41)3 ENG(LNG) IDLE STOP SYSTEM<8BM> M16 |
| 34 |
I8-98357 313-0 |
|
SOLENOID ASM; A/T |
1 |
2010- |
|
c |
4X4(TFS***) 41)3 ENG(LNG),RZ4E-TC ENG(RDZ) EXC. IDLE STOP SYSTEM<8BM> |
| 9 |
I8-98189 472-0 |
|
SHAFT; MANUAL,A/T |
1 |
2010- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) |
| 49 |
I8-98341 900-0 |
|
LEVER ASM; CAM |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 8 |
I8-97130 929-0 |
|
BOLT; NEUTRAL START SW.A/T |
1 |
2010- |
|
C |
4X2(TFB***) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) M 8X30 |
| 46 |
I8-94479 740-0 |
|
SEAL; OIL |
2 |
2010- |
|
C |
4X4(TFS***) 4JJ3 ENG(LNG) IDLE STOP SYSTEM<8BM> OD=22 |
| 132 |
I8-97354 883-0 |
|
NUT; SWITCH |
1 |
2007-2009 |
|
C |
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) M16 |
