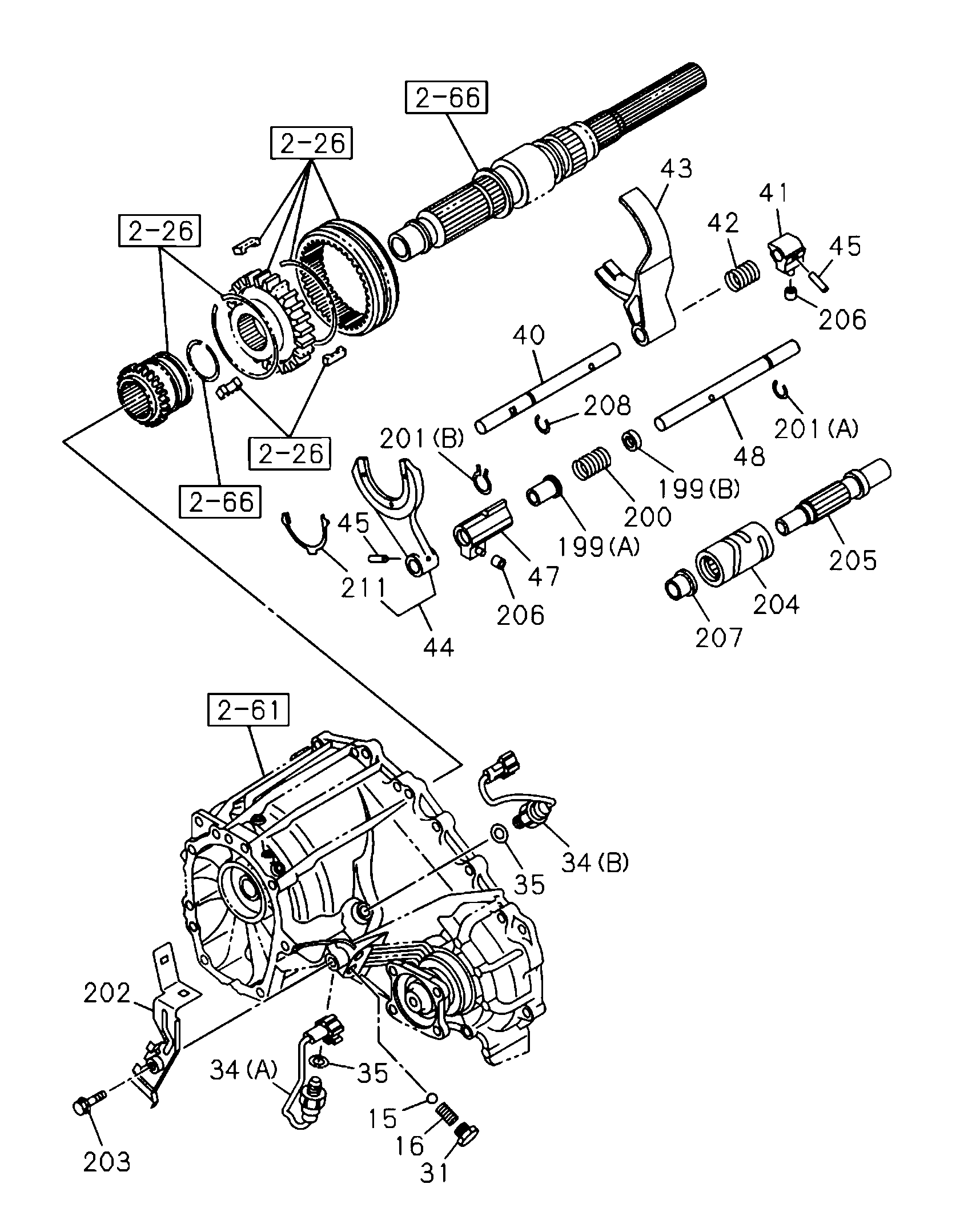

2-62 | 2-62 - TRANSFER SIDE CASE AND SHIFT LEVER
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 41 | I8-97234 233-1 | BLOCK; SHIFT,4X2-4X4,TRANSFER | 1 | 2007- | D E F | |||
| 207 | I8-98158 124-0 | BUSHING; CONTROL SHAFT | 1 | 2007- | D E F | |||
| 15 | I8-94435 335-0 | BALL; DETENT.SHIFT ROD,TRANSFER | 2 | 2007- | D E F | |||
| 203 | I0-28650 825-0 | BOLT; BRACKET,SWITCH | 1 | 2007- | DE F | M8X25 FLANGE | ||
| 199 | I8-97234 662-1 | COLLAR; TRANSFER CONTROL | 1 | 2007- | D E F | (A) | ||
| 206 | I8-97234 499-0 | ROLLER; GUIDE,SHIFT | 2 | 2007- | D E F | |||
| 40 | I8-97234 229-0 | ROD; SHIFT,4X2-4X4,TRANSFER | 1 | 2007- | D E F | |||
| 45 | I8-94171 541-0 | PIN; SPR,SHIFT ARM TO ROD | 2 | 2007- | D E F | D=4.2 L=25 | ||
| 16 | I8-97145 374-0 | SPRING; DETENT.SHIFT ROD,TRANSFER | 2 | 2007- | D E F | L=23.4 | ||
| 199 | I8-97234 663-1 | COLLAR; TRANSFER CONTROL | 1 | 2007- | D E F | (B) | ||
| 201 | I8-97305 011-1 | RING; SNAP,SHIFT | 1 | 2007- | D E F | (B) ID=23 | ||
| 35 | I9-09571 414-0 | GASKET; INDICATOR SWITCH/TRANSFER | 2 | 2007- | D E F | ID=14.2 OD=20 | ||
| 44 | I8-97553 219-0 | ARM; SHIFT.HIGH-LOW,TRANSFER | 1 | 2007- | D E F | |||
| 205 | I8-98063 364-1 | SHAFT; SHIFT DRUM | 1 | 2007- | D E F | |||
| 48 | I8-97234 230-0 | ROD; SHIFT,HIGH-LOW,TRANSFER | 1 | 2007- | D E F | |||
| 34 | I8-98181 234-0 | SWITCH; TRANSFER INDICATOR | 1 | 2007- | D E F | (A) PUSH ON | ||
| 204 | I8-98158 123-0 | DRUM; SHIFT | 1 | 2007- | D E F | |||
| 201 | I8-94460 357-0 | RING; SNAP,SHIFT | 1 | 2007- | D E F | (A) ID=12 | ||
| 34 | I8-98181 233-0 | SWITCH; TRANSFER INDICATOR | 1 | 2007- | D E F | (B) PUSH OFF | ||
| 31 | I0-92002 412-0 | PLUG; DETENT BALL,TRANSFER | 2 | 2007- | D E F | M12X9 | ||
| 47 | I8-98161 034-0 | BLOCK; SHIFT,LOW-HIGH,TRANSFER | 1 | 2007- | DE F | |||
| 42 | I8-97239 010-1 | SPRING; GEAR LOCK RELEASE,TRANSFER | 1 | 2007- | D E F | |||
| 208 | I8-94460 357-0 | RING; SNAP,SHIR- | 1 | 2007- | ||||
| 43 | I8-97234 231-0 | ARM; SHIFT,4X2-4X4,TRANSFER | 1 | 2007- | D E F | |||
| 200 | I8-97239 011-0 | SPRING; SHIFT HIGH-LOW | 1 | 2007- | D E F | |||
| 211 | I8-97553 222-0 | PAD; SHIFT FORK | 2 | 2007- | D E F | |||
| 202 | I8-98118 922-1 | BRACKET; SWITCH | 1 | 2007- | D E F |
