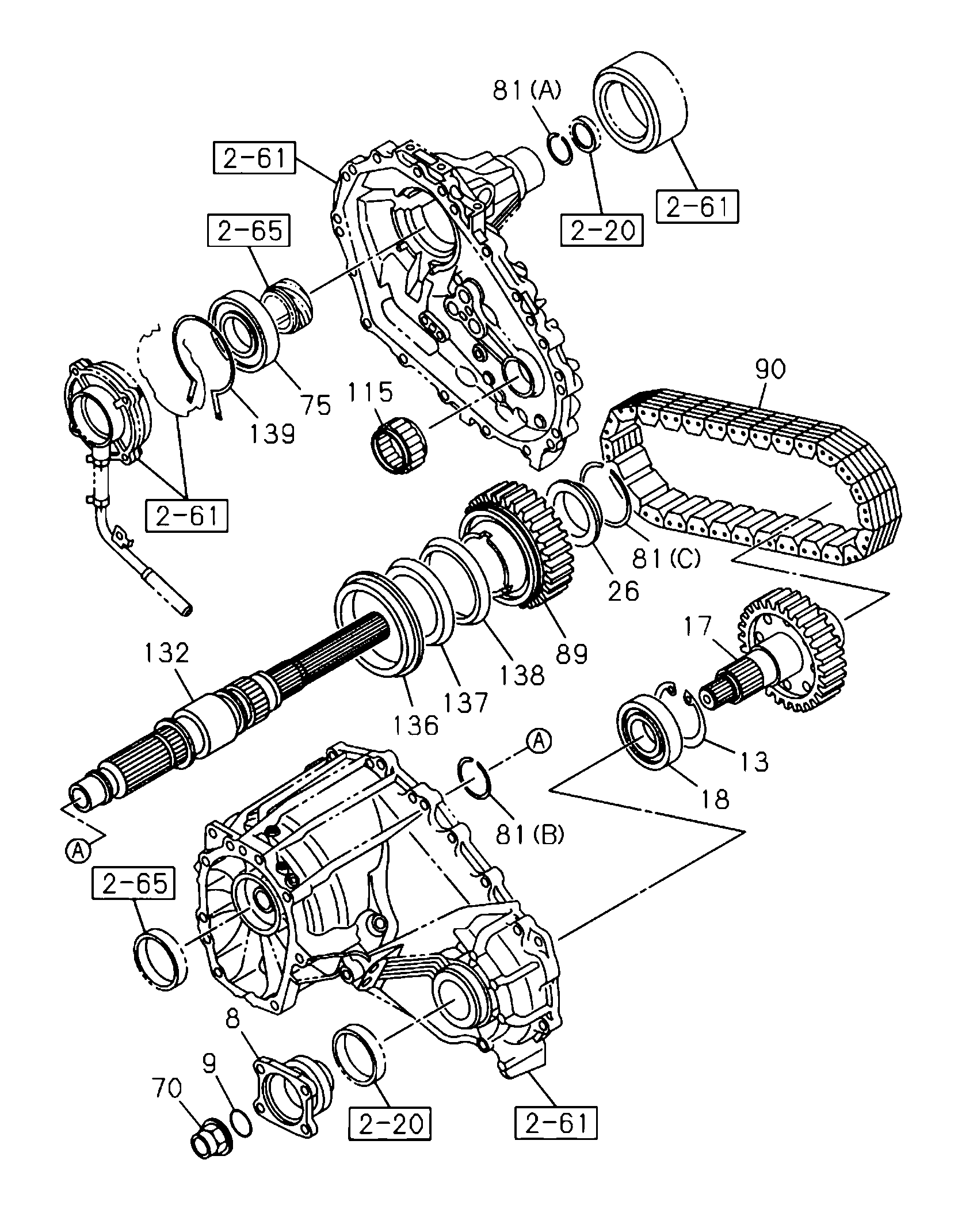

2-66 | 2-66 - MANUAL TRANSFER GEAR; OUTPUT
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 17 | I8-97231 853-0 | SHAFT; OUTPUT | 1 | 2007- | D E F | |||
| 115 | I6-97234 747-0 | BEARING; NEEDLE | 1 | 2007- | D E F | (IADG) | ||
| 81 | I8-97305 409-0 | RING; SNAP | 1 | 2007- | D E F | (CI T=2.05 BLUE | ||
| 8 | I8-97319 825-2 | FLANGE; OUTPUT | 1 | 2007- | D E F | |||
| 26 | I8-97239 774-0 | WASHER; THRUST | 1 | 2007- | D E F | |||
| 81 | I8-97305 405-0 | RING; SNAP | 1 | 2007- | D E F | (B) T=1.4 | ||
| 81 | I8-97305 410-0 | RING; SNAP | 1 | 2007- | D E F | (C) T=2.00 WHITE | ||
| 136 | I8-94363 054-1 | BLOCK RING; 2-4 | 1 | 2007- | D E F | Z=4B | ||
| 90 | I8-98275 645-0 | CHAIN; DRIVE | 1 | 2007- | D E F | |||
| 13 | I8-97305 402-0 | RING; SNAP,OUTPUT,FRT | 1 | 2007- | D E F | ID=67 | ||
| 132 | I8-97507 669-1 | SHAFT; MAIN,TRANSFER | 1 | 2007- | D E F | A/T 6 SPEED-AISIN(Y6A) | ||
| 115 | I8-97234 747-0 | BEARING; NEEDLE | 1 | 2007- | D E F | |||
| 81 | I8-97305 407-0 | RING; SNAP | 1 | 2007- | D E F | (O T=2.1 S RED | ||
| 81 | I8-97305 408-0 | RING; SNAP | 1 | 2007- | D E F | (C) T=2.10NON COLOR | ||
| 9 | I8-94483 035-0 | GASKET; SHAFT | 1 | 2007- | D E F | ALSO INCLUDED IN GASKET SET(M/T). ID=29.7 OD=36.1 | ||
| 137 | I8-94363 055-1 | RING; OUTSIDE.2-4 | 1 | 2007- | D E F | OD=90.0 | ||
| 81 | I8-97305 404-1 | RING; SNAP | 1 | 2007- | D E F | (A) T=1.9 | ||
| 89 | I8-98013 525-0 | SPROCKET; DRIVE | 1 | 2007- | D E F | Z=48 | ||
| 132 | I8-97497 448-1 | SHAFT; MAIN,TRANSFER | 1 | 2007- | D E F | M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) | ||
| 138 | I8-94363 056-0 | RING; INSIDE.2-4 | 1 | 2007- | D E F | OD=95.8 | ||
| 70 | I8-97358 603-0 | NUT; RR OUTPUT SHAFT.TRANSFER | 1 | 2007- | D E F | M36 FLANGE | ||
| 139 | I8-97305 012-0 | RING; RETAINING.RR OUTPUT | 1 | 2007- | D E F | ID=76 |
