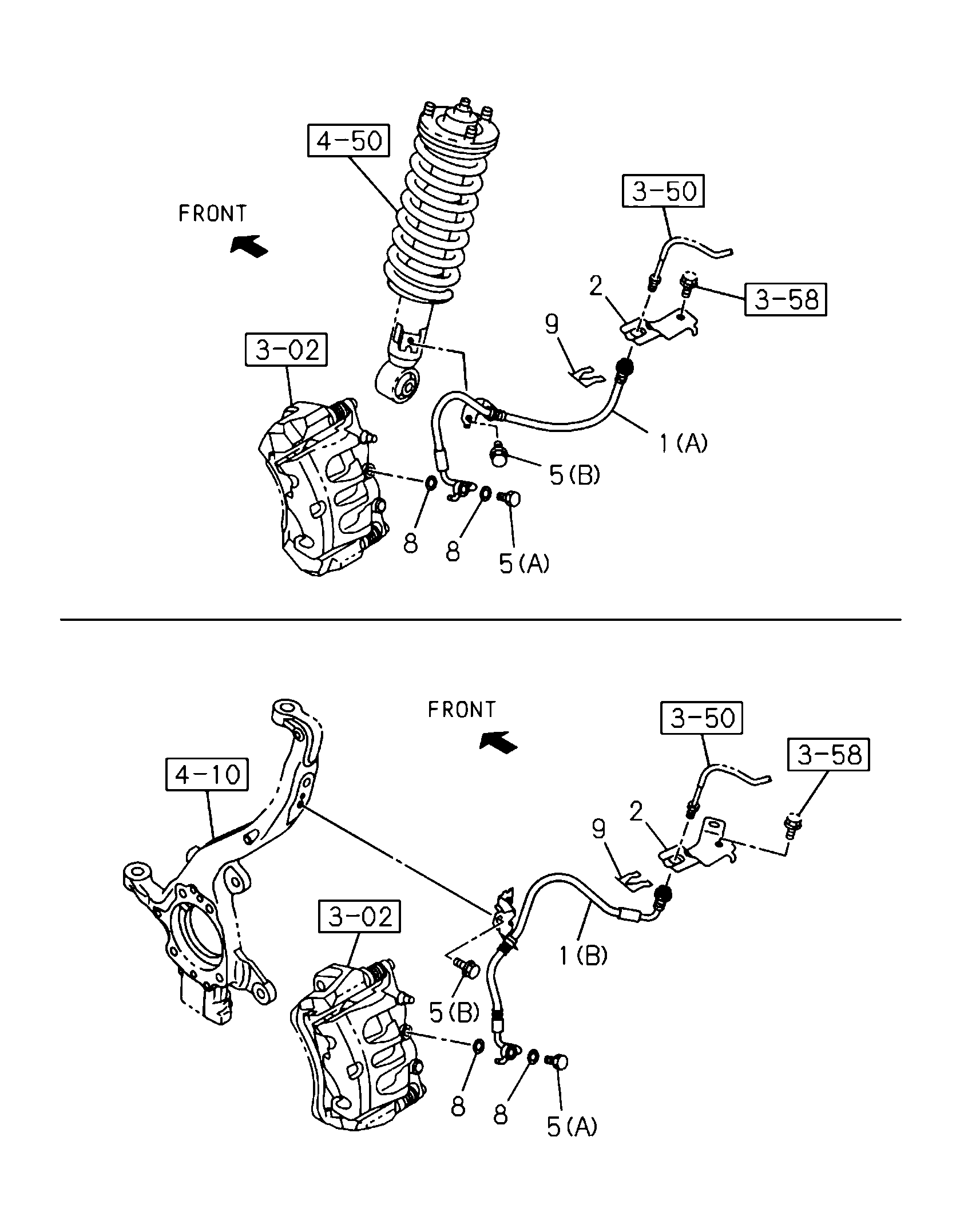

3-52 | 3-52 - BRAKE PIPING; OIL,FRONT
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-98394 598-0 | HOSE; FLEX.FRT BRK | 1 | 2007- | ABC | HIGH RIDE 5USPENSION(7YC) (B) | ||
| 9 | I8-97360 054-0 | CLIP; FLEX HOSE.FRT BRK | 2 | 2007- | ABCDEF | |||
| 2 | I8-98394 601-1 | BRACKET; FLEX HOSE,FRT BRK | 1 | 2007- | D E F | |||
| 1 | I8-98394 598-0 | HOSE; FLEX.FRT BRK | 1 | 2007- | D E F | (B) | ||
| 5 | I8-98014 005-0 | BOLT; EYE,FLEX HOSE.FRT BRK | 2 | 2007- | ABCDE F | (A) M10X22 EYE-BOLT | ||
| 1 | I8-98394 597-0 | HOSE; FLEX.FRT BRK | 1 | 2007- | ABC | HIGH RIDE SUSPENSION(7YC) (B) | ||
| 2 | I8-98394 599-0 | BRACKET; FLEX HOSE.FRT BRK | 1 | 2007- | ABCDE F | |||
| 2 | I8-98394 601-1 | BRACKET; FLEX HOSE.FRT BRK | 1 | 2007- | ABC | HIGH RIDE SUSPENSION(7YC) | ||
| 5 | I8-98076 109-0 | BOLT; EYE,FLEX HOSE.FRT BRK | 2 | 2007- | ABCDEF | (B) M8X16 FLANGE | ||
| 1 | I8-98394 597-0 | HOSE; FLEX,FRT BRK | 1 | 2007- | D E F | (B) | ||
| 8 | I9-09571 410-0 | GASKET; FLEX HOSE.FRT BRK | 4 | 2007- | ABCDE F | ID=10.2 OD=16.0 |
