3-58 | 3-58 - FIXING PARTS; OIL PIPING
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 20 | I8-98113 394-0 | CLIP; BRK PIPE | 2 | 2007- | A D E F | (H) ID=6.8X2 8.8.4 OR 10X2 8.12 OR 14X1 | ||
| 20 | I8-97249 906-1 | CLIP; BRK PIPE | 1 | 2007- | A D E F | (F) ID=10 8i 6.8X2 OR 8.4X3 | ||
| 20 | I8-98113 394-0 | CLIP; BRK PIPE | 2 | 2007- | A D E F | (H) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 | ||
| 20 | I8-98113 394-0 | CLIP; BRK PIPE | 2 | 2007- | BC | EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (H) ID=6.8X2 8> 8.4 OR 10X2 8< 12 OR 14X1 | ||
| 20 | I8-97249 906-1 | CLIP; BRK PIPE | 1 | 2007- | BC | EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> ID=10 8.6.8X2 OR 8.4X3 | ||

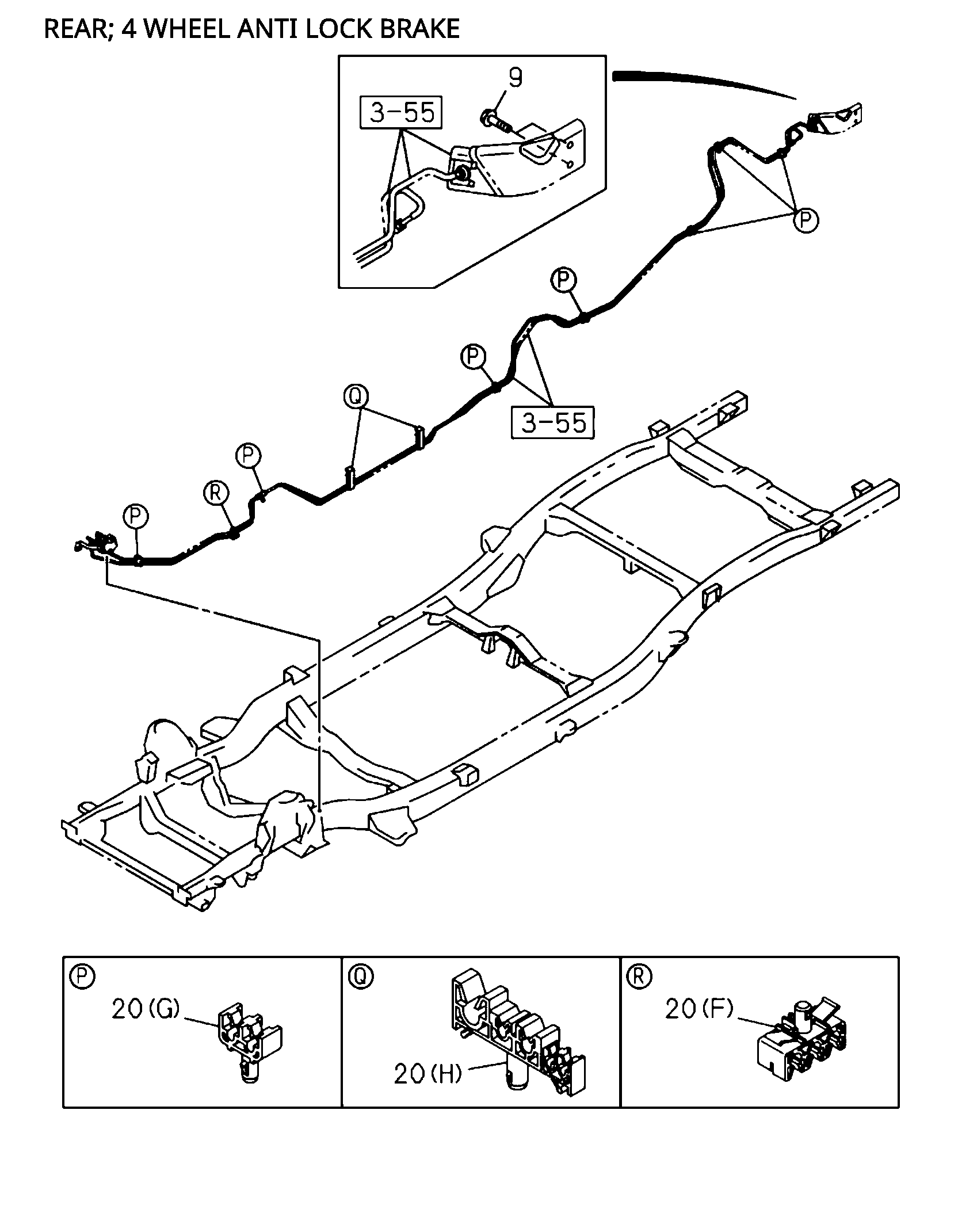

| 20 | I8-97251 124-0 | CLIP; BRK PIPE | 7 | 2007- | BC | 4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=6.8X2 | ||

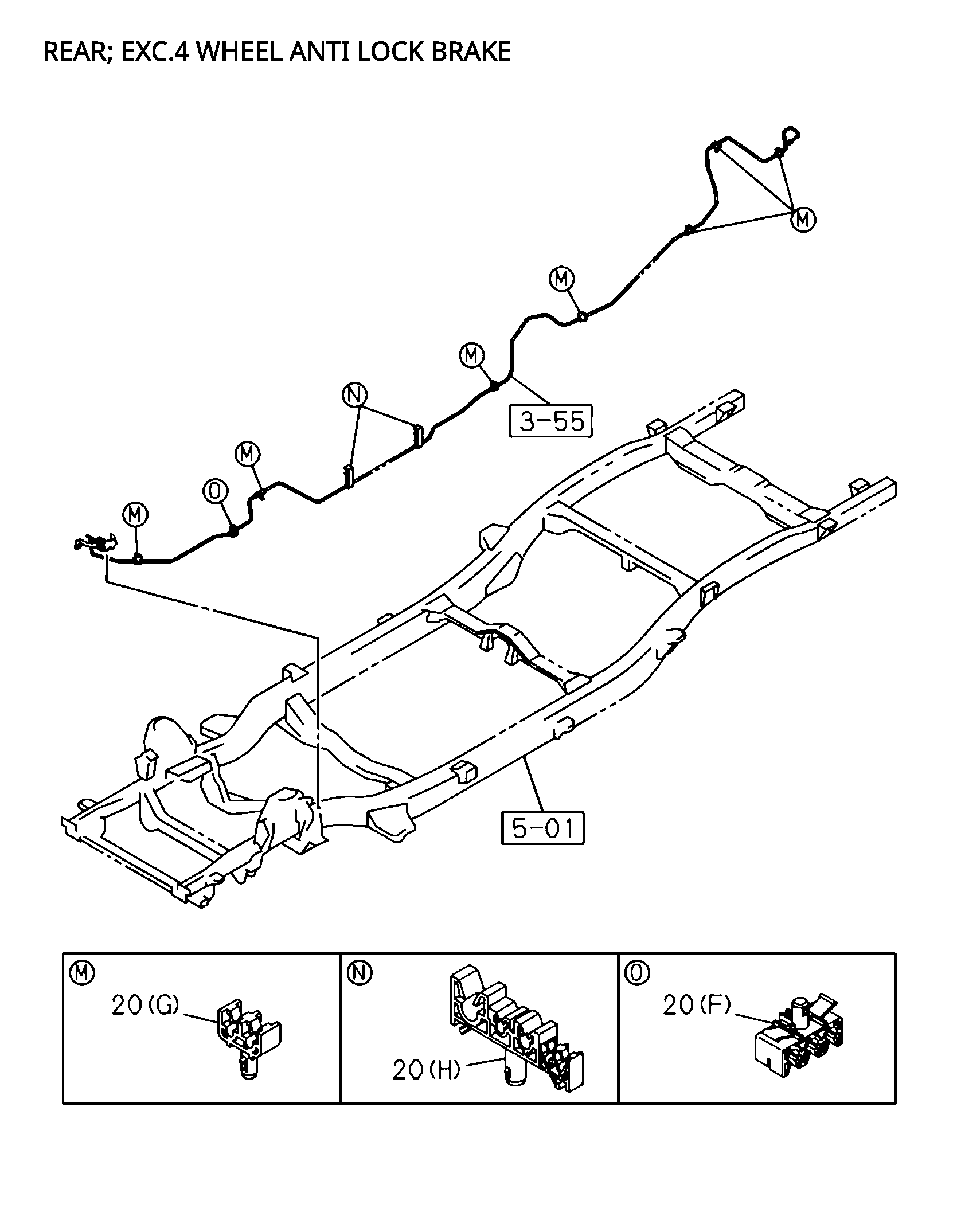

| 20 | I8-97251 124-0 | CLIP; BRK PIPE | 7 | 2007- | BC | EXC. 4WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (G) ID=6.8X2 | ||

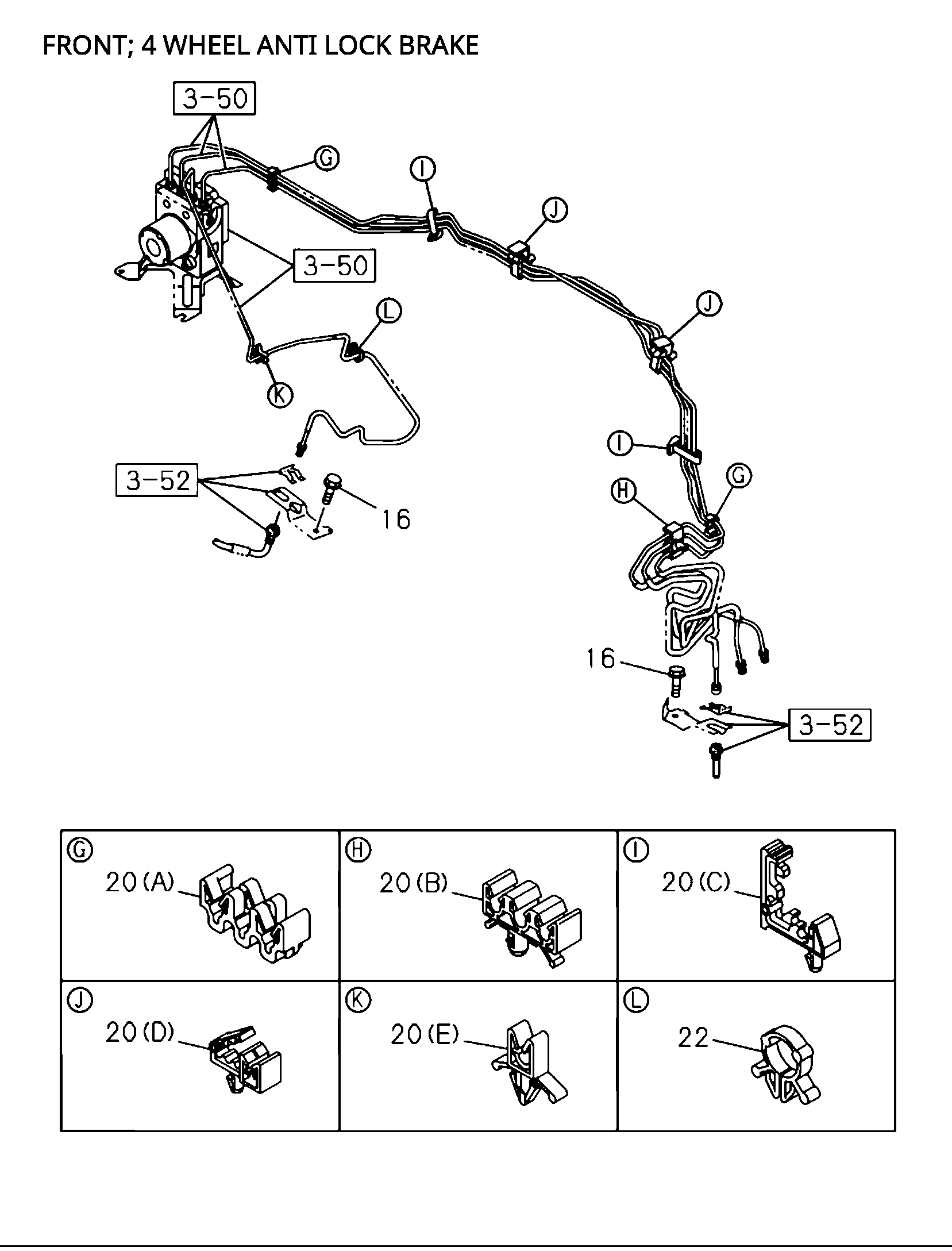

| 9 | I0-28650 825-0 | BOLT; BRKT | 2 | 2007- | BCDE F | 4 WHEEL ANTI LOCK BRAKE<JE5> M8X25 FLANGE | ||
| 9 | I0-28650 825-0 | BOLT; BRKT | 2 | 2007- | A | M8X25 FLANGE | ||

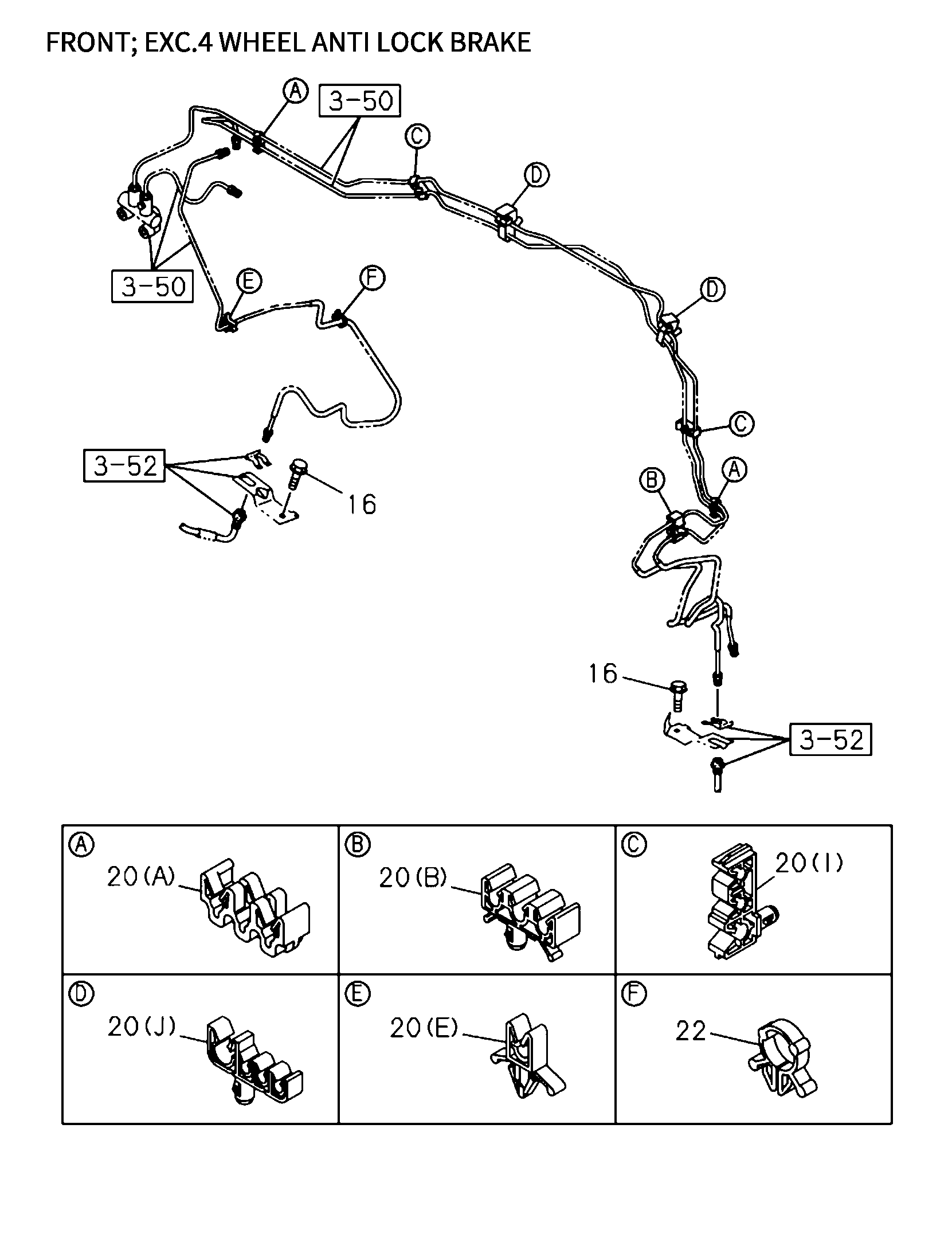

| 20 | I8-94487 369-0 | CLIP; BRK PIPE | 2 | 2007- | ABCDE F | (A) ID=4.8X3 | ||
| 20 | I8-97300 443-0 | CLIP; BRK PIPE | 1 | 2007- | ABCDE F | (E) ID=4.76 | ||
| 20 | I8-97249 906-1 | CLIP; BRK PIPE | 1 | 2007- | A D E F | ID=10&6.BX2 OR 8.4X3 | ||
| 20 | I8-97216 721-1 | CLIP; BRK PIPE | 1 | 2007- | ABCDE F | (B) ID=4.76X3 | ||
| 20 | I8-97216 721-1 | CLIP; BRK PIPE | 1 | 2007- | ABCDE F | (B) ID=4.76X3 | ||
| 20 | I8-98113 394-0 | CLIP; BRK PIPE | 2 | 2007- | BC | 4WHEELANTI LOCK BRAKE<JE5> (H) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 | ||
| 20 | I8-97249 906-1 | CLIP; BRK PIPE | 1 | 2007- | BC | 4WHEELANTI LOCK BRAKE<JE5> ID-10 & 6.8X2 OR 8.4X3 | ||
| 16 | I0-28650 820-0 | BOLT; BRKT TO FRAME | 2 | 2007- | ABCDE F | M8X20 FLANGE | ||
| 20 | I8-98113 394-0 | CLIP; BRK PIPE | 2 | 2007- | BC | 4 WHEEL ANTI LOCK BRAKE<JE5> (H) ID-6.8X2 8(8.4 OR 10X2 & 12 OR 14X1 | ||
| 20 | I8-97251 124-0 | CLIP; BRK PIPE | 7 | 2007- | A D E F | (G) ID=6.8X2 | ||
| 20 | I8-98113 394-0 | CLIP; BRK PIPE | 2 | 2007- | BC | EXC. 4WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (H) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 | ||
| 20 | I8-97251 124-0 | CLIP; BRK PIPE | 7 | 2007- | A D E F | (G) ID=6.8X2 | ||
| 20 | I8-97300 443-0 | CLIP; BRK PIPE | 1 | 2007- | ABCDE F | (E) ID=4.76 | ||
| 16 | I0-28650 820-0 | BOLT; BRKT TO FRAME | 2 | 2007- | ABCDE F | M8X20 FLANGE | ||
| 20 | I8-97249 906-1 | CLIP; BRK PIPE | 1 | 2007- | BC | EXC. 4WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> ID=10& 6.8X2 OR 8.4X3 | ||
| 20 | I8-97249 906-1 | CLIP; BRK PIPE | 1 | 2007- | BC | 4 WHEEL ANTI LOCK BRAKE<JE5> ID=10 8,6.8X2 OR 8.4X3 | ||
| 22 | I5-09707 027-0 | CLIP; PIPE TO FRAME | 1 | 2007- | ABCDE F | ID=9 | ||
| 20 | I8-94487 369-0 | CLIP; BRK PIPE | 2 | 2007- | ABCDE F | (A) ID=4.8X3 | ||
| 22 | I5-09707 027-0 | CLIP; PIPE TO FRAME | 1 | 2007- | ABCDE F | ID=9 | ||
| 20 | I8-97251 124-0 | CLIP; BRK PIPE | 7 | 2007- | BC | EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (G) ID=6.8X2 | ||
| 20 | I8-97251 124-0 | CLIP; BRK PIPE | 7 | 2007- | BC | 4WHEELANTI LOCK BRAKE<JE5> (G) ID=6.8X2 |
