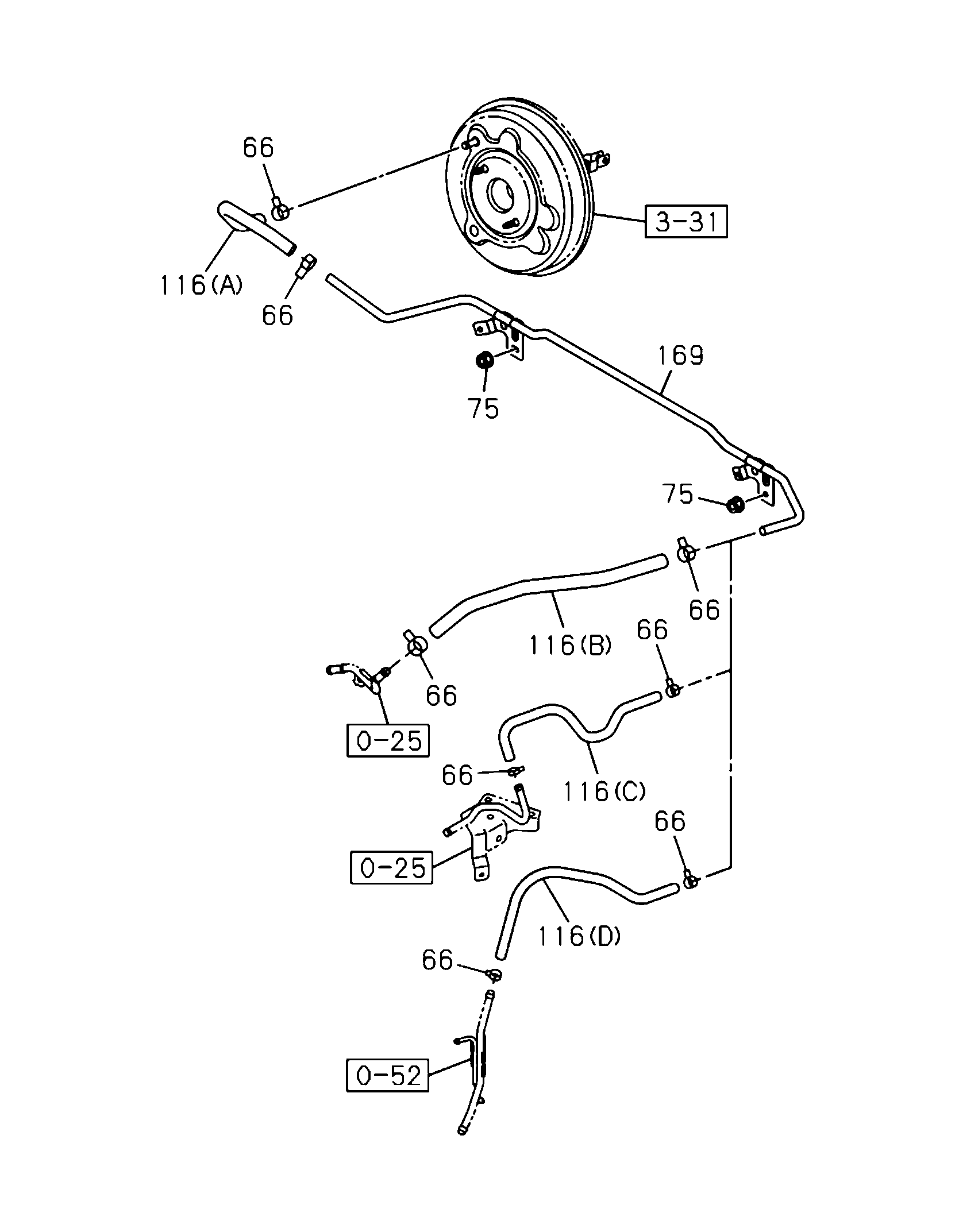

3-60 | 3-60 - BRAKE PIPING; VACUUM
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 75 | I0-91180 106-0 | NUT; CLIP.VAC HOSE | 2 | 2007- | ABCDE F | M6 FLANGE | ||
| 66 | I8-98036 539-0 | CLIP; VAC HOSE.M/VAC | 4 | 2007- | ABCDE F | ID=16 | ||
| 116 | I8-98395 380-0 | HOSE; VAC,M/VAC | 1 | 2007- | ABCDE F | (A) | ||
| 116 | I8-98274 256-1 | HOSE; VAC,M/VAC | 1 | 2007- | ABCDE F | RZ4E-TC ENG(RDZ) (B) | ||
| 169 | I8-98395 384-0 | PIPE; VAC.BOOSTER SIDE | 1 | 2007- | ABCDE F |
