PORTAL SPAREPART

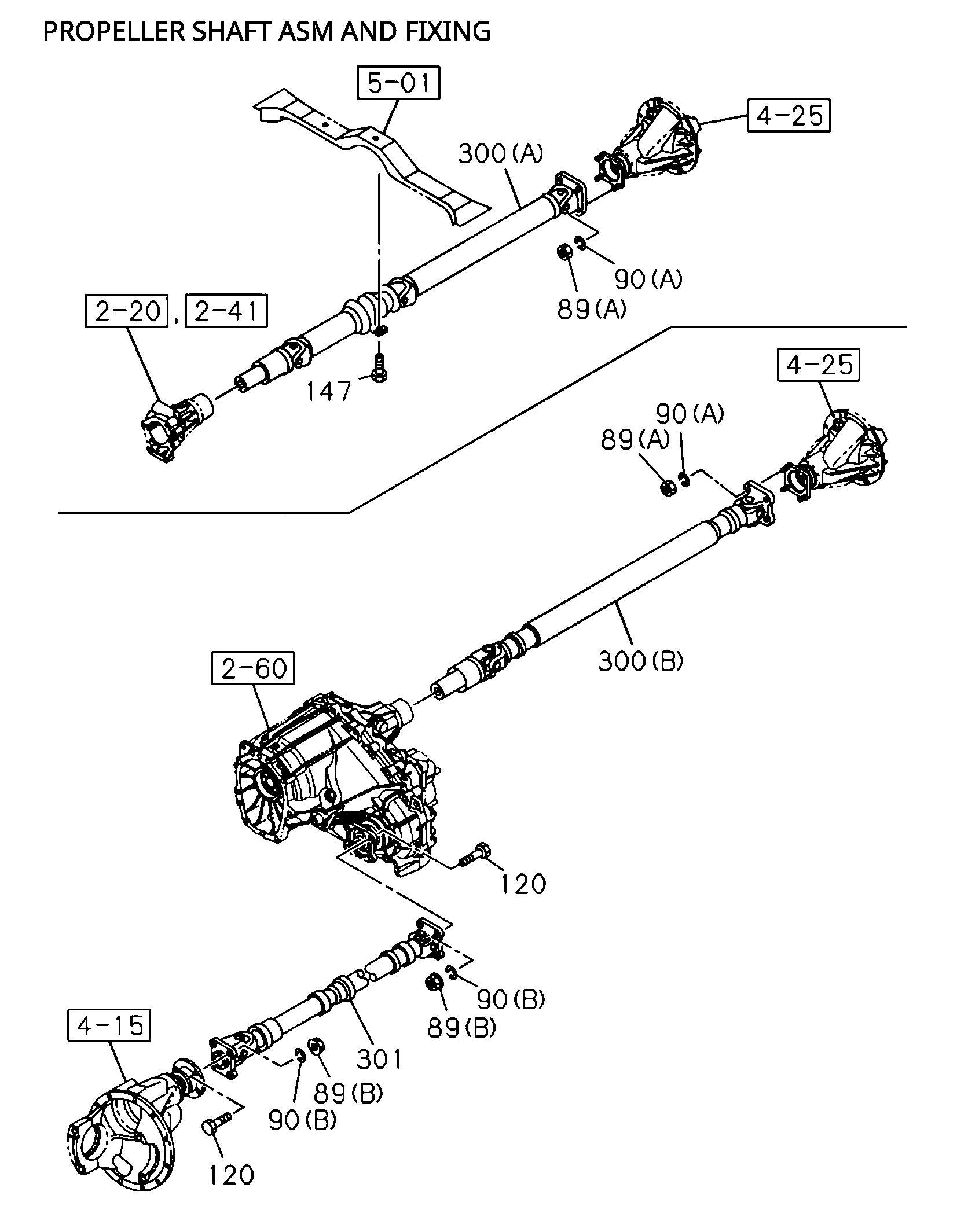

4-01 | 4-01 - PROPELLER SHAFT

Partial Engine Partial Engine Partial Engine Partial Engine

DMAX

D-MAX 2021

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
17 I0-90301 406-0 NIPPLE; GREASE.PROP SHAFT 2 2010- E RZ4E-TC ENG(RDZ) M6 STRAIGHT
301 I8-97948 759-0 SHAFT ASM; PROP.FRT 1 2007-2009 D E F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) L=651
17 I0-90301 406-0 NIPPLE; GREASE.PROP SHAFT 2 2010- D F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M6 STRAIGHT
103 I8-97493 756-0 BOOT; PROP SHAFT 1 2007-2009 D E F (A)
17 I0-90301 406-0 NIPPLE; GREASE.PROP SHAFT 2 2010- E RZ4E-TC ENG(RDZ) M6 STRAIGHT
301 I8-97948 759-0 SHAFT ASM; PROP.FRT 1 2007-2009 D E F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) L=651
90 I8-97246 901-0 WASHER; LK.YOKE TO RR AXLE 8 2007- D E F (B) ID=10.1
300 I8-97533 757-0 SHAFT ASM; PROP.RR 1 2010- D F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (B) L=1577
125 I8-97541 995-0 YOKE ASM; SPLINED.PROP SHAFT 1 2007-2009 D E F A/T 6 SPEED-AISIN(Y6A) (A)
301 I8-98395 176-0 SHAFT ASM; PROP.FRT 1 2010- D F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) A/T 6 SPEED-AISIN(Y6A) L=718
17 I0-90301 406-0 NIPPLE; GREASE.PROP SHAFT 4 2007- D E F 4JJ3 ENG(LNG) M6 STRAIGHT
9 I8-97493 742-0 JOURNAL ASM; PROP SHAFT 2 2007-2009 D E F (A)
89 I8-97365 450-1 NUT; YOKE TO RR AXLE 4 2007- ABCDE F (A) M12
103 I8-97493 756-0 BOOT; PROP SHAFT 1 2010- D E F (A)
125 I8-97493 754-0 YOKE ASM; SPLINED.PROP SHAFT 1 2007-2009 D E F M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (A)
300 I8-97533 753-0 SHAFT ASM; PROP.RR 1 2010- D F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) A/T 6 SPEED-AISIN(Y6A) (B) L=1541
220 I8-97945 105-0 YOKE; SPLINED 1 2010- D E F
17 I0-90301 406-0 NIPPLE; GREASE,PROP SHAFT 2 2010- E RZ4E-TC ENG(RDZ) M6 STRAIGHT
300 I8-97533 753-0 SHAFT ASM; PROP.RR 1 2010- E RZ4E-TC ENG(RDZ) A/T 6 SPEED-AISIN(Y6A) (B) L=1541
9 I6-97947 582-0 JOURNAL ASM; PROP SHAFT 2 2010- D E F (IADG) (B)
301 I8-98395 176-0 SHAFT ASM; PROP.FRT 1 2010- E RZ4E-TC ENG(RDZ) A/T 6 SPEED-AISIN(Y6A) L=718
9 I6-97947 582-0 JOURNAL ASM; PROP SHAFT 2 2007-2009 D E F (IADG) (B)
125 I8-97541 995-0 YOKE ASM; SPLINED.PROP SHAFT 1 2010- D E F A/T 6 SPEED-AISIN(Y6A) (A)
125 I8-97493 754-0 YOKE ASM; SPLINED.PROP SHAFT 1 2007-2009 D E F M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (A)
301 I8-97948 759-0 SHAFT ASM; PROP.FRT 1 2010- E RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) L=651
301 I8-97948 759-0 SHAFT ASM; PROP.FRT 1 2010- D F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) L=651
125 I8-97541 995-0 YOKE ASM; SPLINED.PROP SHAFT 1 2007-2009 D E F A/T 6 SPEED-AISIN(Y6A) (A)
103 I8-97493 756-0 BOOT; PROP SHAFT 1 2007-2009 D E F (A)
9 I8-97947 582-0 JOURNAL ASM; PROP SHAFT 2 2007-2009 D E F (B)
301 I8-98395 176-0 SHAFT ASM; PROP.FRT 1 2010- E RZ4E-TC ENG(RDZ) A/T 6 SPEED-AISIN(Y6A) L=718
120 I8-98354 948-0 BOLT; YOKE TO RR AXLE 8 2007- D E F M10X29
17 I0-90301 406-0 NIPPLE; GREASE.PROP SHAFT 2 2010- D F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M6 STRAIGHT
301 I8-97948 759-0 SHAFT ASM; PROP.FRT 1 2010- E RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) L=651
125 I8-97541 995-0 YOKE ASM; SPLINED.PROP SHAFT 1 2010- D E F A/T 6 SPEED-AISIN(Y6A) (A)
9 I8-97493 742-0 JOURNAL ASM; PROP SHAFT 2 2007-2009 D E F (A)
9 I8-97493 742-0 JOURNAL ASM; PROP SHAFT 2 2010- D E F (A)
125 I8-97541 995-0 YOKE ASM; SPLINED.PROP SHAFT 1 2007-2009 D E F A/T 6 SPEED-AISIN(Y6A) (A)
300 I8-97533 753-0 SHAFT ASM; PROP.RR 1 2010- D F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) A/T 6 SPEED-AISIN(Y6A) (B) L=1541
9 I8-97493 742-0 JOURNAL ASM; PROP SHAFT 2 2010- D E F (A)
103 I8-97493 756-0 BOOT; PROP SHAFT 1 2007-2009 D E F (A)
300 I8-97533 757-0 SHAFT ASM; PROP.RR 1 2010- D F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (B) L=1577
17 I0-90301 406-0 NIPPLE; GREASE,PROP SHAFT 2 2007-2009 D E F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M6 STRAIGHT
301 I8-98395 176-0 SHAFT ASM; PROP.FRT 1 2010- D F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) A/T 6 SPEED-AISIN(Y6A) L=718
301 I8-98395 176-0 SHAFT ASM; PROP.FRT 1 2007-2009 D E F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) A/T 6 SPEED-AISIN(Y6A) L=718
125 I8-97541 995-0 YOKE ASM; SPLINED.PROP SHAFT 1 2010- D E F A/T 6 SPEED-AISIN(Y6A) (A)
17 I0-90301 406-0 NIPPLE; GREASE.PROP SHAFT 2 2007-2009 D E F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M6 STRAIGHT
9 I8-97493 742-0 JOURNAL ASM; PROP SHAFT 2 2010- D E F (A)
90 I0-91510 812-0 WASHER; LK.YOKE TO RR AXLE 4 2007- ABCDE F (A) ID=12.2
301 I8-97948 759-0 SHAFT ASM; PROP.FRT 1 2010- D F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) L=651
125 I8-97493 754-0 YOKE ASM; SPLINED.PROP SHAFT 1 2010- D E F M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (A)
8 I8-97948 772-0 YOKE; FLANGE,PROP SHAFT 2 2010- D E F (B)
9 I8-97493 742-0 JOURNAL ASM; PROP SHAFT 2 2007-2009 D E F (A)
300 I8-97533 757-0 SHAFT ASM; PROP.RR 1 2010- E RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (B) L=1577
103 I8-97493 756-0 BOOT; PROP SHAFT 1 2010- D E F (A)
8 I8-97493 716-0 YOKE; FLANGE,PROP SHAFT 1 2007- ABCDE F (A)
8 I8-97493 716-0 YOKE; FLANGE,PROP SHAFT 1 2007- ABCDE F (A)
17 I0-90301 406-0 NIPPLE; GREASE.PROP SHAFT 2 2010- E RZ4E-TC ENG(RDZ) M6 STRAIGHT
300 I8-97533 753-0 SHAFT ASM; PROP.RR 1 2008-2009 D E F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) A/T 6 SPEED-AISIN(Y6A) (B) L=1541
300 I8-97533 757-0 SHAFT ASM; PROP.RR 1 2008-2009 D E F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (B) L=1577
17 I0-90301 406-0 NIPPLE; GREASE.PROP SHAFT 2 2007-2009 D E F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M6 STRAIGHT
8 I8-97948 772-0 YOKE; FLANGE.PROP SHAFT 2 2007-2009 D E F (B)
300 I8-97533 757-0 SHAFT ASM; PROP.RR 1 2008-2009 D E F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (B) L=1577
89 I8-97246 900-0 NUT; YOKE TO RR AXLE 8 2007- D E F (B) M10 FLANGE
17 I0-90301 406-0 NIPPLE; GREASE.PROP SHAFT 2 2010- D F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M6 STRAIGHT
17 I0-90301 406-0 NIPPLE; GREASE.PROP SHAFT 2 2007-2009 D E F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M6 STRAIGHT
103 I8-97493 756-0 BOOT; PROP SHAFT 1 2010- D E F (A)
301 I8-98395 176-0 SHAFT ASM; PROP.FRT 1 2007-2009 D E F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) A/T 6 SPEED-AISIN(Y6A) L=718
106 I0-90301 406-0 NIPPLE; GREASE.YOKE.PROP SHAFT 1 2010- D E F M6 STRAIGHT
8 I8-97493 716-0 YOKE; FLANGE,PROP SHAFT 1 2007- ABCDE F (A)
220 I8-97945 105-0 YOKE; SPLINED 1 2007-2009 D E F
125 I8-97493 754-0 YOKE ASM; SPLINED.PROP SHAFT 1 2010- D E F M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (A)
300 I8-97533 757-0 SHAFT ASM; PROP.RR 1 2010- E RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (B) L=1577
103 I8-97943 053-0 BOOT; PROP SHAFT 1 2010- D E F (B)
106 I0-90301 406-0 NIPPLE; GREASE.YOKE.PROP SHAFT 1 2007-2009 D E F M6 STRAIGHT
300 I8-97533 753-0 SHAFT ASM; PROP.RR 1 2008-2009 D E F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) A/T 6 SPEED-AISIN(Y6A) (B) L=1541
300 I8-97533 753-0 SHAFT ASM; PROP.RR 1 2010- E RZ4E-TC ENG(RDZ) A/T 6 SPEED-AISIN(Y6A) (B) L=1541
125 I8-97493 754-0 YOKE ASM; SPLINED.PROP SHAFT 1 2010- D E F M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (A)
17 I0-90301 406-0 NIPPLE; GREASE,PROP SHAFT 4 2007- D E F 4JJ3 ENG(LNG) M6 STRAIGHT
125 I8-97493 754-0 YOKE ASM; SPLINED.PROP SHAFT 1 2007-2009 D E F M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (A)
9 I8-97947 582-0 JOURNAL ASM; PROP SHAFT 2 2010- D E F (B)
17 I0-90301 406-0 NIPPLE; GREASE.PROP SHAFT 2 2010- D F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M6 STRAIGHT
103 I8-97943 053-0 BOOT; PROP SHAFT 1 2007-2009 D E F (B)
