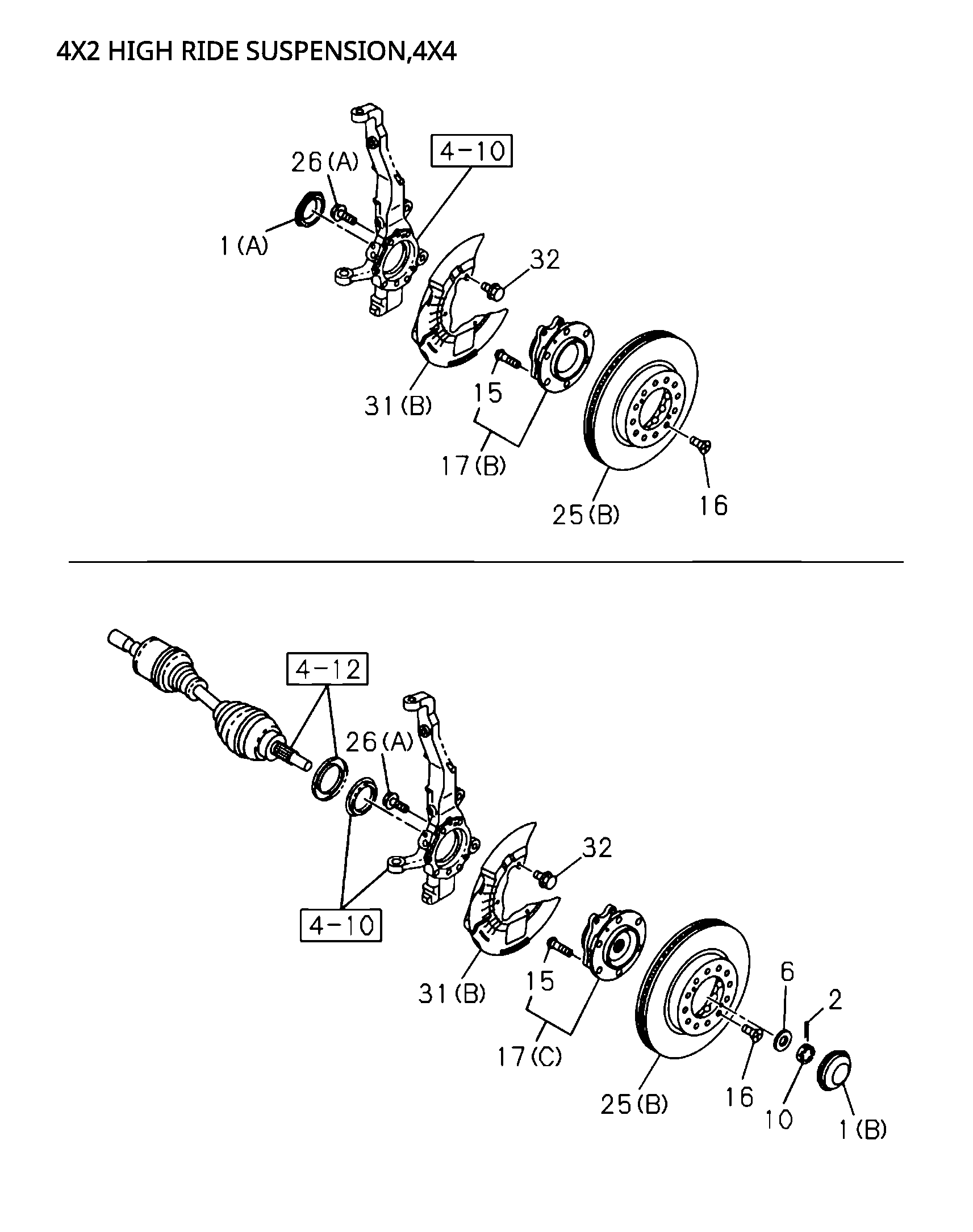

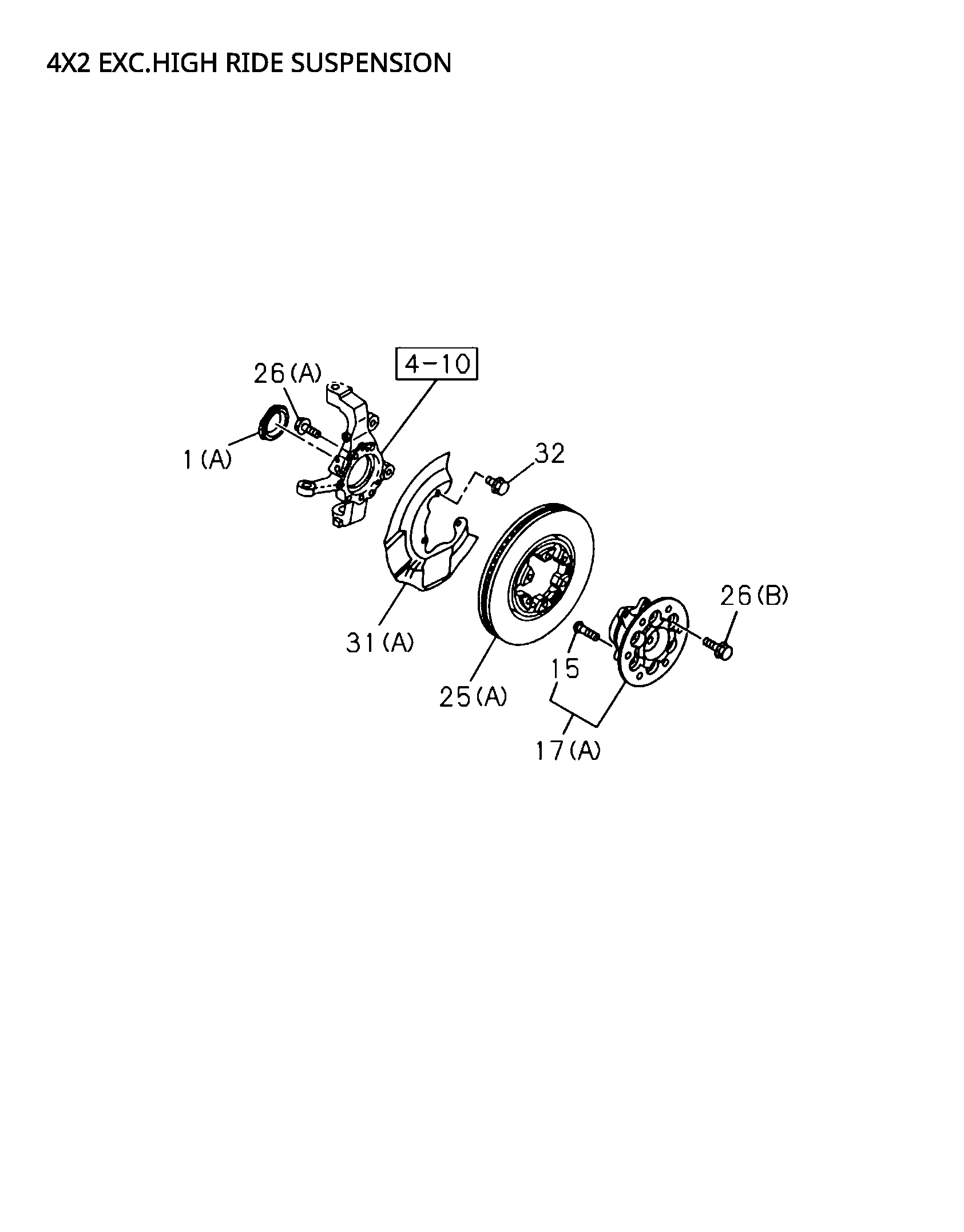

4-11 | 4-11 - FRONT HUB AND DRUM OR ROTOR
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 26 | I0-28061 240-0 | BOLT; BRK.DISCTO HUB | 8 | 2007- | ABCDE F | (A) M12X40 FLANGE | ||
| 17 | I8-98395 194-0 | HUB; FRT AXLE | 2 | 2007- | D E F | (C) | ||
| 2 | I0-81124 040-0 | PIN; SPLIT,HUB TO AXLE SHAFT | 2 | 2007- | D E F | |||
| 31 | I8-98376 762-0 | COVER; DUST.FRT BRAKE | 1 | 2007- | D E F | (B) | ||
| 15 | I8-97944 831-1 | PIN; WHEEL,FRT AXLE | 12 | 2007- | D E F | M12X42.5 RH THREAD | ||
| 31 | I8-98376 762-0 | COVER; DUST.FRT BRAKE | 1 | 2007- | ABC | HIGH RIDE SUSPENSION(7YC) (B) | ||
| 16 | I0-36410 616-0 | SCREW; DRUM TO HUB | 2 | 2007- | ABC | HIGH RIDE SUSPENSION(7YC) M6X16 CK-HEAD | ||
| 10 | I1-09442 028-0 | NUT; FRT HUB BRG | 2 | 2007- | D E F | M 24 SLOTTED | ||
| 32 | I8-97542 225-2 | BOLT; DUST COVER TO KNUCKLE | 6 | 2007- | ABCDE F | M8X10W/PL WASHER | ||
| 26 | I0-28061 240-0 | BOLT; BRK.DISCTO HUB | 8 | 2007- | ABCDE F | (A) M12X40 FLANGE | ||
| 15 | I8-97944 831-1 | PIN; WHEEL,FRT AXLE | 12 | 2007- | ABC | HIGH RIDE SUSPENSION(7YC) M12X42.5 RH THREAD | ||
| 15 | I8-97944 831-1 | PIN; WHEEL,FRT AXLE | 12 | 2007- | D E F | M12X42.5 RH THREAD | ||
| 25 | I8-98376 752-0 | ROTOR; DISC BRK.FRT | 2 | 2007- | B | FRT&RR 205R16C(CUY) HIGH RIDE SUSPENSION(7YC) (B) | ||
| 1 | I8-98393 291-0 | CAP; HUB,FRT AXLE | 2 | 2007- | D E F | (B) | ||
| 25 | I8-98376 752-0 | ROTOR; DISC BRK.FRT | 2 | 2007- | E | FRT&RR 205R16C(CUY) (B) | ||
| 31 | I8-98376 763-0 | COVER; DUST.FRT BRAKE | 1 | 2007- | ABC | HIGH RIDE SUSPENSION(7YC) (B) | ||
| 32 | I8-97542 225-2 | BOLT; DUST COVER TO KNUCKLE | 6 | 2007- | ABCDE F | MSX10W/PL WASHER | ||
| 31 | I8-98376 763-0 | COVER; DUST.FRT BRAKE | 1 | 2007- | D E F | (B) | ||
| 16 | I0-36410 616-0 | SCREW; DRUM TO HUB | 2 | 2007- | D E F | M6X16 CK-HEAD | ||
| 6 | I8-97509 779-0 | WASHER; LK,FRT HUB | 2 | 2007- | D E F | |||
| 15 | I8-97944 831-1 | PIN; WHEEL.FRT AXLE | 12 | 2007- | ABC | HIGH RIDE SUSPENSION(7YC) M12X42.5 RH THREAD |
