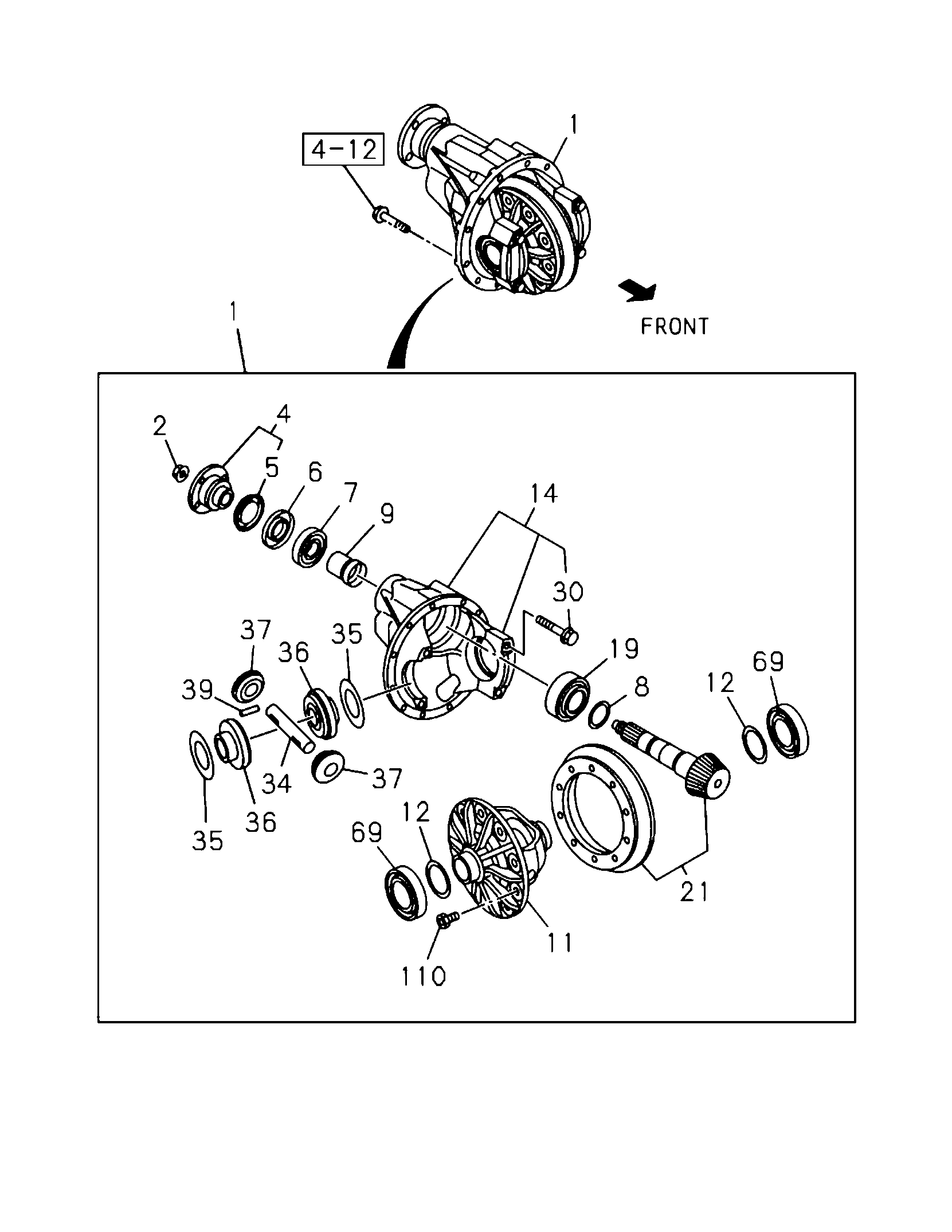

4-15 | 4-15 - FRONT FINAL DRIVE
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 8 | I9-41519 166-1 | SHIM; PINION,FINAL DRIVE | AR | 2007- | D E F | T=2.44 | ||
| 39 | I9-09878 096-0 | PIN; LK.CROSS PIN | 1 | 2007- | D E F | OD=5 L-35 | ||
| 2 | I8-94376 262-0 | NUT; FINAL DRIVE PINION | 1 | 2007- | D E F | M18 LOCK NUT | ||
| 8 | I9-41519 155-1 | SHIM; PINION,FINAL DRIVE | AR | 2007- | D E F | T=2.22 | ||
| 34 | I9-41521 044-1 | PIN; CROSS.DIFF PINION | 1 | 2007- | D E F | |||
| 8 | I9-41519 157-1 | SHIM; PINION,FINAL DRIVE | AR | 2007- | D E F | T=2.26 | ||
| 21 | I8-98104 933-1 | GEAR SET; FINAL DRIVE,FRT | 1 | 2010- | E | FINAL GEAR RATIO 43/11 (GW1) 43/11 | ||
| 8 | I9-41519 162-1 | SHIM; PINION,FINAL DRIVE | AR | 2007- | D E F | T=2.36 | ||
| 21 | I8-98104 945-1 | GEAR SET; FINAL DRIVE.FRT | 1 | 2007-2009 | D E F | FINAL GEAR RATIO 41 /10(GTS) 41/10 | ||
| 8 | I9-41519 159-1 | SHIM; PINION,FINAL DRIVE | AR | 2007- | D E F | T=2.3D | ||
| 1 | I8-97481 628-0 | DRIVE ASM; FINAL,FRT | 1 | 2007-2009 | E | FINAL GEAR RATIO 43/11 (GW1) 43/11 | ||
| 35 | I5-41562 007-1 | WASHER; THRUST,SIDE GEAR | 2 | 2007- | D E F | T=1.10 | ||
| 14 | I8-98104 910-2 | CARRIER ASM; FINAL DRIVE.FRT AXLE | 1 | 2007- | D E F | |||
| 8 | I9-41519 158-1 | SHIM; PINION,FINAL DRIVE | AR | 2007- | D E F | T=2.28 | ||
| 37 | I6-97079 518-0 | GEAR; PINION DIFF | 2 | 2007- | D E F | (IADG) Z=10 | ||
| 7 | I8-94472 100-1 | BEARING; PINION.OUTER | 1 | 2007- | D E F | JTEKT | ||
| 6 | I8-94318 520-2 | SEAL; OIL,FINAL PINION | 1 | 2007- | D E F | |||
| 5 | I8-94318 409-1 | COVER; DUST,PINION,FINAL DRIVE | 1 | 2007- | D E F | |||
| 4 | I8-94318 527-6 | COUPLING; FINAL DRIVE PINION | 1 | 2007- | D E F | |||
| 1 | I8-97481 628-0 | DRIVE ASM; FINAL,FRT | 1 | 2010- | E | FINAL GEAR RATIO 43/11 (GW1) 43/11 | ||
| 12 | I9-41519 111-0 | SHIM; FINAL PINION CAGE | AR | 2007- | D E F | T-0.15 | ||
| 30 | I8-94376 322-0 | BOLT; DIFFCAGE SETTING | 4 | 2007- | D E F | M12X62 | ||
| 110 | I8-97038 065-0 | BOLT; DIFF BOX | 10 | 2007- | D E F | M10X17 | ||
| 8 | I9-41519 160-1 | SHIM; PINION,FINAL DRIVE | AR | 2007- | D E F | T=2.32 | ||
| 35 | I5-41562 006-1 | WASHER; THRUST,SIDE GEAR | 2 | 2007- | D E F | T=1.05 | ||
| 36 | I8-97481 633-0 | GEAR; SIDE.DIFF | 2 | 2007- | D E F | |||
| 11 | I8-97481 632-1 | CAGE; FINAL PINION | 1 | 2007- | D E F | |||
| 8 | I9-41519 169-1 | SHIM; PINION,FINAL DRIVE | AR | 2007- | D E F | T=2.50 | ||
| 37 | I8-97079 518-0 | GEAR; PINION DIFF | 2 | 2007- | D E F | Z=10 | ||
| 8 | I9-41519 168-1 | SHIM; PINION,FINAL DRIVE | AR | 2007- | D E F | T=2.48 | ||
| 12 | I8-97130 387-0 | SHIM; FINAL PINION CAGE | AR | 2007- | D E F | T=0.50 | ||
| 8 | I9-41519 163-1 | SHIM; PINION,FINAL DRIVE | AR | 2007- | D E F | T=2.38 | ||
| 8 | I9-41519 165-1 | SHIM; PINION,FINAL DRIVE | AR | 2007- | D E F | T=2.42 | ||
| 1 | I8-97481 629-0 | DRIVE ASM; FINAL,FRT | 1 | 2010- | D E F | FINAL GEAR RATIO 41 /10(GT5) 41/10 | ||
| 21 | I8-98104 933-1 | GEAR SET; FINAL DRIVE,FRT | 1 | 2007-2009 | E | FINAL GEAR RATIO 43/11 [GW1) 43/11 | ||
| 8 | I9-41519 153-1 | SHIM; PINION,FINAL DRIVE | AR | 2007- | D E F | T=2.18 | ||
| 8 | I9-41519 167-1 | SHIM; PINION,FINAL DRIVE | AR | 2007- | D E F | T=2.46 | ||
| 8 | I9-41519 154-1 | SHIM; PINION,FINAL DRIVE | AR | 2007- | D E F | T=2.2D | ||
| 35 | I5-41562 005-1 | WASHER; THRUST,SIDE GEAR | 2 | 2007- | D E F | T=1.00 | ||
| 9 | I8-94472 118-0 | COLLAR; DIST.PINION | 1 | 2007- | D E F | |||
| 8 | I9-41519 156-1 | SHIM; PINION,FINAL DRIVE | AR | 2007- | D E F | T=2.24 | ||
| 1 | I8-97481 629-0 | DRIVE ASM; FINAL,FRT | 1 | 2007-2009 | D E F | FINAL GEAR RATIO 41 /10(GTS) 41/10 | ||
| 12 | I8-97130 386-0 | SHIM; FINAL PINION CAGE | AR | 2007- | D E F | T=0.10 | ||
| 8 | I9-41519 171-1 | SHIM; PINION,FINAL DRIVE | AR | 2007- | D E F | T=2.54 | ||
| 21 | I8-98104 945-1 | GEAR SET; FINAL DRIVE.FRT | 1 | 2010- | D E F | FINAL GEAR RATIO 41 /10(GT5) 41/10 | ||
| 8 | I9-41519 161-1 | SHIM; PINION,FINAL DRIVE | AR | 2007- | D E F | T=2.34 | ||
| 8 | I9-41519 172-1 | SHIM; PINION,FINAL DRIVE | AR | 2007- | D E F | T=2.56 | ||
| 12 | I9-41519 109-0 | SHIM; FINAL PINION CAGE | AR | 2007- | D E F | T=0.24 | ||
| 8 | I9-41519 164-1 | SHIM; PINION,FINAL DRIVE | AR | 2007- | D E F | T=2.40 | ||
| 8 | I9-41519 170-1 | SHIM; PINION,FINAL DRIVE | AR | 2007- | D E F | T=2.52 |
