4-36 | 4-36 - POWER STEERING CONTROL; ENGINE SIDE
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

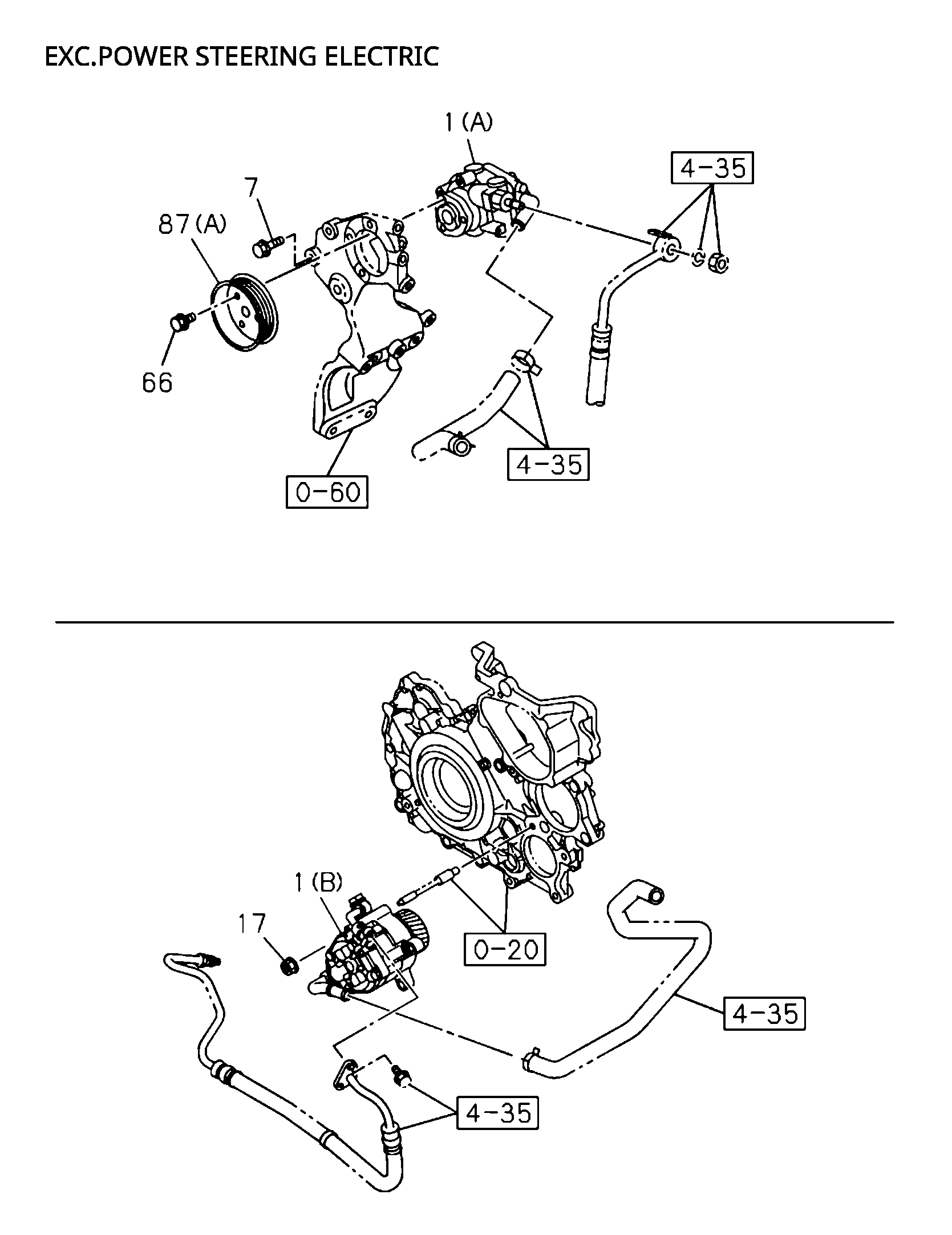

| 1 | I8-97824 300-1 | PUMP ASM; OIL,P/S | 1 | 2007- | ABCDE F | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) EXC. POWER STEERING ELECTRIC<NV9> SEE FIG-NO 4-42 FOR COMPONENT. (A) | ||

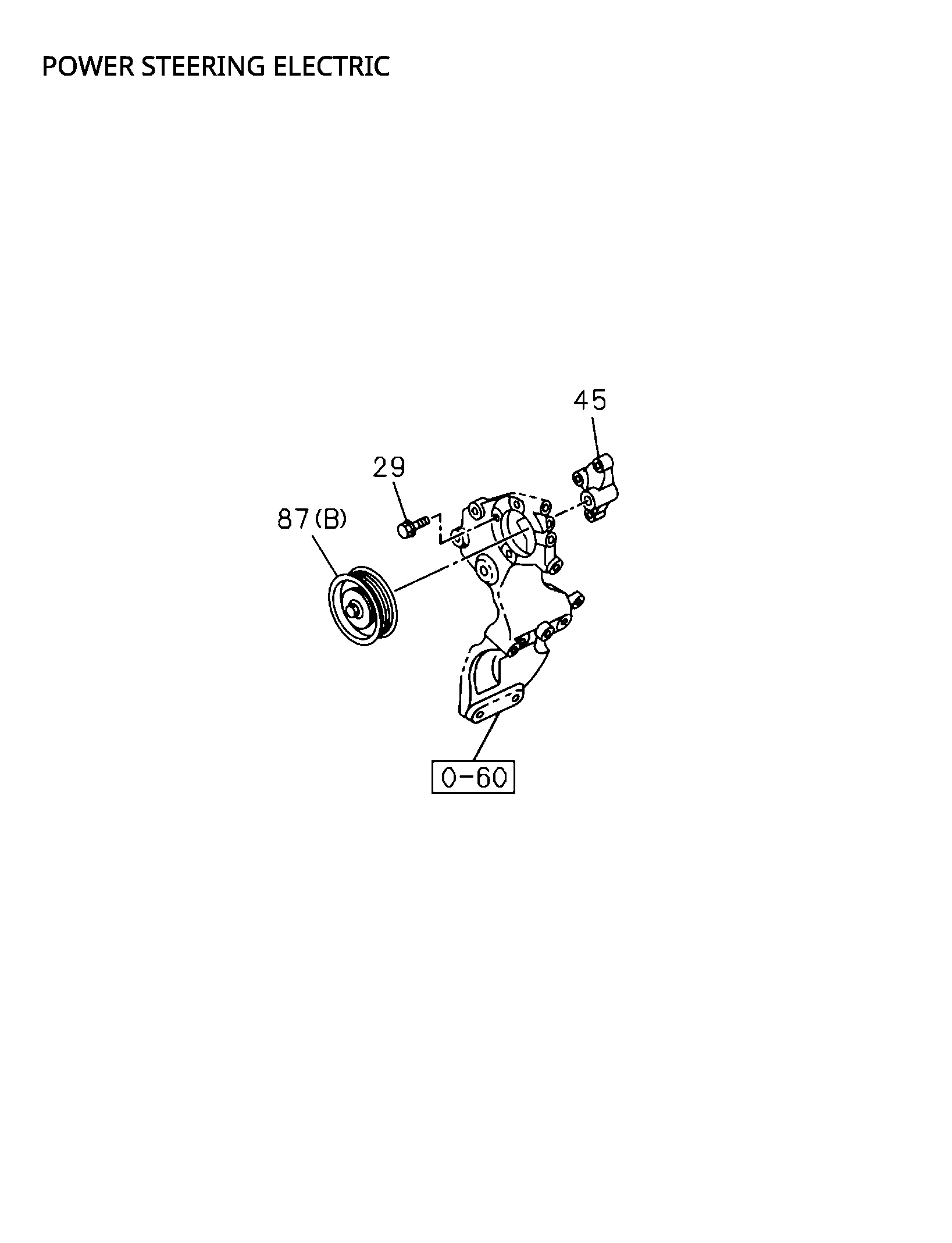

| 29 | I0-28050 830-0 | BOLT; BRKT.POWER STRG | 3 | 2007- | B D F | RZ4E-TCX HI-POWER ENG(LNC) POWER STEERING ELECTRIC<NV9> M8X30 FLANGE | ||
| 87 | I8-98383 519-0 | PULLEY; P/S PUMP | 1 | 2007- | ABCDE F | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) EXC. POWER STEERING ELECTRIC<NV9> (A) | ||
| 7 | I0-28050 830-0 | BOLT; OIL PUMP.P/S | 3 | 2007- | ABCDE F | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) EXC. POWER STEERING ELECTRIC<NV9> M8X30 FLANGE | ||
| 17 | I0-91180 208-0 | NUT; POWER STRG PUMP | 3 | 2007- | ABCDE F | 4JJ3 ENG(LNG) M8 FLANGE |
