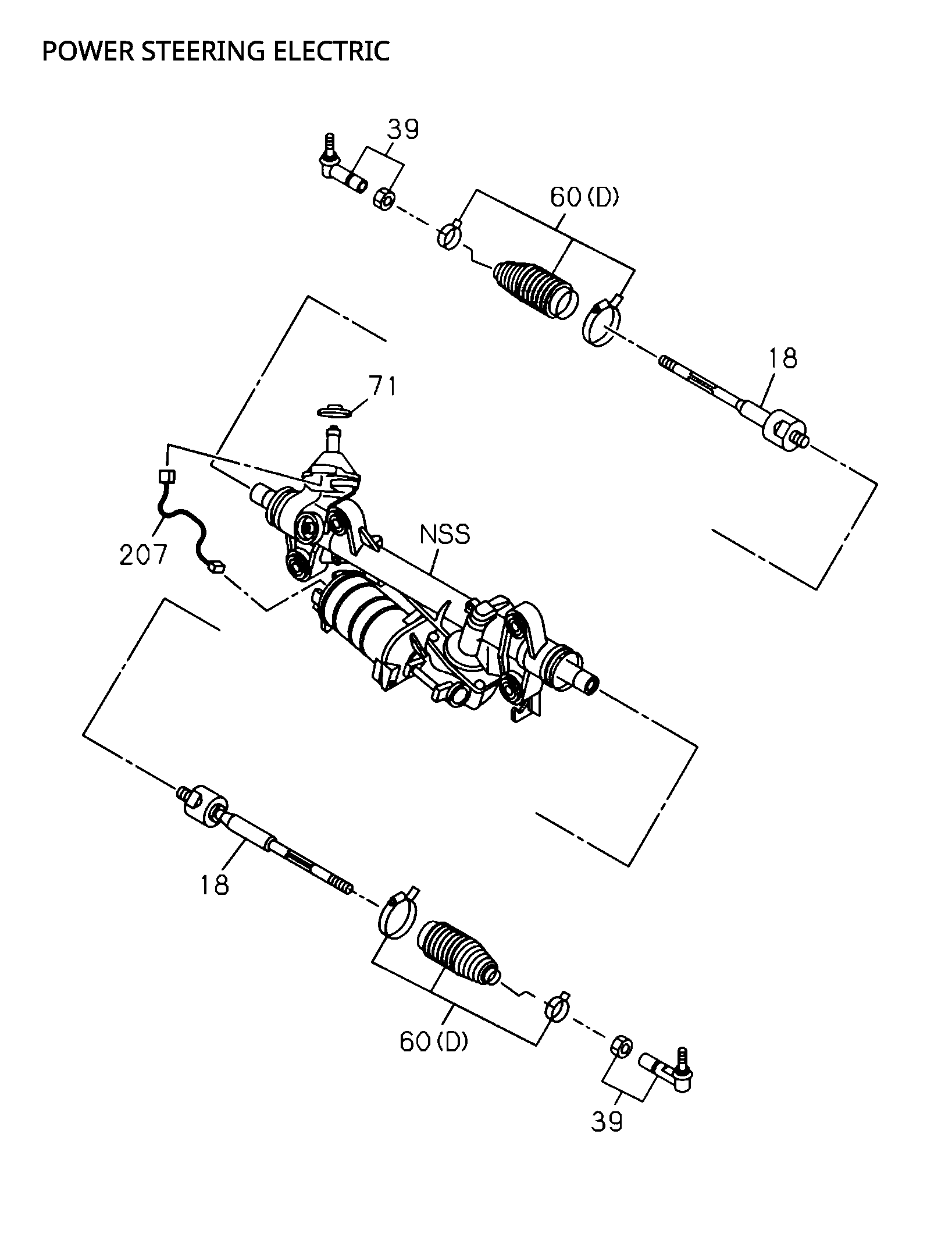

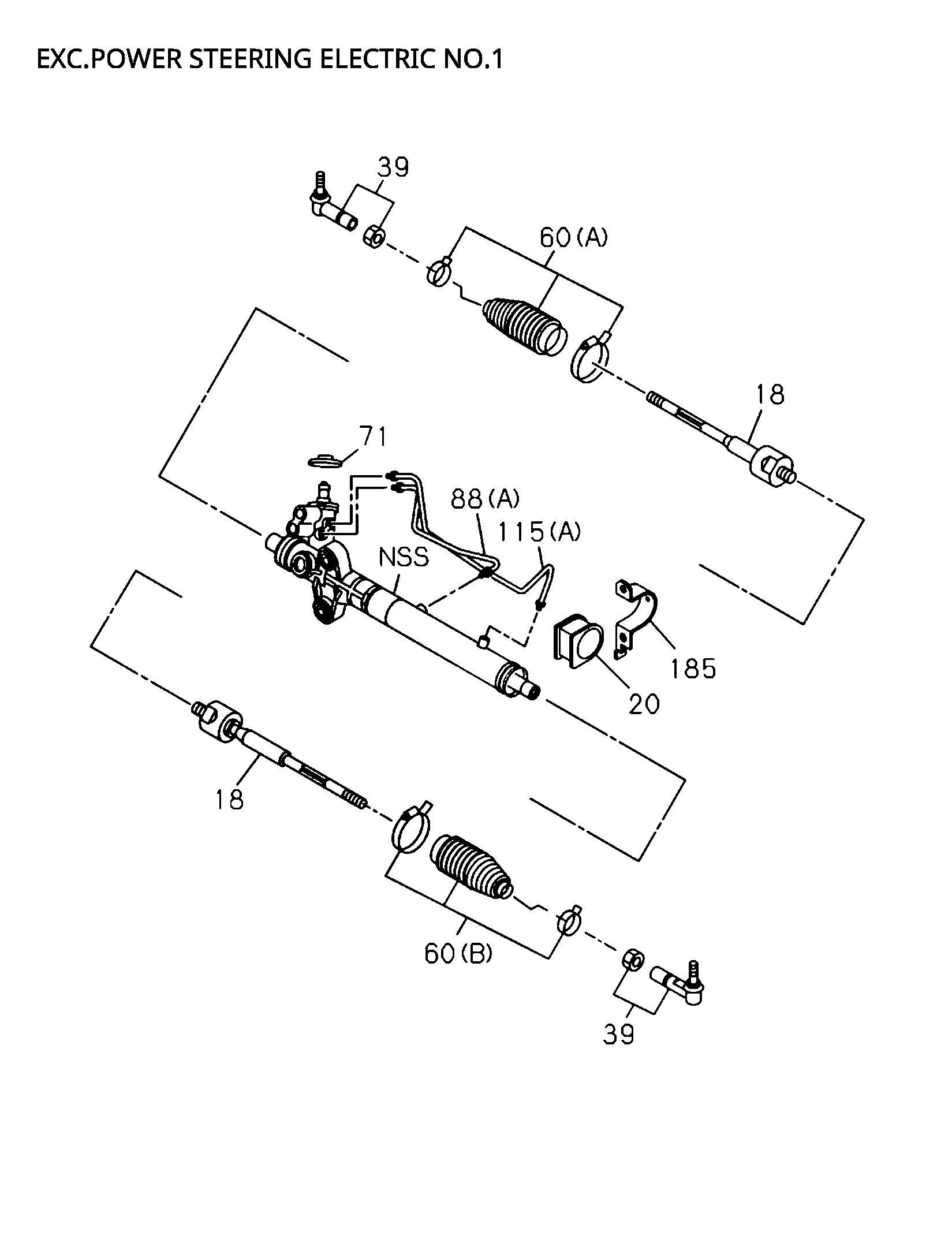

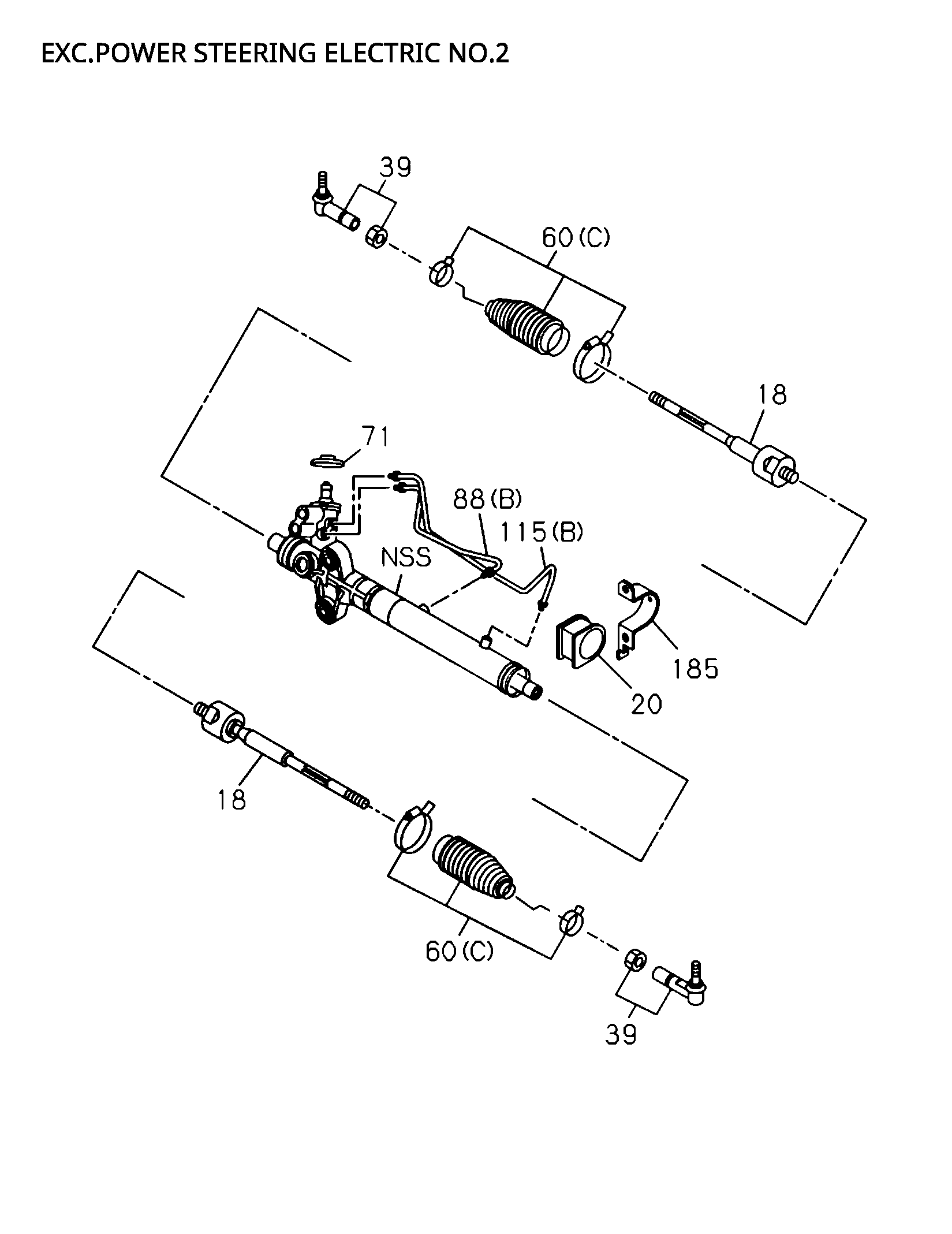

4-40 | 4-40 - STEERING UNIT
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 18 | I8-97503 139-0 | ROD ASM; INNER | 2 | B | ASM PART B=8-98394-876-3 | |||
| 39 | I8-98056 551-0 | ROD END ASM; OUTER | 2 | B | ASM PART B=8-98394-876-3 | |||
| 71 | I8-98164 972-0 | COVER; DUST.STRG UNn" | 1 | B | ASM PART B=8-98394-876-3 | |||
| 18 | I8-97503 139-0 | ROD ASM; INNER | 2 | B | ASM PART B=8-98394-876-3 | |||
| 185 | I8-97503 134-0 | BRACKET; P/S | 1 | B | ASM PART B=8-98394-876-3 | |||
| 20 | I8-97503 135-0 | RUBBER; MTG | 1 | B | ASM PART B=8-98394-876-3 | |||
| 18 | I8-97503 139-0 | ROD ASM; INNER | 2 | B | ASM PART B=8-98394-876-3 | |||
| 115 | I8-97503 137-0 | PIPE; HSGTOVLV | 1 | B | (B) ASM PART B=8-98394-876-3 | |||
| 39 | I8-98056 551-0 | ROD END ASM; OUTER | 2 | B | ASM PART B=8-98394-876-3 | |||
| 20 | I8-97503 135-0 | RUBBER; MTG | 1 | B | ASM PART B=8-98394-876-3 | |||
| 71 | I8-98164 972-0 | COVER; DUST.STRG UNn" | 1 | B | ASM PART B=8-98394-876-3 | |||
| 39 | I8-98056 551-0 | ROD END ASM; OUTER | 2 | B | ASM PART B=8-98394-876-3 | |||
| 185 | I8-97503 134-0 | BRACKET; P/S | 1 | B | ASM PART B=8-98394-876-3 | |||
| 88 | I8-97503 138-0 | PIPE; HSGTOVLV | 1 | B | (B) ASM PART B=8-98394-876-3 | |||
| 71 | I8-98164 972-0 | COVER; DUST,STRG UNn" | 1 | B | ASM PART B=8-98394-876-3 | |||
| 60 | I8-97945 423-1 | BOOT KIT; STRG HSG | 2 | B | (C) ASM PART B=8-98394-876-3 |
